SK20 20mm Linear Bearing Shaft Support – Slide Rail Guide Blocks for CNC & 3D Printer

SK20 20mm Linear Bearing Shaft Support – Slide Rail Guide Blocks for CNC & 3D Printer

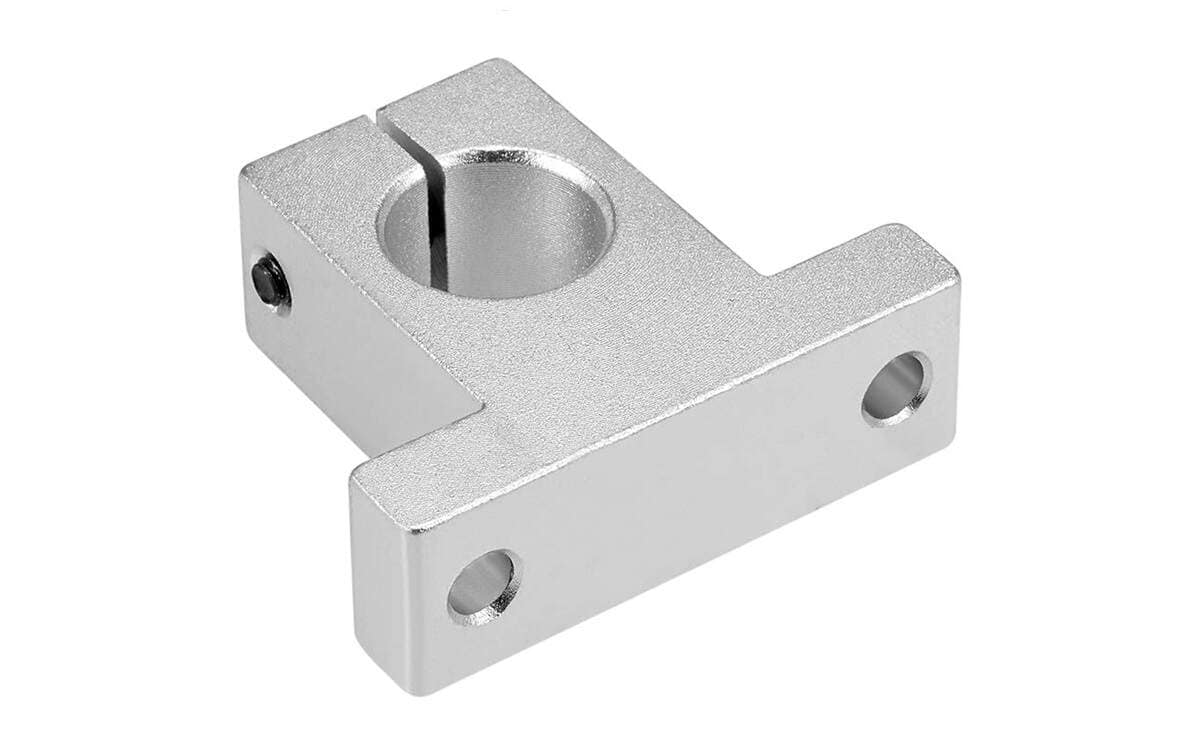

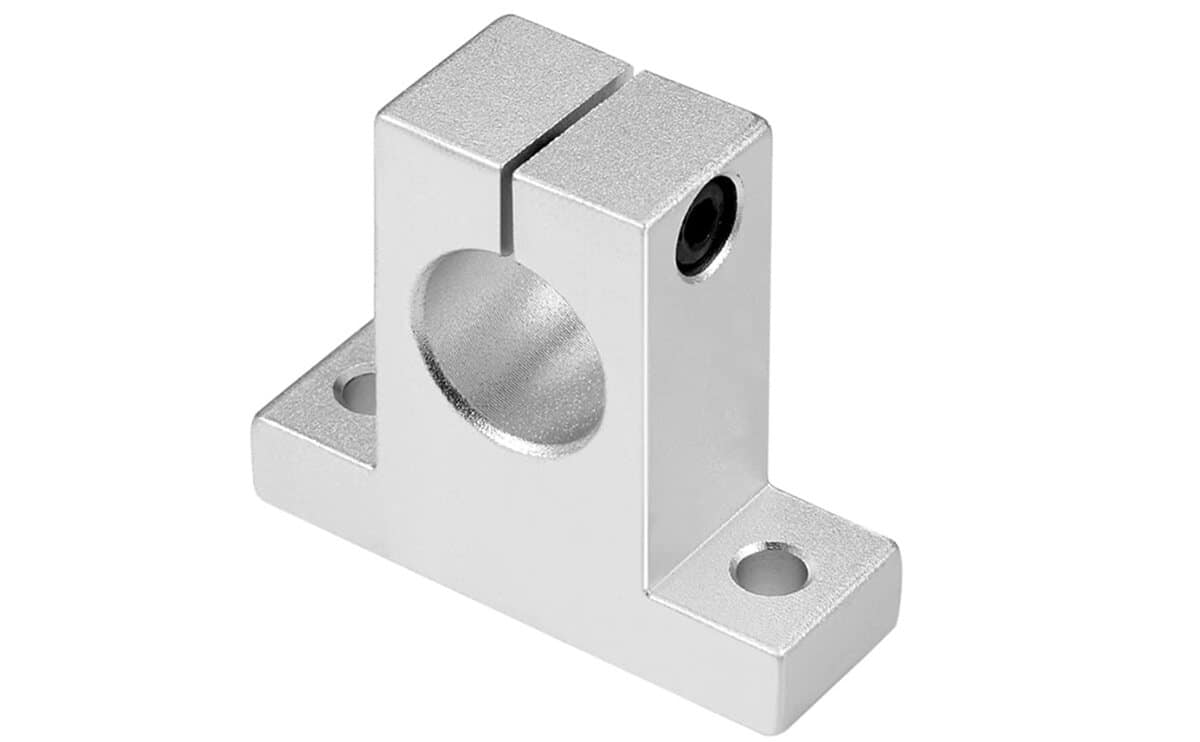

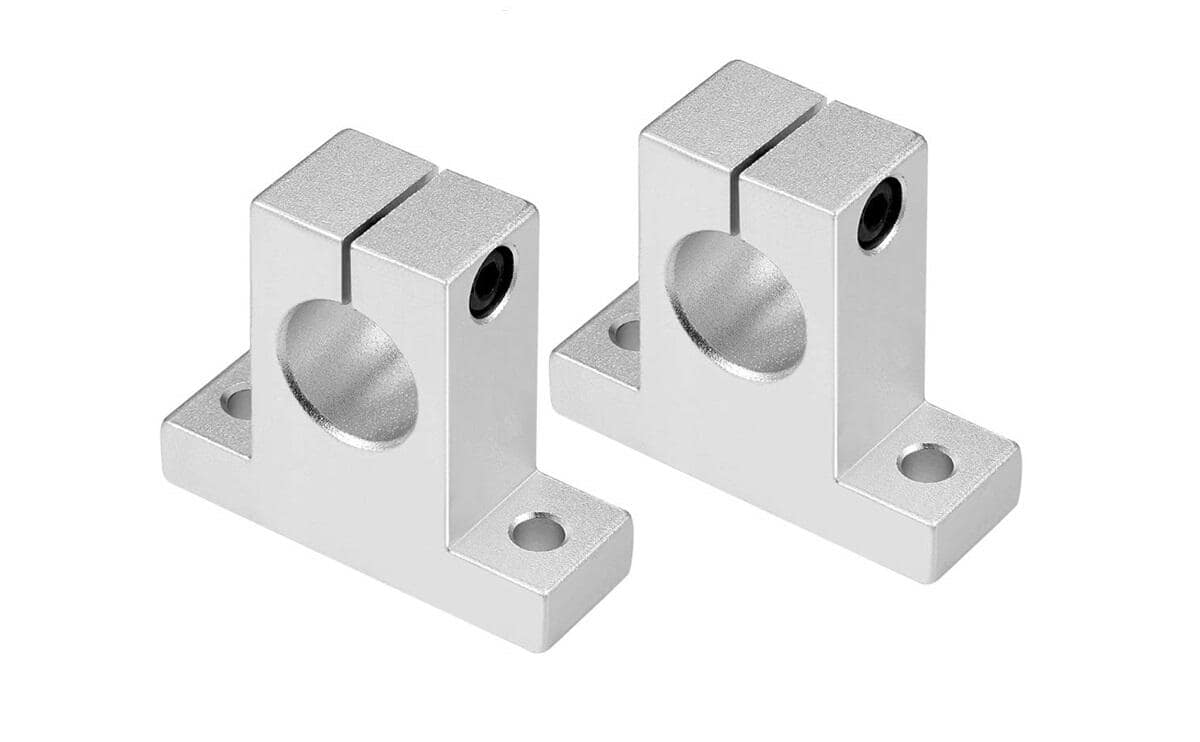

The SK20 20mm Linear Bearing Shaft Support is a high-quality linear motion bearing block designed to provide stable and precise alignment for 20mm linear shafts in CNC machines, 3D printers, robotics, and industrial automation.

• Constructed from high-strength aluminum alloy with a smooth anodized finish, this linear bearing support ensures durability, corrosion resistance, and long-lasting performance.
• Compatible with 20mm linear rods, the SK20 linear bearing shaft support is ideal for applications requiring accurate X/Y/Z axis movement. Its robust design allows it to handle radial and axial loads, providing enhanced stability and smooth linear motion.

Features

• Supports 20mm Linear Shafts: Provides stable and precise shaft alignment for smooth operation.
• Robotics Linear Bearing Guide Block: Ideal for robotics, automation systems, and DIY linear motion projects.
• High-Strength Aluminum Alloy: Lightweight, durable, and corrosion-resistant.
• Easy Installation: Pre-drilled holes for secure mounting and quick setup.
• Enhanced Stability & Smooth Motion: Reduces vibration and ensures accurate linear guidance.
• Versatile Application: Suitable for CNC machines, 3D printers, laser engravers, and automation equipment.

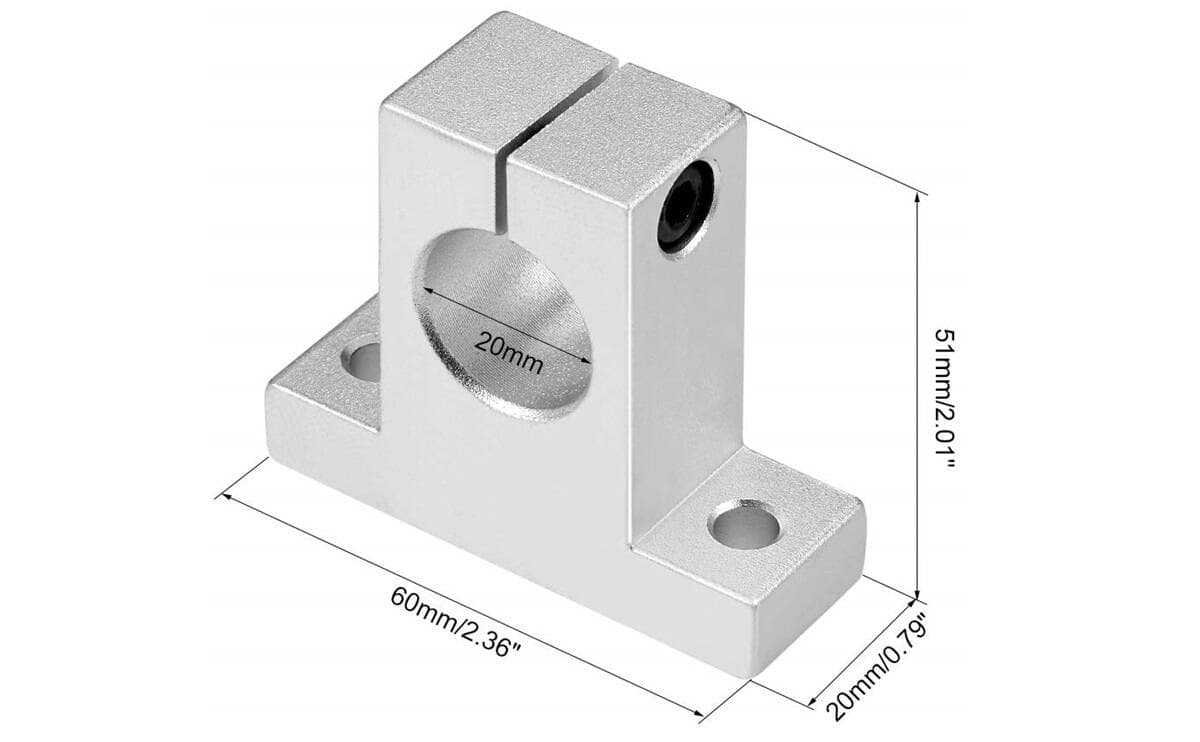

Specifications

• Model: SK20 Linear Bearing Shaft Support
• Material: High-strength aluminum alloy
• Inner Diameter: 20mm
• Mounting Type: Fixed with two bolt holes
• Surface Finish: Smooth anodized
• Compatibility: 20mm linear rods for CNC, 3D printers, and automation systems
• Installation: Pre-drilled holes for easy mounting

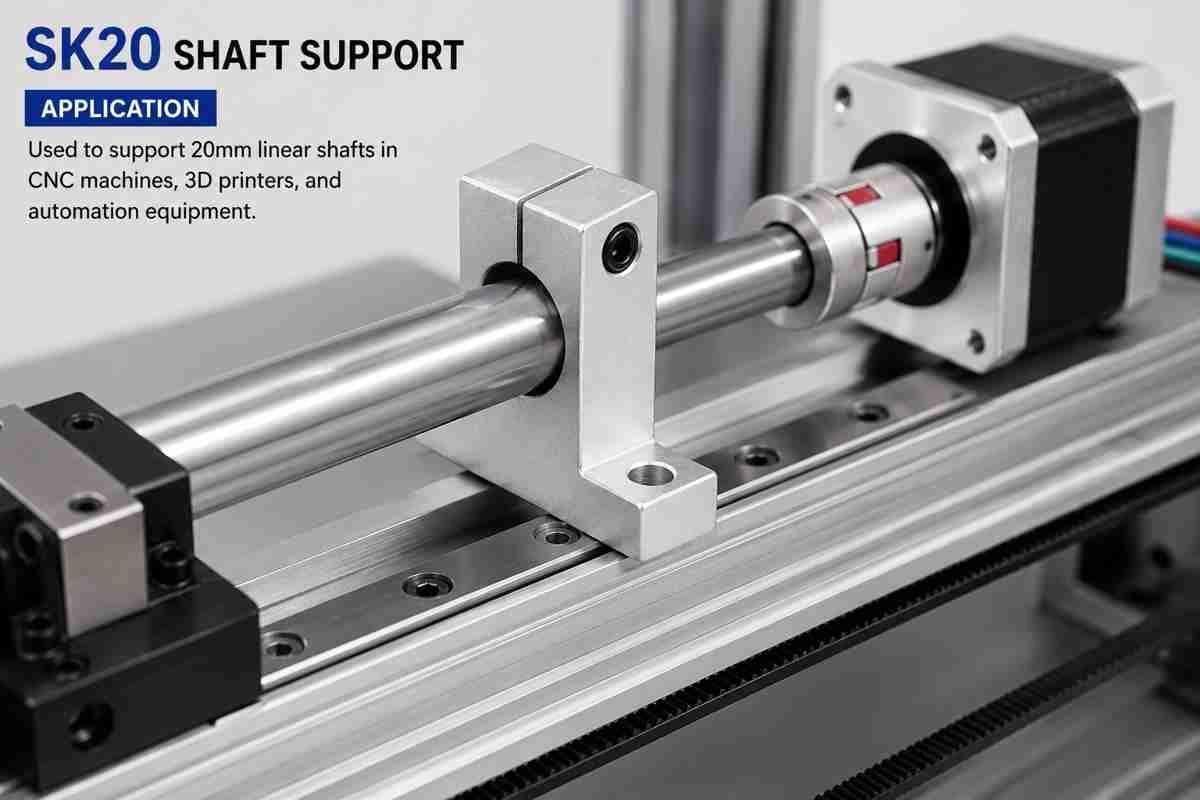

Applications

• CNC Machines: Guides cutting tools and workpieces with precision using linear bearing supports
• 3D Printers: Ensures stable and accurate movement of X/Y/Z axes using linear bearings
• Laser Engravers: Provides smooth linear motion for precise engraving
• Robotics: Serves as a linear bearing guide block for robotic arms and actuators
• Automation Equipment: Supports linear motion in industrial systems
• DIY Linear Motion Projects: Ideal for custom builds requiring linear bearings

Usage Instructions

1. Clean the 20mm shaft and mounting surface.
2. Position the SK20 linear bearing support block for proper movement.
3. Secure the support with bolts through pre-drilled holes.
4. Slide the linear shaft into the bearing support.
5. Tighten the clamping bolt to prevent misalignment.
6. Test for smooth, low-friction motion.

Package Includes

• 1 × SK20 20mm Linear Bearing Shaft Support (as per order)
