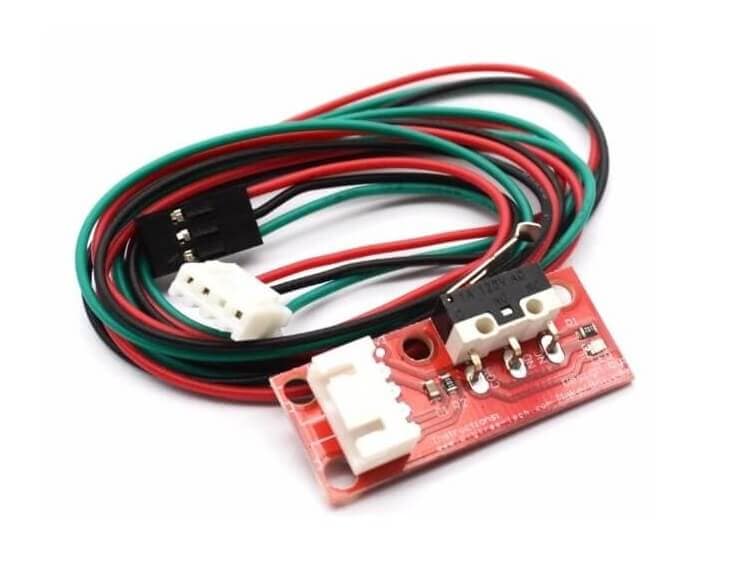

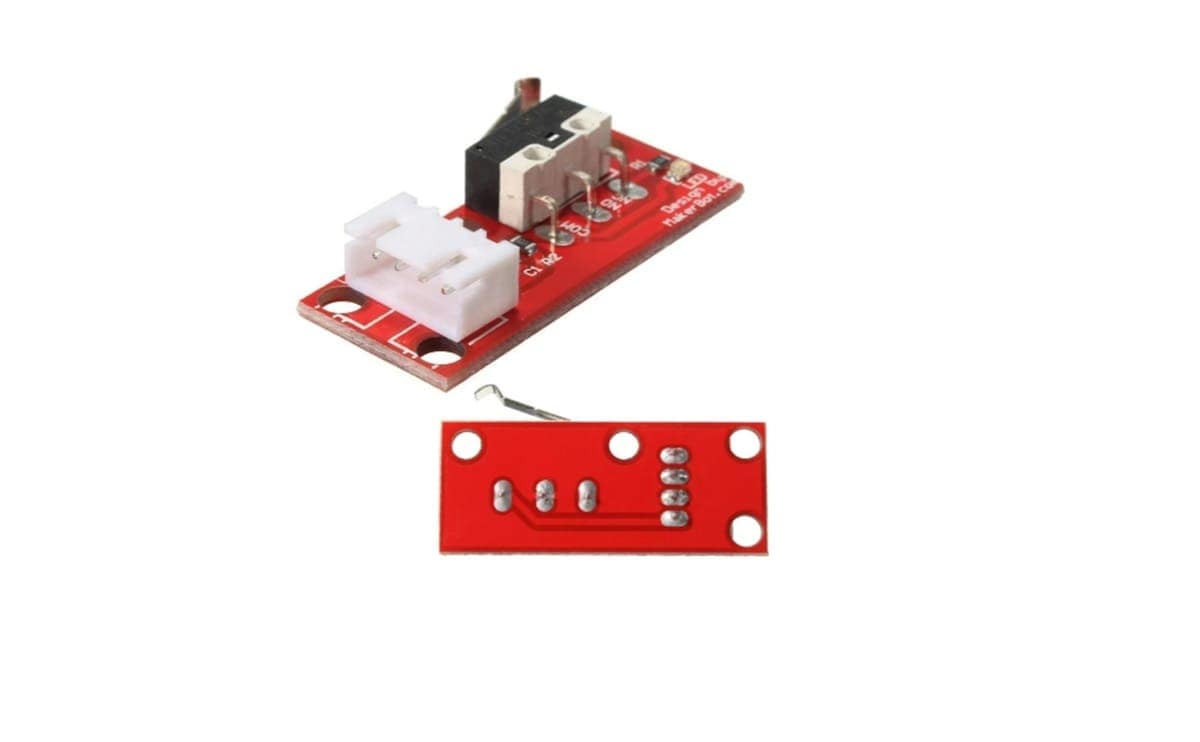

Mechanical Endstop Limit switch endstop with cable for 3d printer

Mechanical Endstop Limit switch endstop with cable for 3d printer

Specification

• The Mechanical Endstop Limit Switches is a crucial component for 3D printers, ensuring precise and accurate positioning. It is designed to detect the end of motion or limit the movement of a printer’s axis.
• This particular endstop comes with a cable for easy installation and connection.
  • Size: approx. 40 x 15 x 10mm/ 1.57″ x 0.59″ x 0.39″.

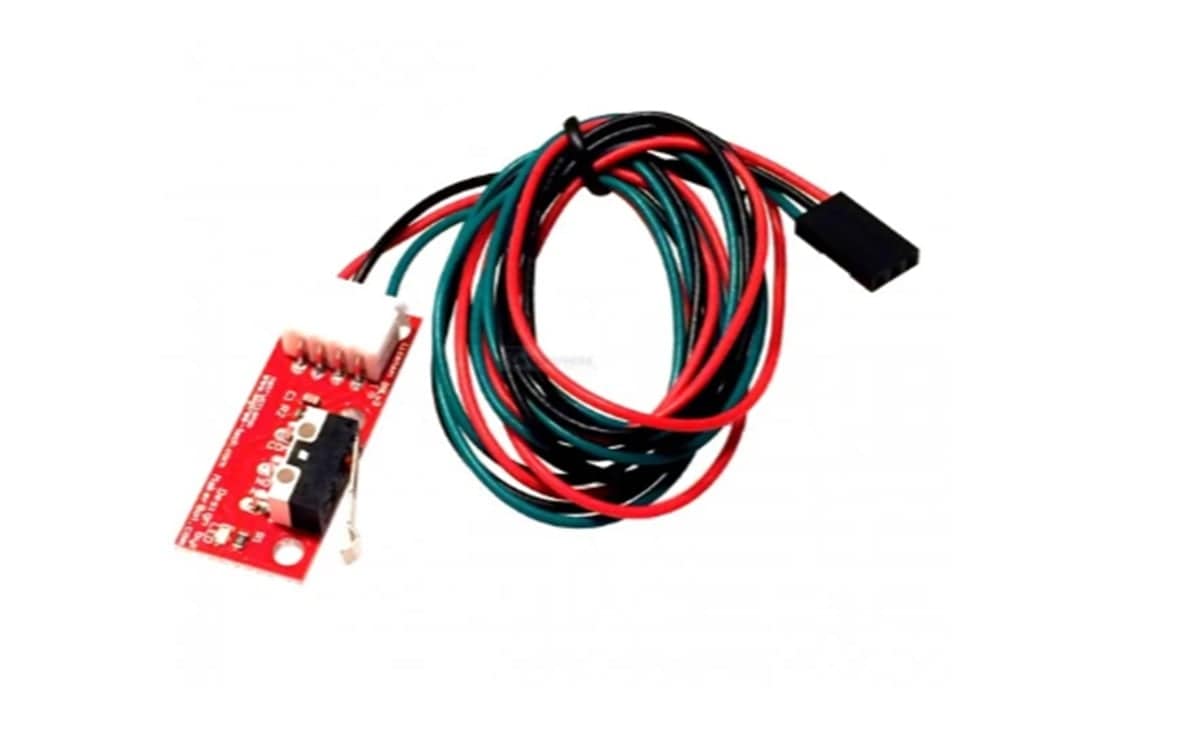

  • length of Cable: approx. 70cm/ 27.56″.
  • Connection: Red line connecting VCC (ramps of +) Black wire connecting GND (ramps of -) Green Line connecting SIGNAL (ramps in s).

Application and Usage

• The Mechanical Endstop Switch is widely used in the 3D printing industry, serving as a reliable solution for controlling the movement of printer axes.
• It ensures that the printer’s extruder stops at the desired position, preventing any potential damage to the printer or the printed object. By accurately detecting the end of motion, it helps in achieving precise and repeatable prints.
• To install the Limit Switch, simply connect the included cable to the appropriate pins on your 3D printer’s control board. Follow the manufacturer’s instructions or consult the printer’s manual for specific guidance on the installation process.
• Once installed, It works by triggering a signal to the printer’s control board when the endstop is activated.
• This signal prompts the printer to stop the movement of the corresponding axis, ensuring accurate positioning and preventing any potential crashes or mishaps.
• Overall, It is an essential component for any 3D printer, providing reliable and precise control over the printer’s movement.
• Its compact size, easy installation, and compatibility with various printer models make it a popular choice among 3D printing enthusiasts and professionals.

Package Includes:

• 1 piece of Mechanical endstop with wire.
