Flexible coupling 5x8mm flexible shaft coupling for motor

10 reviews
Availability:

In stock


55.00

In stock

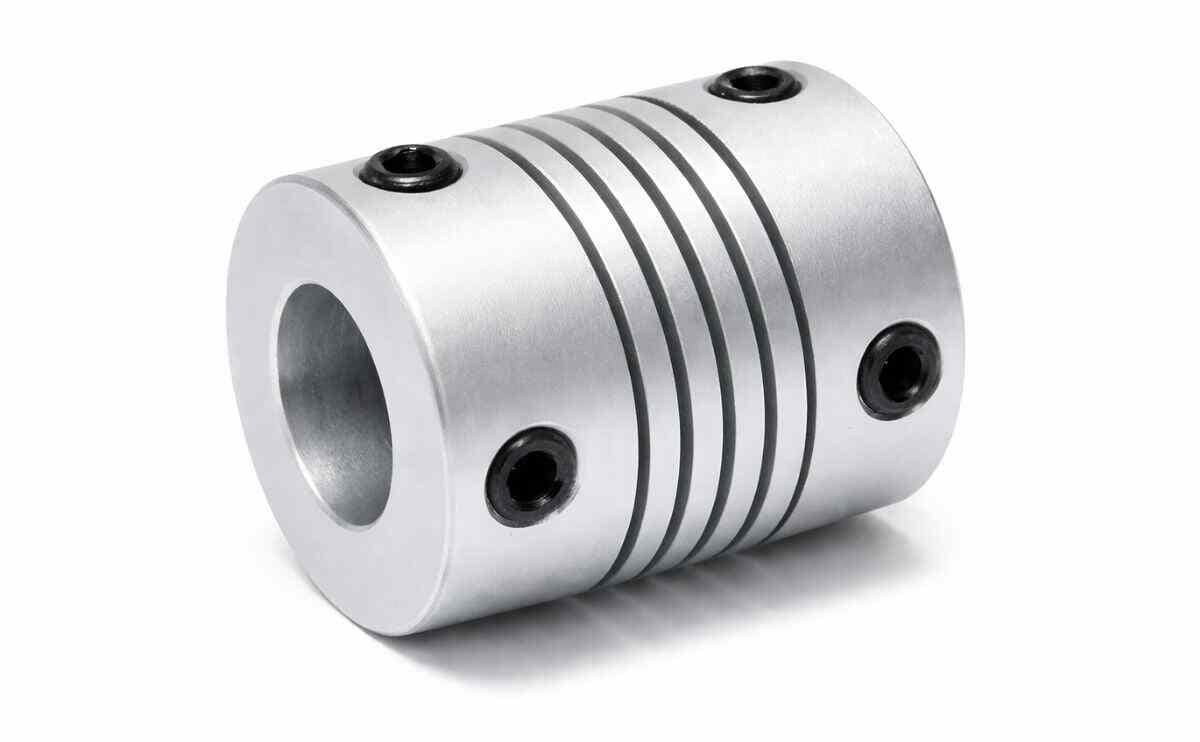

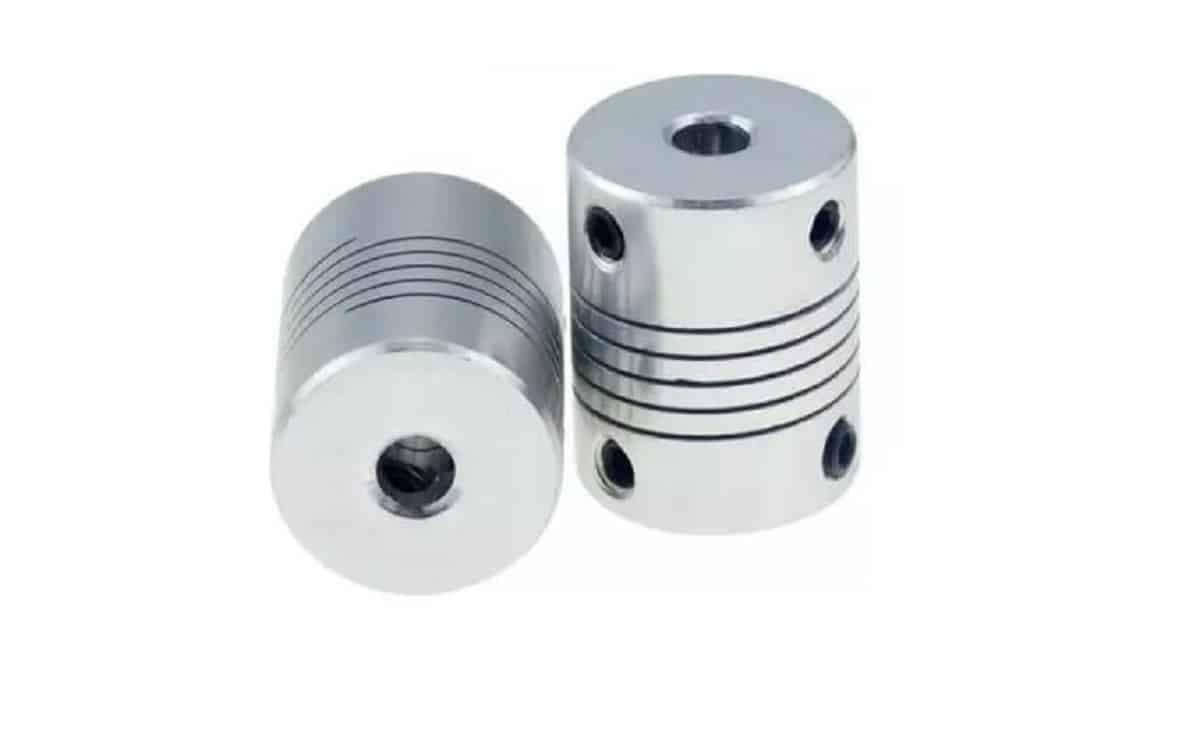

Flexible coupling 5x8mm flexible shaft coupling for motor

Flexible motor coupling 5mm to 8mm coupling shaft coupling for motor. Coupling & gears also helps in transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion.

  • Flexible coupling 5x8mm design also utilizes a single piece of material, which becomes flexible by removal of material along a spiral path which also resulting in a curved flexible beam of helical shape.
  • Flexible couplings are usually used to transmit torque from one shaft to another when the two shafts are slightly misaligned.
  • Flexible coupling 5x8mm can accommodate varying degrees of misalignment up to 1.5° and some parallel misalignment.
  • Flexible coupling 5x8mm can also be used for vibration damping or noise reduction.
  • Another advantage of being an all machined coupling is the possibility to incorporate features into the final product while still keep the single piece integrity.
  • Available in different sizes flexible coupling 5x10mm, flexible coupling 6.35x8mm, flexible coupling 8x10mm, flexible coupling 8x8mm.

Specifications:

  • Inner Diameter (ID): 5mm on one side
  • Inner Diameter (ID): 8mm on the other side
  • Material: Flexible couplings can be made of  aluminum.
  • Design: The design may include features such as set screws, clamps, or other mechanisms for securing the coupling to the shafts.
  • Flexibility: Flexible coupling 5x8mm is designed to provide flexibility to accommodate shaft misalignments while transmitting torque smoothly.

Applications:

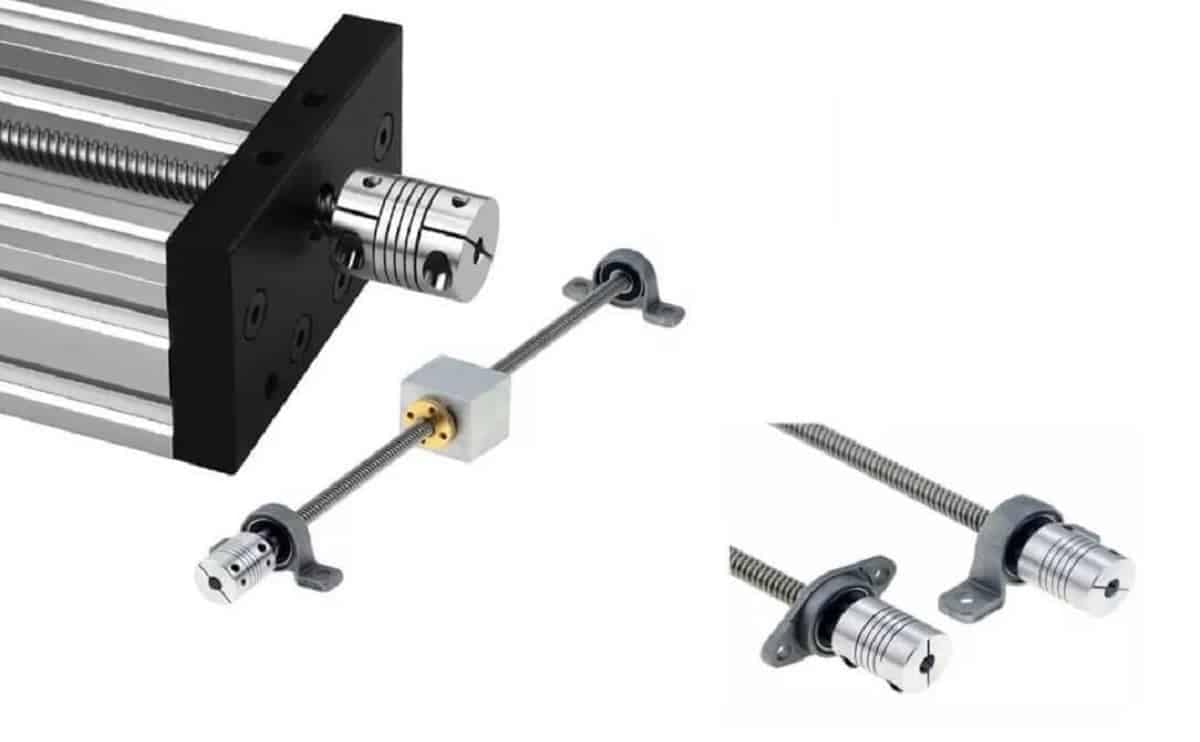

  • Motion Control Systems:Flexible couplings are commonly used in motion control systems, such as those in CNC machines, 3D printers, and robotics, where precise motion and misalignment compensation are crucial.
  • Stepper and Servo Motor Applications:Couplings play a vital role in connecting stepper or servo motors to various driven components, ensuring efficient torque transmission.
  • Power Transmission:They are used in power transmission systems to connect shafts in machinery and equipment, allowing for flexibility and compensating for misalignments.
  • Automation Systems:Flexible couplings find applications in various automated systems, including conveyor systems and assembly lines, to ensure smooth and reliable motion.
  • Mechanical Assemblies:They can be utilized in a wide range of mechanical assemblies, where connecting two shafts with different diameters is required.
  • Industrial Machinery:Flexible couplings are common components in industrial machinery, helping to isolate vibrations and reduce stress on connected components.
  • Pump and Compressor Systems:In pump and compressor systems, flexible couplings are used to connect the motor to the pump or compressor, accommodating misalignments and reducing the risk of damage.

Packages Include:

  • 1 piece Flexible coupling 5x8mm.
Weight 20 g
HSN Code

847790

Structure

Jaw / Spider

Flexible or Rigid

Flexible

Material

Aluminium

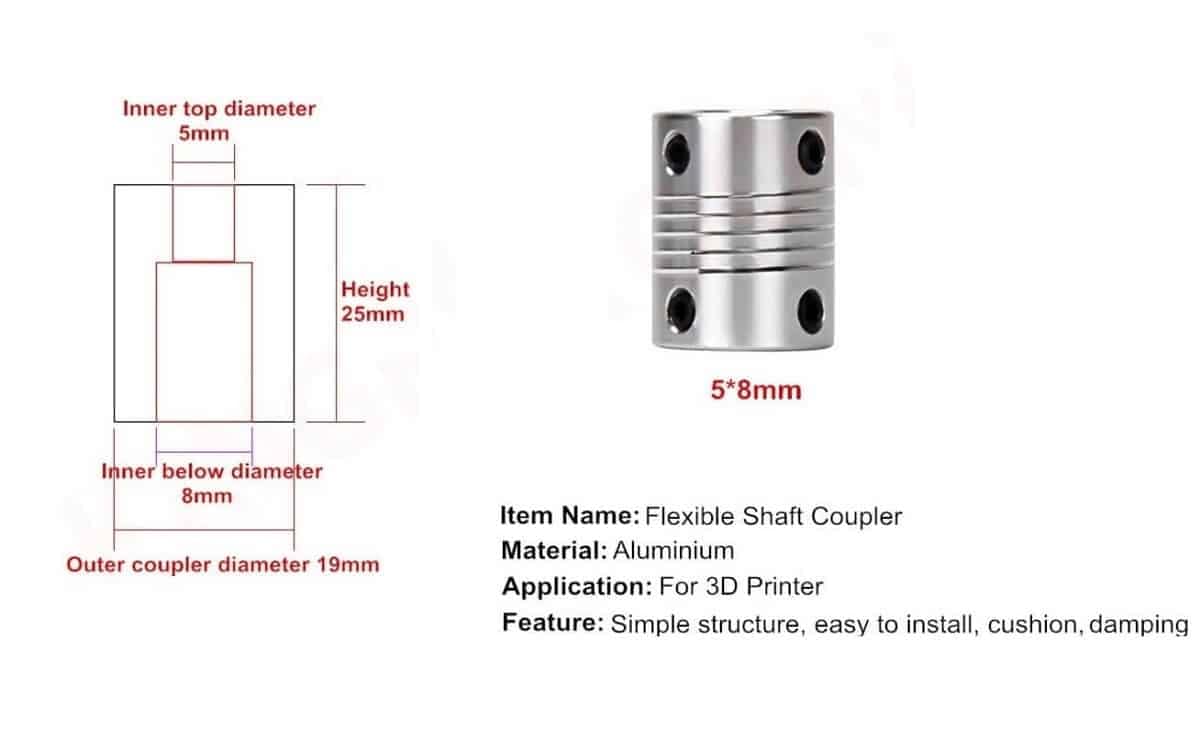

Height

25mm

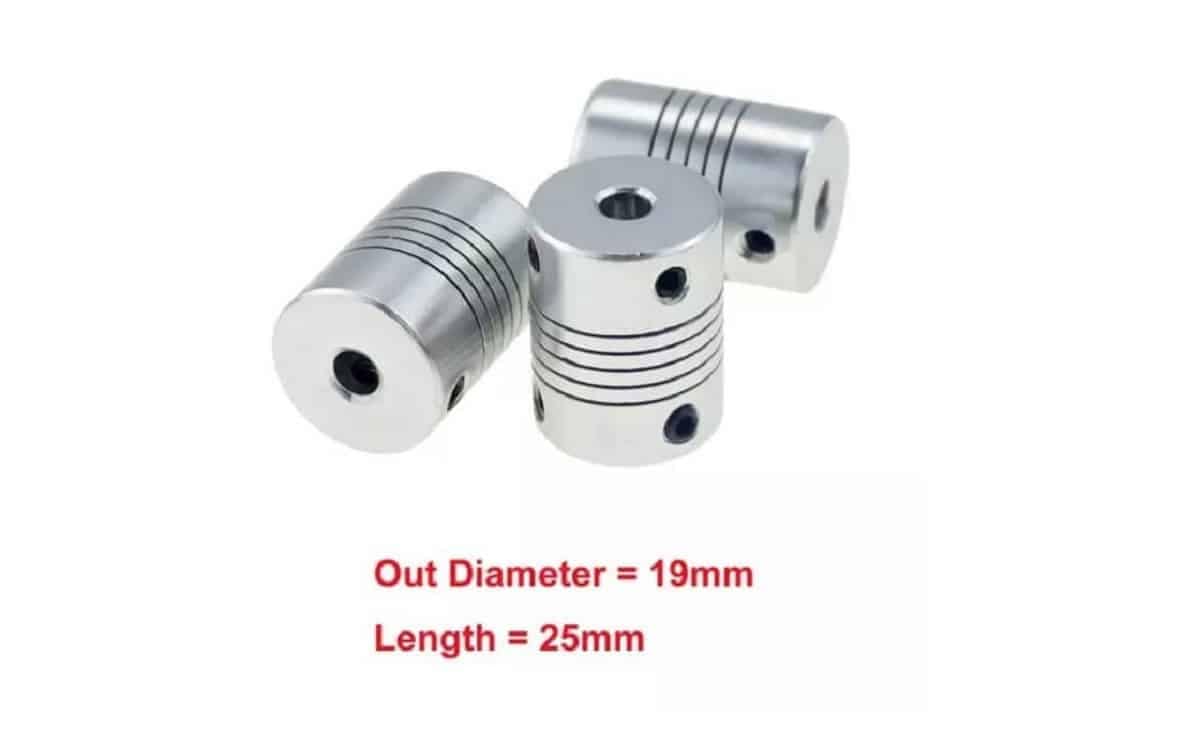

OUTER DIAMETER

19mm

Up inner diameter

5mm

Lower inner diameter

8mm

Type

5mm * 8mm, 6.35mm * 8mm, 5mm* 10mm, 8mm*10mm

10 reviews for Flexible coupling 5x8mm flexible shaft coupling for motor

Customer Images

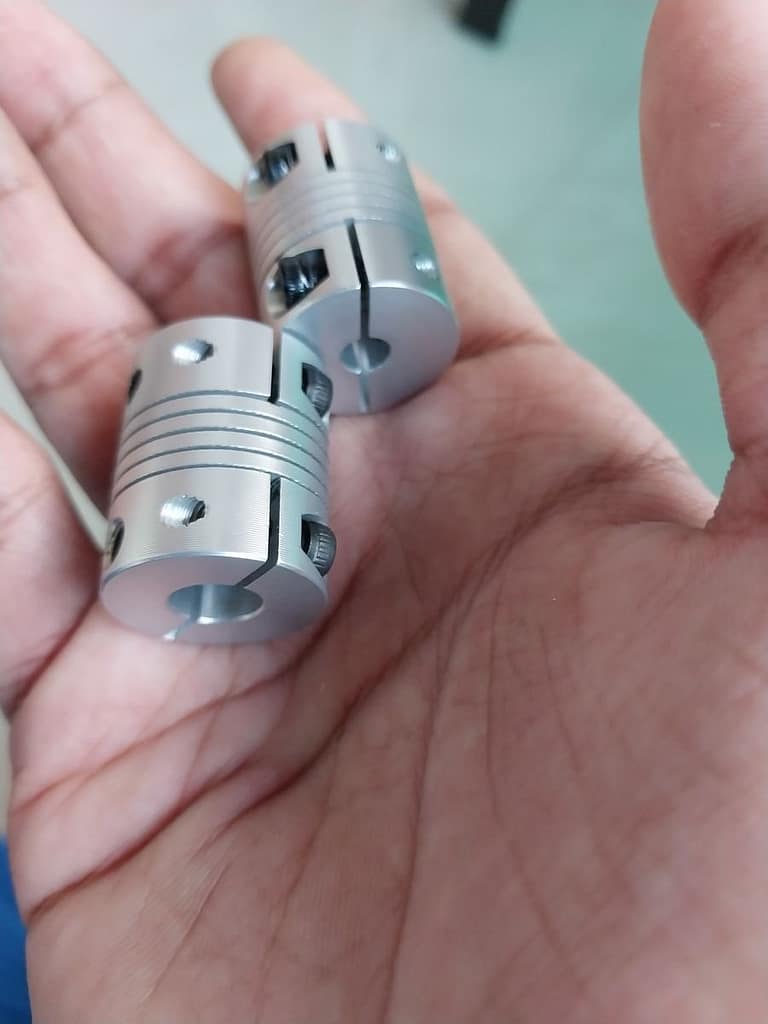

Image #1 from Nilesh Chari
