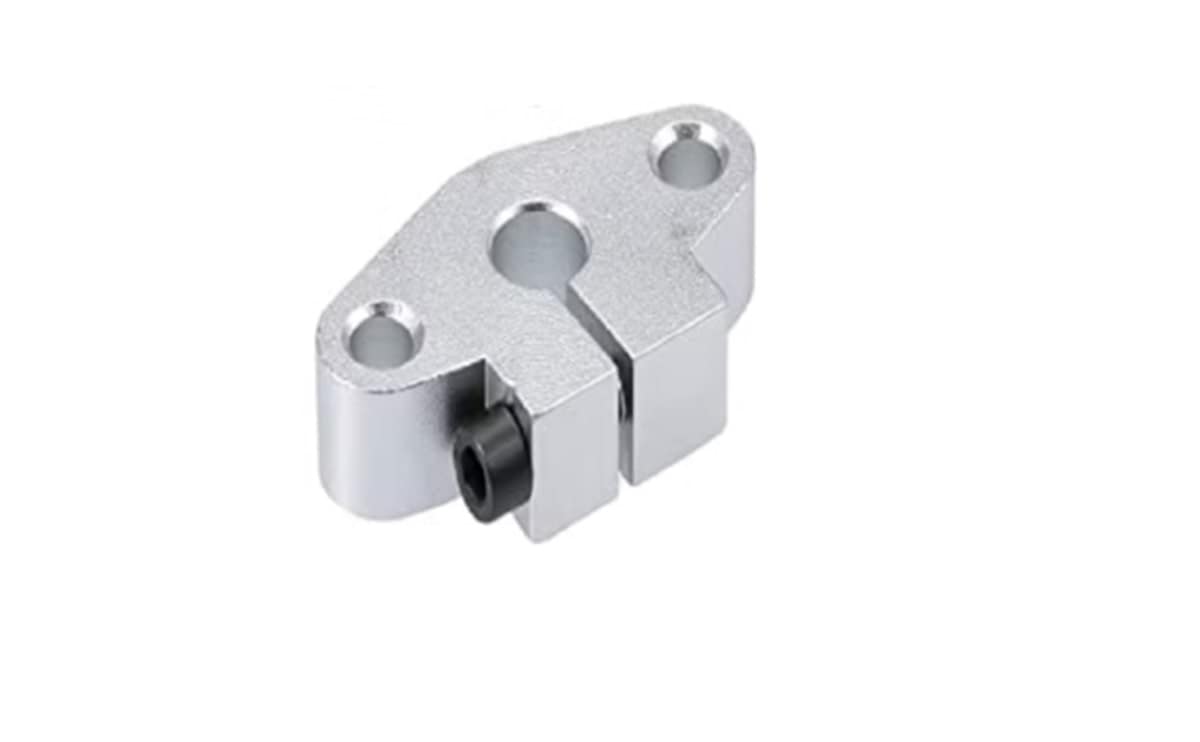

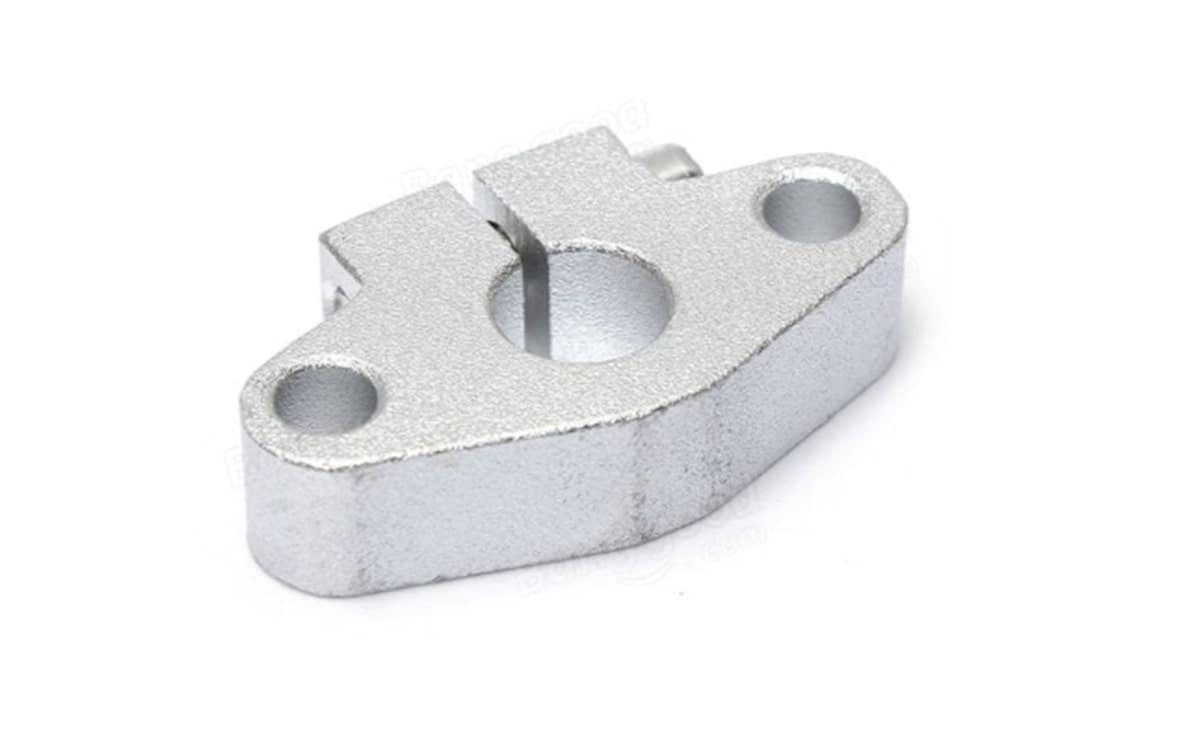

Shaft Support SHF8 8mm Horizontal Rail Support for 3D Printers

Shaft Support SHF8 8mm Horizontal Rail Support for 3D Printers

The Horizontal Shaft Support SHF8 is designed specifically for 3D printers, providing a secure and stable mounting solution for 8mm linear shafts.

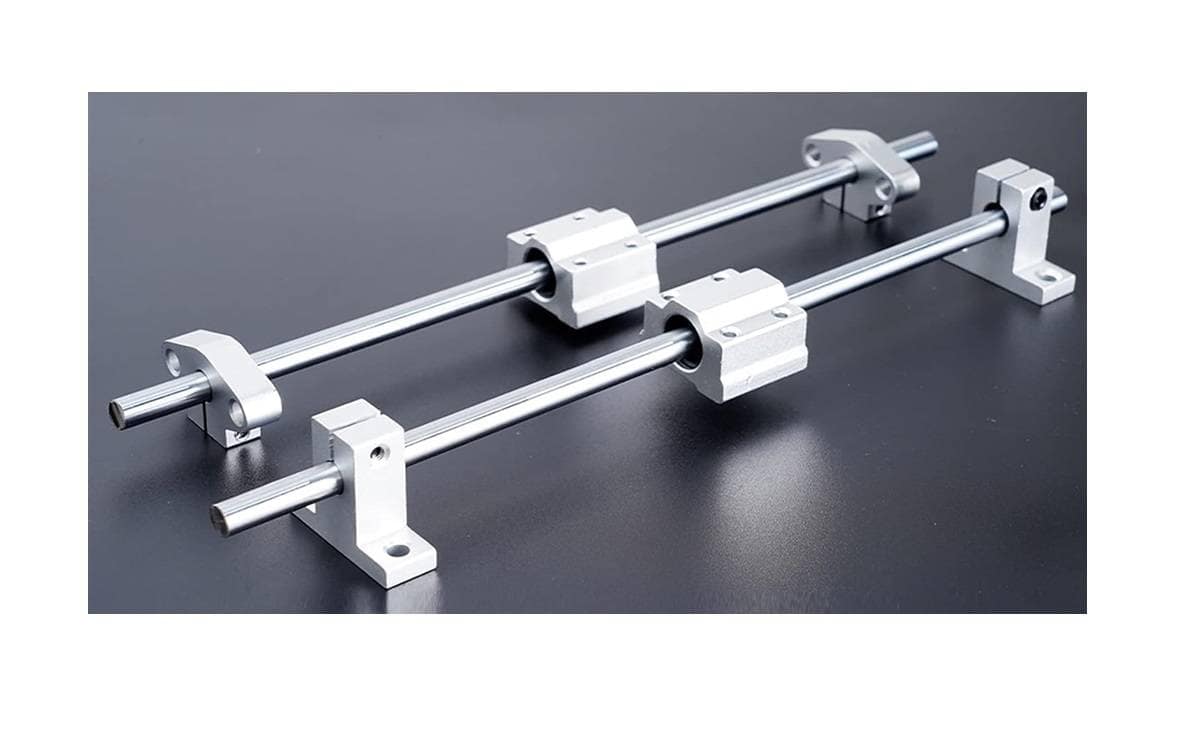

• Linear motion bearing support ensures smooth linear motion, reduces the need for non-standard parts, and is ideal for small-scale production, DIY projects, and scientific equipment.
• The SHF8 shaft holder enhances stability and precision during printing, allowing for accurate and reliable 3D prints. It is also compatible with other shaft support models such as SHF10 and SHF12, providing flexibility for different linear shaft diameters.

Features

• Smooth Linear Motion: Ensures precise and accurate movement of the 8mm shaft.
• Low Friction: High-quality steel construction minimizes resistance for efficient operation.
• Durable & Long-Lasting: Built to withstand continuous use, providing a reliable 3D printing experience.
• Easy Installation: Pre-drilled mounting holes simplify integration into 3D printer frames.
• Wide Compatibility: Works with SHF10 and SHF12 shaft supports for other shaft diameters.

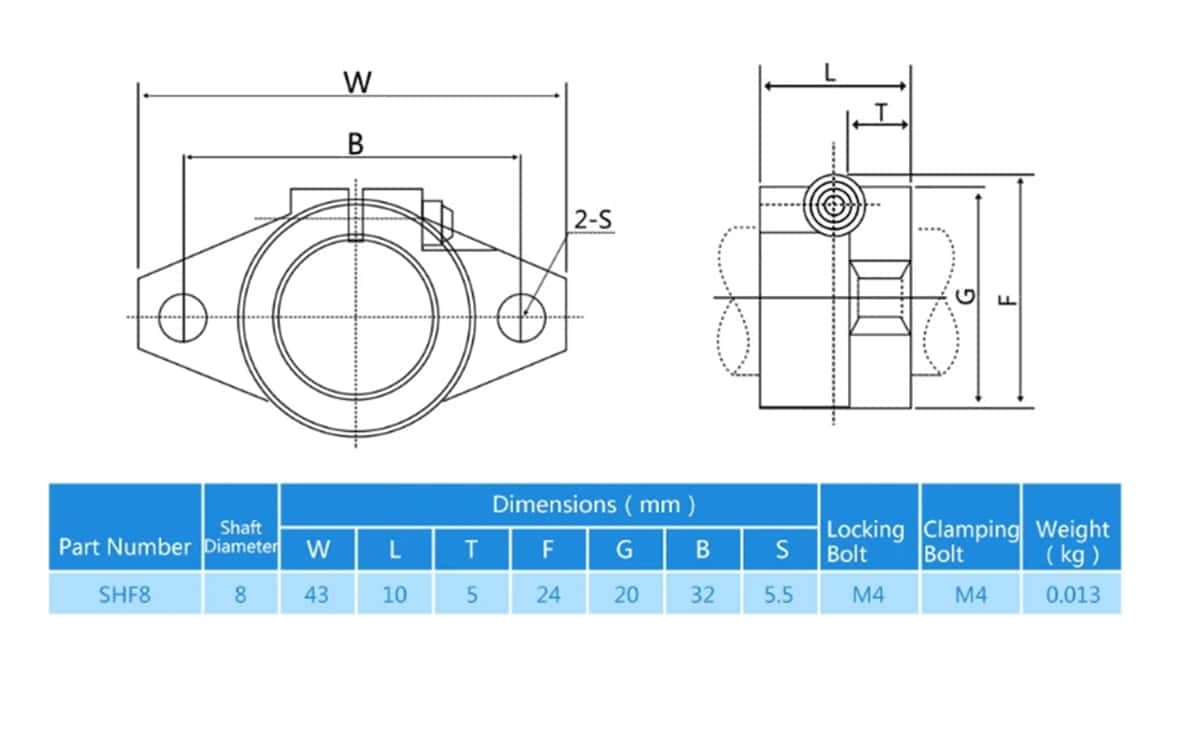

Specifications

• Model: SHF8
• Material: Steel
• Shaft Diameter: 8mm
• Total Size: 43 × 24 × 10 mm (L × W × H)
• Hole Diameter: 5.5mm
• Hole Center Spacing: 32mm

Applications

• 3D printer linear shaft support
• DIY linear motion projects
• Small-scale production equipment
• CNC and robotics linear axis stabilization
• High-precision scientific instruments

Package Includes

• 1 × SHF8 Horizontal Shaft Support for 3D Printers
