GT2 timing belt 6mm Rubber open loop belt for 3D printer

23 reviews|2 answered questions
Availability:

In stock


  • Discounted price will be displayed in cart.
  • Discount will be applied on total quantity (for multiple length) added to the cart.
  • Multiple length added to cart will be given in single roll only.
  • Contact us for Bulk purchase.

Discount per Quantity

Quantity11 - 2021 - 5051 +
Discount2%4%6%

In stock

enter integer 30-10000
Grand total

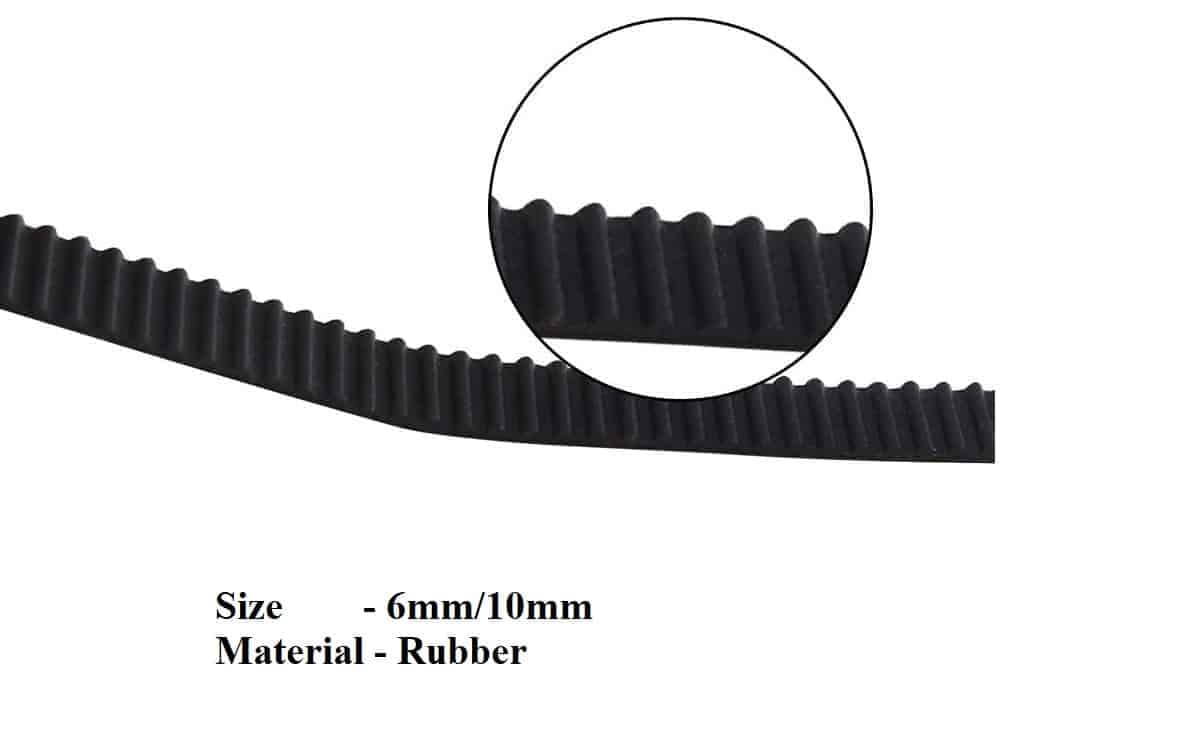

GT2 timing belt 6mm Rubber for 3D printer:

The GT2 timing belt is a high-quality, durable belt designed for precision timing applications. With a width of 6mm, this rubber open loop belt offers excellent performance and reliability.
  • Featuring a toothed design, the GT2 timing pulley and belt ensures accurate and smooth power transmission. It is commonly used in various industries, including robotics, 3D printing, CNC machines, and automation systems.
  • The 6mm width of the belt provides a balance between strength and flexibility, making it suitable for a wide range of applications. Whether you need to transfer power or control the movement of mechanical components, the GT2 timing belt is a reliable choice.
  • The open loop design of the belt allows for easy installation and adjustment. It can be easily cut to the desired length and secured using belt clamps or tensioners. This flexibility makes it ideal for custom projects and applications with unique requirements.
  • Manufactured from high-quality rubber, the GT2 timing belt offers excellent resistance to wear, chemicals, and temperature variations. It is designed to withstand heavy loads and provide long-lasting performance.
  • Invest in the GT2 timing belt for your precision timing needs. Its 6mm width, rubber construction, and open loop design ensure reliable and efficient power transmission in a variety of applications.

GT2 belt properties:

  • The Power grip GT2 system is an extension of the HTD system with greater load-carrying capacity. HTD was developed for high torque drive applications.
  • Circular arc tooth profile and tooth space is small.
  • It is suitable for straight line driving.

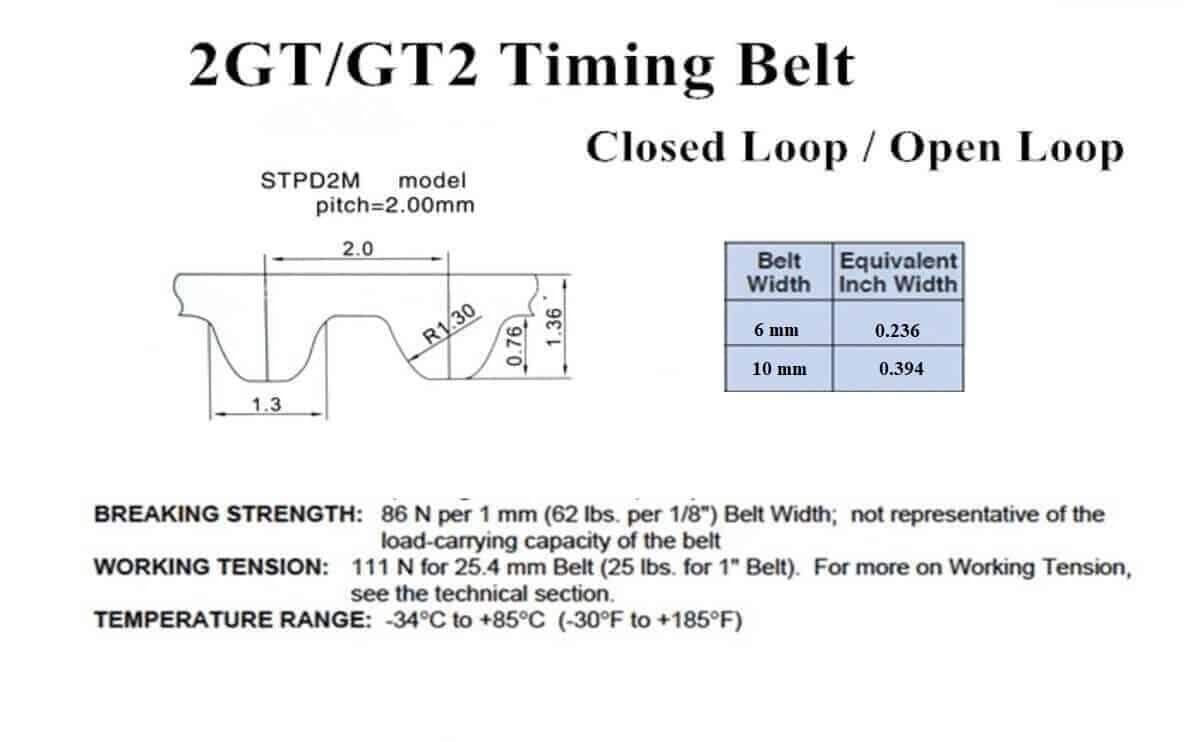

Specifications:

  • Pitch: 2mm
  • Material: Neoprene Rubber With Fiberglass Core
  • Width: 6mm

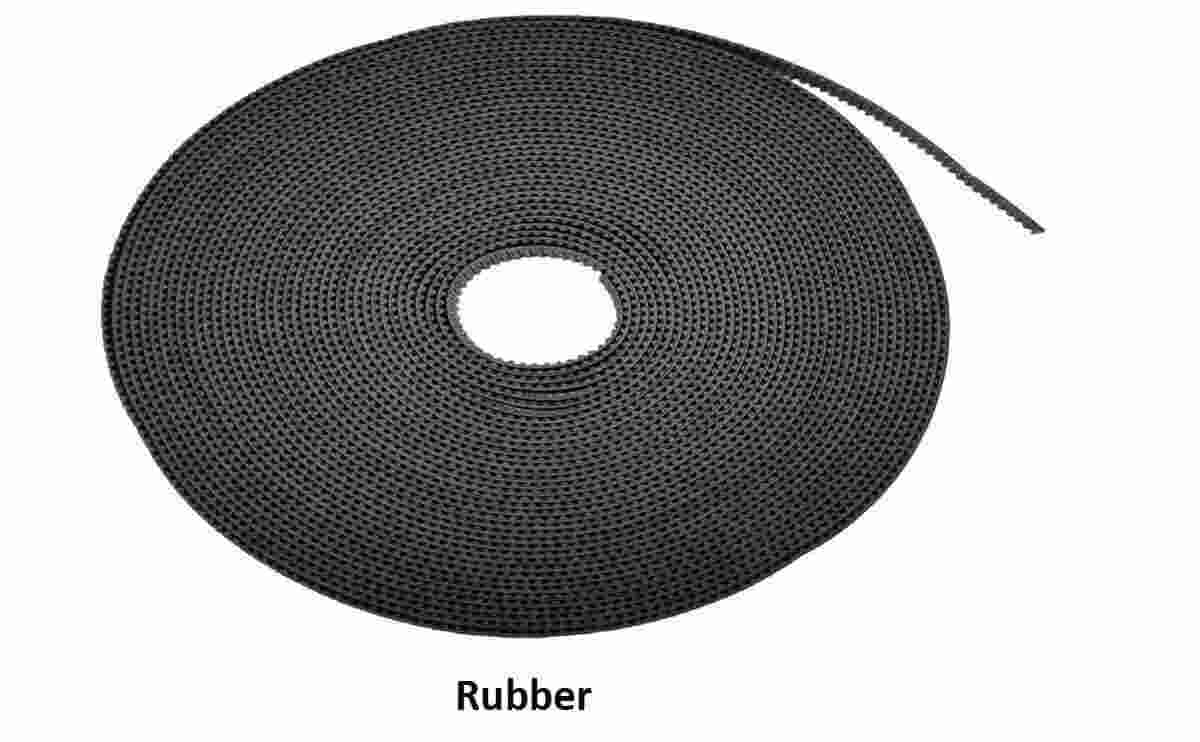

  • Total Length: It will come in continuous Length (example: 1 meter x 5 pieces, will come in 5 meter single roll)
  • Shape: Open Loop
  • Core Wire Material: Glass Fiber
  • Breaking Strength: 85 N Per 1 mm(61 lbf per 1/8 inch)
  • Belt Width; Working Tension:110 N for 25.4 mm Belt width(24 lbf for 1 inch.)
  • Temperature Range:-34°C to +85°C(-30°F to + 185°F)

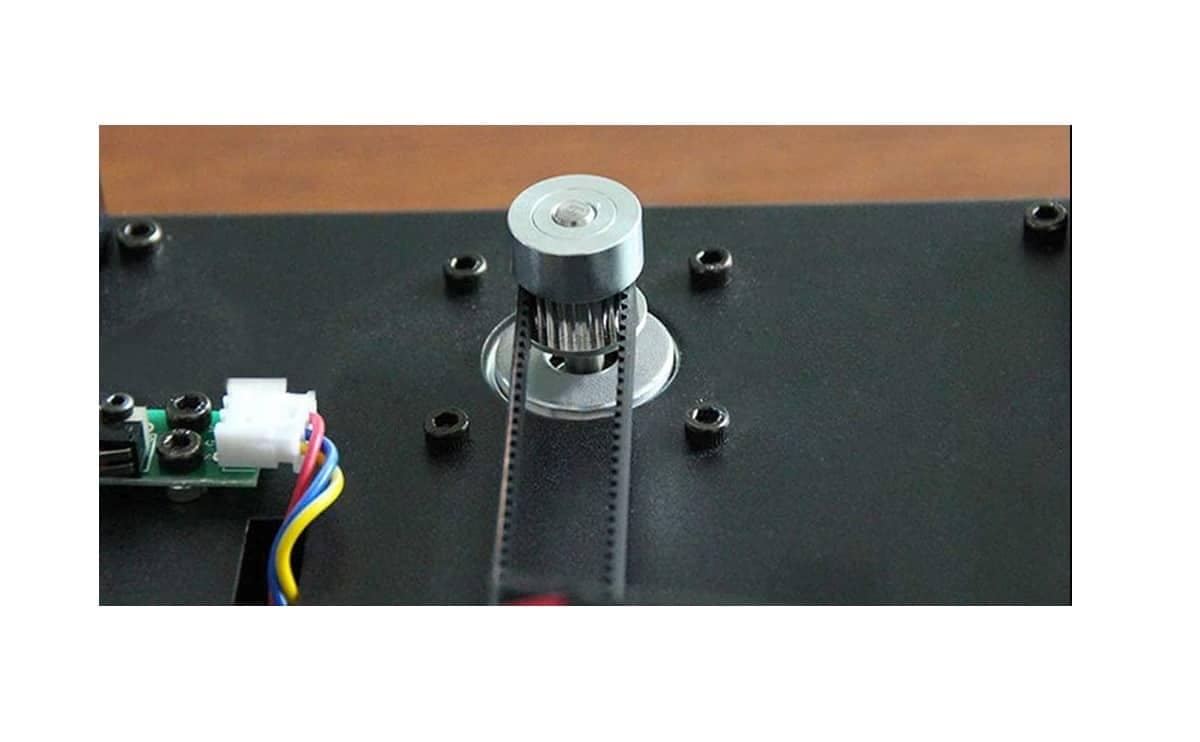

Applications:

  • 3D printer
  • Automation
  • Robotics, etc.

Package Include:

  • 6mm rubber belts (Multiple length added to cart will be given in single roll only)
  • Example: 1 meter x 5 pieces, will come in 5 meter single roll



HSN Code

847790

MODEL NUMBER

10Meters GT 2MGT 2M 2GT open timing belt width 6mm

TYPE

Timing Belt

PITCH

2mm

BELT HEIGHT

1.38mm

TOOTH HEIGHT

0.75mm

RANG FIBER GLASS CORE

Neoprene Rubber with Fiberglass core

Color

Black

SHAPE

Open ended timing belt

Material

Rubber, Steel core, Rubber ( Non sliping belt )
