MKS SERVO42C nema17 closed loop stepper motor driver CNC 3d printer parts

2 reviews
Availability:

In stock


1,699.00

In stock

MKS SERVO42C nema17 closed loop stepper motor driver CNC 3d printer parts:

  • MKS SERVO42C nema17 closed loop stepper motor driver CNC 3d printer parts prevents losing steps for 3d printer machine.
  • The MKS SERVO42C Nema17 Closed Loop Stepper Motor Driver is a high-performance driver module designed to provide precise control and feedback for Nema17 stepper motors.
  • Stepper motor and driver module offers a range of features that make it an ideal choice for applications requiring accurate and reliable motor control.

Precise Position Control:

  • The MKS SERVO42C Nema17 Closed Loop Stepper Motor Driver utilizes a closed loop control system, which continuously monitors the motor position and adjusts the current to ensure accurate positioning.
  • This feature eliminates the possibility of missed steps and provides precise control over the motor’s position.

High Torque Output:

  • MKS Driver Module with a maximum output current of 2.8A, the MKS SERVO42C Nema17 Closed Loop Stepper Motor Driver delivers high torque output, making it suitable for applications that require high torque and precise control, such as 3D printers, CNC machines, and robotics.

Easy Configuration:

  • MKS SERVO42C Driver Module can be easily configured using the MKS SERVO42C configuration software.
  • This software allows users to adjust various parameters, such as motor current, microstepping resolution, and acceleration, to optimize the performance of the motor for specific applications.

Specification:

  • Operating Voltage: 7-28V DC.
  • Adjustable Current: 0-3000mA.
  • PID Control for smooth and accurate operation. PID parameters can be tuned to match your requirement.
  • DIR and STP signals to control direction and speed of the stepper.
  • Onboard 4 Half bridge driver with 8 MOSFET for high performan – low noise, smooth operation and high efficiency.
  • Onboard OLED Display for quick settings – interface type, microstepping , stepper angle, etc.
  • Advanced Return to home mode on power up.
  • Easy to install and wire. Plug and play replacement for most traditional stepper motors.
  • Position/speed/ torque closed-loop , it can run at high speed without losing steps.
  • Field-Oriented Control , low noise ,low vibration and high efficiency.
  • 4bit magnetic encoder,high angle resolution.
  • Support 1-256 subdivision, odd subdivision(such as 11 subdivision) is also available.
  • Controller motors with 0.9 degree or 1.8 degree.
  • Maximum speed 100ORPM.
  • With usart interface, you can connect to the computer by serial port ,for parameter adjustments and query.

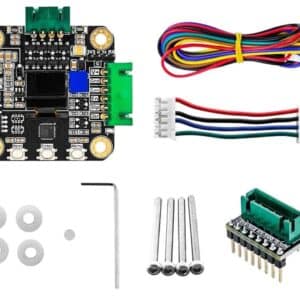

Packages Include:

  • 1 piece of MKS servo42c.





Weight200 g
HSN Code

84779000
