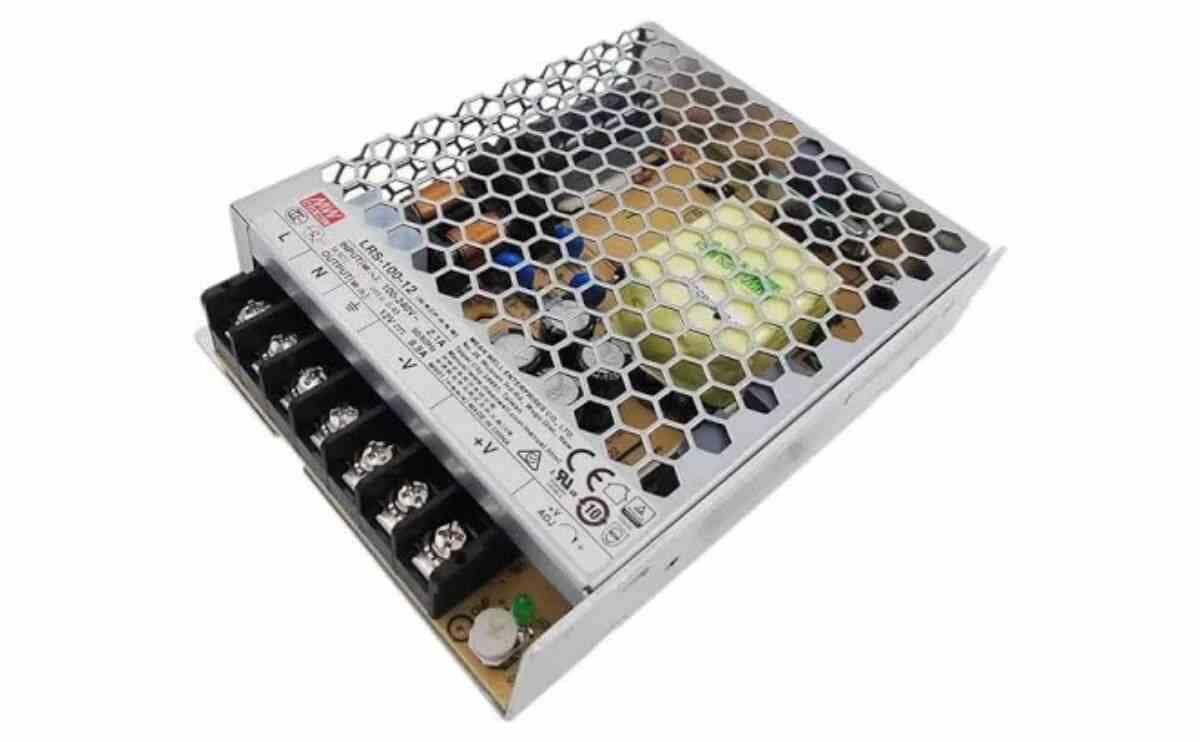

Mean Well LRS-100-12 SMPS 12V 8.3A 100W and LRS-100-24 SMPS 24V 4.1A 102W

Mean Well LRS-100-12 SMPS 12V 8.3A 100W and LRS-100-24 SMPS 24V 4.1A 102W

Mean Well LRS-100-12 SMPS 12V 8.3A 100W and LRS-100-24 SMPS 24V 4.1A 102W power supply

• Designed for continuous, reliable performance in industrial and automation systems.
• Excellent heat dissipation and operator safety.With efficiency up to 90 %, low no-load power consumption.
• Universal AC input (85–264 V), this SMPS is an excellent choice for CNC controllers, LED modules, and embedded electronics.

Key Highlights

• Compact and efficient enclosed power supply (100W output)
• Mean Well LRS-100-12 and LRS-100-24 SMPS Metal mesh design improves airflow and safety
• High efficiency up to 90 % for energy savings
• Universal AC input 85–264V, compatible worldwide
• Stable regulated 12V and 24V DC 8.3A and 4.1A output
• Ideal for automation, LED, CNC, and 3D printer power systems

Specifications

• Brand: Mean Well
• Model: LRS-100-12, LRS-100-24
• Output Voltage: 12V DC, 24V DC
• Output Current 12V : 8.3A
• Output Current 24V : 4.1A
• Output Power: 100W for 12V and 102V for 24V
• Input Voltage: 85–264V AC / 120–373V DC
• Efficiency: Up to 90%
• Ripple & Noise: ≤ 120m Vp-p
• Protections: Short Circuit, Overload, Overvoltage, Overtemperature
• Overvoltage Range: 13.8 – 16.2V DC
• Cooling Method: Natural air convection (no fan)
• Working Temperature: −30°C to +70°C

Applications

• Industrial automation and CNC controllers
• 3D printers and stepper motor drivers
• LED signage and lighting modules
• Security cameras and CCTV systems
• IoT controllers and embedded devices
• Communication equipment and testing instruments

Features

• Reliable 24 × 7 continuous operation design
• Compact size and lightweight body
• Mean Well LRS-100-12 and LRS 100-24 Built-in EMI filter for low noise operation
• Low standby power consumption (< 0.5 W)
• Safety protections for overload and temperature
• Long service life with global safety approvals

Usage

• Mean Well LRS-100-12 SMPS 12V 8.3A and LRS-100-12 24V 4.1A Connect the input terminals to AC mains (85–264V), and use the DC output for 12V and 24V devices.
• Ideal for panel mounting in control boxes or equipment enclosures. Provide adequate ventilation for maximum efficiency and lifespan.

Package Includes

•  1 pieces of 12V 8.3A or 24V 4.1A LRS-100 meanwell power supply .
