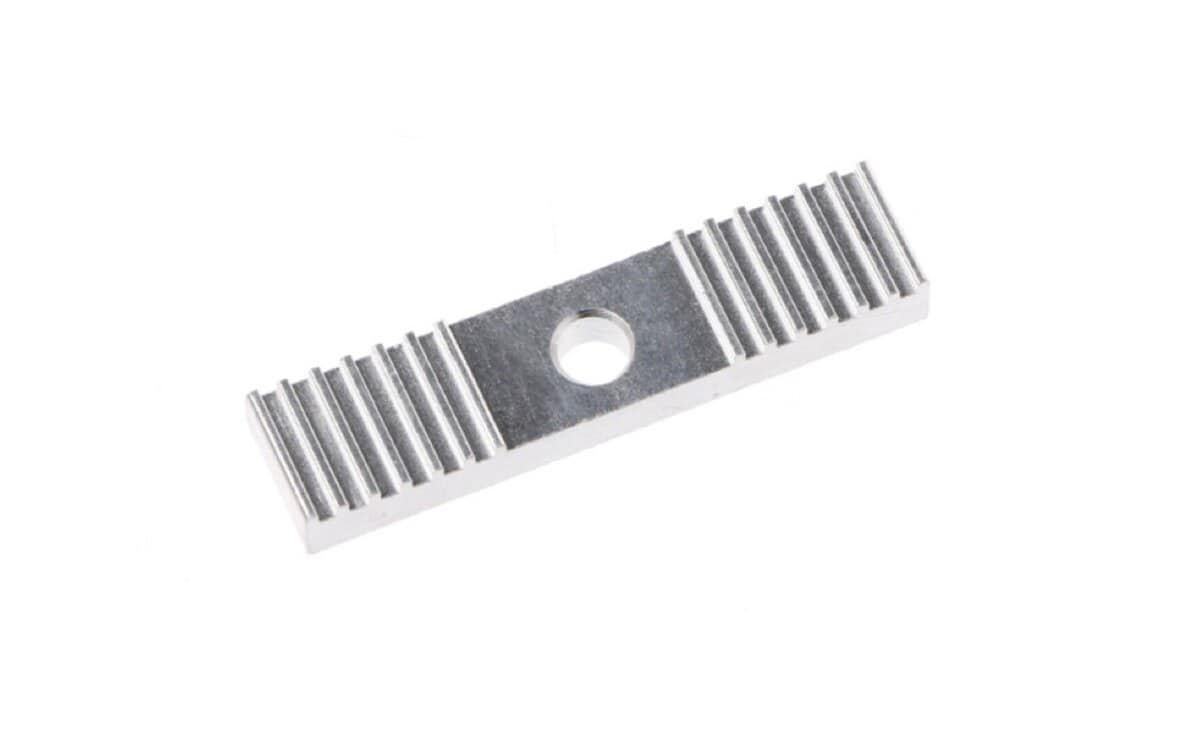

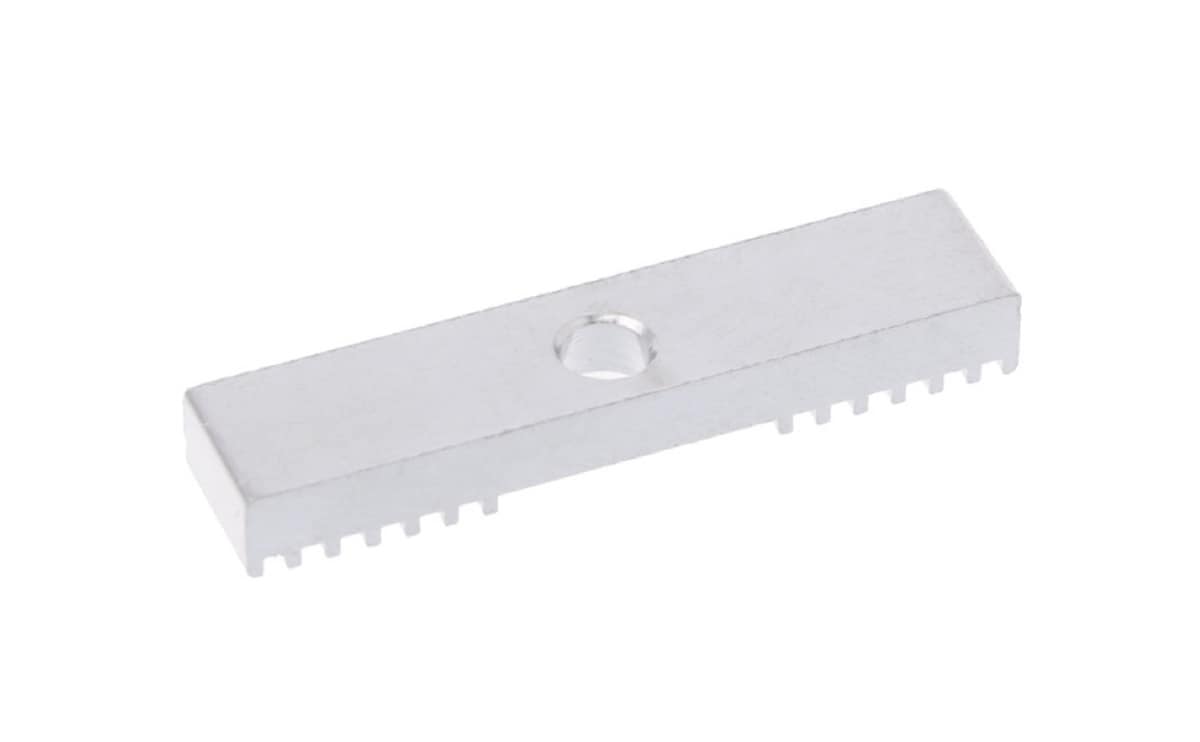

GT2 clamp timing belt aluminum gear clamp mounting block tooth pitch 2mm clamp fixed clip 9*40mm for 3D printer CNC parts

GT2 clamp timing belt aluminum gear clamp mounting block tooth pitch 2mm clamp fixed clip 9*40mm

Features of GT2 clamp:

• Gear clamp mount block made of premium aluminum alloy, rugged the surface is treated with oxygen, more beautiful and scratch resistant.
• GT2 mount block used in open belt closures for GT2 belt, guaranteed stability of GT2 toothed belt. Make sure that the gear is tight and free from loosening.
• Size: 40 x 9 x 5 mm / 1.57 x 0.35 x 0.2 inch ; Mounting Hole (middle hole) size: 4mm; Teeth width: 0.85mm; Teeth depth: 0.9mm; Pitch: 2mm(the groove part).
• Timing belt fixing piece clamp is not only compatible with 3D printers, such as Reprap, Anet, Prusa, MendelMax, but also great for milling machine, gear shaper, drilling machine, CNC engine lathe, hobbing machine and so on.
• Can be used with GT2 timing belt and GT2 pulley, and provides a precise linear function for your 3D printer.

Specifications:

• Type: GT2
• Material: Aluminum Alloy
• Size: 9x40mm
• Tooth width: 0.85mm
• Tooth depth: 0.9mm
• Tooth Pitch: 2mm
• Thickness: 5.2mm
• Color: Silver white

Packages Include:

• 1 piece of GT2 clamp mounting gear ( as per order )
