Flexible coupling 6.35x8mm flexible shaft coupling for motor 3D printer

Flexible coupling 6.35x8mm flexible shaft coupling for motor 3D printer

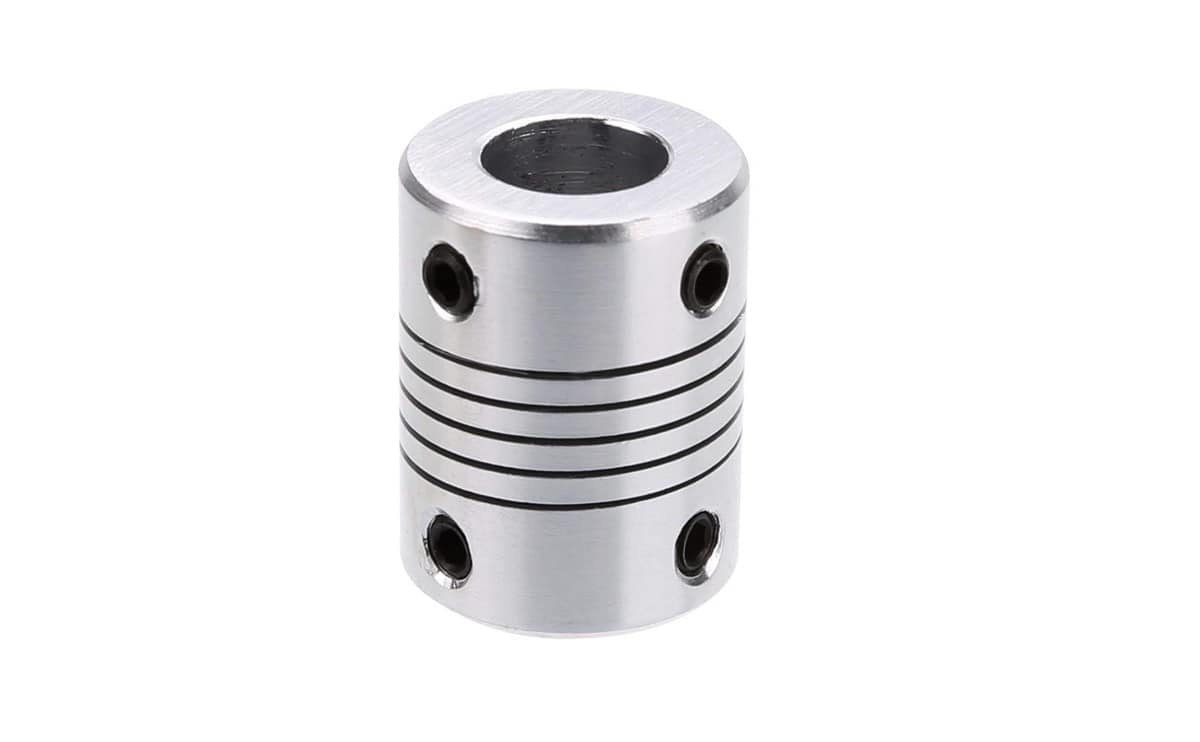

• Flexible motor coupling 6.35mm to 8mm coupling shaft coupling for motor.
• Coupling & Gears also helps in transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion.
• This design also utilizes a single piece of material, which becomes flexible by removal of material along a spiral path which also resulting in a curved flexible beam of helical shape.
• Flexible coupling 6.35x8mm are usually used to transmit torque from one shaft to another when the two shafts are slightly misaligned.
• They can accommodate varying degrees of misalignment up to 1.5° and some parallel misalignment.
• They can also be used for vibration damping or noise reduction.
• Another advantage of being an all machined coupling is the possibility to incorporate features into the final product while still keep the single piece integrity.
• Available in different sizes flexible coupling 5x10mm, flexible coupling 5x8mm, flexible coupling 8x10mm, flexible coupling 8x8mm.

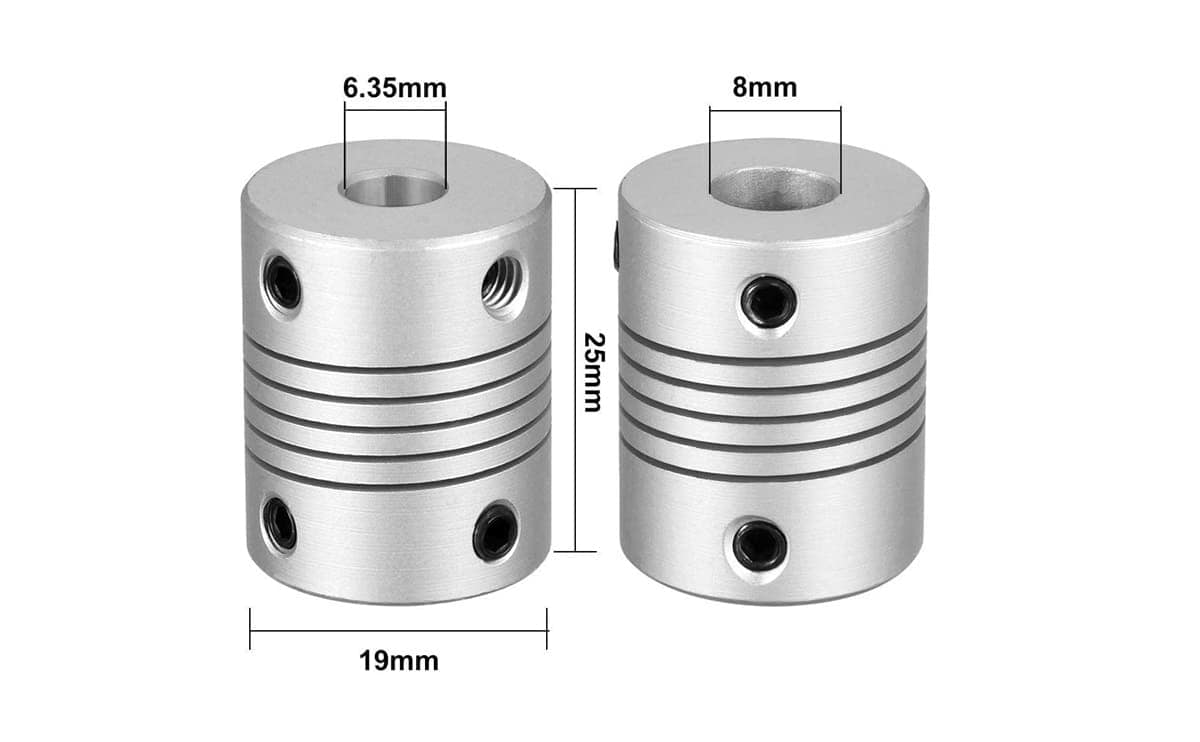

Specifications Flexible coupling 6.35x8mm:

• Inner Diameter (ID): 6.35mm on one side
• Inner Diameter (ID): 8mm on the other side
• Material: Flexible couplings can be made of  aluminum.
• Design: The design may include features such as set screws, clamps, or other mechanisms for securing the coupling to the shafts.
• Flexibility: The coupling is designed to provide flexibility to accommodate shaft misalignments while transmitting torque smoothly.

Applications Flexible coupling 6.35x8mm :

• Motion Control Systems: Stepper motor coupling 6.35mm to 8mm are commonly used in motion control systems, such as those in CNC machines, 3D printers, and robotics, where precise motion and misalignment compensation are crucial.
• Stepper and Servo Motor Applications:Couplings play a vital role in connecting stepper or servo motors to various driven components, ensuring efficient torque transmission.
• Power Transmission:Flexible coupling 6.35x8mm are used in power transmission systems to connect shafts in machinery and equipment, allowing for flexibility and compensating for misalignments.
• Automation Systems: Motion control coupling 6.35x8mm find applications in various automated systems, including conveyor systems and assembly lines, to ensure smooth and reliable motion.
• Mechanical Assemblies: Flexible coupling 6.35x8mmcan be utilized in a wide range of mechanical assemblies, where connecting two shafts with different diameters is required.
• Industrial Machinery:Flexible couplings are common components in industrial machinery, helping to isolate vibrations and reduce stress on connected components.
• Pump and Compressor Systems:In pump and compressor systems, flexible couplings are used to connect the motor to the pump or compressor, accommodating misalignments and reducing the risk of damage.

Packages Include:

• 1 piece Shaft coupler 6.35mm to 8mm (as per order).
