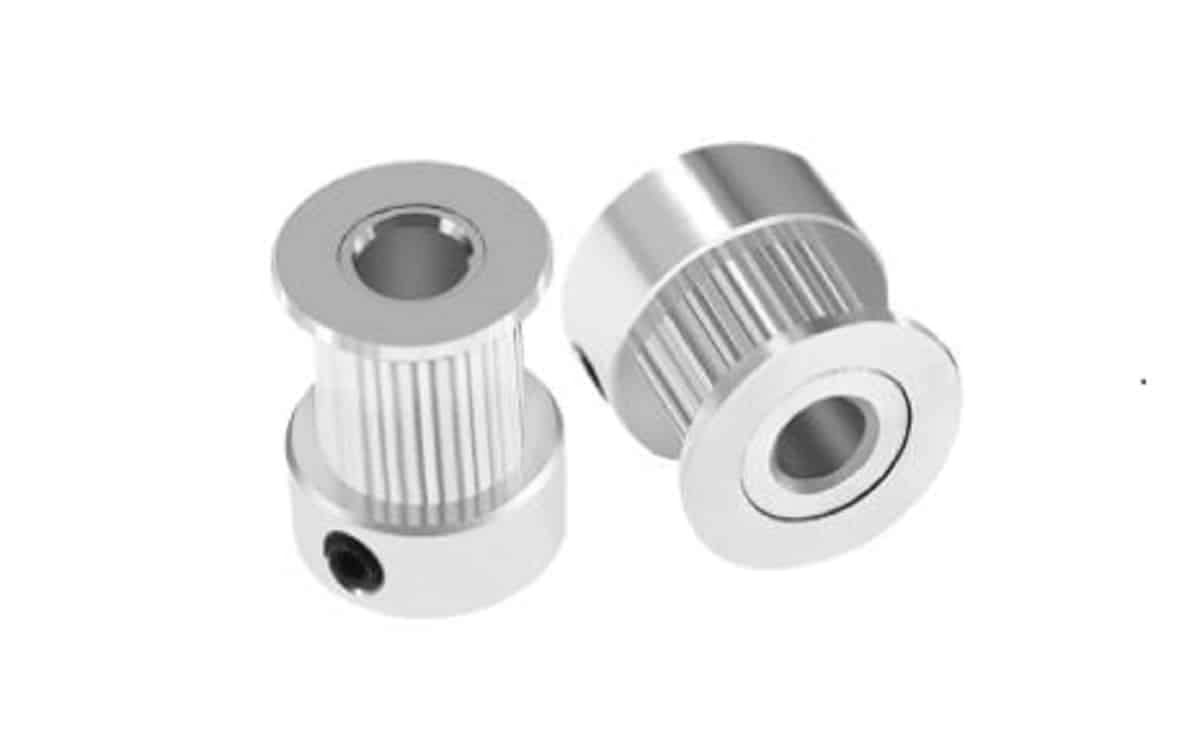

Motor Pulley 6mm Belt GT2 Timing Pulley 16/20 Teeth – Best Quality for 3D Printer Stepper Motor

17 reviews
Availability:

In stock


31.00 55.00

Motor Pulley 6mm Belt GT2 Timing Pulley 16/20 Teeth – Best Quality for 3D Printer Stepper Motor

The Motor Pulley 6mm Belt GT2 Timing Pulley with 16/20 teeth is the best quality pulley for 3D printer stepper motors. This pulley is specifically designed for use with a 6mm wide GT2 timing belt, ensuring a precise and reliable movement in linear drive applications.

  • Featuring a durable and lightweight full aluminum construction, It’s built to last. The 20 teeth and 5mm inner bore ensure a secure and firm attachment to any 5mm diameter shaft.
  • The presence of grooves in the pulley further enhances its precision movement.
  • One of the key features of the GT2 pulley is the Power Grip GT2 system, which offers greater load-carrying capacity compared to the HTD system.
  • While the HTD system is suitable for high torque drive applications, it may not be ideal for precision indexing or registration applications.
  • The GT2 timing belt drive with smaller diameter pulleys provides a smaller clearance requirement for proper operation.

Features:

  1. The Power Grip GT2 system is an extension of the HTD system with greater load-carrying capacity. HTD was developed for high torque drive applications, but not acceptable for most precision indexing or registration applications.
  2. As smaller diameter Motor pulley are used, the clearance required to operate properly is increased. HTD drive clearance, using small diameter pulleys , is approximately four times greater than an equivalent GT2 timing belt drive.
  3. Circular arc tooth profile, tooth space is small, suitable for straight line driving.

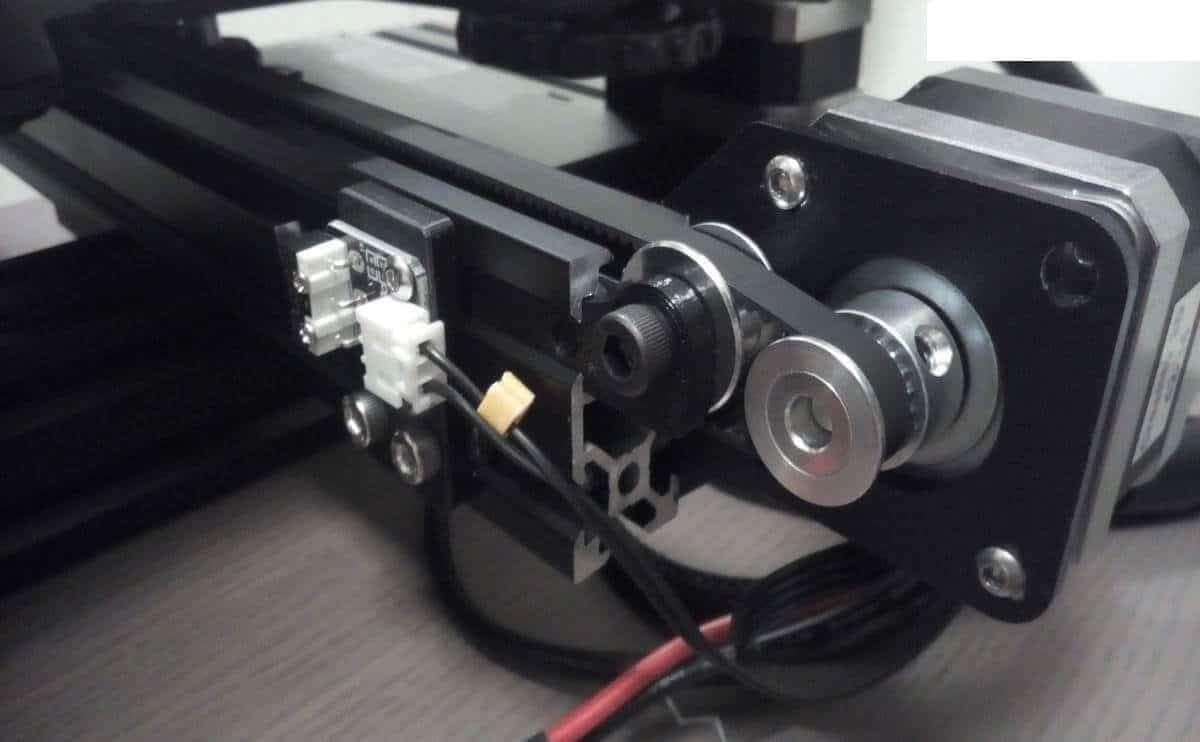

  4. Whether you are building or maintaining a 3D printer, Motor pulley 6mm Belt GT2 Pulley with 16/20 teeth is the perfect choice for achieving precise and reliable linear motion.
  5. Its high-quality construction and exceptional performance make it an essential component for any 3D printing project.

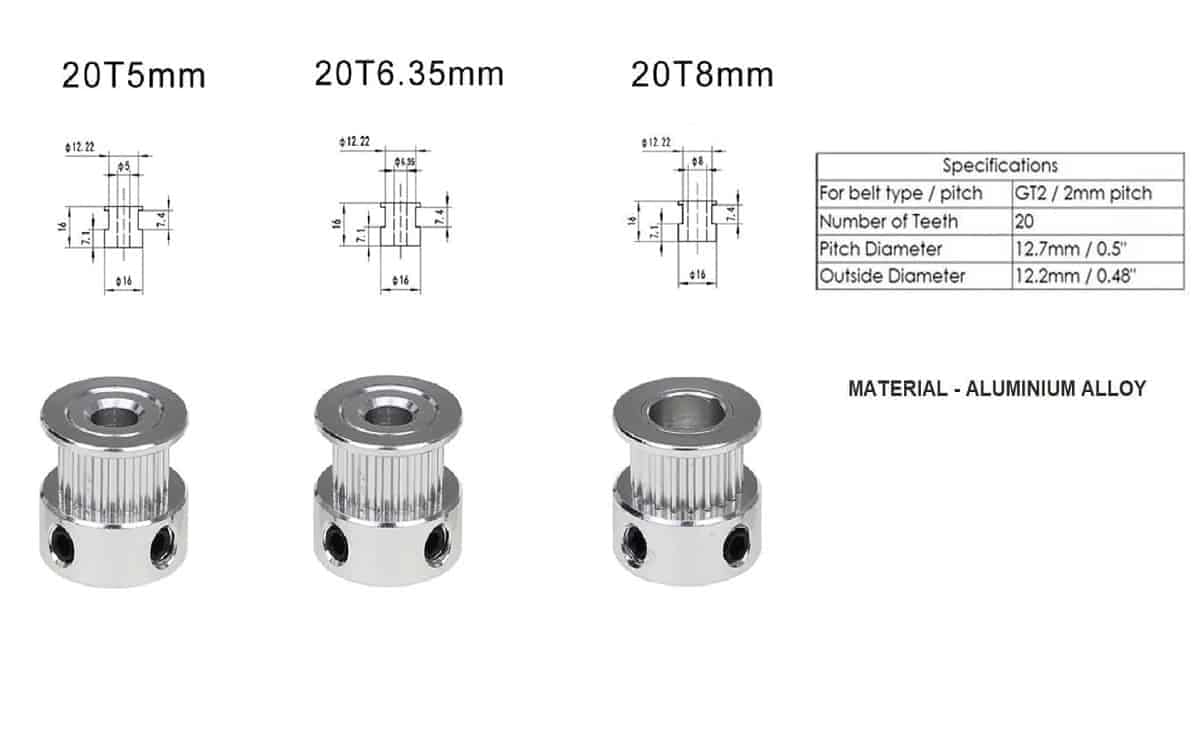

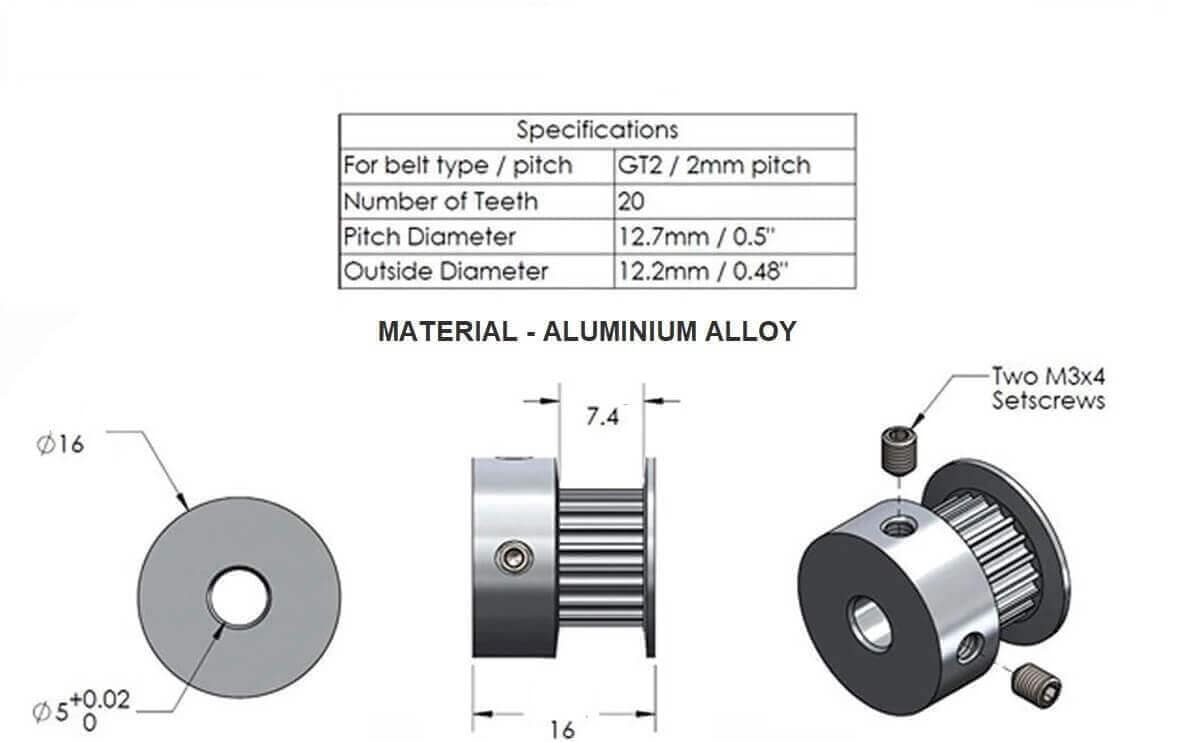

Specifications:

  • Material: Aluminum.
  • No. of teeth: 16 / 20.
  • Outer Diameter: 13 / 16 mm.
  • Inner Diameter: 5mm.
  • Length: 16 mm.
  • Weight: 6 gm.

Package Include:

  • 1 piece of gt2 pulley 20 teeth/16 teeth.
HSN Code

847790

No. of teeth

16 teeth, 20 teeth

PITCH

2mm

OD

12.22mm

FLANGE

Double flange

SCREW HOLE

2XM4

COLOR

Silver

SIZE

6.35mm, 5mm, 6mm, 8mm

Model Number

10pcs GT2 20 teeh pulley Bore 5mm for width 6mm

Material

Aluminium Alloy
