Bigtreetech S42C v1.0 closed loop driver board with OLED display for 3D printer

Bigtreetech S42C v1.0 closed loop driver board with OLED display for 3D printer

Bigtreetech S42C v1.0 closed loop driver board with OLED display for 3D printer

Product parameter Bigtreetech S42C

• Motor power supply (VM): 12V-24V
• Maximum current: 1650 mA (12V)
• Step, Dir: Rising edge 40 ns
• SPWM frequency: 22.8 Khz
• Main control chip: STM32G031G8U6, Crotex MO+, 64MHz
• Subdivision setting: 1, 2, 4, 8, 16, 32, 64, 128, 256
• No-load current: 620 mA (12V)
• Encoder resolution: 14 bit
• Maximum speed: 2000 rpm

Features

• Run at high speed without pulse loss
• Sine wave SPWM control less noise
• Closed loop control
• Higher precision
• Safe installation and easy wiring
• Easy to operate
• Plug and play
• Sold as a set
• No need of debugging

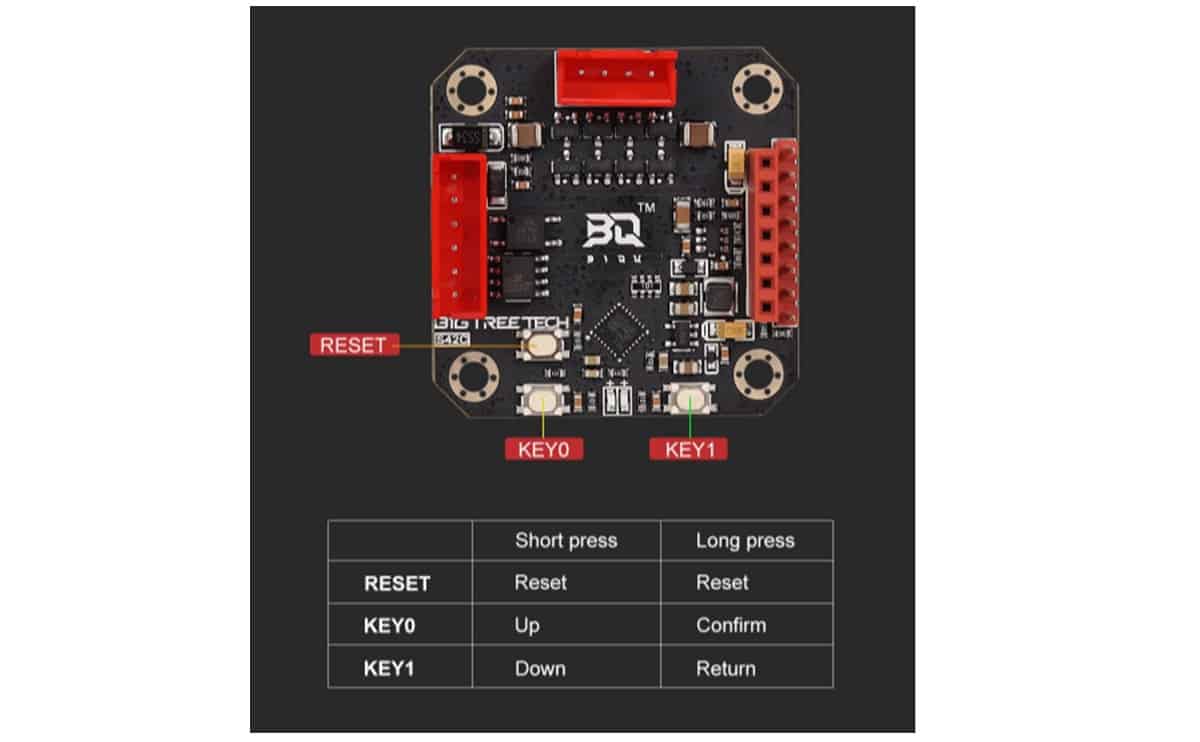

• The current and subdivision of the motor can be modified by the buttons

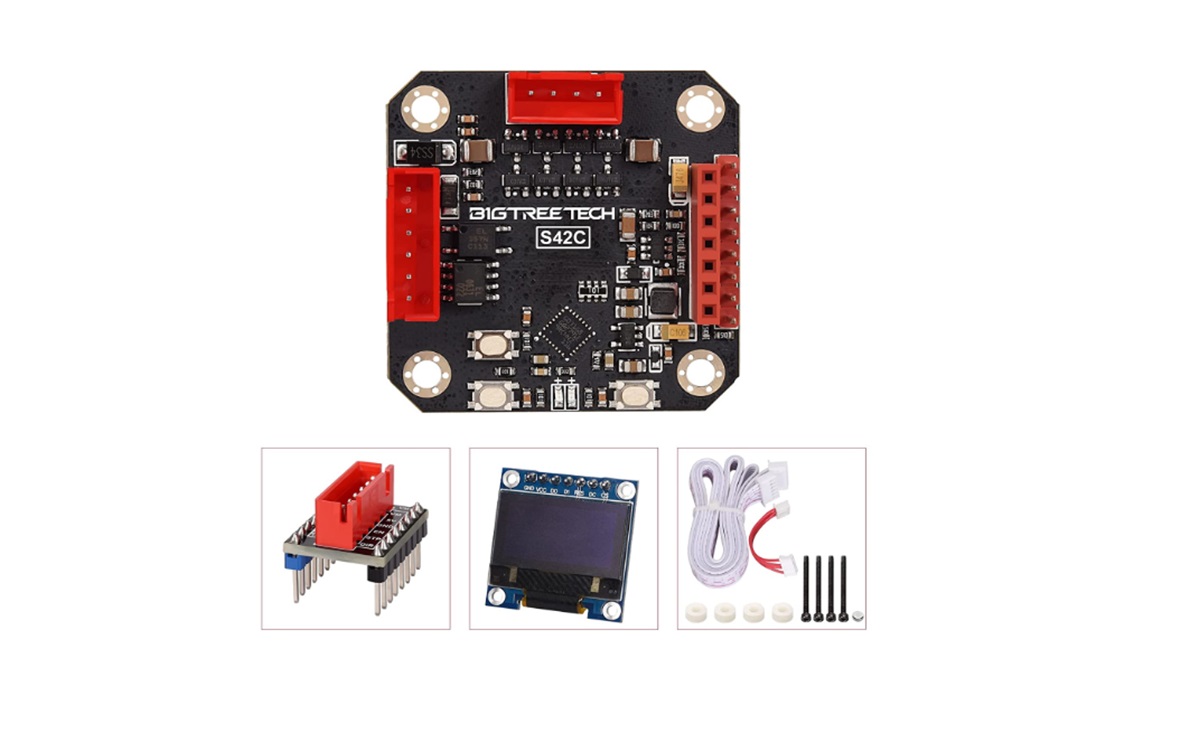

Package include

• Driver board+OLED+motor without wire screen with protective cover kit
