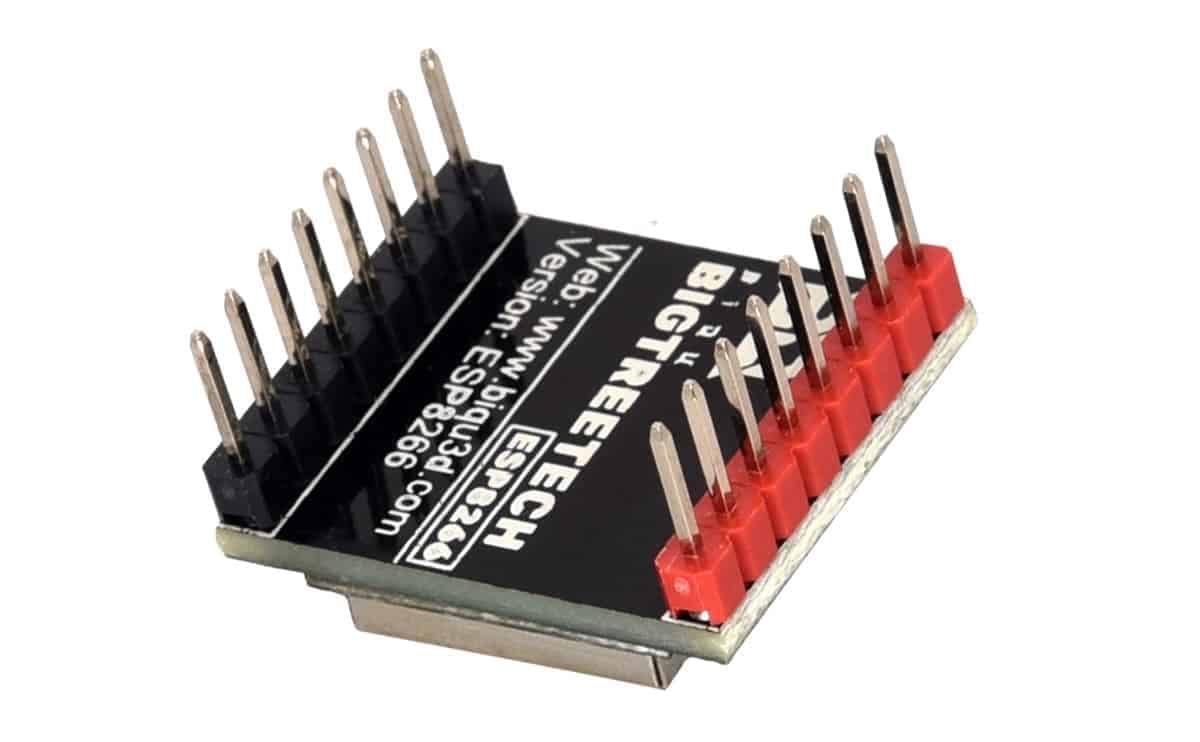

BIGTREETECH ESP 07s module for 3d printer machine

BIGTREETECH ESP 07s module for 3d printer machine:

The BIGTREETECH ESP 07s module is a versatile and powerful addition to any 3D printer machine. With its impressive specifications, wide range of applications, and easy usage, this module is a must-have for enthusiasts and professionals alike.

Specifications:

• The ESP 07s module features a powerful ESP8266 chip, offering high-performance WiFi connectivity for seamless communication between your 3D printer and other devices.
• It operates on a voltage range of 3.3V to 5V, making it compatible with a wide range of systems.
• With its compact size of 25.4mm x 16mm, it can easily fit into any 3D printer setup.

Applications:

• This module opens up a world of possibilities for your 3D printer.
• It allows for wireless control and monitoring, enabling you to remotely manage your printing process.
• Whether you want to start, pause, or stop a print job, or adjust settings on the fly, the ESP 07s module provides the convenience and flexibility you need.
• Additionally, the module can be used for firmware updates, allowing you to easily keep your 3D printer up to date with the latest features and improvements.
• Bigtreetech also supports cloud-based printing, giving you the ability to access and control your printer from anywhere in the world.
• Other modules like relay module, Bigtreetech MAX31865 module also can be used.

Usage:

• Using the BIGTREETECH ESP 07s module is straightforward.
• Simply connect it to your 3D printer’s mainboard using the provided connectors, ensuring proper alignment and orientation.
• Once connected, power on your printer and configure the module’s settings using the intuitive web interface.
• From there, you can connect to your printer wirelessly using your smartphone, tablet, or computer.
• The module supports various communication protocols, including TCP/IP, UDP, HTTP, and MQTT, ensuring compatibility with a wide range of devices and software.
• With the BIGTREETECH ESP 07s module, you can take your 3D printing experience to the next level.
• Its impressive specifications, versatile applications, and easy usage make it an essential component for any 3D printer enthusiast or professional.

Features:

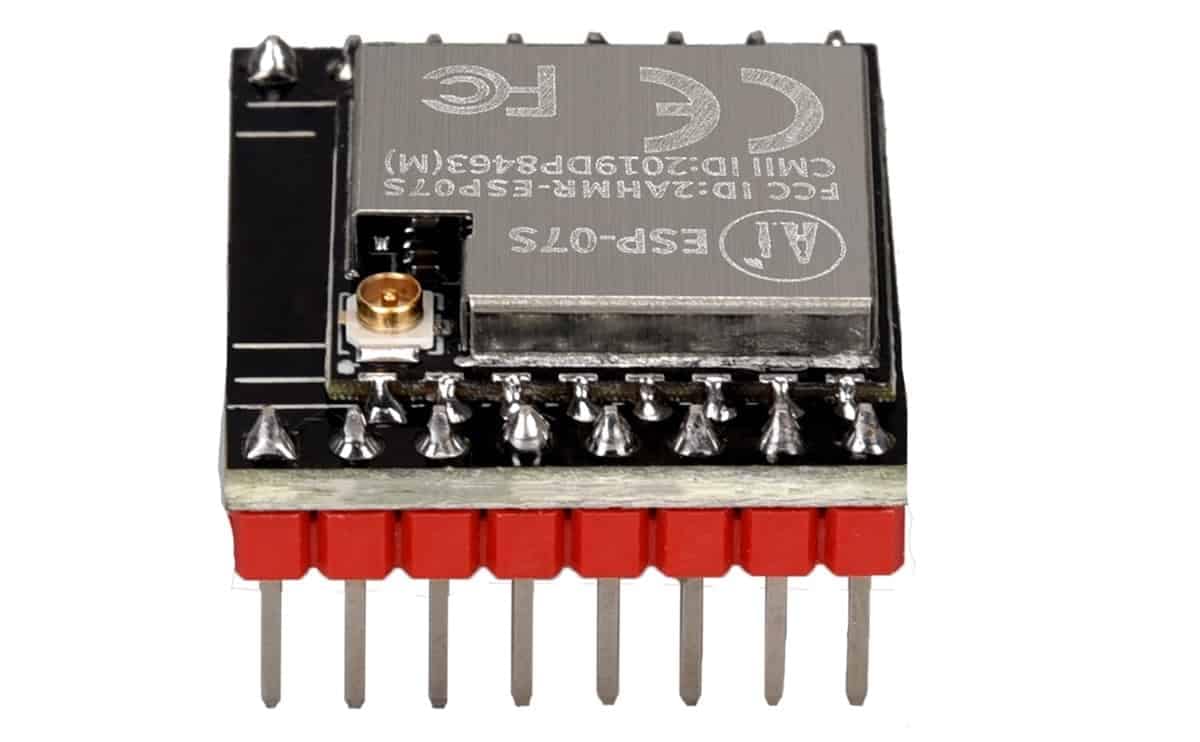

• Module model: ESP 07S.
• Chip solution: ESP8266.
• Size(mm): 20.62*22.73.
• IO Port: 9.
• Security: WEP/WPA-PSK/WPA2-PSk.
• Transmission Distance: 100m.
• Storage Environment: -40°C   ̴ 85°C, < 90%RH.
• Frequency Range: 2400-2483.5 MHz
• Package: SMD16.
• SPI Flash: Default 32 Mbit.
• Interface: UART/GPIO/ADC/PWM.
• UART Baud Rate: Support 300   ̴ 4608000 bps, Default 115200 bps.
• Power Supply: Voltage 3.0V   ̴ 3.6V, typically 3.3V,
• Current >500 mA
• Operating Temperature: -20°C   ̴ 5°C.

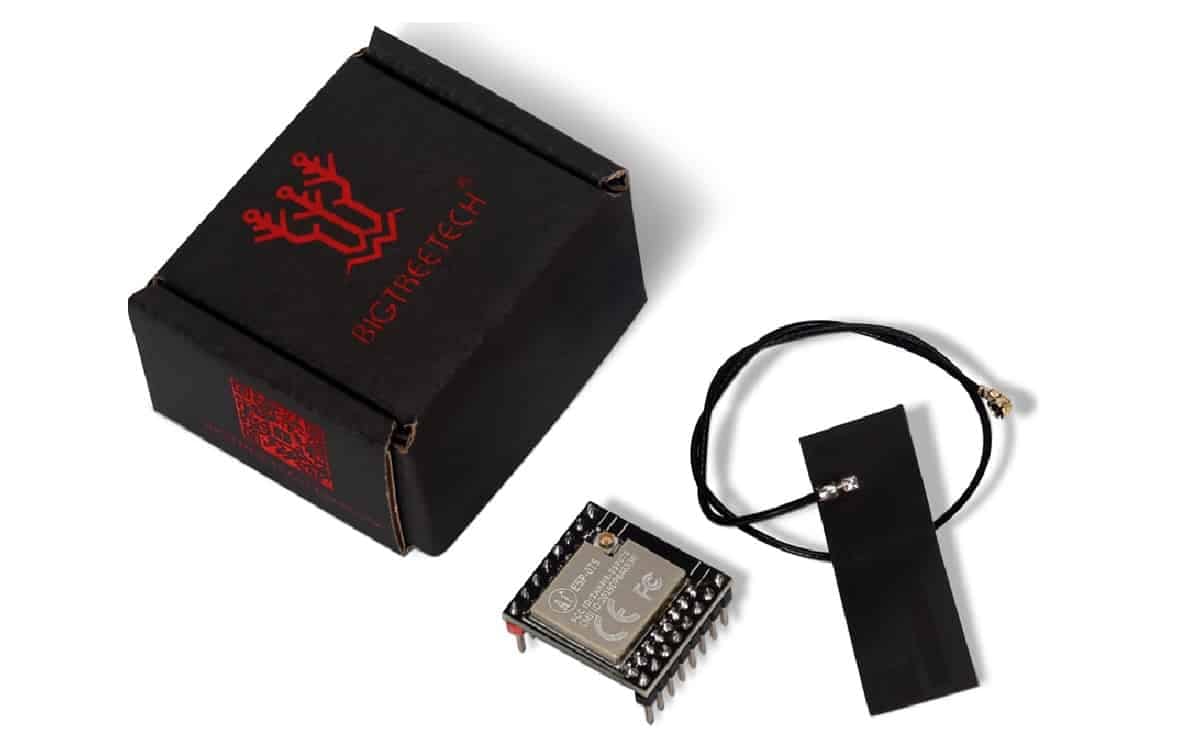

Package Include:

• 1 piece of bigtreetech esp 07s.
