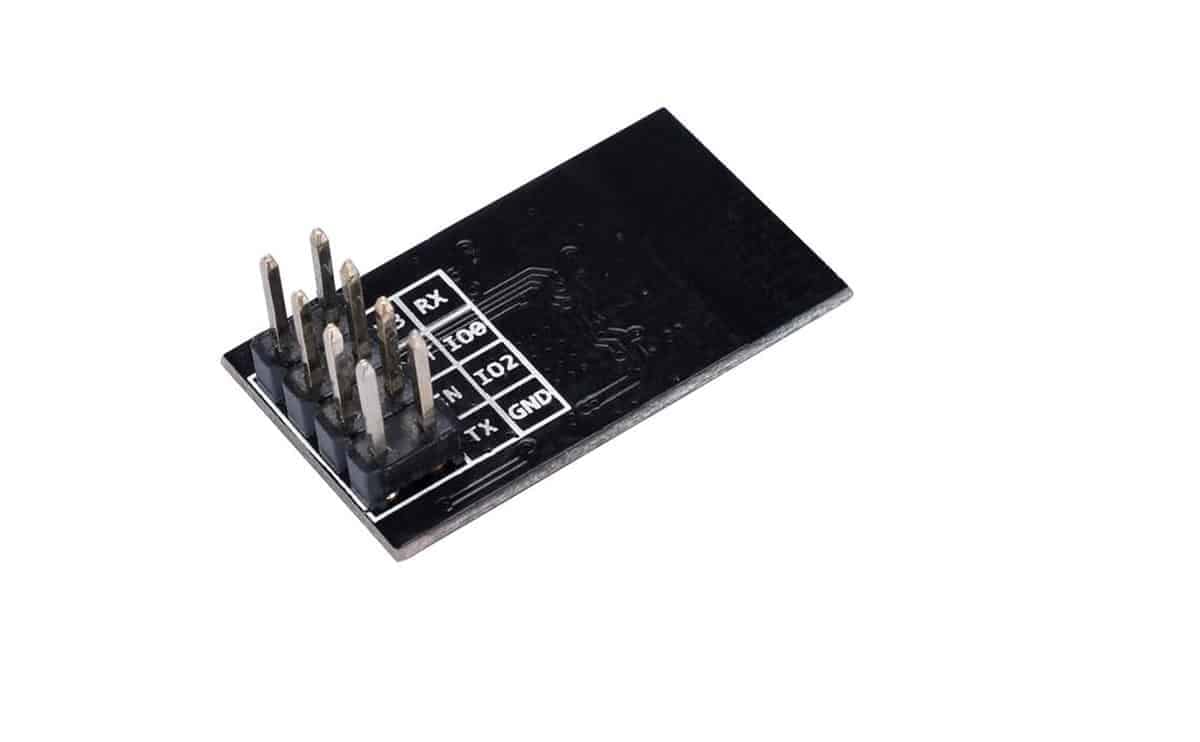

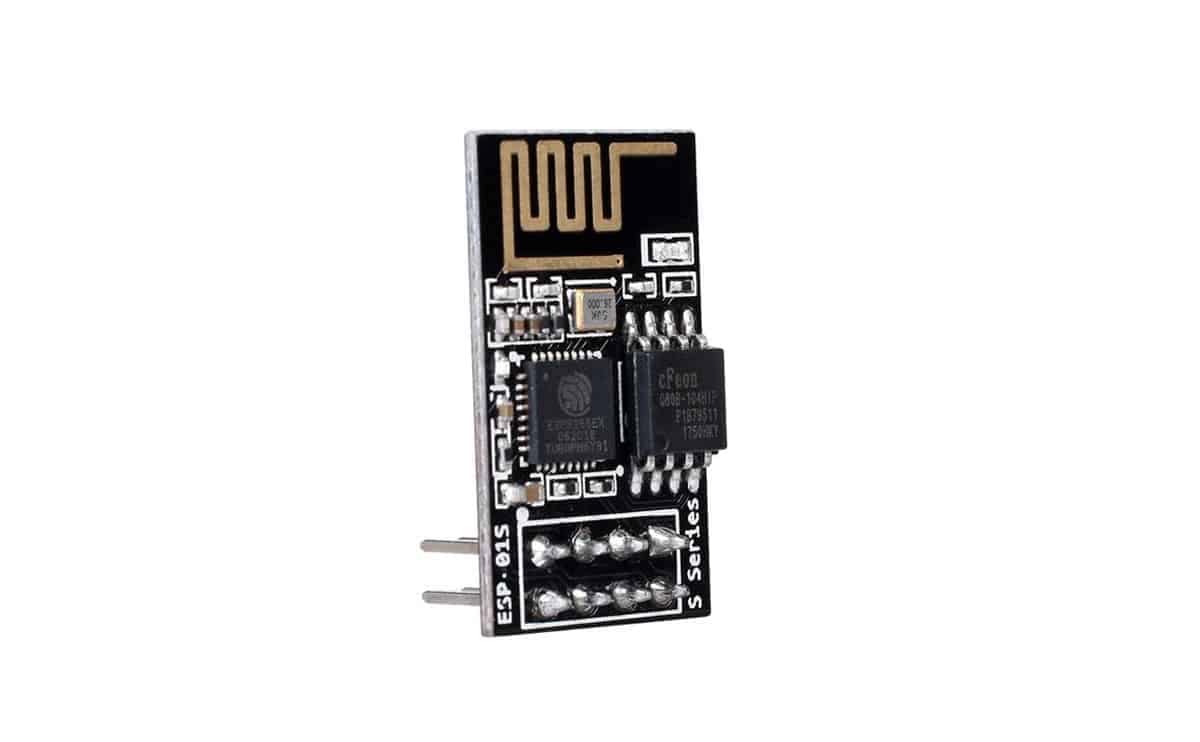

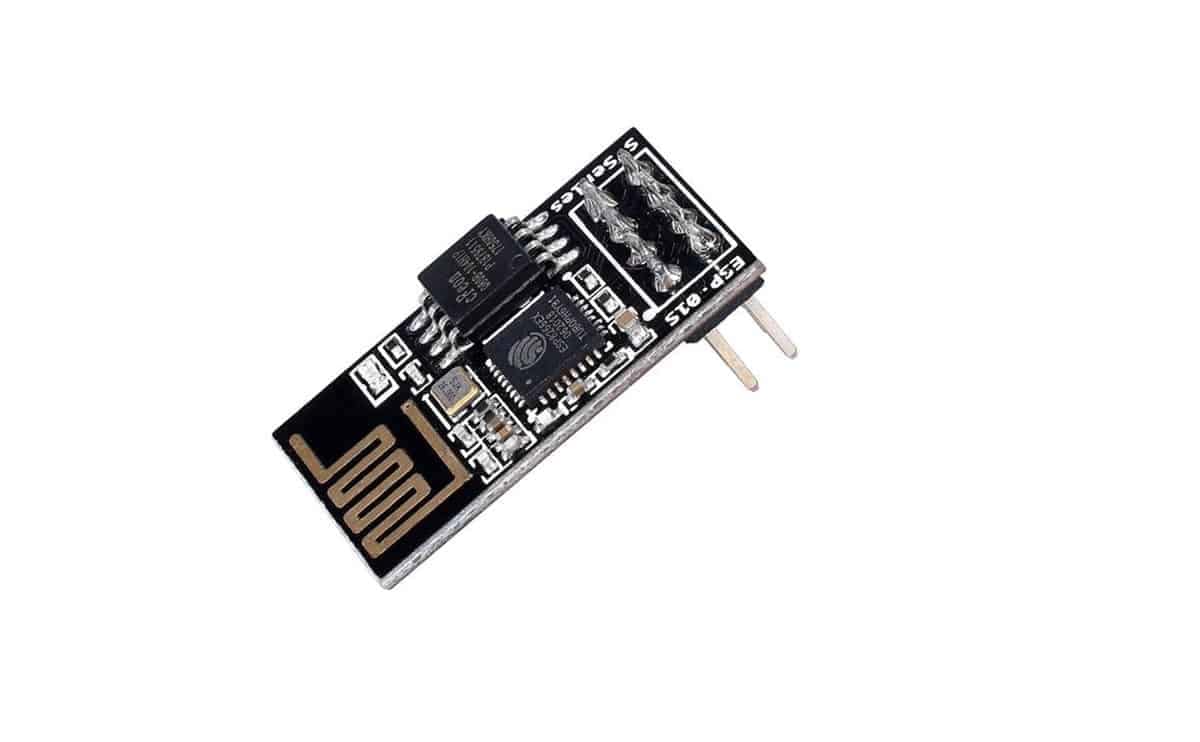

Bigtreetech ESP 01S wifi Module for 3d printer

Bigtreetech ESP 01S wifi Module for 3d printer

Specification:

• The Bigtreetech ESP 01S WiFi Module is specifically designed for 3D printers, providing a reliable and efficient wireless connectivity solution.
• With its compact size and advanced features, this module offers seamless integration into your 3D printing setup.
• Some key specifications of the Bigtreetech ESP 01S WiFi Module include:
  • Supports IEEE 802.11b/g/n wireless standards
  • Operates on a frequency range of 2.4GHz
  • Provides a maximum data rate of 150Mbps
  • Features an onboard ceramic antenna for enhanced signal reception
  • Supports a variety of encryption protocols for secure data transmission

Applications:

• The Bigtreetech ESP 01S WiFi Module is versatile and can be used in various applications apart from 3D printing. Some common applications include:
  • Home automation systems
  • Internet of Things (IoT) projects
  • Wireless sensor networks
  • Remote control systems
  • Smart agriculture

Dimensions:

• The module has compact dimensions, measuring approximately 25mm x 15mm x 8mm.
• This small size allows for easy integration into your existing 3D printer or other projects without taking up much space.

Usage:

• The Bigtreetech ESP 01S WiFi Module is straightforward to use. Simply connect the module to your 3D printer’s control board using the provided pins or connectors. Once connected, you can configure the module’s settings and connect it to your wireless network using the appropriate software.
• Once connected, you can remotely control and monitor your 3D printer through a web interface or a dedicated mobile app. This allows you to start, stop, and monitor your prints from anywhere within your network’s range.
• The module also supports over-the-air (OTA) firmware updates, making it easy to keep your 3D printer up to date with the latest features and improvements.
• With its reliable performance, compact size, and ease of use, the Bigtreetech ESP 01S WiFi Module is an excellent choice for enhancing the wireless capabilities of your 3D printer or other projects.

Features of Wifi module  ESP-01S:

• Wireless standard: 802.11 b / g / n
• Frequency range: 2.4GHz~2.5GHz(2400M ~ 2483.5M)
• Data interface: UART / HSPI / I2C / I2S / IR Remote Contorl / GPIO / PWM
• Operating voltage: 3.0 ~ 3.6v (Suggest 3.3v)
• Working current: average 80mA
• Operating temperature: – 40 degrees to 125 degrees
• Storage temperature: room temperature
• External interface: N / A
• Wireless network mode: station / softAP / SoftAP + station
• Security mechanisms: WPA / WPA2
• Encryption type: WEP / TKIP / AES
• Upgrade firmware: local serial port burn, cloud upgrade, host download burn
• Software development: support customer custom server, provide SDK to customer secondary development
• Network protocols: IPV4, TCP / UDP / HTTP / FTP
• User Configuration: AT + instruction set, cloud server, Android / IOS APP

Package Include:

• 1 piece of bigtreetech esp 01s.
