The TFT24 Touch Screen Display by BigTreeTech is a compact, versatile, and high-performance interface designed to enhance your 3D printing experience.

• With its responsive touch functionality, user-friendly interface, and compatibility with most 3D printers, the TFT24 is perfect for users who want seamless control and monitoring of their printer.

Key Specifications of the BigTreeTech TFT24 Display

• Display Size:
  • 2.4-inch full-color touch screen, offering clear visuals and an intuitive interface.
• Resolution:
  • Crisp 320×240 resolution for sharp and detailed graphics.
• Touch Technology:
  • TFT24 display High-precision resistive touch screen, ensuring smooth and responsive operation.
• Dual Operating Modes:
  • Supports both Marlin mode (classic text-based interface) and Touch mode (graphical user interface), giving users flexibility to choose their preferred interface.
• Processor:
  • Powered by an ARM Cortex-M3 STM32F207VCT6 processor for fast and reliable performance.

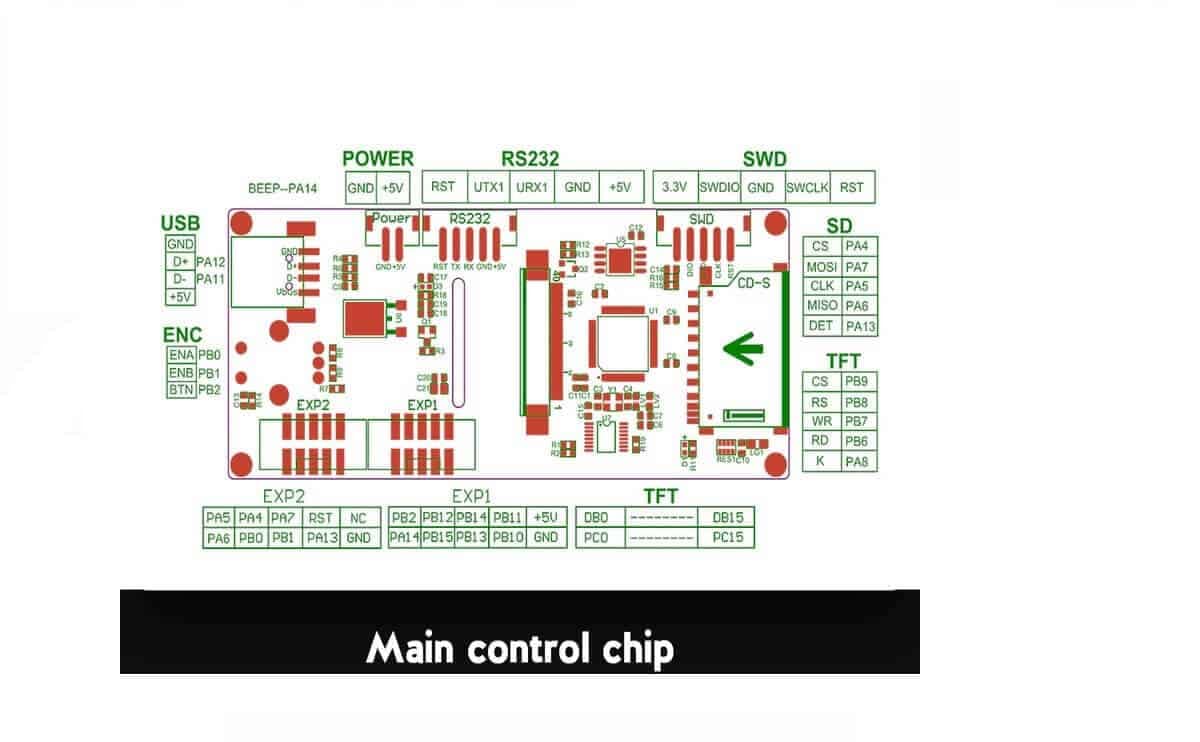

• Communication Ports:
  • Compatible with UART and RS232 interfaces, ensuring seamless communication with various 3D printer motherboards.
• Compatibility:

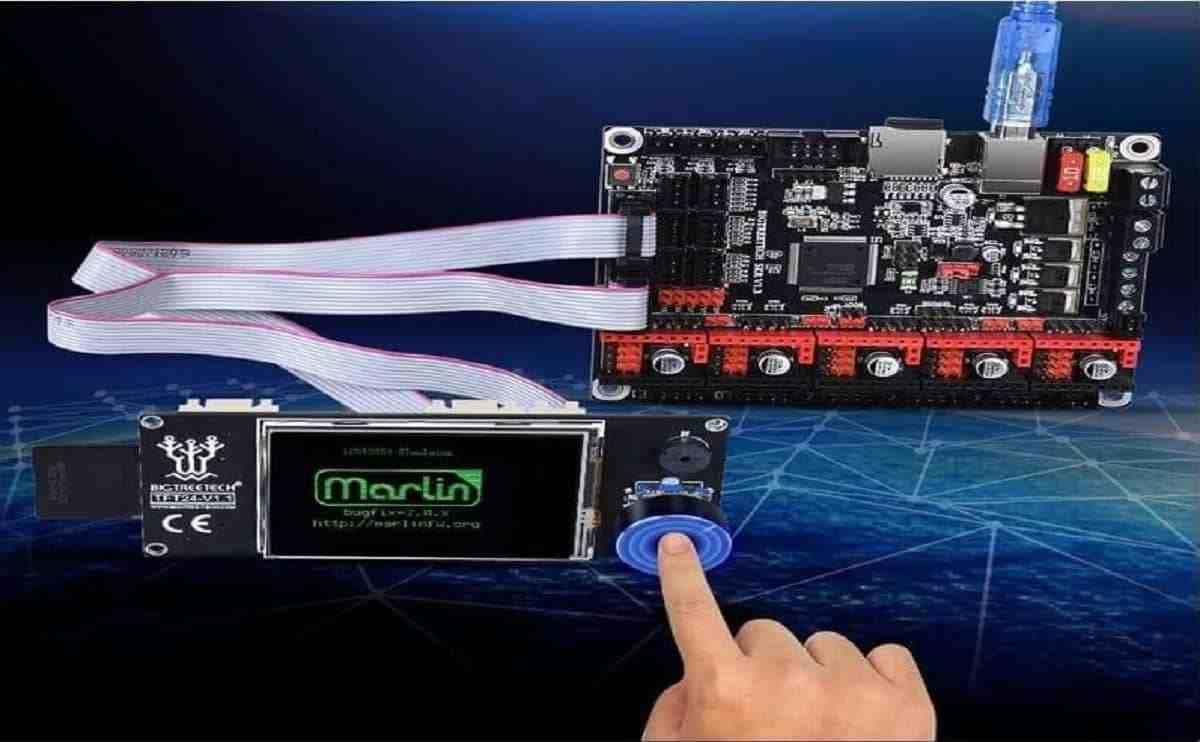

  • Works with most popular 3D printer motherboards, including BigTreeTech SKR series, Manta series, and more.
• Power Supply:
  • Operates on a wide input range of 5V-24V, making it adaptable to different setups.
• Customizable Themes:
  • Supports custom themes and interface layouts to personalize your display experience.
• Multi-Language Support:
  • Preloaded with multiple language options for global usability.

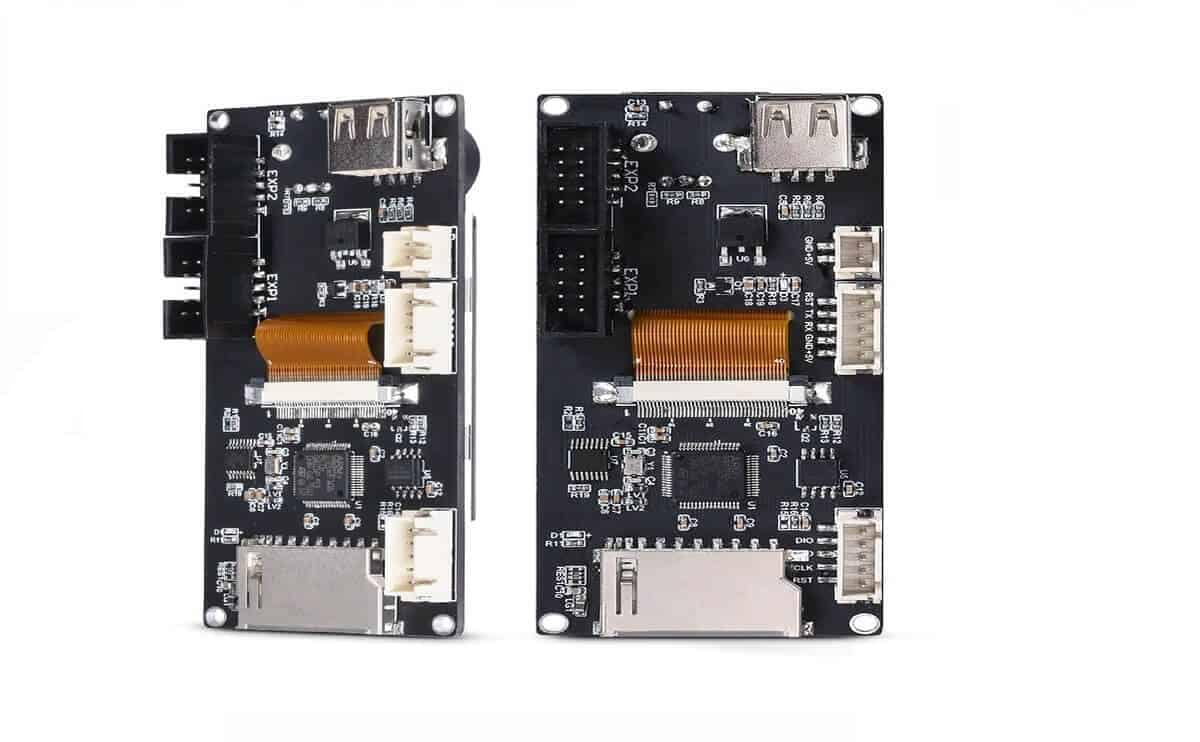

• Expandable Ports:
  • Includes additional TF card and USB disk ports for firmware updates and file transfers.
• User-Friendly Features:
  • TFT24 display Easy access to common functions such as preheating, leveling, printing, and system settings.

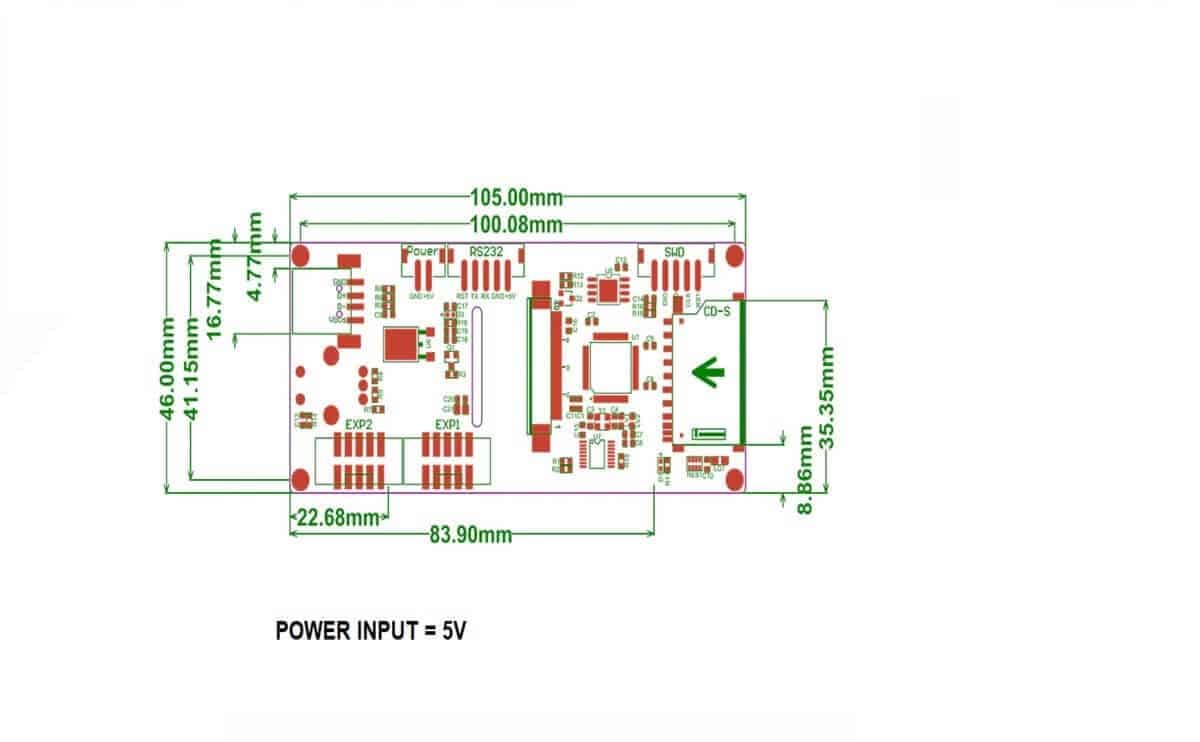

TFT display 24 Specification

• Appearance size: 105x46mm
• Installation Size: 100.08×41.1mm
• Microprocessor: STM32F105RCT6
• Power input: 5V

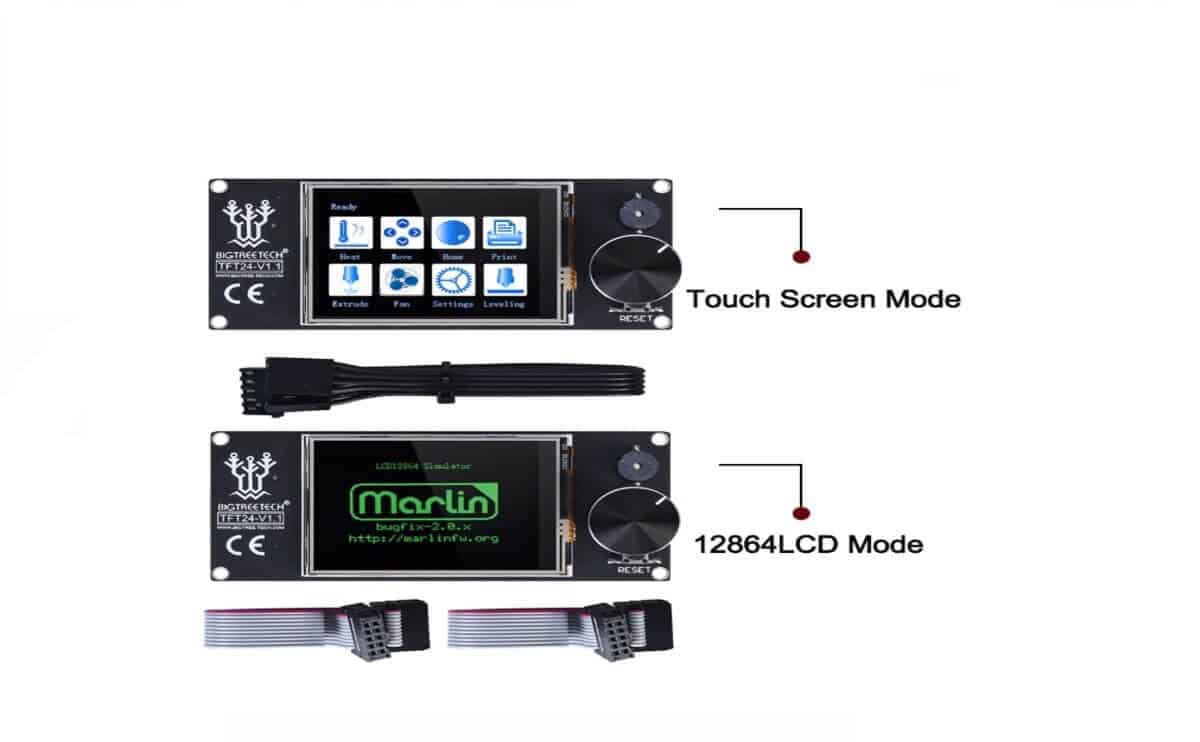

• working modes: UART Serial Port Touch Screen and 12864 LCD can be selected.

Advanced Features of the BigTreeTech TFT24 Display

1. Real-Time Printing Control:
   • TFT24 display Monitor and control your 3D printer with live updates on temperature, print progress, and more.
2. Dual Mode Support:
   • Switch seamlessly between Touch Screen Mode and Marlin Mode for a tailored user experience.
3. Easy Installation:
   • TFT24 display Compact size and plug-and-play design make it easy to integrate into most 3D printers.
4. Customizable Firmware:
   • Supports firmware customization for advanced users to unlock additional functionality and performance.

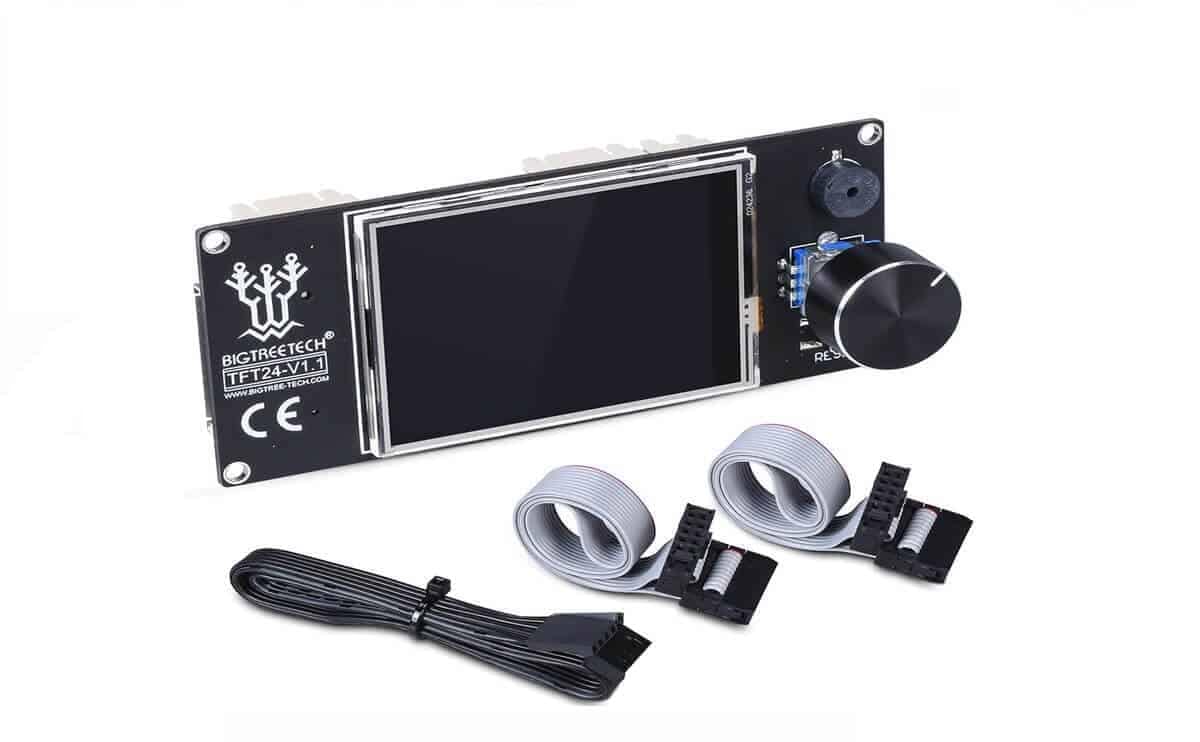

Package Includes

• 1 piece of TFT24 3D Printer Display.
