TB6600 Stepper driver high quality nema motor driver for 3d printer:

TB6600 Stepper driver is a device that can coordinate in a predetermined manner the performance of an electric motor.

  • TB6600 Arduino Stepper Motor Driver is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor.
  • It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. A motor controller might include a manual or automatic means for starting and stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque, and protecting against overloads and electrical faults.

Specifications:

This drive is an upgraded version of the TB6600 driver, the breakdown of heightening to 32 segments,for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)

  • Input Current: 0~5A
  • Output Current: 0.5~4.0A
  • Control Signal: 3.3~24V
  • Power (MAX): 160W

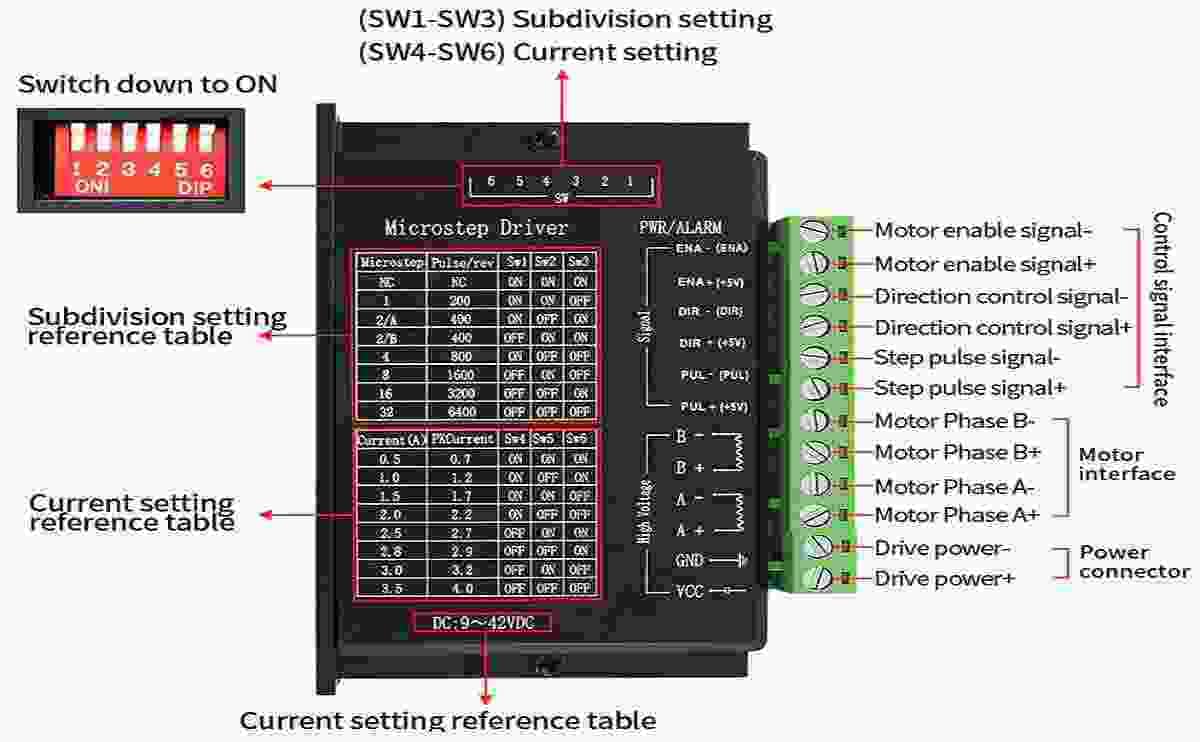

  • Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
  • Temperature: -10~45℃
  • H bridge bipolar constant current drive.

Features:

  1. 9V-42V DC power supply.
  2. H-bridge bipolar constant-phase flow-driven.
  3. the maximum output current of 4.0A eight optional.
  4. up to 32 segments of six kinds of sub-modes available.
  5. the input signal is high-speed optical isolation.
  6. standard common anode single pulse interface.
  7. offline hold function.
  8. semi-enclosed chassis can accommodate more demanding environment.
  9. provide energy semiautomatic current lock function.
  10. built-in thermal protection and overcurrent protection.

Packing

  • 1 piece of TB6600 driver.
