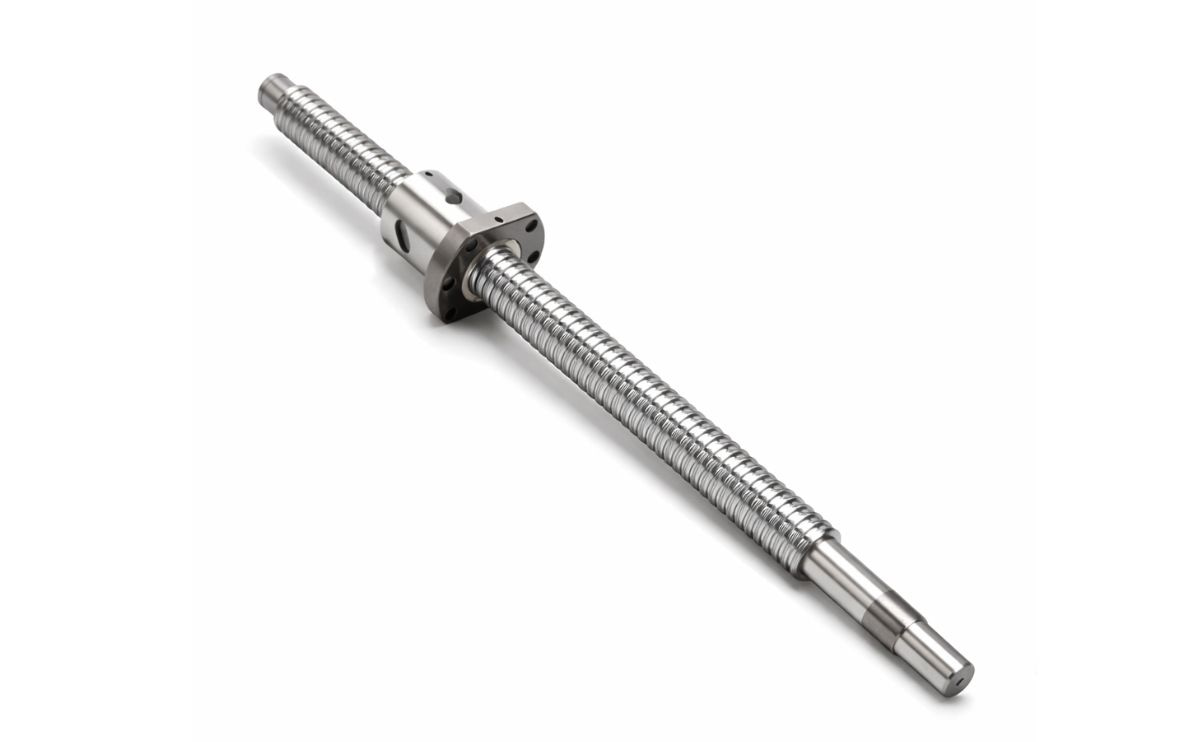

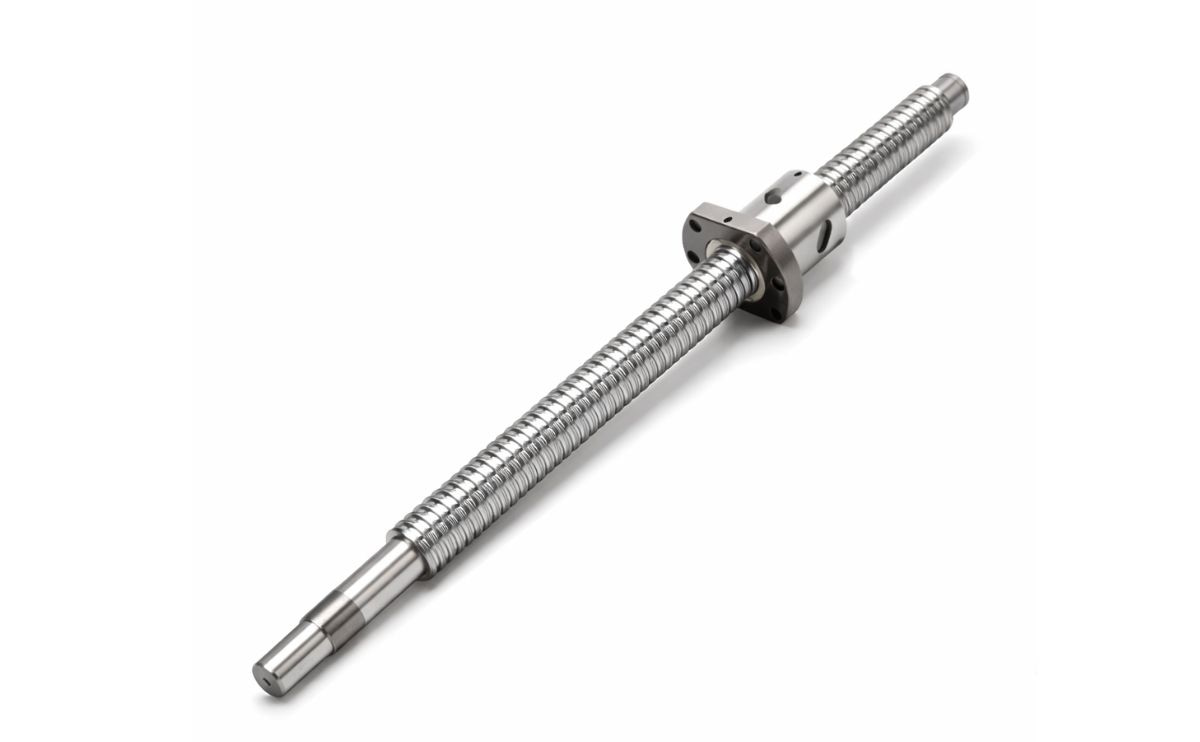

SFU1605 Ball Screw length 1200mm 16mm Dia 5mm Lead with Ball Screw Nut

SFU1605 Ball Screw length 1200mm 16mm Dia 5mm Lead with Ball Screw Nut

SFU1605 Ball Screw length 1200mm 16mm Dia 5mm Lead with Ball Screw Nut

• The SFU1605 Ball Screw length 1200mm is a precision linear motion component designed to convert motor rotation into smooth, accurate linear travel.
• With 16mm Dia rigidity and a 5mm Lead (5mm travel per revolution), it supports stable movement across longer strokes like length 1200mm.
• Includes a matched Ball Screw Nut to help reduce play for cleaner direction changes and improved positioning.

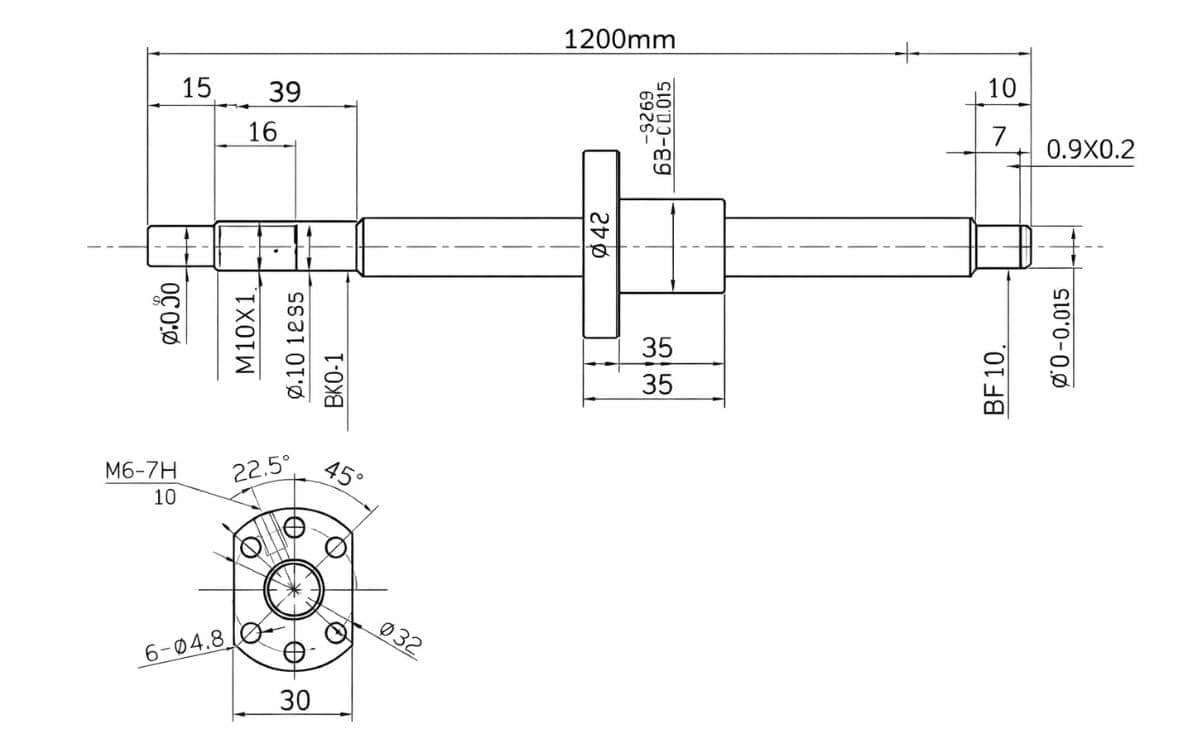

Specifications

• Model: SFU1605 Ball screw
• Type: Anti Backlash Ball Screw with Ball Screw Nut
• Screw length: 1200mm
• Screw diameter: 16mm
• Lead: 5mm
• Nut: Included Ball Screw Nut (matched to screw)
• Motion: Recirculating ball linear drive (high efficiency)
• Lubrication: Grease or light oil (recommended)
• Accuracy grade / preload: Varies by supplier (confirm for your machine tolerance needs)

Applications

• SFU1605 Ball Screw length 1200mm CNC routers, CNC milling machines, and engraving machines (X/Y/Z axis)
• Linear actuators and automation slides
• Gantry systems and robotics linear modules
• Wood/metal/plastic cutting machines requiring repeatable motion
• Upgrade projects replacing lead screws for smoother, more efficient travel

Features

• Anti Backlash performance for smoother reversals and improved positioning stability
• SFU1605 format widely used for CNC and automation builds
• 16mm Dia helps reduce deflection on longer axes like length 1200mm
• 5mm Lead balances speed, resolution, and driving torque requirements
• High efficiency Ball Screw design vs. traditional lead screws
• Matched Ball Screw Nut for consistent fit and reliable linear motion
• Ideal for CNC upgrades, linear rails + ballscrew builds, and precision motion systems

Package Includes

• 1 piece of SFU1605 Ball Screw length 1200mm
