Nema17 4Kgcm/4.4Kgcm stepper motor 1.5A with 6pin JST to 4pin JST wire for 3D printer

2 reviews|2 answered questions
Availability:

In stock


609.00 699.00

Discount per Quantity

Quantity 6 - 2021 +
Discount 2%4%
Price 596.82 685.02 584.64 671.04

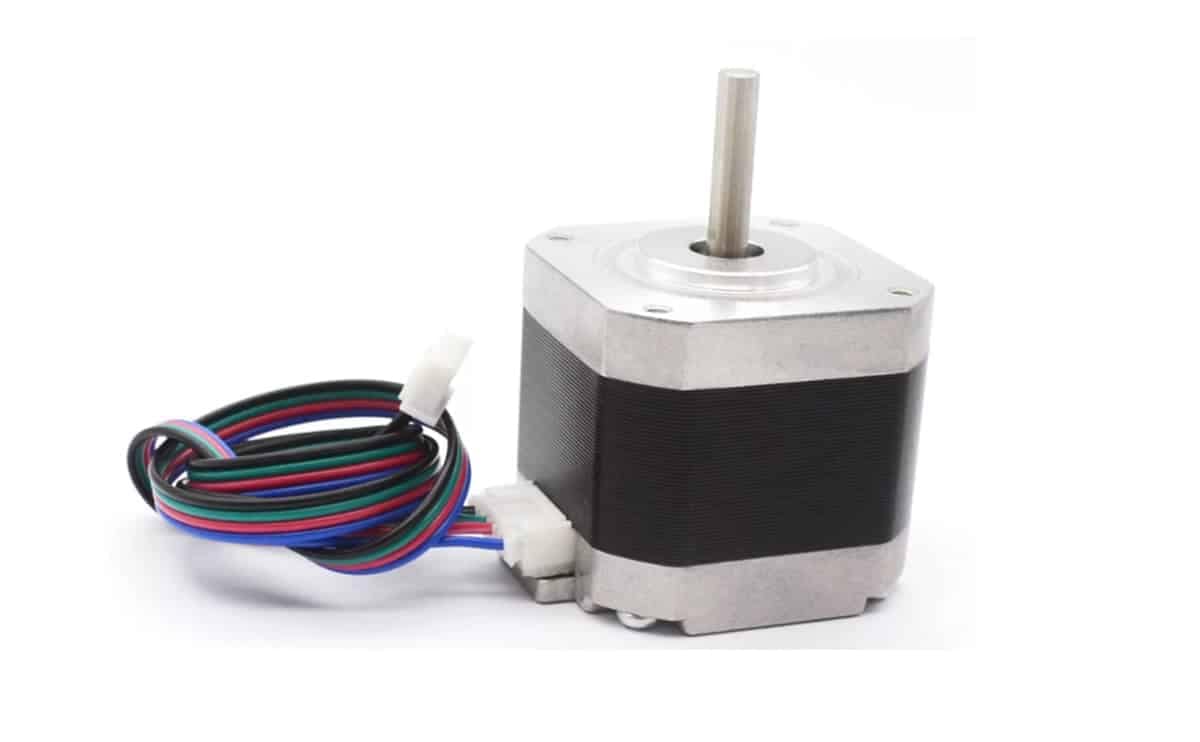

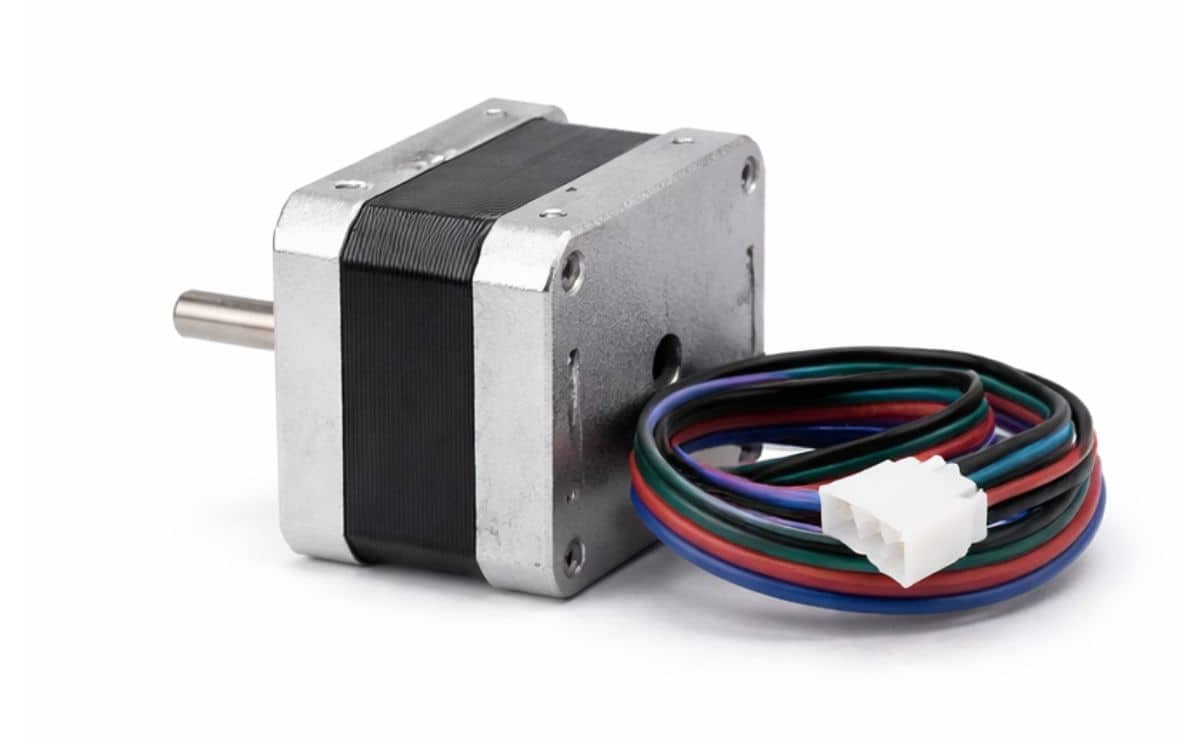

Nema17 4Kgcm/4.4Kgcm stepper motor 1.5A with 6pin JST to 4pin JST wire for 3D printer

The Nema17 4Kgcm/4.4Kgcm Stepper Motor 1.5A with 6pin JST to 4pin JST Wire is a high-quality motor designed specifically for 3D printers.

  • With its impressive torque and precise control, this stepper motor and driver is perfect for a wide range of applications in the world of 3D printing.
  • Stepper motor with high efficiency and can be used as a power source for dc equipment, etc.
  • Stepper motor has a selflocking function and low noise.
  • Can control dc brush motor speed, spindle motor of the stepper motor on a variety of specifications.
  • The motor has a special design of front end, which can be used for most printers.
  • The motor is equipped with an aluminum housing and a cnc lathe for easy positioning.

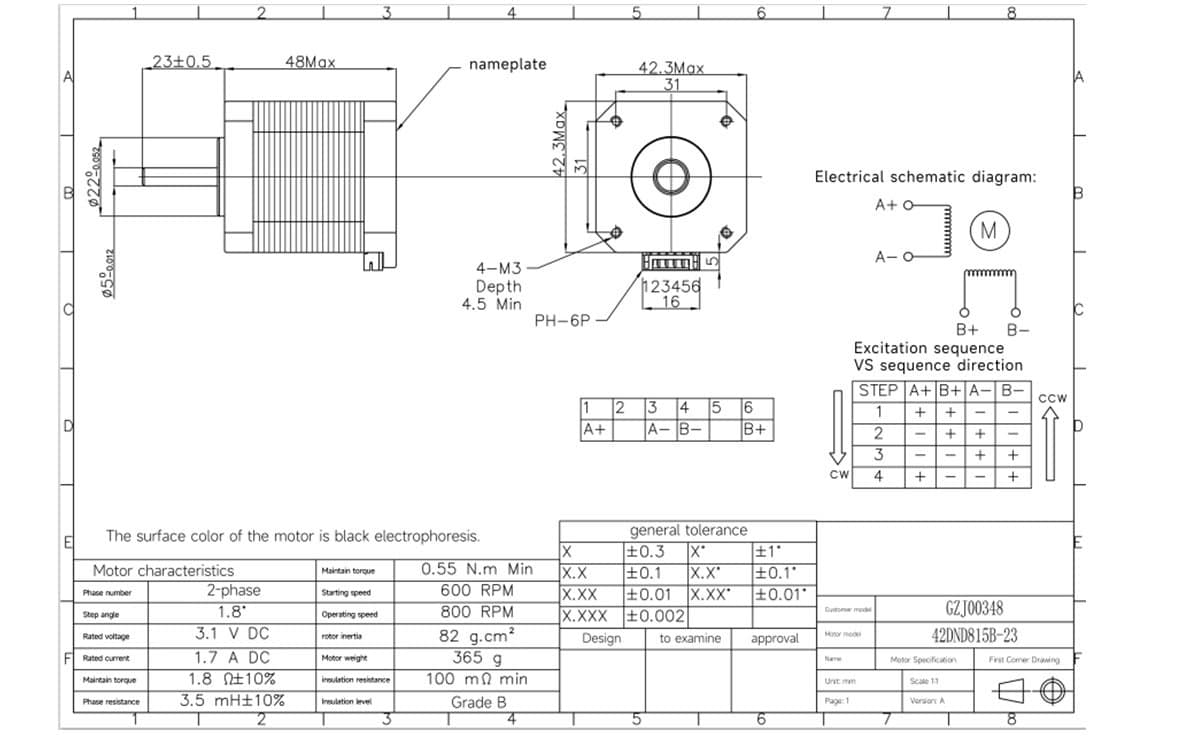

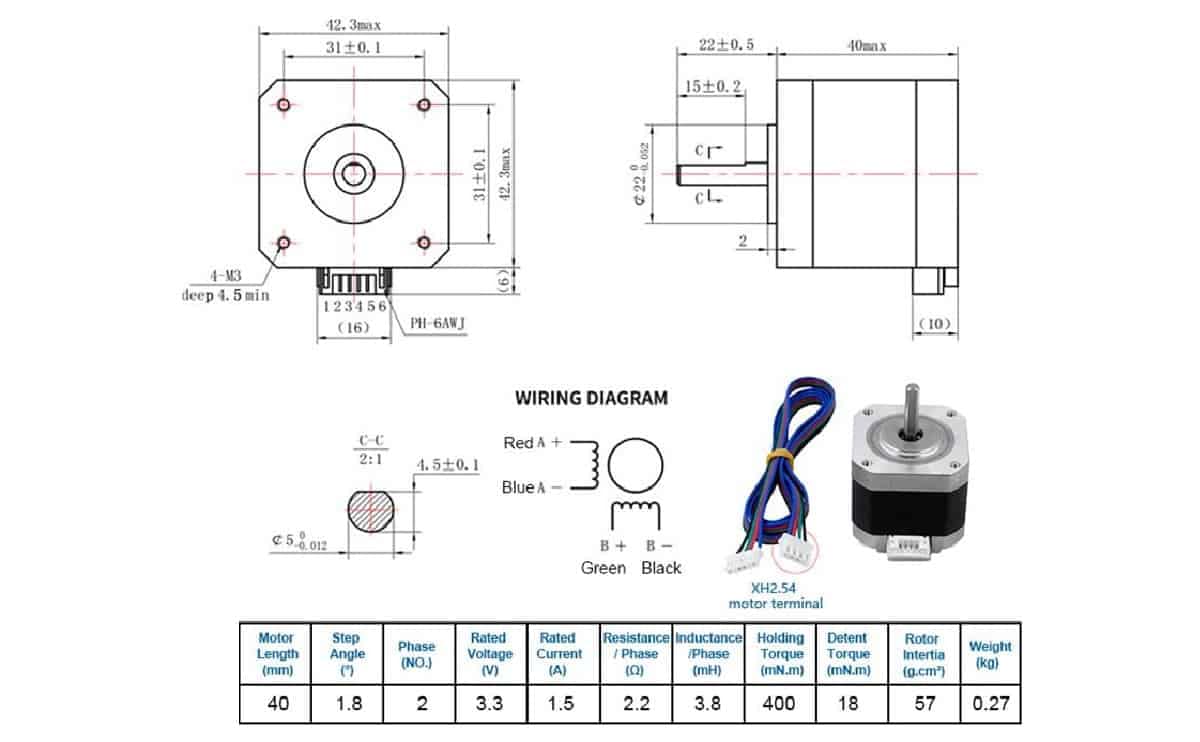

Specifications:

  • Name: For Nema17 Stepper Motor.
  • Size:42*42*40mm.
  • Weight:275g/pc.
  • Length:40mm.
  • Port of wires:6 pins female PH2.0.
  • Number of phase:2.
  • Step Angle:1.8°.
  • Holding Torque:400mN.m.
  • Rated voltage:3.3V.
  • Rated current:1.5A.
  • Insulation class:Class B (130°).
  • Inductance per phase:3.8mH±20%.
  • Resistance per phase:2.2Ω±10%.

Applications and Usage:

  • Its has high torque and precise control, this stepper motor is ideal for various applications in the field of 3D printing. It can be used to control the movement of the printer’s extruder, ensuring accurate and reliable filament deposition.
  • Additionally, it can be used for the printer’s XY-axis movement, providing smooth and precise motion for detailed prints.
  • The motor comes with a 6pin JST to 4pin JST wire, making it easy to connect to your 3D printer’s control board. The wire ensures a secure and reliable connection, minimizing the risk of disconnections or signal interference.
  • Whether you are a hobbyist or a professional in the world of 3D printing, the Nema17 4Kgcm/Nema17 4.4Kgcm Stepper Motor 1.5A with 6pin JST to 4pin JST Wire is a reliable and high-performance choice for your 3D printer setup.

Package Include:

  • 1 piece of Nema17 4Kgcm/4.4Kgcm stepper motor with 6pin JST to 4pin JST.

Weight N/A
HSN Code

847790

Torque

4 kgcm D shaft 1m wire, 4.4 kgcm C shaft 1m wire, 4 kgcm D shaft 0.3m wire, 4.4 kgcm C shaft 0.3m wire

2 reviews for Nema17 4Kgcm/4.4Kgcm stepper motor 1.5A with 6pin JST to 4pin JST wire for 3D printer

5.0 Rating
1-2 of 2 reviews
  1. (0) (0)
  2. Verified reviewVerified review - view originalExternal link

    (0) (0)
Add a review
You must be logged in to post a review Log In

Q & A

can i use DRV8825 driver with this motor? Sohel Khan asked on October 31, 2023

Yes, you can use DRV8825 driver for Nema 17 stepper motor

novo3d answered on November 1, 2023 store manager
(0) (0)
How much DC supply motor used 12v or 24v? ARAVINDH asked on June 6, 2023

Rated voltage 3.1 V DC

novo3d answered on June 13, 2023 store manager
