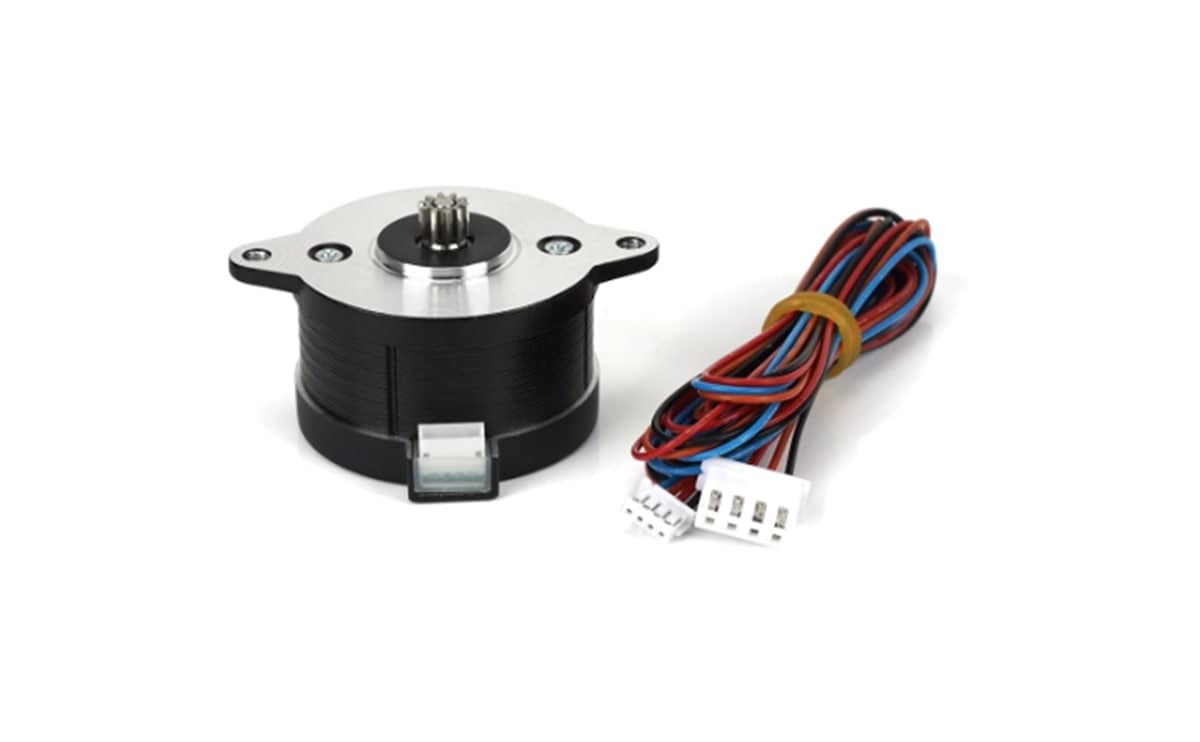

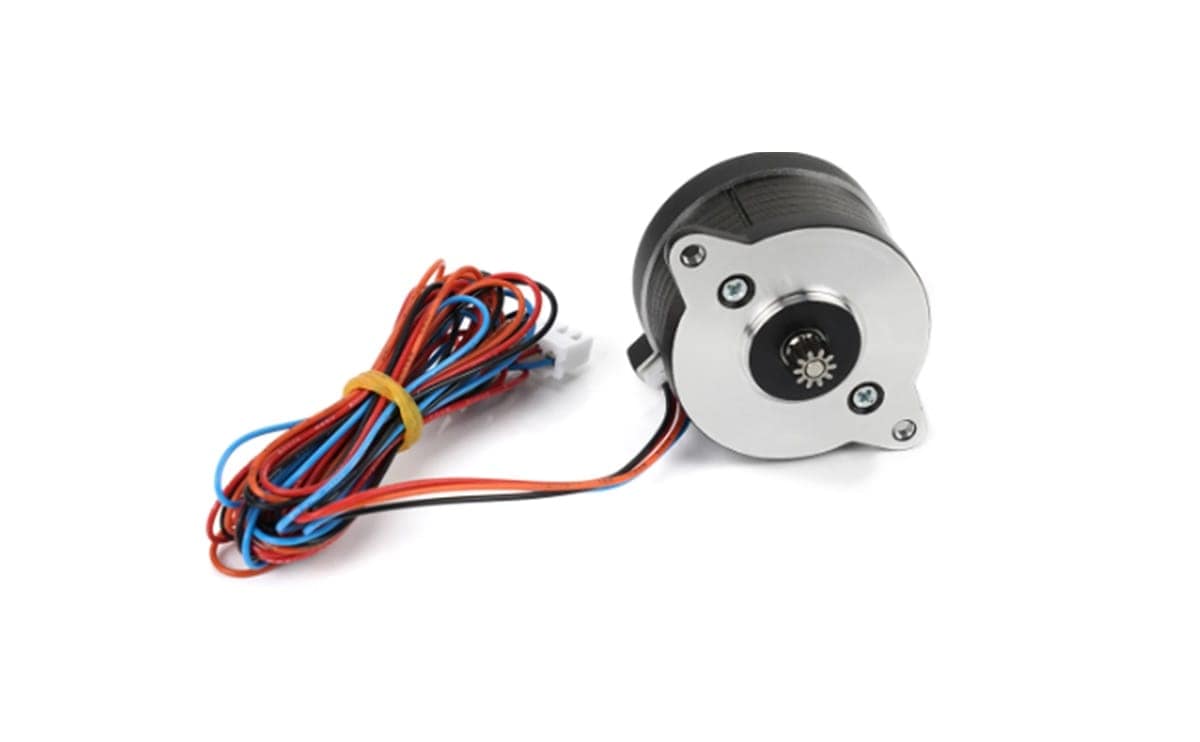

Nema14 Stepper Motor 36MM Round Motor Nema 14 Motor with 1m Wire For 3D Printer

Availability:

In stock


749.00

In stock

Nema14 Stepper Motor 36MM Round Motor Nema 14 Motor with 1m Wire For 3D Printer:

The Nema14 Stepper Motor is a compact and versatile motor designed specifically for use in 3D printers. With its 36mm round dimensions, it offers a perfect balance between size and power, making it an ideal choice for various applications.

  • Featuring a 1m wire, this Nema14 motor provides convenient connectivity options, allowing for easy integration into your 3D printer setup.
  • The wire length ensures flexibility in positioning the motor without compromising on the overall functionality of your printer.
  • With its precise and reliable performance, the Nema14 Stepper Motor delivers exceptional accuracy in controlling the movement of your 3D printer. This motor is known for its ability to provide precise positioning and smooth operation, resulting in high-quality prints with intricate details.
  • Not limited to just 3D printers, the Nema14 Stepper Motor finds applications in various other fields as well.
  • Stepper motor and driver can be used in robotics, CNC machines, automation equipment, and more, where precise control of motion is required.
  • Manufactured with high-quality materials and built to last, this Nema14 motor ensures durability and longevity, providing you with a reliable and efficient solution for your 3D printing needs.
  • Its compact design and easy installation make it suitable for both hobbyists and professionals alike.
  • Upgrade your 3D printer with the Nema14 Stepper Motor and experience enhanced performance and accuracy in your prints.
  • Whether you are a DIY enthusiast or a professional, this motor is sure to meet your requirements and deliver exceptional results.

Specifications:

  • Material: Copper
  • Module m: 0.5
  • Pressure angle a: 20°
  • Number of teeth Z: 10
  • Gear outer diameter Do: 06-0.1
  • Number of phases: 2
  • Step angle: 1.8 deg
  • Rated voltage: DC 2.4V
  • Rated current: DC 0.5A
  • Keep rotating torque: ≥120mN.m
  • Phase resistance: 13±10% ohm (20C)
  • Phase inductance: 10 ± 20% Tsui (1KHz)
  • Turning (look with the object): A-AB-B-C
  • Moment of inertia: 15 g.cm

Package includes:

  • 1 x Nema 14 stepper motor 36MM Round Motor with 1m wire.





Weight 100 g
HSN code

84779000

Step Angle

1.8 degrees

Shaft Diameter

2.5mm (integrated 10 tooth gear)

Rated Current

1A

Temperature Rating

180C

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Q & A

Will this fit in Creality K1 as a extruder motor Kunal asked on August 18, 2024

No, it won't fit. Dimensions will differ

novo3d answered on August 19, 2024 store manager
(0) (0)
What is the stall torque of this motor? How many teeth does the driver gear has? And what is the model number of the motor? Maaz asked on June 13, 2024

Step Angle: 1.8 degrees
Shaft Diameter: 2.5mm (integrated 10 tooth gear)
Rated Current: 1A
Temperature Rating: 180C

novo3d answered on June 14, 2024 store manager
(0) (0)
