MGN15H Linear Rail Guide Carriage CNC Miniature For 3D Printer Parts

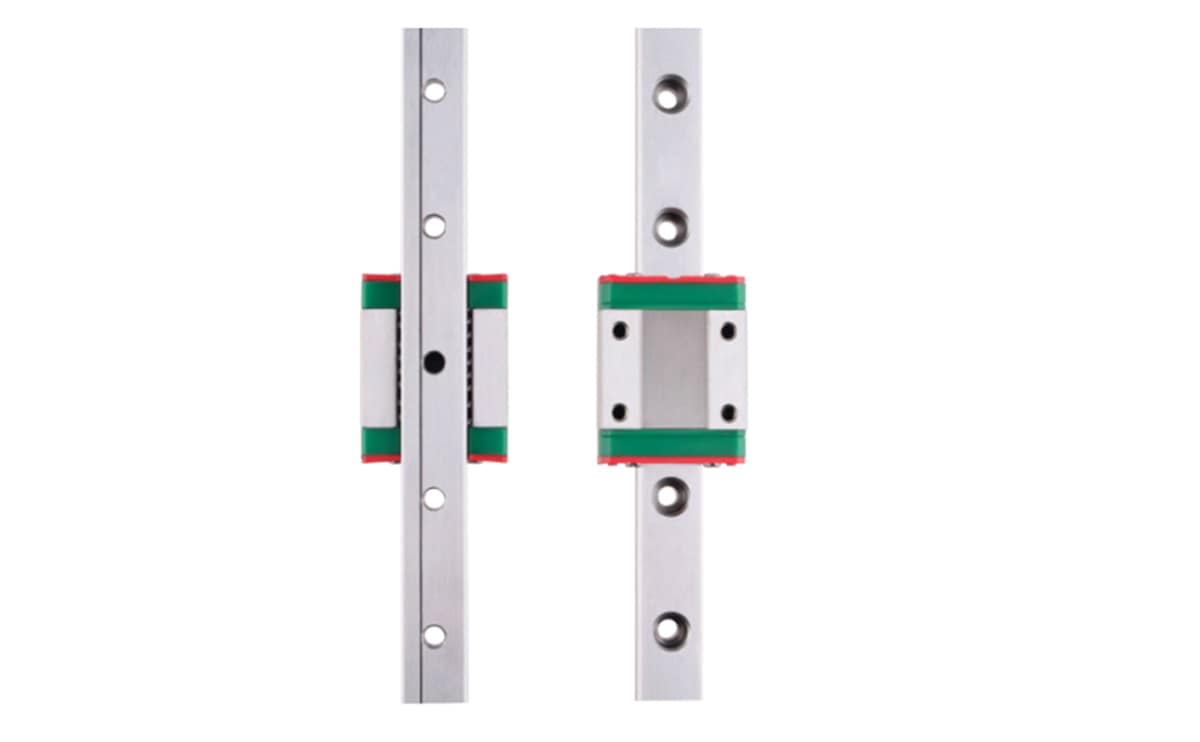

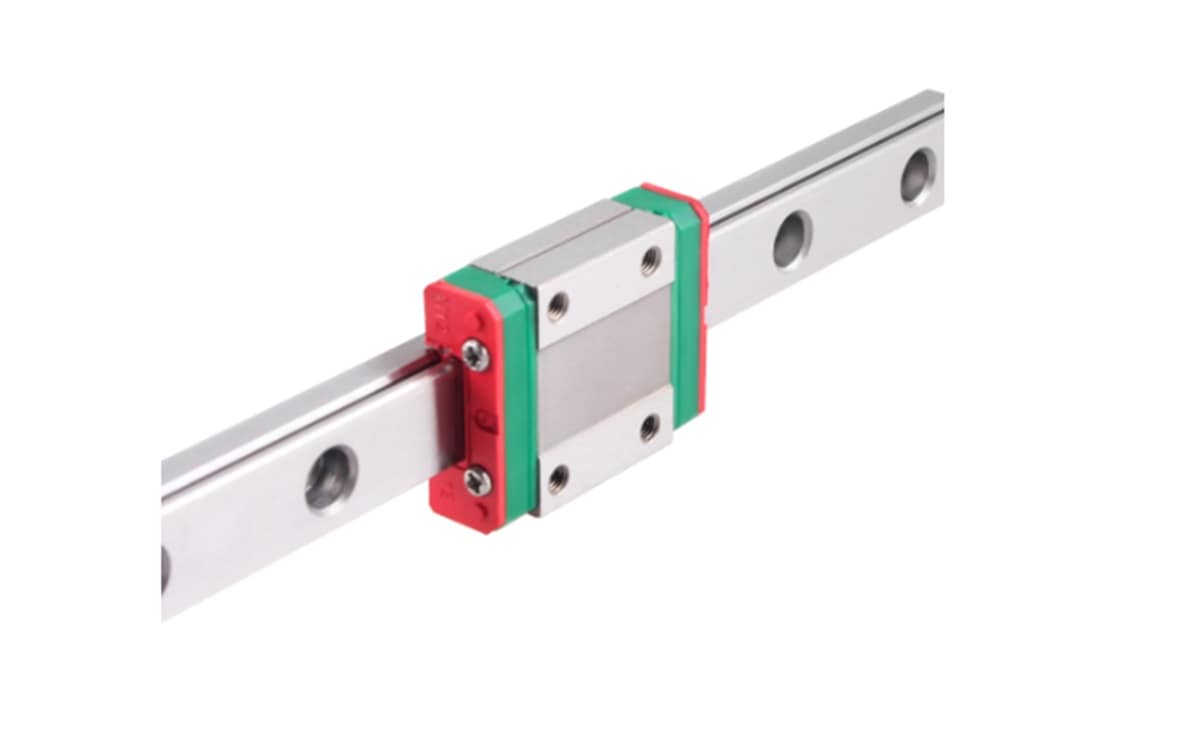

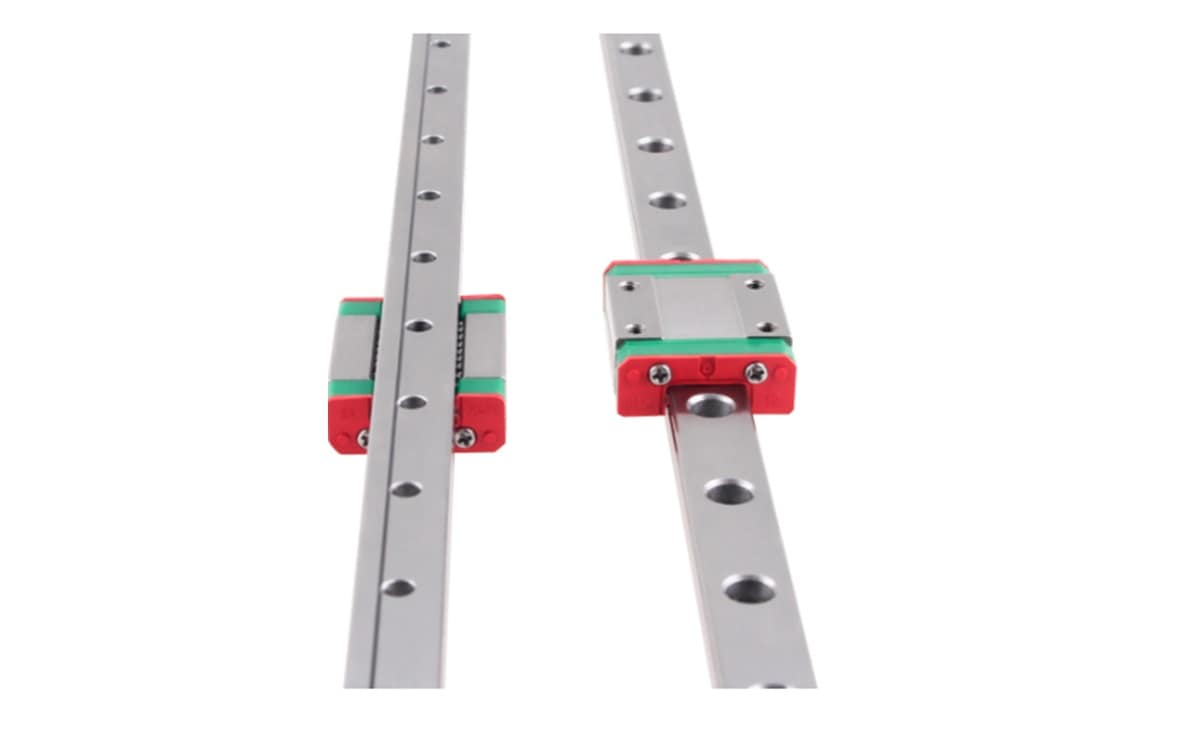

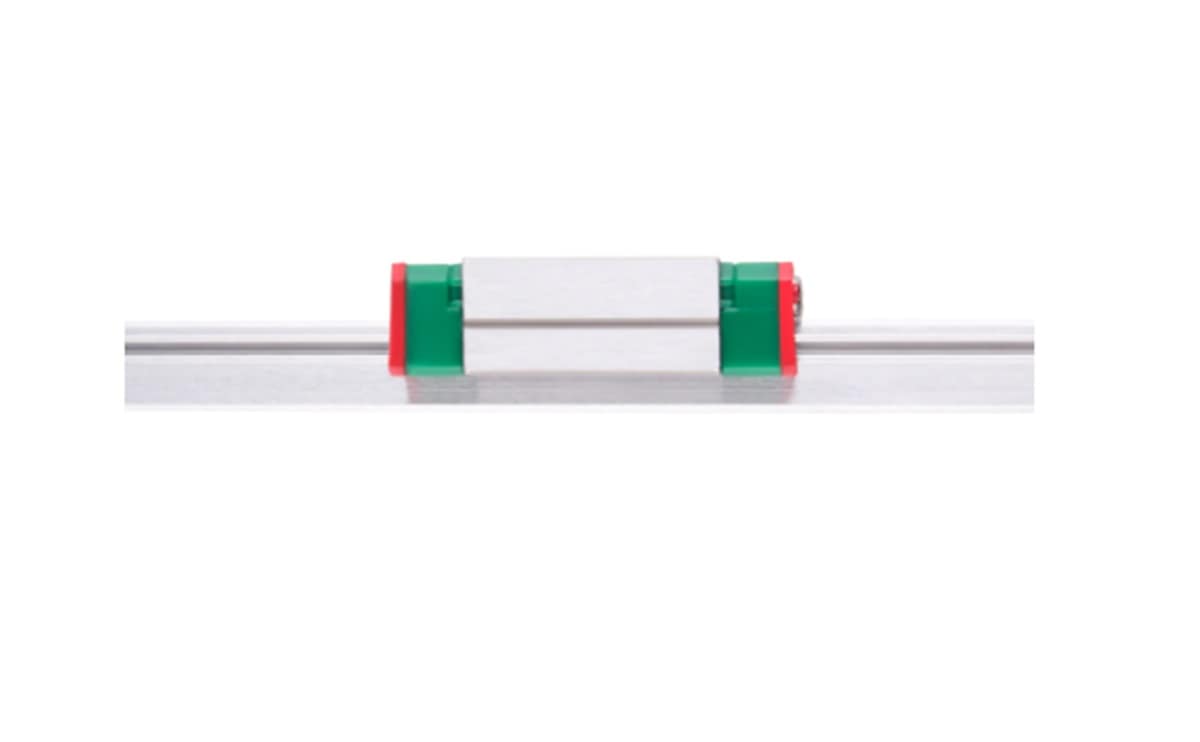

MGN15H Linear Rail Guide Carriage CNC Miniature for 3D Printer Parts

MGN15H Linear Rail is designed for precision motion applications, offering reliable performance, high load capacity, and smooth operation.

• Perfect for CNC machines, 3D printers, and automation systems, this linear guide rail is built to handle demanding tasks with exceptional accuracy and durability.

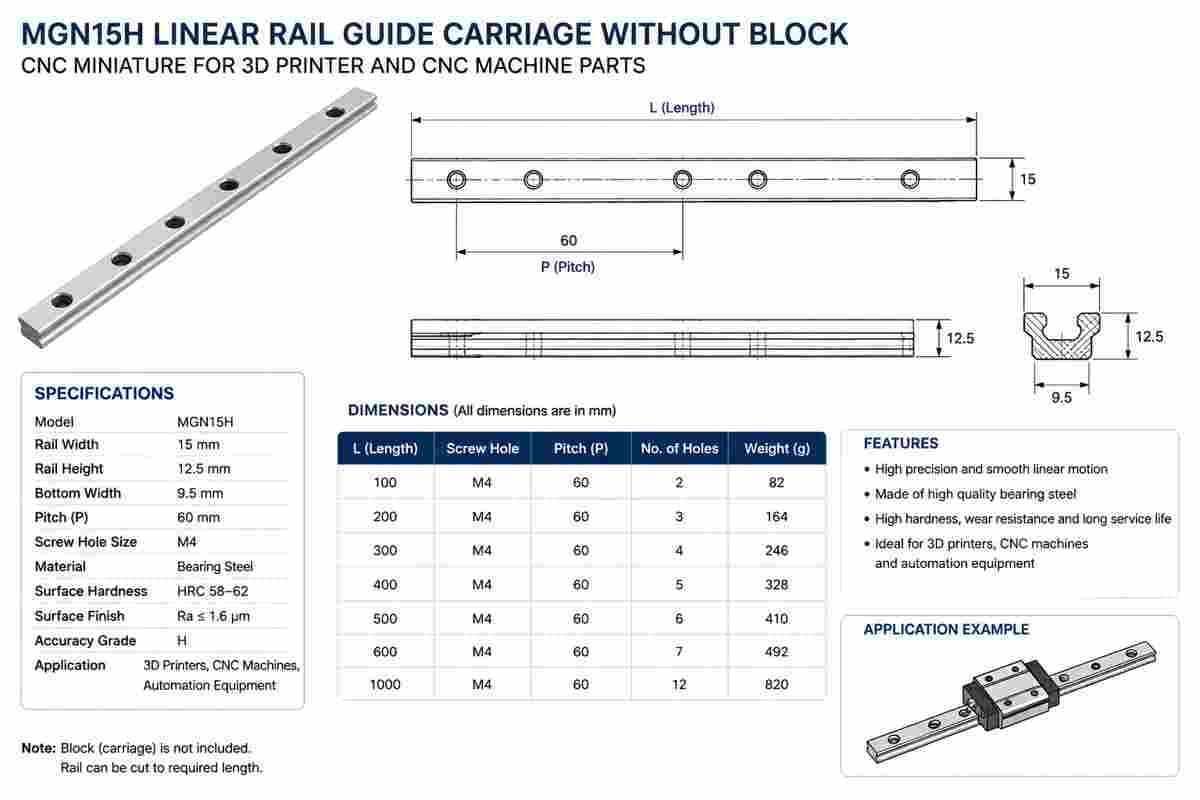

Specifications of MGN15H Linear Rail

• Model: MGN15H
• Rail Width: 15mm
• Length Options: Available in multiple lengths 300mm, 400mm, 500mm, 600mm and 1210mm.
• Block Profile: High-profile (MGN15H) for enhanced load capacity
• Dynamic Load Capacity: Up to 1,540 Newtons (varies with application)
• Static Load Capacity: Approximately 2,300 Newtons
• Material:
  • Rail: Hardened stainless steel for wear resistance
  • Block: High-strength steel with anti-corrosion treatment
• Mounting Holes: Pre-drilled with a standard pitch for easy installation
• Flatness Tolerance: ± 0.01mm for precision motion control
• Coating: Anti-rust and wear-resistant treatment
• Compatible Blocks: MGN15H (high-profile) linear blocks

Key Features of MGN15H Linear Rail

1. High Load Capacity:  MGN15H Linear rail Designed to handle heavy loads with ease, making it ideal for industrial applications.
2. Exceptional Precision: Guarantees smooth and accurate linear motion, critical for high-performance tasks.
3. Durable Materials: Made from hardened stainless steel and treated with anti-corrosion coatings for long-lasting reliability.
4. Easy Installation: Pre-drilled mounting holes allow quick and secure setup.
5. Versatile Length Options: Choose from a range of lengths to fit your specific machinery requirements.
6. Heavy-Duty Design: Ideal for applications requiring robust and stable linear motion.

Applications of MGN15H Linear Rail

• CNC Machines: Ensures precise cutting, engraving, and milling for industrial and hobbyist use.
• Automation Systems: Reliable performance for robotic arms, conveyors, and production lines.
• 3D Printers: Provides smooth and stable motion for accurate and high-quality prints.
• Robotics: Enables precise movement for intricate tasks in advanced robotics.
• Industrial Machinery: Suitable for heavy-duty applications in manufacturing and assembly lines.

Package Include

• 1 pcs of MGN15H linear rail with or without block.
