Manta M8P V2.0 Bigtreetech Control board For 3D Printer

Manta M8P V2.0 Bigtreetech Control board For 3D Printer

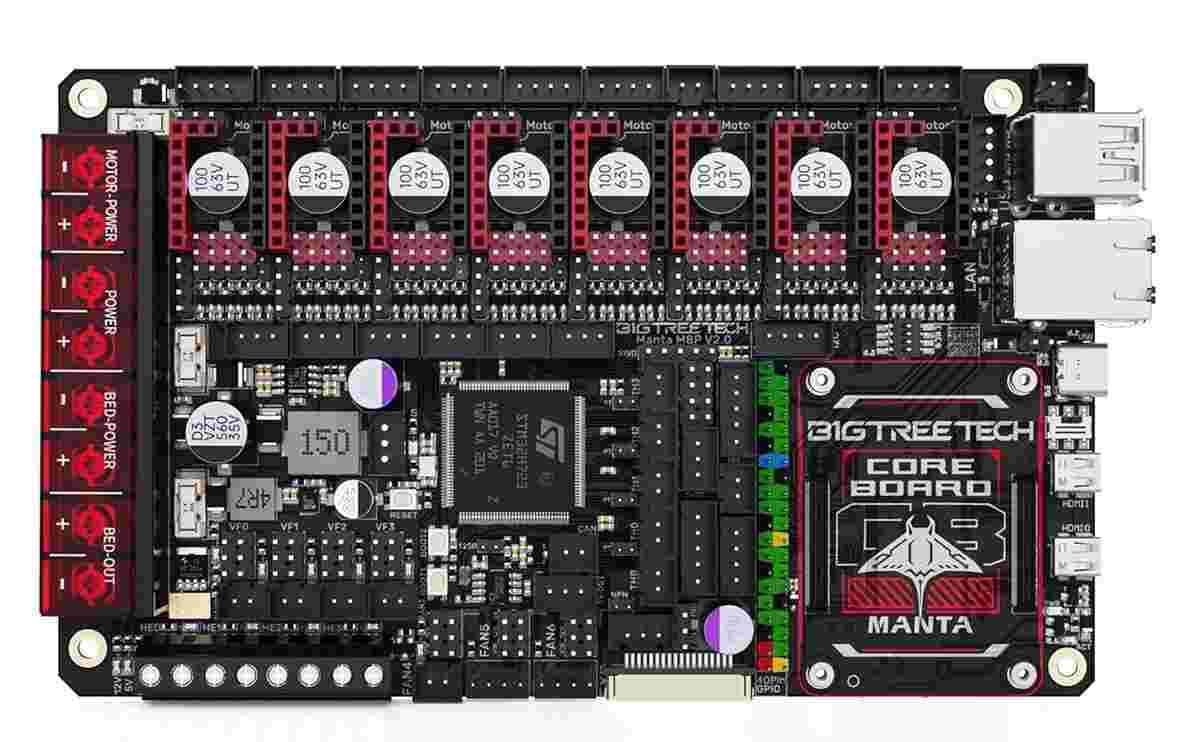

The Manta M8P V2.0 by BigTreeTech is a cutting-edge control board designed for advanced 3D printing applications.

• Packed with state-of-the-art features, this 32-bit motherboard offers unmatched performance, precision, and flexibility.
• Whether you’re a hobbyist or a professional, the Manta M8P V2.0 provides the tools you need to achieve high-speed, high-quality prints with ease.
• Connecting a filament runout detection sensor: Bigtreetech M8P V2.0 If the filament runs out, the mechanical sensor picks up the information and pauses the print, so you can resume later.
• Connecting an automatic shutdown module: Bigtreetech M8P V2.0 Automatically shut down after a print is finished to save power.
• CSI camera DSI display port: Bigtreetech M8P Work with a CS1 camera to capture your imagination. Work with a DSI display for interactive projects like tablets, entertainment systems.

Specifications of Manta M8P V2

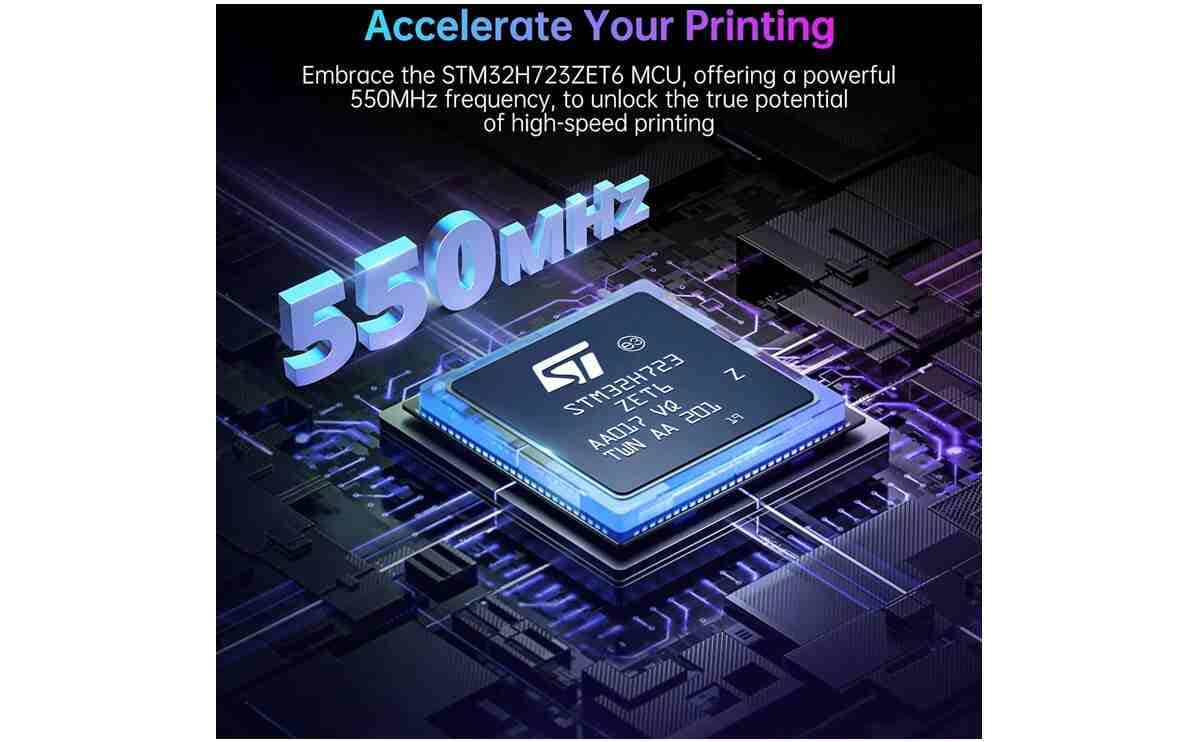

• MCU: STM32H723ZET6.
• Frequency: 550 MHz.
• Driver Slot: 8.
• eFuse: yes.

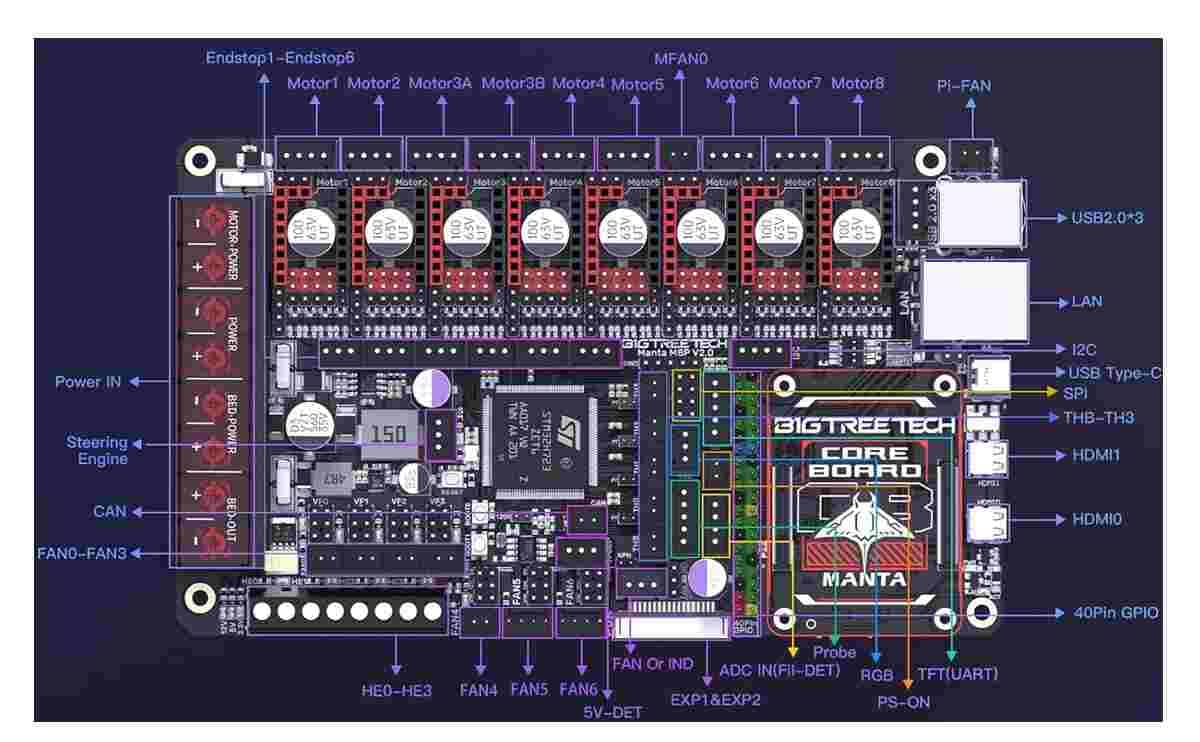

• Fan Port: 2 pins PWM Fan x 5 4pins PWM Fan x 2 Always on Fan x 1 SoC Fan x 1.
• Fan Voltage Selection (24V,12V.5V): yes.
• Heater Cartridge Connector: 4.
• Thermistor: 100K NTC x 5.
• USB: 1 USB-OTG or UART to USB 3 USB- Host 2.0.
• HDMI: Micro HDMI x 2.

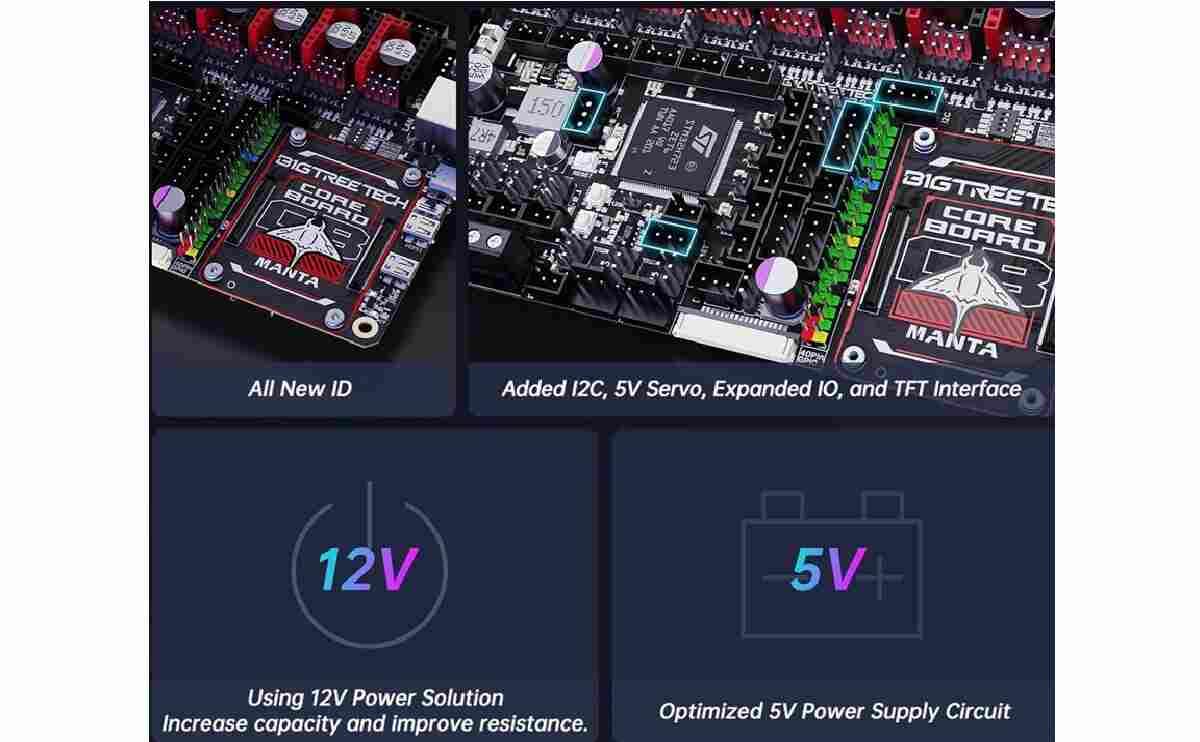

• 12C Interface: yes.
• CAN bus Interface: yes.

Advanced Features of Manta M8P V2.0

• Klipper Firmware Support:
  • Fully compatible with Klipper firmware, enabling high-speed and precise 3D printing.
  • Also supports other popular firmware like Marlin for flexibility and ease of customization.
• CB1 or Raspberry Pi CM4 Integration:
  • Modular design allows seamless integration with CB1 or Raspberry Pi CM4, creating a compact and efficient all-in-one 3D printing control solution.
• Efficient Heat Management:
  • Large heatsink area ensures excellent thermal dissipation, allowing for stable operation even during extended printing sessions.
• Safety Features:
  • Includes protection against overcurrent, short circuits, and reverse polarity to safeguard your components and ensure reliability.

Package Includes

• 1 pcs of bigtreetech manta m8p V2.0 control board.
