Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin

Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin

Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin

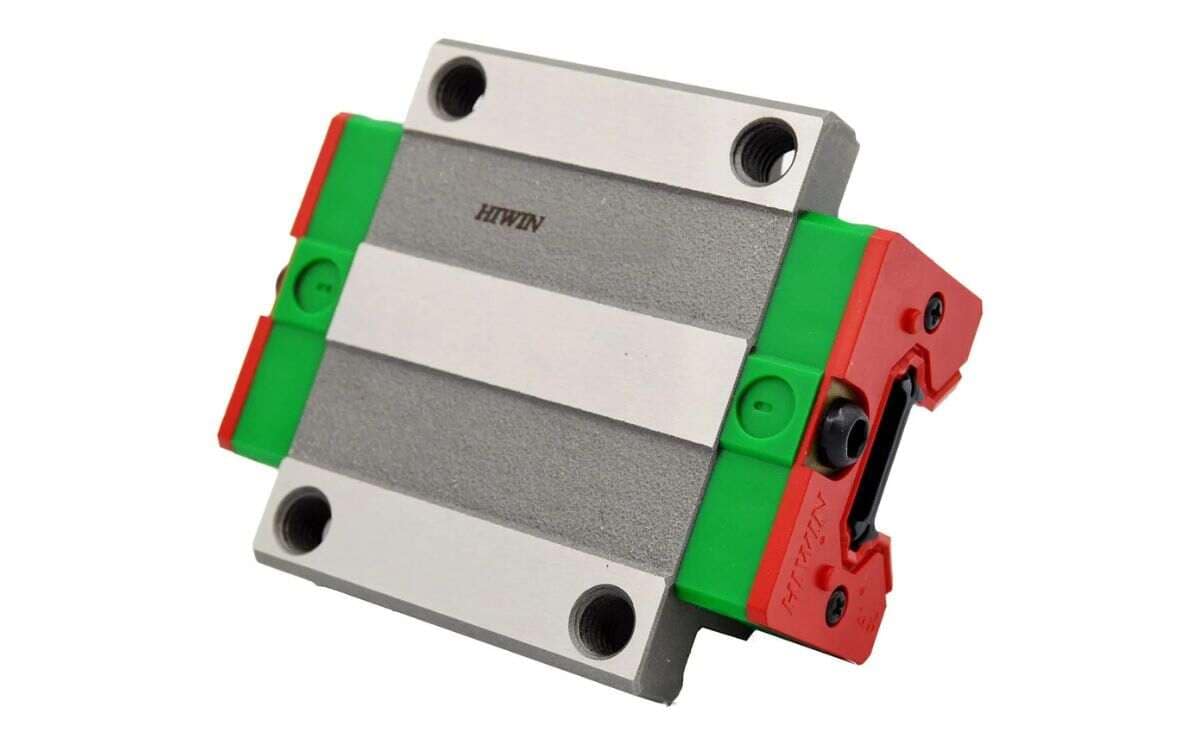

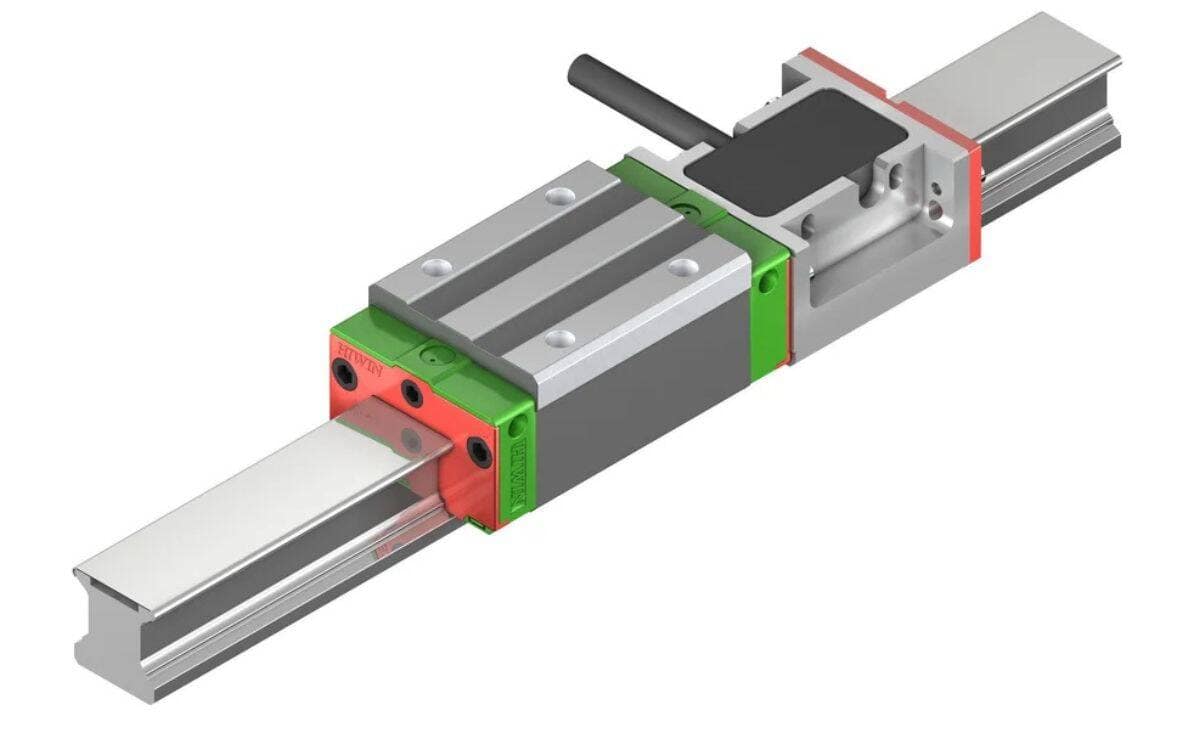

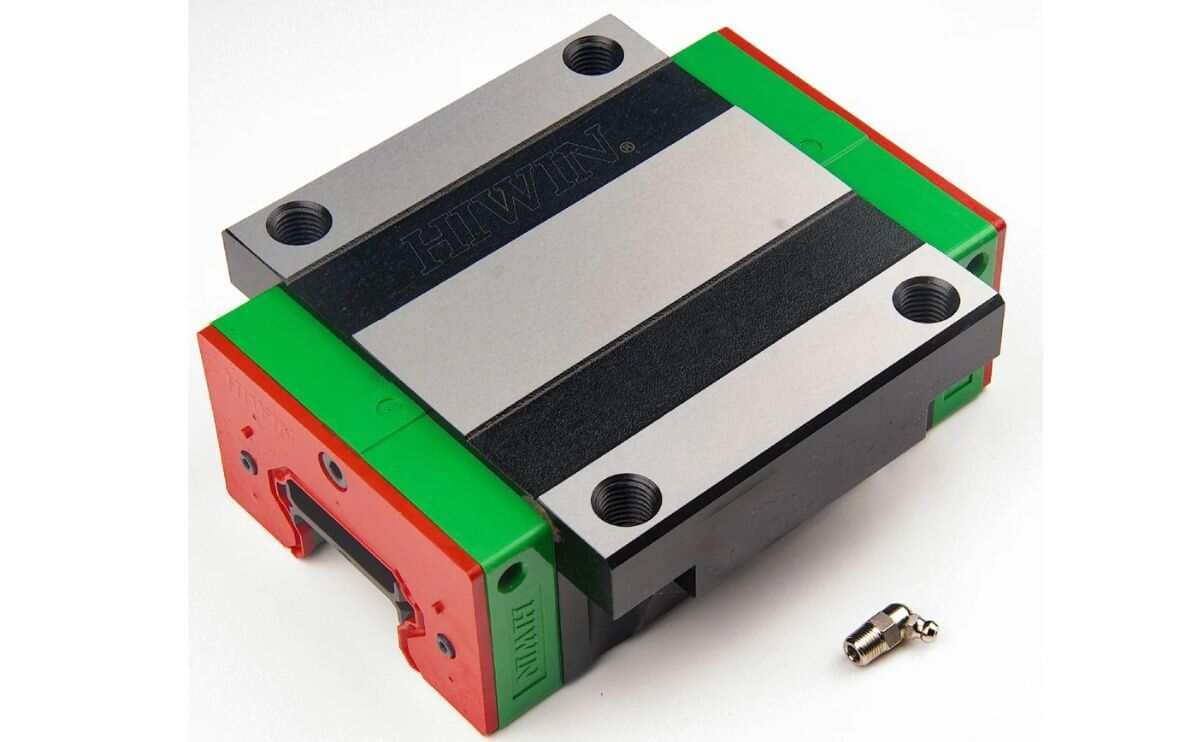

• HGW30 linear guide block is a wide type (W-series) linear motion carriage used with HGR30 linear guide rails.
• Compared to square type blocks, the wider body offers increased moment load capacity and improved rigidity, making it suitable for heavy-duty and high-precision motion systems.
• Manufactured from hardened bearing steel with precision-ground raceways, the HGW30 block ensures smooth linear movement, low friction and long service life.
• Its sealed ball circulation system protects against dust and contaminants, ensuring reliable performance in demanding industrial environments.
• HGW30 Linear block are commonly used in CNC routers, gantry systems, automation machinery and high load linear motion assemblies.

Specifications

• Brand : Hiwin
• Model: HGW30
• Type: Wide Type Linear Block
• Rail Compatibility: HGR30 linear rail
• Rail Size: 30mm Block
• Material: Hardened bearing steel
• Mounting Type: Top mounting
• Lubrication: Grease lubricated
• Sealing: End seals for dust protection
• Accuracy Class: Standard / High precision
• Mounting Orientation: Horizontal & vertical

Applications

• Heavy-duty CNC routers and milling machines
• Gantry and portal machines
• Industrial automation systems
• Laser cutting and engraving machines
• Robotics and motion control systems
• Pick and place machines
• Precision linear motion assemblies

Advantages

• Wide-type linear block
• Higher moment load capacity than square type
• Excellent rigidity and stability
• Smooth and precise linear motion
• Low friction and low noise operation
• Precision hardened bearing steel construction
• Dust-proof end seals for long service life

Package Includes

• 1 piece of Hiwin HGW30 Linear Guide Block Wide Type for CNC Original Hiwin
