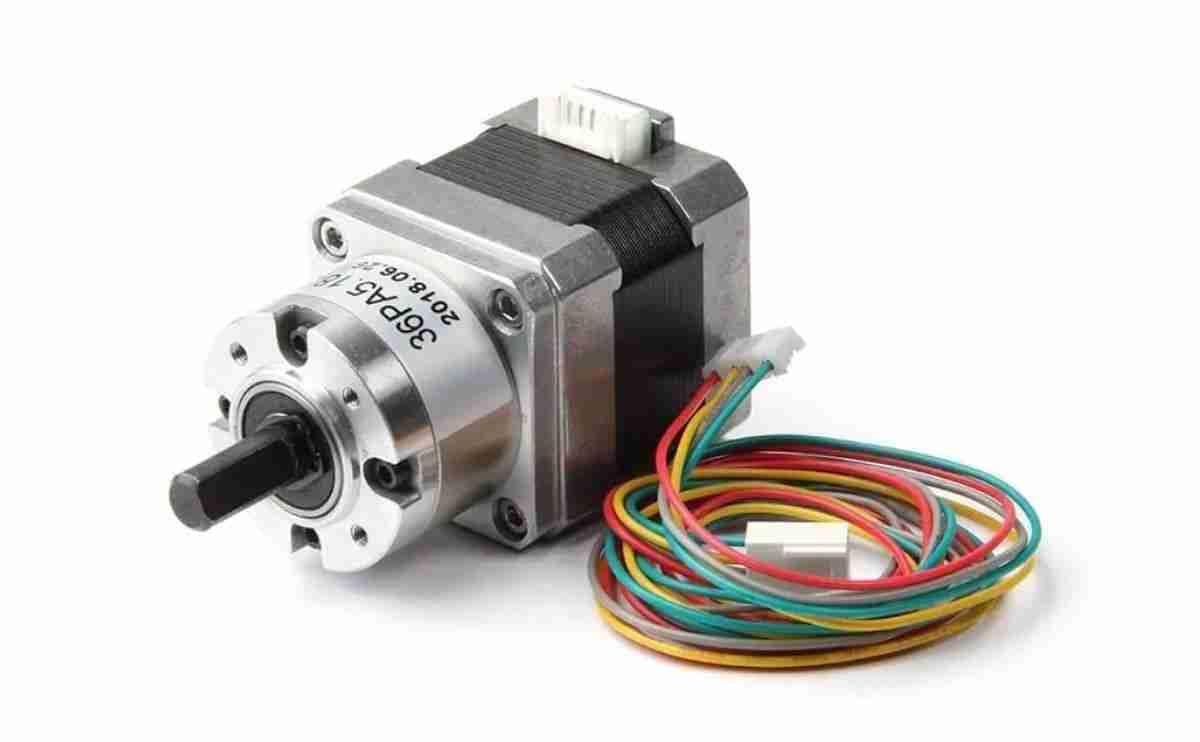

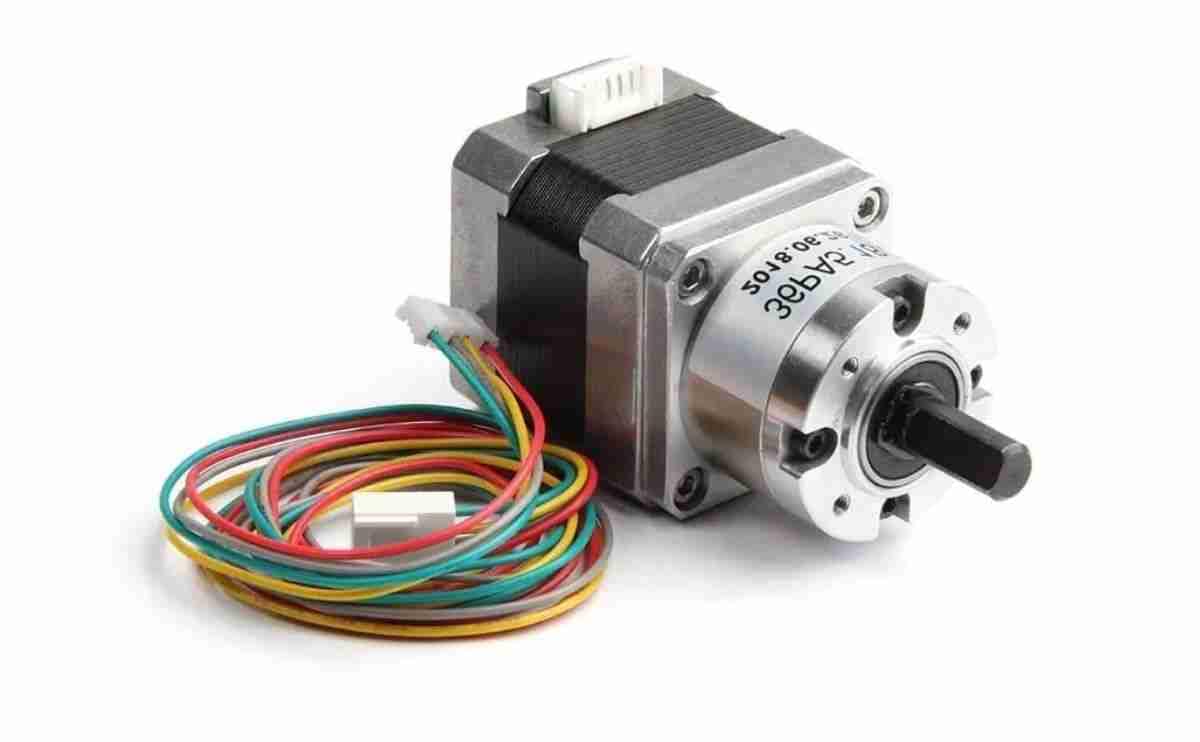

Nema17 40 28mm Geared Stepper Motor Planetary Gear 20mm D Shaft

Nema17 40 28mm Geared Stepper Motor Planetary Gear 20mm D Shaft

Nema17 40 28mm Geared Stepper Motor Planetary Gear 20mm D Shaft

• Nema17 40+28mm Geared Stepper Motor pairs a reliable stepper platform with a planetary gear reducer to multiply torque while maintaining accurate positional control. This makes it ideal for high-load extrusion systems, feeders, and mechanisms where standard direct-drive motors may struggle.
• The integrated gearbox provides smoother operation, improved holding force, and greater precision at lower speeds. A 20 mm D-shaft ensures secure coupling with drive gears and pulleys, minimizing slip even under heavy load.
• Installation is straightforward thanks to the included 700 mm JST-PH6 to PC2510 cable with quick-fit connectors. For optimal performance, running the motor at 24 V is recommended, with the stepper driver configured to supply a maximum of 1.2 A.

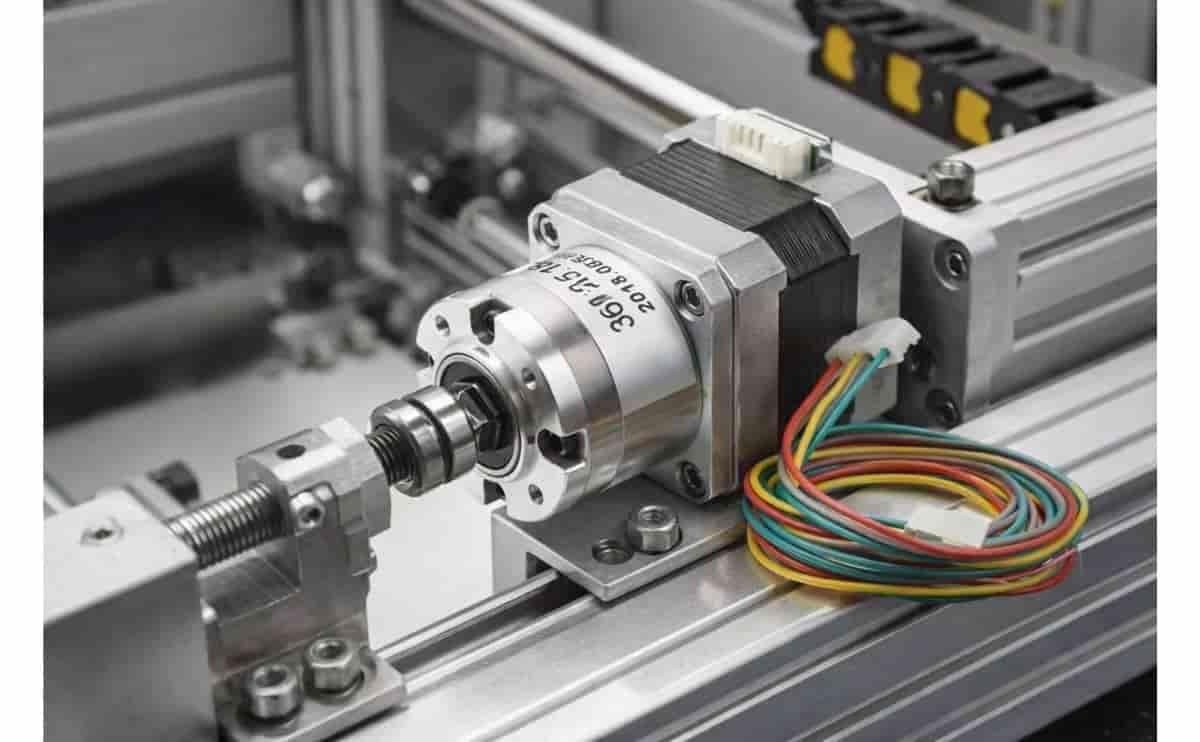

• Whether you are upgrading an extruder or designing a custom motion platform, this motor delivers dependable, repeatable power.

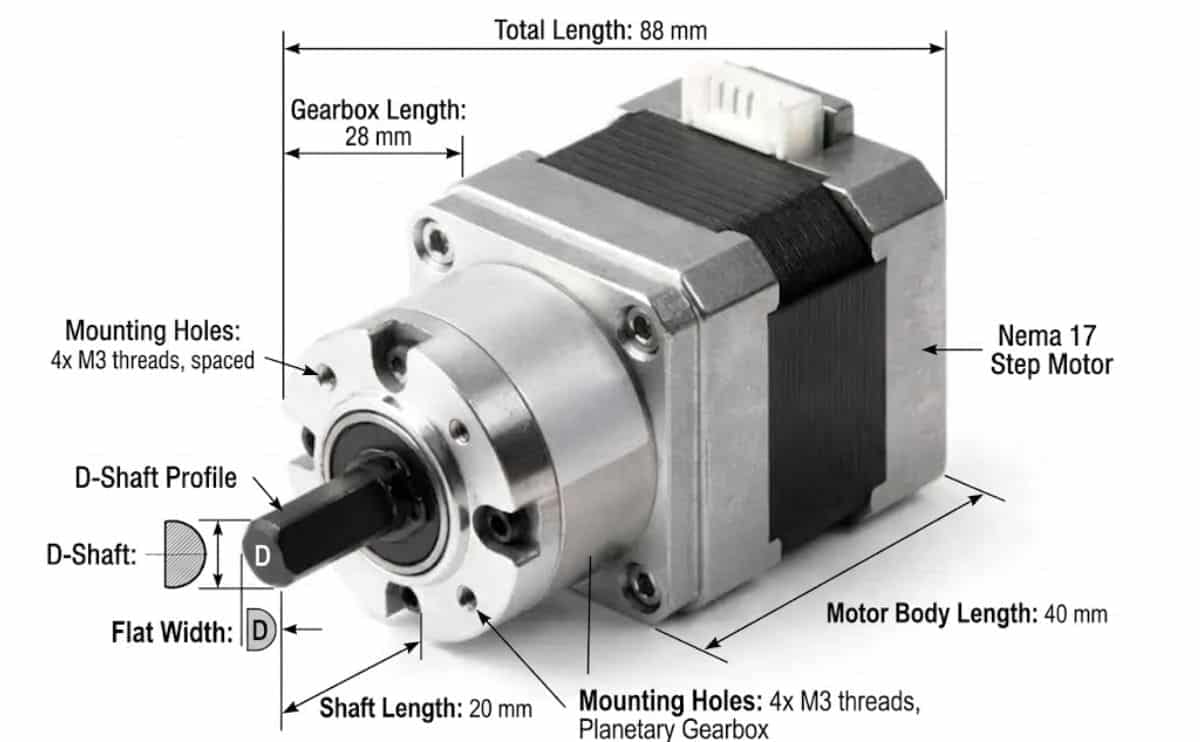

Specifications

• Motor type: Nema17 stepper
• Gear system: Planetary reducer
• Motor length: 40 mm
• Gearbox length: 28 mm
• Output shaft: 20 mm D-shaft
• Cable: 700 mm JST-PH6 to PC2510
• Recommended voltage: 24 V
• Maximum current: 1.2 A
• Connectors: Quick-fit type

Benefits

• Increased torque from planetary gearing.
• Better control at low speeds.
• Strong, slip-resistant D-shaft interface.
• Long pre-made cable for easy routing.
• Ideal for demanding extrusion setups.
• Stable and repeatable performance.

Package Includs

• 1 Piece of Nema17 40 28mm Geared Stepper Motor.
