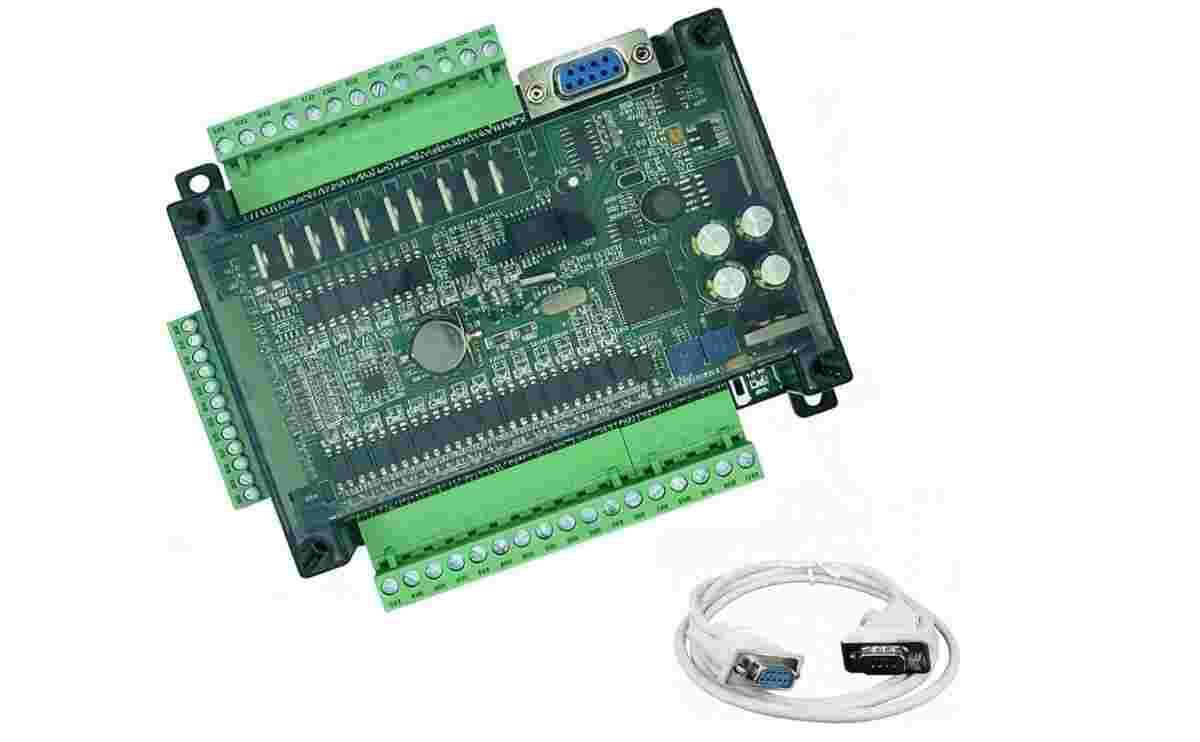

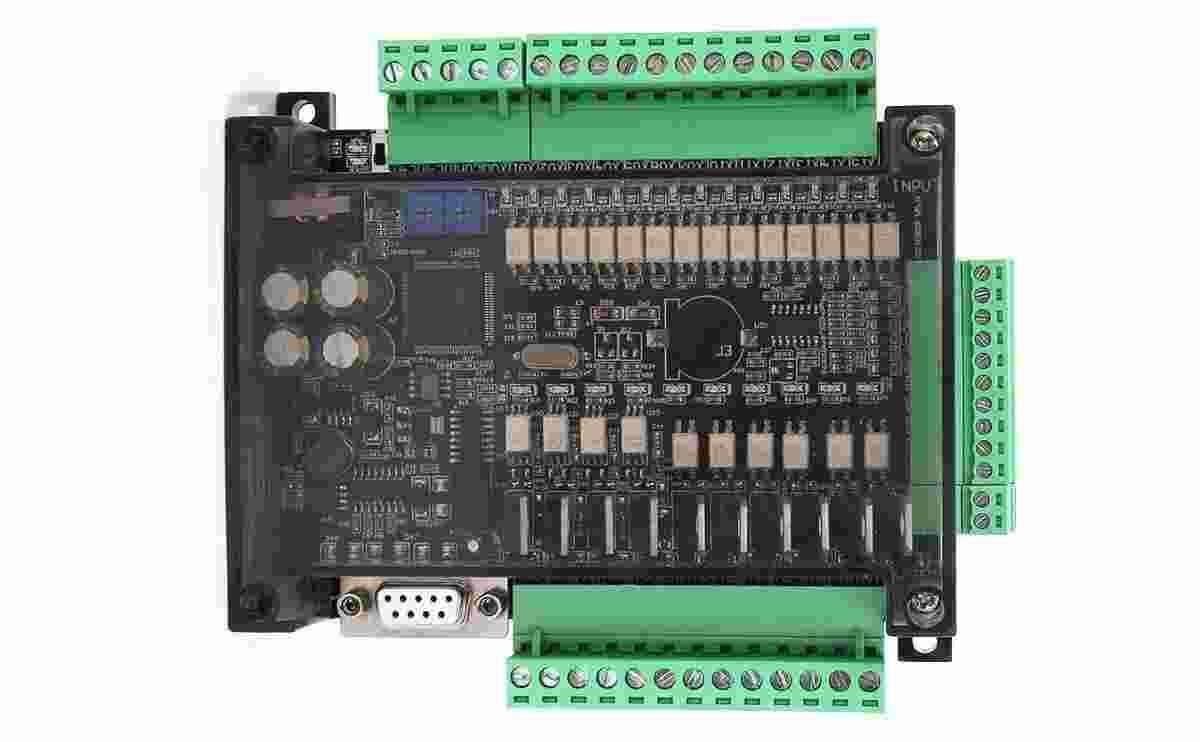

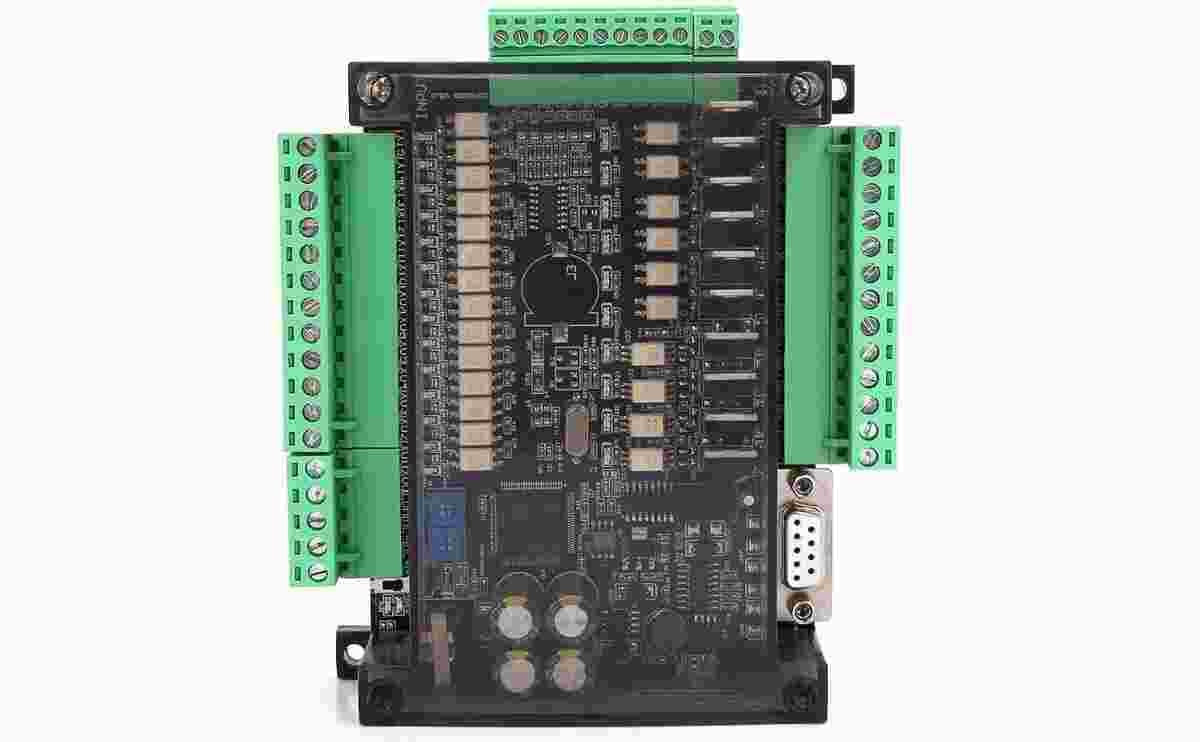

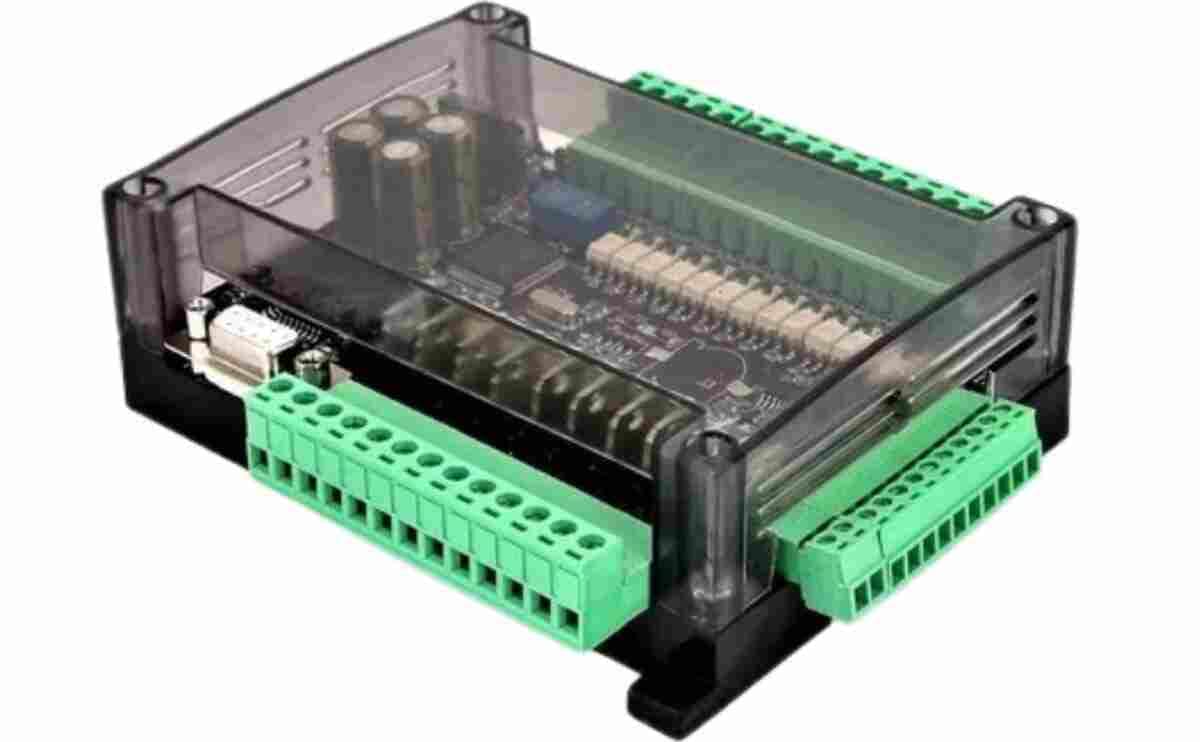

• The FX3U 24MT PLC is a compact, high-performance programmable logic controller from Mitsubishi Electric’s FX3U series.
• Designed with transistor outputs, this PLC is ideal for high-speed switching, pulse control, and motion control applications.
• It offers reliable performance in demanding industrial environments such as factory automation, packaging machines, CNC systems, and conveyor controls.
• The PLC supports modular expansion, allowing users to add I/O, analog, and communication modules as required.
• With support for GX Developer and GX Works2 software, programming and maintenance are simple and efficient.
• Its compact DIN-rail mountable design saves panel space while delivering powerful control capabilities.

Features

• Compact and powerful PLC from Mitsubishi FX3U series
• Transistor output (MT type) for fast and accurate switching
• Supports high-speed pulse output for stepper and servo motors
• High noise immunity for industrial environments
• Modular design for easy expansion
• DIN-rail and panel mounting options
• Long service life with stable performance
• Easy integration with HMIs, VFDs, sensors, and automation devices
• Compatible with Mitsubishi GX Developer & GX Works2 software
• also available in FX3U-24MR series

Specifications

• Model: FX3U-24MT
• Series: FX3U
• PLC Type: Compact Main Unit
• Total I/O Points: 24
• Digital Inputs: 14 × 24V DC
• Digital Outputs: 10 × Transistor Outputs
• Output Type: High-speed transistor (MT)
• Power Supply: 24V DC
• Program Memory: Approx. 8,000 steps
• Processing Speed: High-speed execution
• High-Speed Counters: Supported
• Pulse Output: Supported

Applications

• Industrial automation systems
• Motion control systems (stepper / servo motors)
• CNC and machine tool control
• Packaging and bottling machines
• Conveyor and material handling systems
• Textile and printing machinery
• OEM automation panels
• Process control applications

Uses

• High-speed digital control
• Pulse output for positioning systems
• Sequential machine operations
• Sensor and actuator control
• Automation system upgrades
• Replacement of relay-based logic systems
• Compact automation installations

Package Includes

• 1 unit of FX3U-24MT PLC
