E3D V6 hotend kit 12v/24v bowden/direct 3mm filament 3d printer hot end extruder improved metal version for 3d printer

E3D V6 hotend kit 12v/24v bowden/direct 3mm filament 3d printer hot end extruder improved metal version for 3d printer.

The V6 is an incredibly versatile Hotend allowing a wide variety of filaments to be used as standard. Whether you’d like to experiment with more advanced materials or print at different resolutions and sizes, our V6 ecosystem is suited for every application.

• High Quality Printing: We’ve kept our sharp thermal transition that gives the high quality printing performance users have come to expect from E3D HotEnds. A sharp thermal break gives better control over filament output so you get more immediate start and stops when extruding as well as retracts that are more effective in combating ooze. This means sharper, more accurate prints that have less stringing, oozing or blobbing.
• Adaptable: The V6 is a fully-integrated part of the E3D Ecosystem. Our range of nozzles and blocks gives you more opportunity to choose how you want to print. Choose from different filament diameters and materials to take your printing to the next level, and upgrade for ultra high-temperature printing.

Metal Parts E3D V6 hotend kit:

• 1 x Aluminium Heatsink (including embedded bowden coupling)
• 1 x  Teflon throat
• 1 x Brass Nozzle (0.4mm)
• 1 x Aluminium Heater Block

Electronics:

• 1 x 100K NTC 3950B
• 1 x Heater Cartridge (12V/24V)
• 1 x 30x30x10mm fan (12V/24V)
• 1 x Thermistor high temperature line

Fixings:

• 4 x Plastfast30 3.0 x 16 screws to attach the fan to the fan duct
• 1 x M3x3 socket dome screw and M3 washer to clamp thermistor
• 1 x M3x10 socket dome screw to clamp the heater block around the heater cartridge
• 1 x Fan Duct (Injection Moulded PC)

Bowden add-on:

• 2x Bowden extruder machine pneumatic connector G1/4

Packages Include:

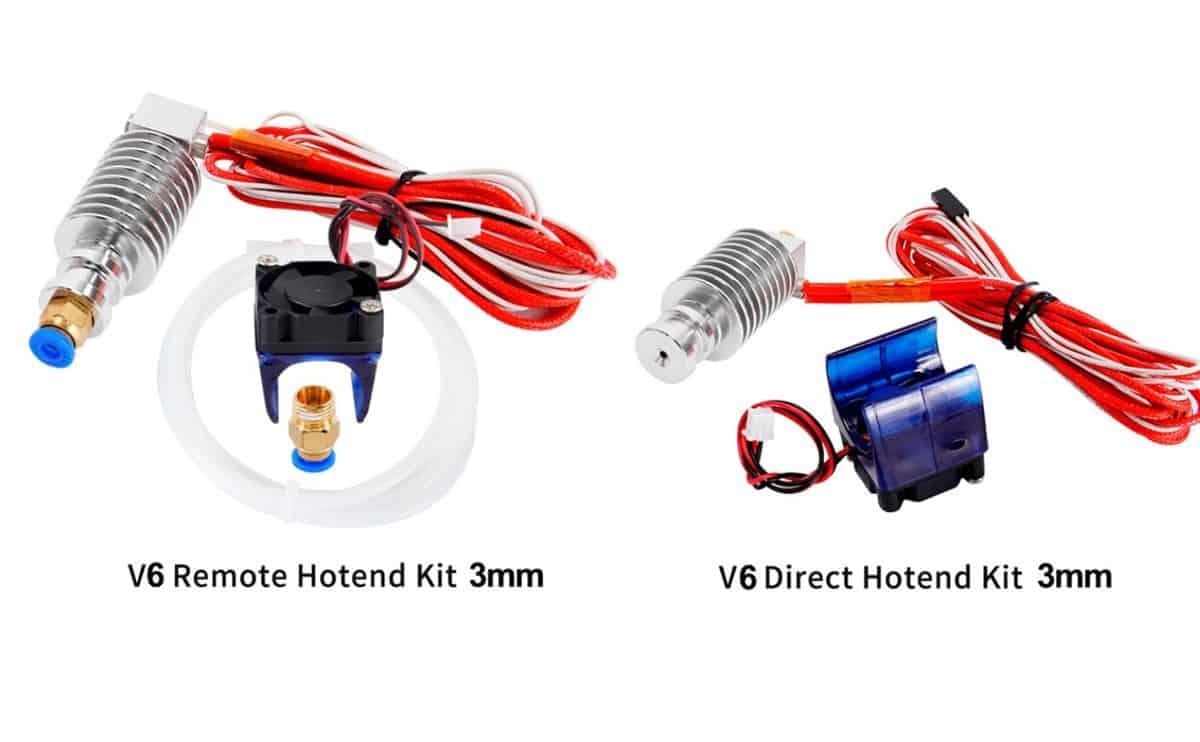

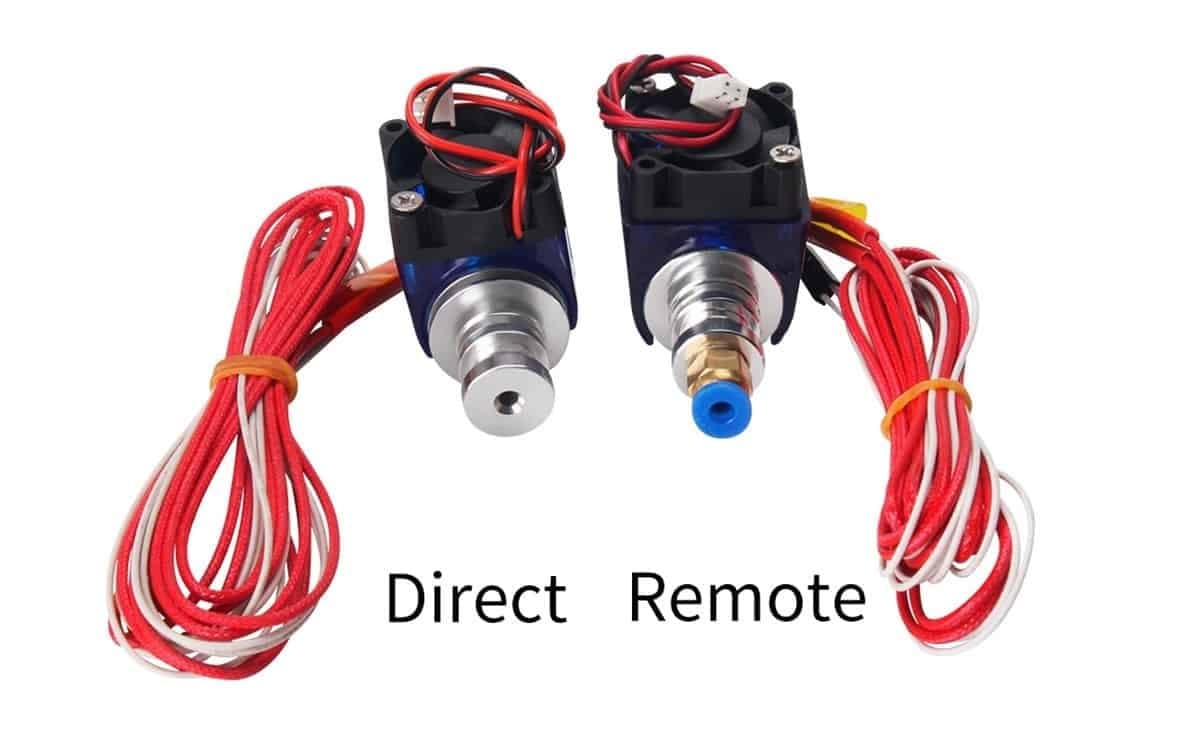

• 1 x E3D v6 extruder kit with Teflon throat Bowden/Direct Hotend 3mm filament ( as per order)
