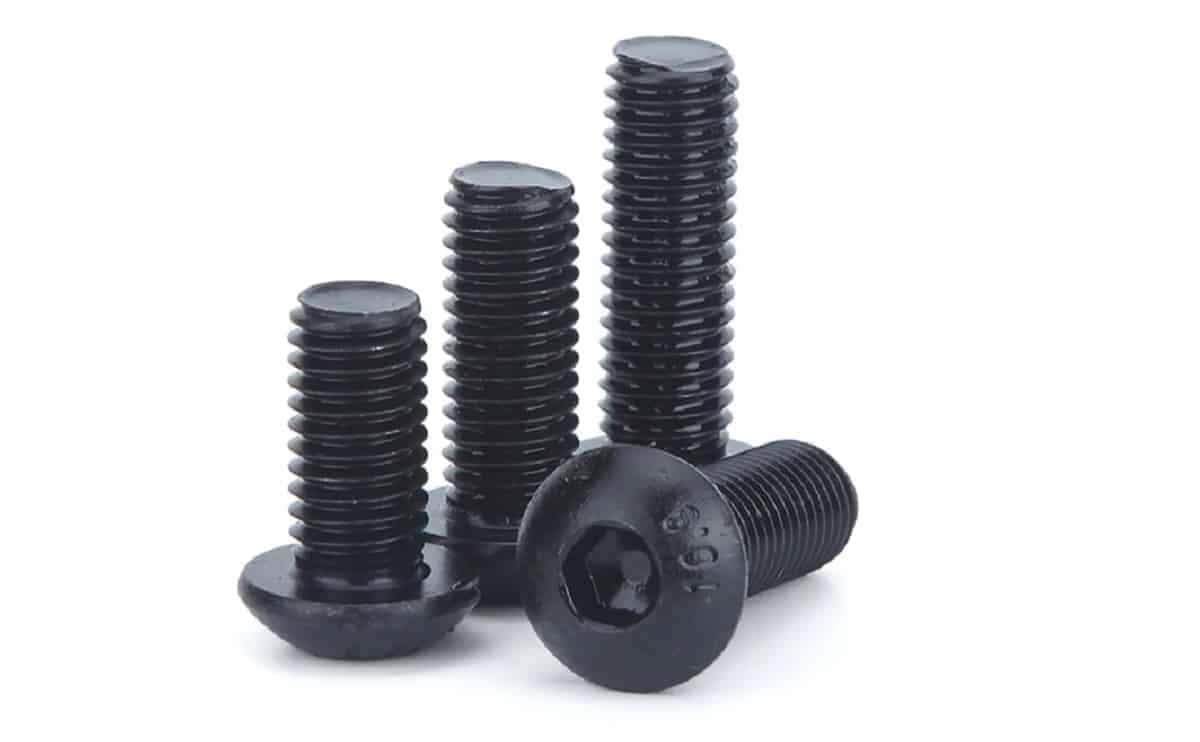

Buttonhead bolt CS M3, M4 and M5 improved high quality fasteners carbon steel:

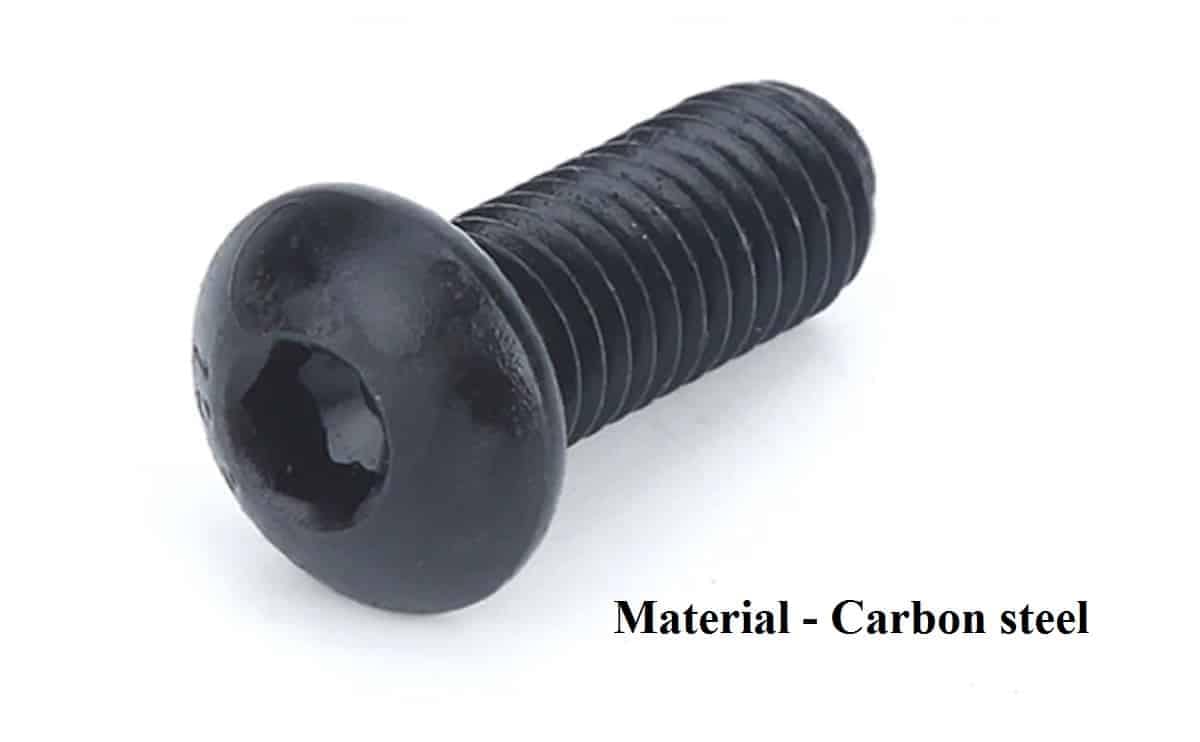

Buttonhead bolt allen CS with a hexagonal socket in its head, designed to be used with an Allen wrench. It is integral to the crank and remains in it when the crank is removed from the spindle.
Specifications:
It is a versatile fastening solution that offers both functionality and aesthetic appeal. It is commonly used in various industries such as automotive, electronics, and machinery. This product description will provide you with the specifications of the in sizes M3, M4, and M5.

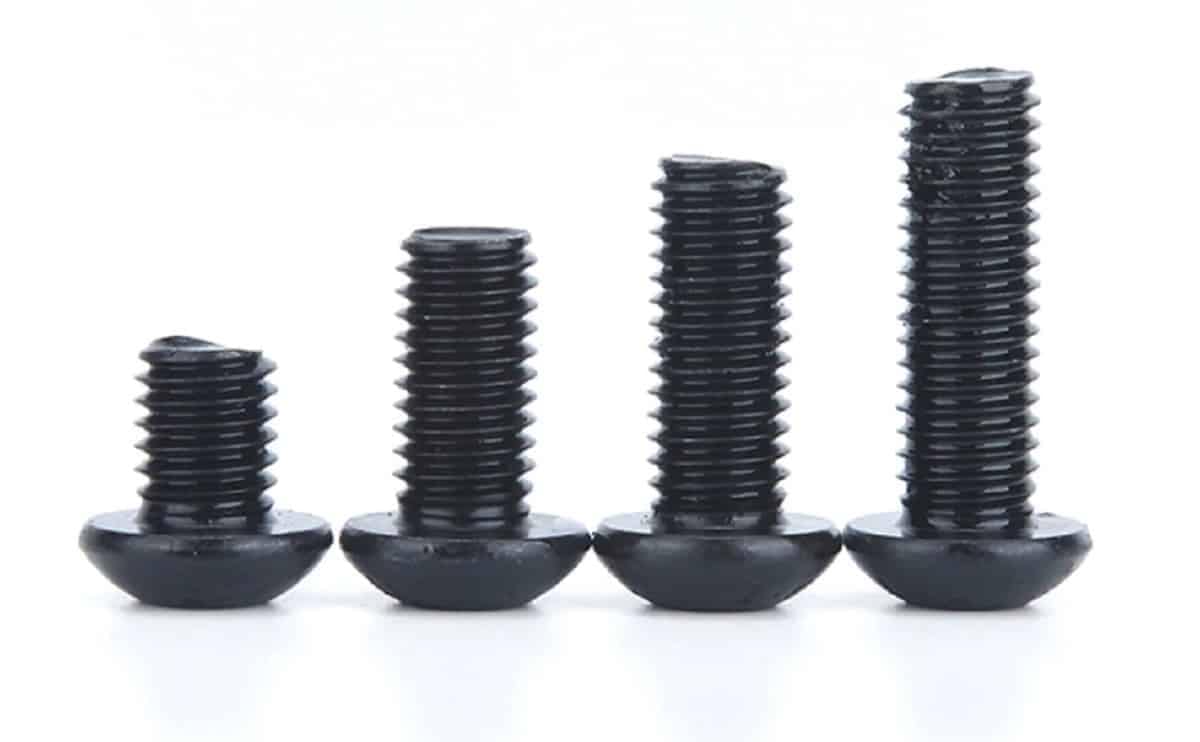

Dimension Description:
Length: 8mm.
Length: 10mm.
Length: 12mm.
Length: 16mm
Length: 20mm.
Length: 25mm.
Length: 30mm.
Length: 40mm.

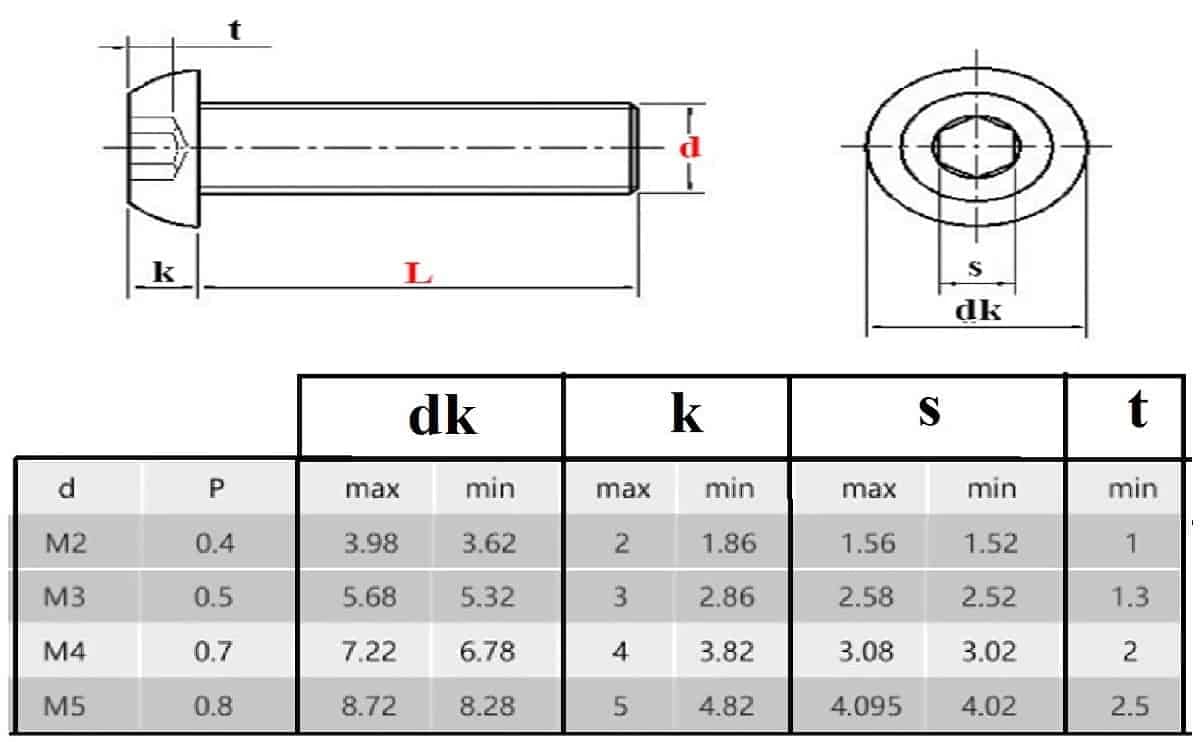

M3 Buttonhead Bolt CS Specifications:
Thread Size: M3
Head Diameter: 5.5mm
Head Height: 2.5mm
Length Range: 4mm – 30mm
Material: Stainless Steel
M4 Buttonhead Bolt CS Specifications:
Thread Size: M4
Head Diameter: 7mm
Head Height: 3mm
Length Range: 6mm – 40mm
Material: Carbon Steel
M5 Buttonhead Bolt CS Specifications:
Thread Size: M5
Head Diameter: 8mm
Head Height: 4mm
Length Range: 8mm – 50mm
Material: Alloy Steel
The button head socket cap screw is known for its low-profile head design, which provides a clean and streamlined appearance. It offers excellent torque resistance and is easy to install using a hex key or Allen wrench. The different size options allow for flexibility in various applications, ensuring a secure and reliable connection. The button head screw need to fasten components in electronics, machinery, or other equipment, M3, M4, and M5 sizes is a reliable choice.
