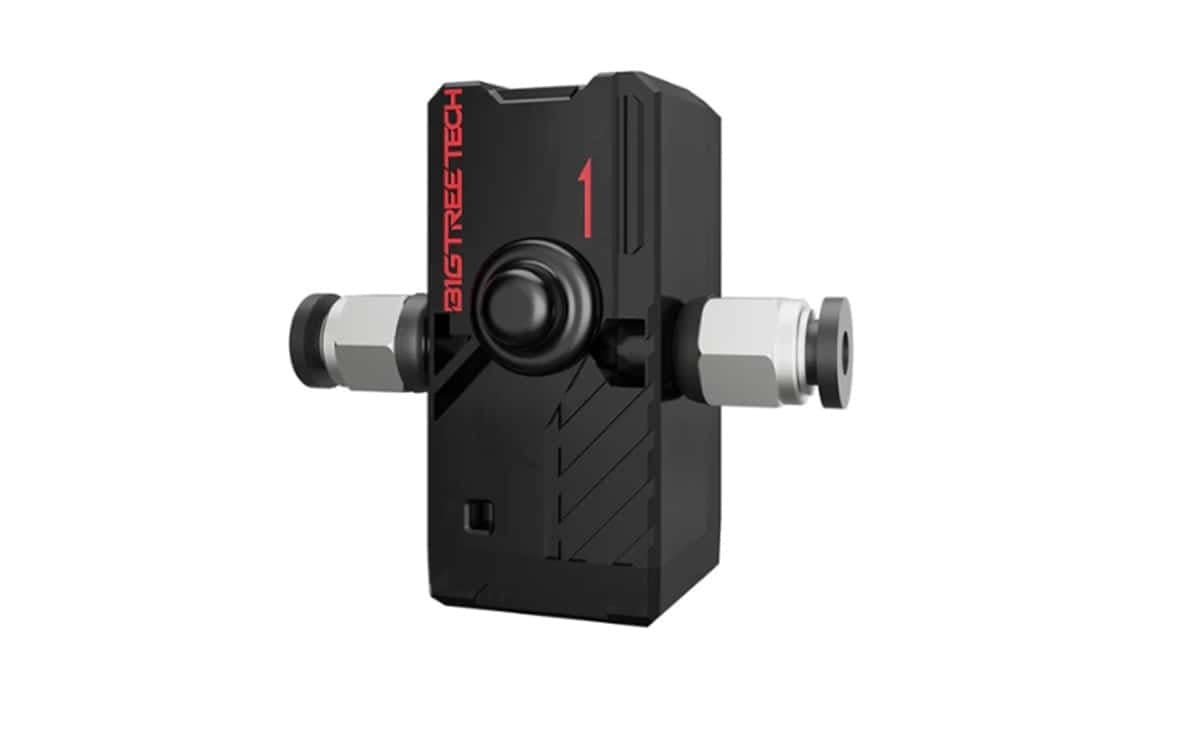

Bigtreetech Smart Filament Sensor SFS V2.0 Detection Stuck Blocking Filament Module

Bigtreetech Smart Filament Sensor SFS V2.0 Detection Stuck Blocking Filament Module

Bigtreetech Smart Filament Sensor SFS V2.0 Detection Stuck Blocking Filament Module Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

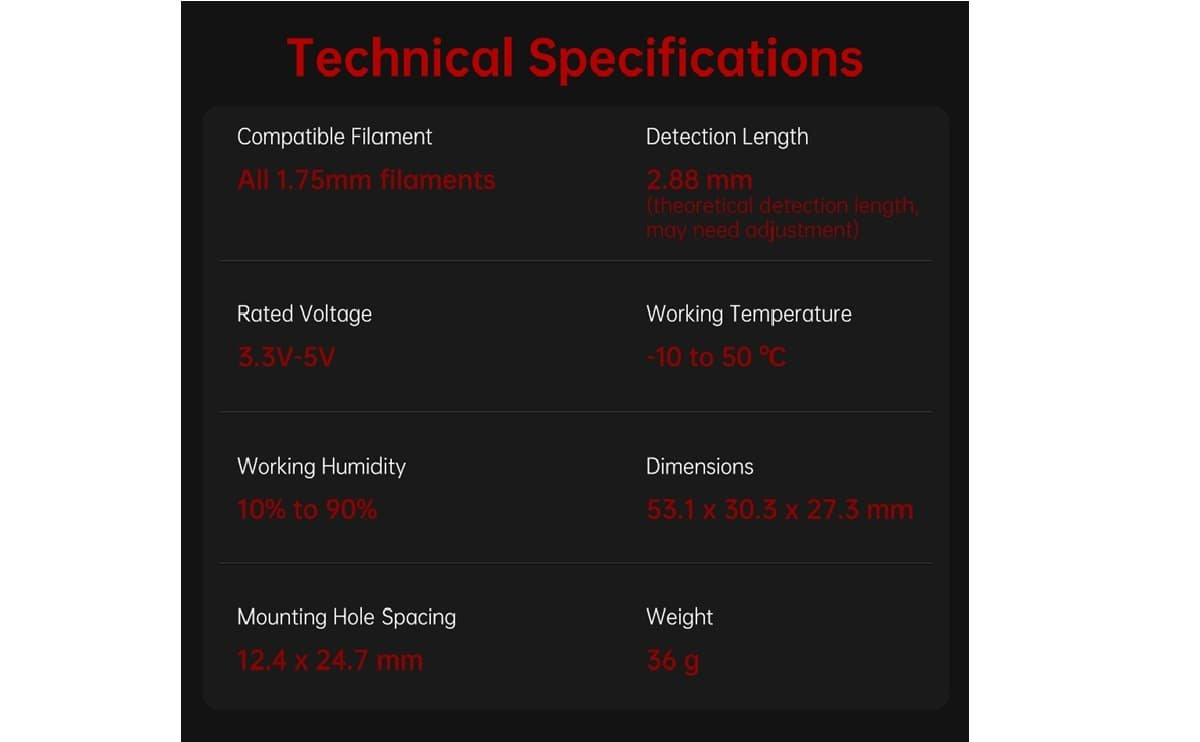

Specifications Bigtreetech Smart Filament Sensors:

• Color: black
• Voltage: 3.3V-5V
• Inspection of consumables diameter: 1.75mm
• Detection length of consumables: 2.88mm
• Firmware: Klipper, marlin, RRF

Features:

• Intelligent break filament detection function, increase the intelligent monitoring of the extruder when the material is abnormal, the machine automatically prompts to reduce the accident.
• Any motherboard with a break detection interface can be used, for example SKR mini E3, SKR E3 DIP, SKR V1.3, GEN L, GEN V1.4 ect. When the discharge is abnormal, the screen will display the abnormal extruding and stop working.
• Auto warning if filament runs out or breaks. Intelligently help to save time and filament.
• The screens 2004, 12864, TFT24 (12864 mode), TFT35 V3.0 (12864 mode) can be used directly.
• Supports all 1.75mm materials.

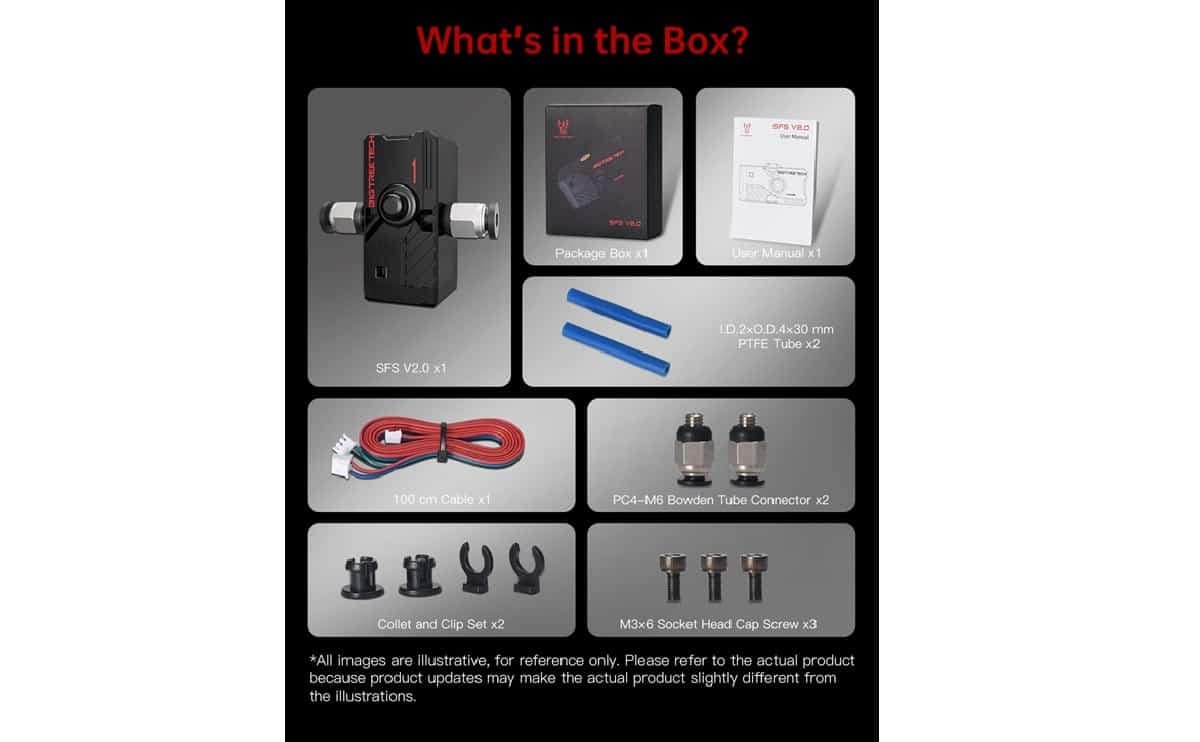

Package Include:

• 1 piece of Bigtreetech smart filament sensor.
