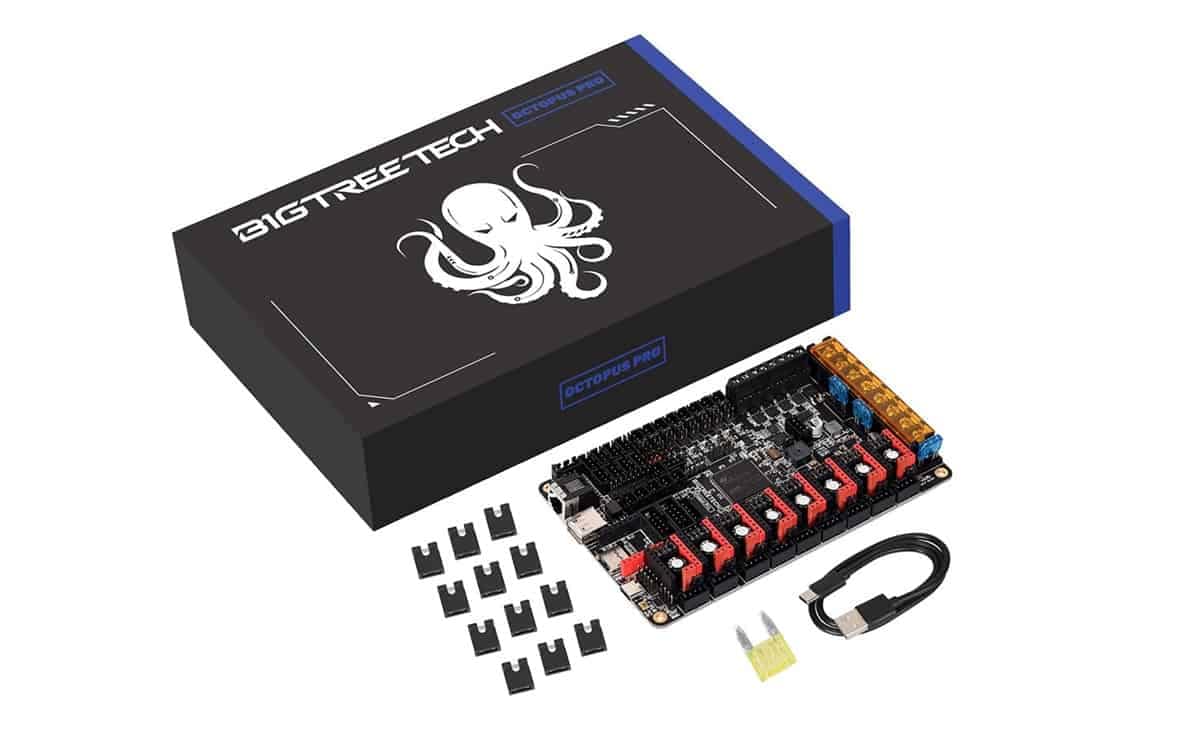

BIGTREETECH Octopus V1.1/Octopus pro with F429/F446/H723 chip motherboard with 8 stepper driver support for 3d printer machine

5 reviews
Availability:

In stock


5,699.00 6,299.00

BIGTREETECH Octopus V1.1/Octopus pro with F429/F446/H723 chip  motherboard with 8 stepper driver support for 3d printer machine

BIGTREETECH Octopus V1.1/ Octopus pro with f429/ f446/H723 chip is a very powerful motherboard with 8 stepper driver support, so this motherboard can control up to 8 different axes. This feature is especially suitable for multi-colour printing and tool changers, for the use of different tools / modules such as different 3D print heads, laser engraving, laser cutting, etc. All fantasies and modifications can be realised.

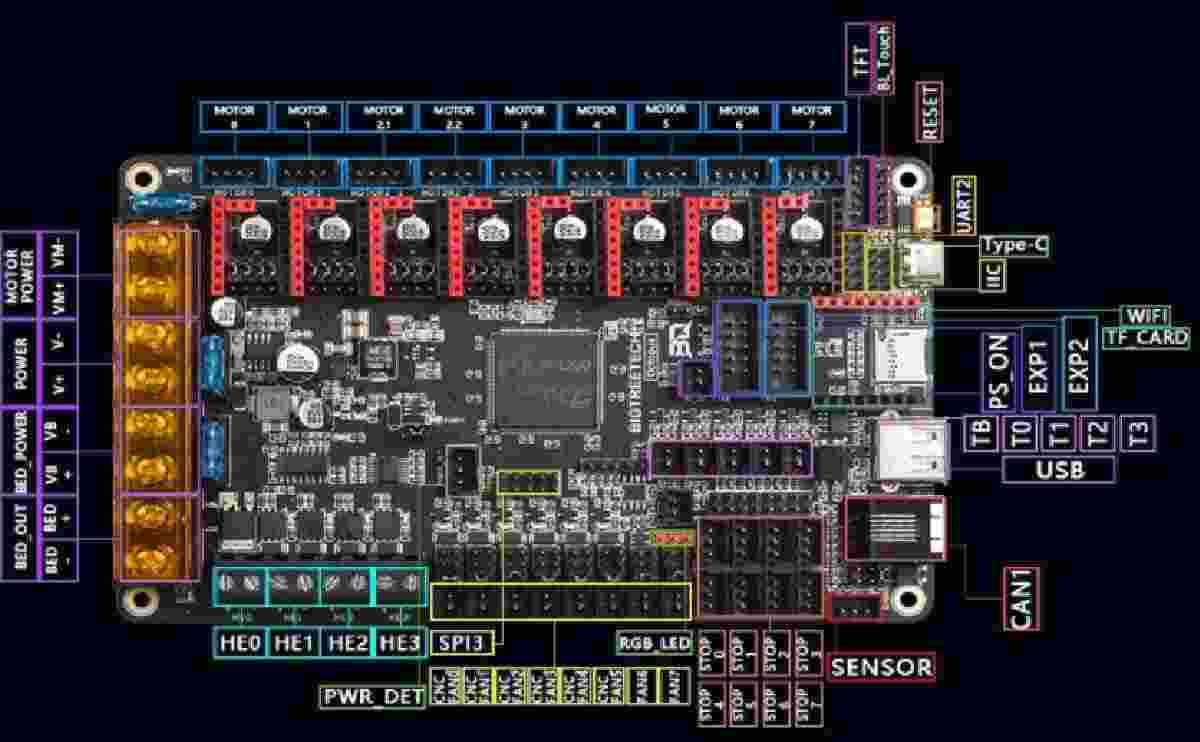

  • 8 x stepper driver connections
  • Raspberry PI Interface
  • CAN BUS, SPI and I2C for extensions
  • USB-C
  • Dual Z-axis
  • 4 x heating cartridge connections
  • RGB LED
  • WiFi interface for ESP8266 based modules
  • BL-Touch and other auto-leveling upgrades

Octopus:

Function

  • Cartridge Heater : 4
  • Controllable Fan :  6
  • Normally open Fan : 2
  • MCU: STM32F446ZET6 144Pin
  • Frequency : 180MHZ
  • Flash : 512K
  • SD Card Protocol : SDIO
  • WIFI Module interface : Extension Special Interface
  • Supported wifi module : ESP8266 (MAX500k/s)
  • CANBus : CANBus with RJ11 interface
  • Fuse : 3
  • Limit switch+ filament Sensor : 6+2
  • HV Drive: 0
  • 5V short circuit alarm : YES, LED
  • Motor input voltage : 12~35V, all voltage uniform
  • Drive input level : 3.3V
  • Thermistor : NTC100K*5



Octopus Pro:

Functions

  • Cartridge Heater : 4
  • Controllable Fan :  6
  • Normally open Fan : 2
  • MCU: STM32F446ZET6 144Pin / STM32F429ZGT6 / STM32H723ZE 144Pin
  • Frequency : 180MHz/168MHz
  • Flash : 512K/1M
  • SD Card Protocol : SDIO
  • WIFI Module interface : Extension Special Interface
  • Supported wifi module : ESP8266 (MAX500k/s)
  • CANBus : CANBus with RJ11 interface
  • Fuse : 3
  • Limit switch+ filament Sensor : 6+2
  • HV Drive :  MAX8
  • 5V short circuit alarm : YES, LED & Buzzer
  • Motor input voltage : 12-60V, each one is optional
  • Drive input level : 5V
  • Thermistor : NTC100K*5+Onboard MAX31865 chip (weld-free switched 2 14-wire PT100/PT1000)
