Bigtreetech HDMI Display HDMI5 V1.1/ HDMI7 V1.1 display for 3D printer machine and automation

1 review
Availability:

In stock


5,799.00 8,219.00

Bigtreetech HDMI Display HDMI5 V1.1/ HDMI7 V1.1 display for 3D printer machine and automation

Bigtreetech HDMI Display HDMI5 V1.1/ HDMI7 V1.1 display for 3D printer machine and automation.

Specifications

  • The Bigtreetech HDMI Display is available in two versions: HDMI5 V1.1 and HDMI7 V1.1.
  • These displays are specifically designed for 3D printers, offering a high-resolution and user-friendly interface.
    • Display Version: HDMI5 V1.1 / HDMI7 V1.1.
    • Resolution: 800×480 pixels.
    • Size: HDMI 5 inch / HDMI 7 inch.
    • Compatibility: Compatible with most 3D printers.
    • Interface: HDMI.
    • Touchscreen: Capacitive touch.
    • Operating Voltage: 5V.
    • Power Consumption: Less than 1W.

Applications

  • The Bigtreetech HDMI 5 inch / HDMI 7 inch Display is an excellent addition to any 3D printer setup.
  • It provides a clear and intuitive interface for controlling and monitoring the printing process.
  • With its high resolution and capacitive touch functionality, users can easily navigate through menus, adjust settings, and preview models before printing.
  • HDMI and TFT displays like HDMI5, HDMI7, TFT24, TFT35, TFT50, TFT70, PI TFT 50, PI TFT 70, PI TFT 43.
  • Whether you are a professional or a hobbyist, this display offers a convenient way to interact with your 3D printer. It is suitable for various applications, including:
    • Prototyping
    • Product design
    • Education
    • Small-scale manufacturing
    • And more

Usage

  • Installing the Bigtreetech HDMI Display is straightforward. Simply connect the HDMI cable to your 3D printer’s control board and power it with the provided 5V supply.
  • The display is plug-and-play, requiring no additional drivers or software.
  • Once connected, you can access the display’s menu to adjust printer settings, select files for printing, and monitor the progress in real-time.
  • The capacitive touch functionality ensures precise and responsive control, enhancing the overall user experience.
  • The Bigtreetech HDMI Display is a reliable and versatile accessory for 3D printers.
  • Its high-resolution display, user-friendly interface, and compatibility with various models make it an excellent choice for both beginners and experienced users.

Features:

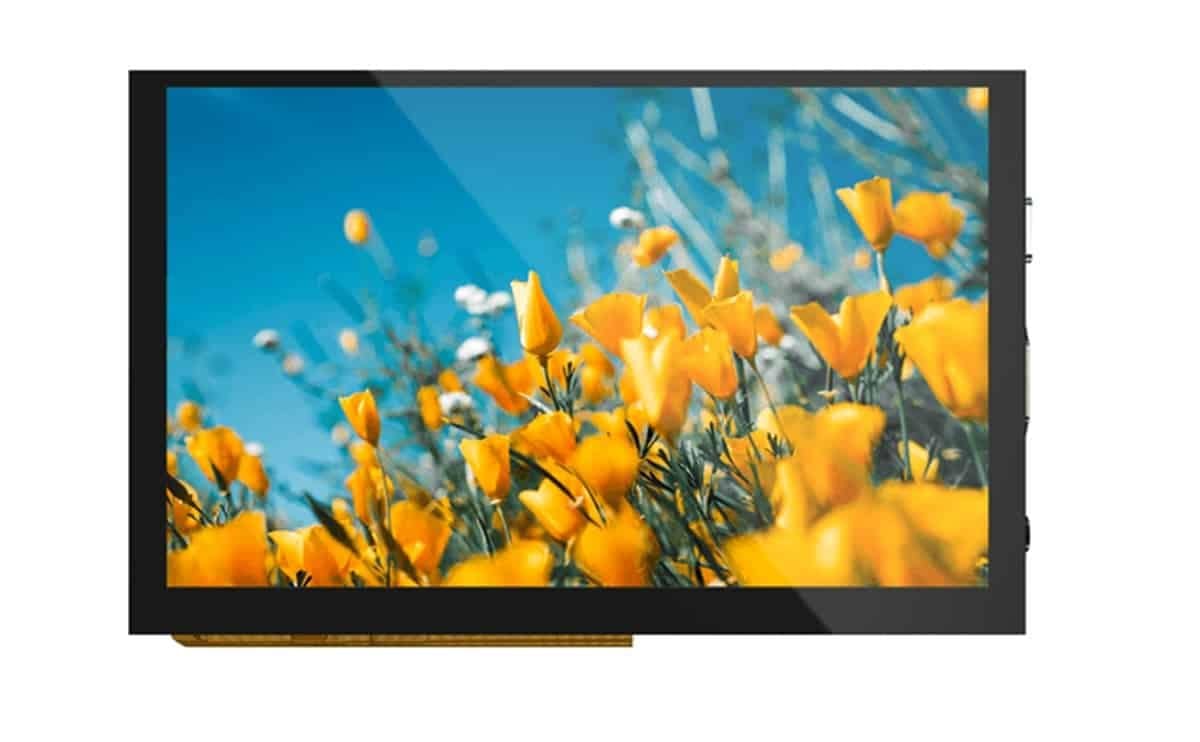

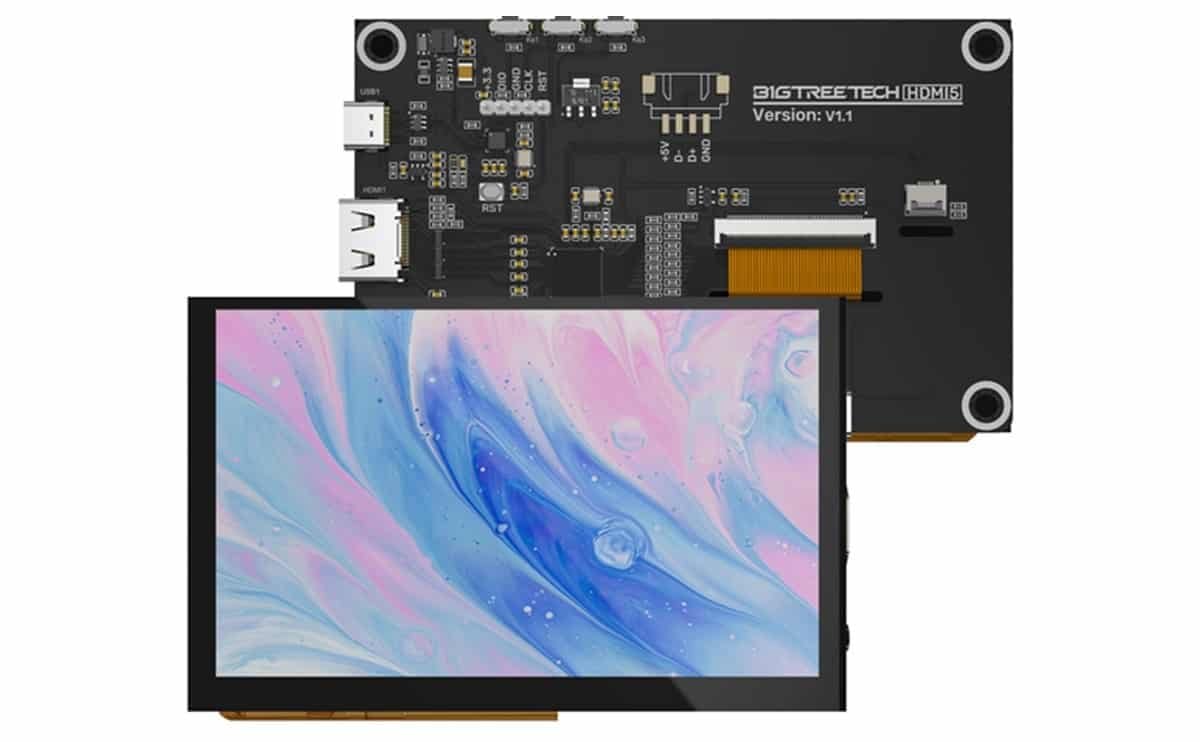

  • Optional HD IPS screen. The resolution of the 7-inch screen is 1024*600, while the 5-inch screen is 800*480. Adopt IPS capacitive touch screen, support 5-point touch.
  • Plug and Play. Simply connect the screen to the device via the HDMI port and power the Type C port to make it functional without installing any drivers. This screen is great for 3d printer users to DIY their projects, and it can perfectly be compatible with the Manta series motherboard plus CB1. Let it add a more seamless visual experience to your printer system.

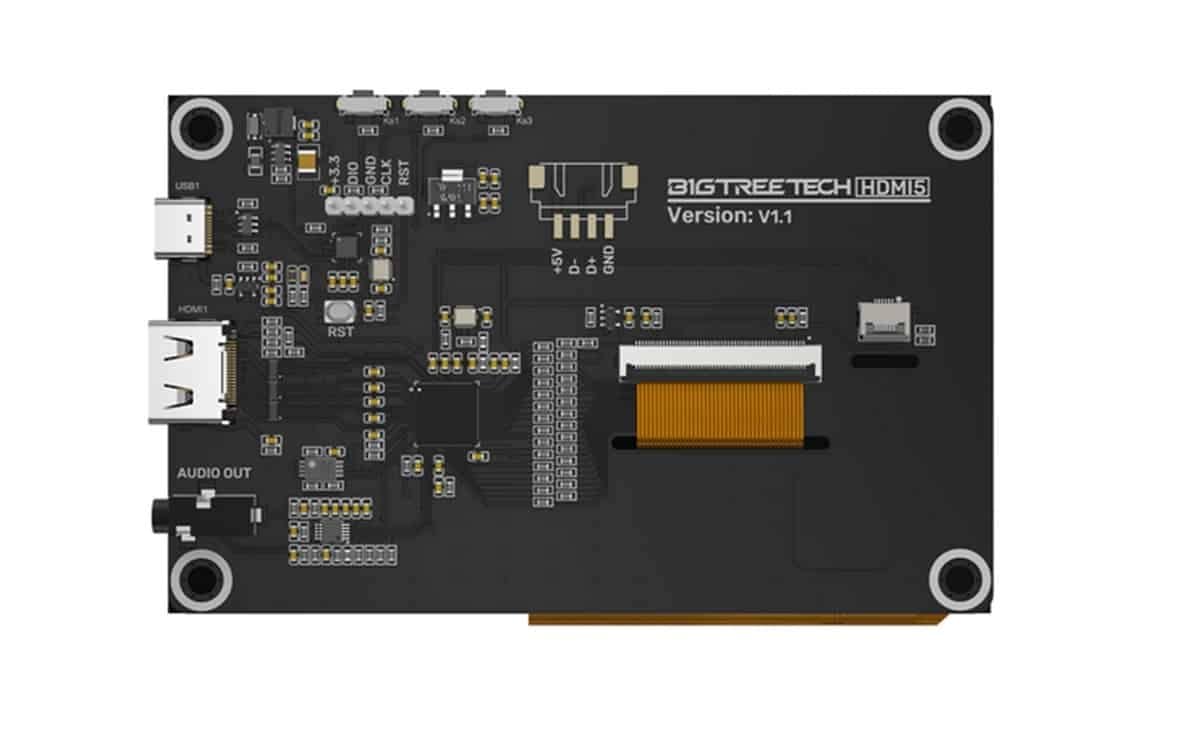

  • Adjustable brightness and display direction. You can increase the brightness via the Ks1 button, Ks3 for decreasing, and Ks2 for 180° display direction adjustment (Refer to the following product detail image).
  • Support audio output. Built-in audio decoding circuit, supports 3.5mm headphone jack audio output. 3.5mm audio interface transmits the audio signal without noise and current, giving you pure and delicate sound.
  • 4pin XH2.54 breakout port. The 4-pins XH2.54 breakout port allows custom connection via USB protocol, as well as screen independent power (DC 5V), giving users more DIY options.

Package Include:

  • 1 piece of Bigtreetech HDMI display HDMI 5 inch / HDMI 7 inch.





Weight N/A
HSN

84779000

Type

HDMI5, HDMI7
