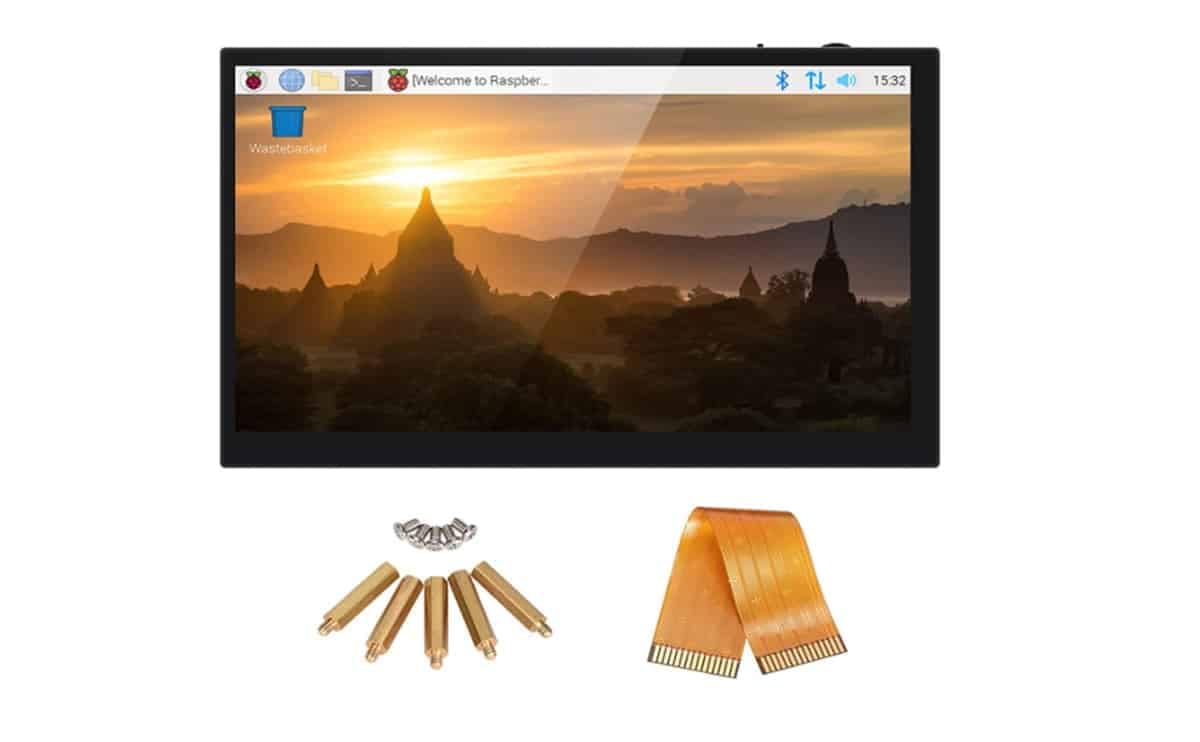

Bigtreetech PI TFT43 / TFT50 V2.1 / TFT70 screen board for raspberry Pi model 3D printer controller

Bigtreetech PI TFT43 / TFT50 V2.1 / TFT70  screen board for raspberry Pi model 3D printer controller

Bigtreetech PI TFT43 / TFT50 / TFT70 V2.0 screen board

Features of PI TFT43 / PI TFT50 V2.1 / PI TFT70 :

• Wide range of applications: 3-inch capacitive touch screen, specially designed for Raspberry Pi models. The onboard studs and positioning posts can fix the Raspberry Pi for stronger integrity
• High Resolution: This 3-inch LCD touch screen has a resolution of 800 * 480 and a display area of 95.04*53.86mm.
• 5-point touch: It supports Raspberry Pi DSI display interface, with capacitive touch panel, and supports 5-point touch. Capacitive touch control, better touch response, faster response time.
• Easy to use: PI TFT43 V2.0. The backlight can be adjusted by a rotary encoder. Use an FPC cable to connect the screen to the Pi’s DSI interface, and the display can be touched, which is simple and convenient.

PI TFT50 V2.1:

• Wide range of applications:5 inch capacitive Touch Screen designed for for pi 4 model B /pi 3 model A+ B+ B/pi 2 model B/pi 1 model B+ A+.
• High Resolution:This 5 inch LCD touch screen with a resolution of 800*480 and a display area of 108×64.8mm.
• 5-point touch: It Supports Raspberry Pi DSI display interface, comes with a capacitive touch panel, and supports 5-point touch.Capacitive Touch Control ,better touch response,faster response time.
• Easy to install: The unique hole design on the back allows you to install the Raspberry Pi directly.The display adopts Raspberry Pi power supply design, without external power supply.

TFT 70 :

• Wide range of applications: 7 inch capacitive touch screen, specially designed for Raspberry Pi models. The onboard studs and positioning posts can fix the Raspberry Pi for stronger integrity
• High Resolution: This 7 inch LCD touch screen has a resolution of 800 * 480 and a display area of 165X100mm.
• 5-point touch: It supports Raspberry Pi DSI display interface, with capacitive touch panel, and supports 5-point touch. Capacitive touch control, better touch response, faster response time.
• Easy to use: PI TFT70 V2.0. The backlight can be adjusted by a rotary encoder. Use an FPC cable to connect the screen to the Pi’s DSI interface, and the display can be touched, which is simple and convenient.

Screen Features:

• The backlight can be adjusted by a rotary encoder, which is convenient and quick;
• On-board studs and positioning posts can fix the Raspberry Pi, which is more integrated;

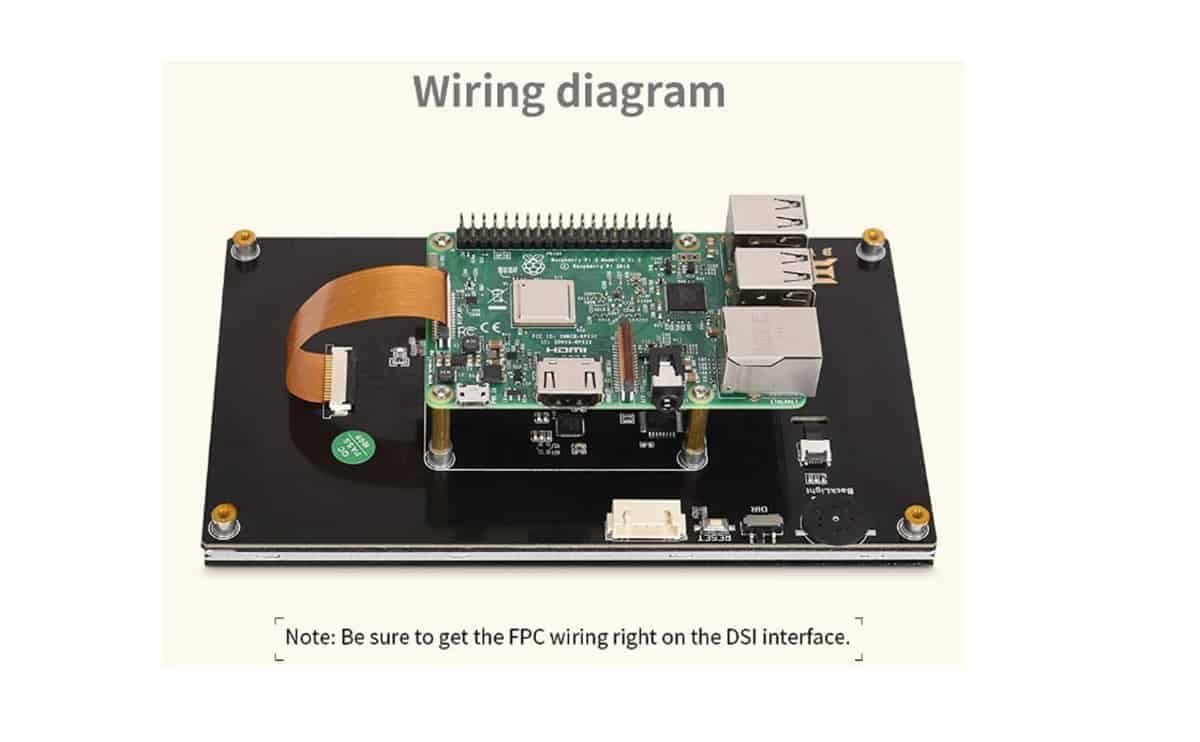

• Use a FPC cable to connect the screen to the Pi’s DSI interface, and the display can be touched, which is simple and convenient.

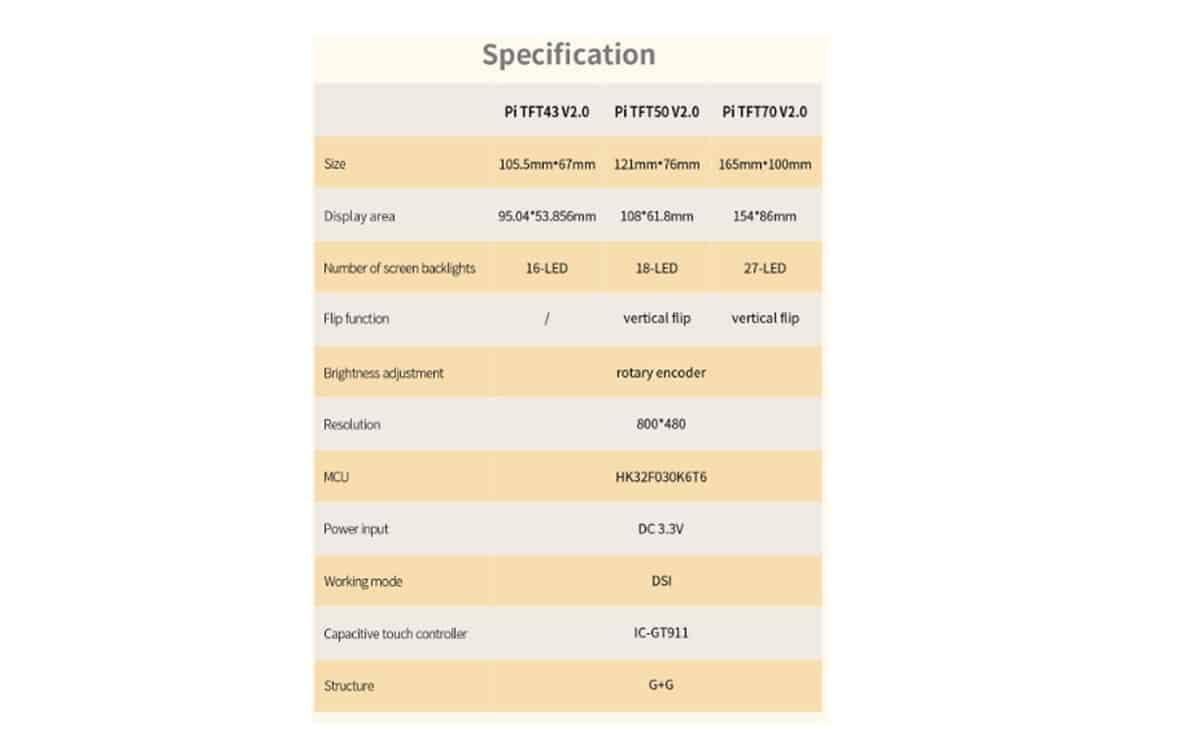

Screen parameters:

• Power input: DC 3.3V
• Working method: DSI
• Screen resolution: 800*480

Attention:

• Pay attention to the DSI interface line sequence not to be reversed;
• Take care to handle the screen gently to prevent it from being broken;
• When adjusting the backlight, pay attention to the strength of the rotary encoder to prevent it from turning bad. When the encoder is turned to the end, it cannot continue to turn, otherwise the encoder will be damaged, and our company will not accept it;
• The screen does not support the zero version of raspberry pi
