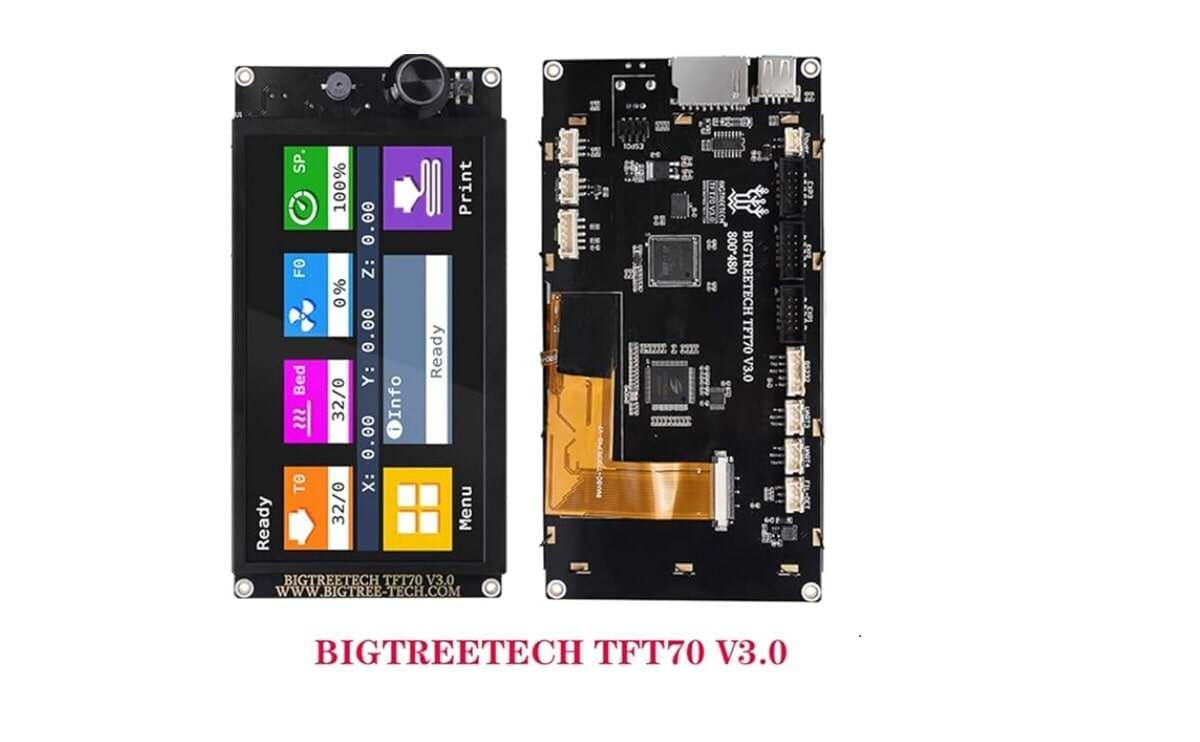

BIGTREETECH TFT70 V3.0 Display Screen for 3D Printer:

  • The BIGTREETECH TFT70 V3.0 is a high-quality touch screen designed specifically for 3D printers.
  • With its TFT70 display and advanced features, it offers a seamless user experience and enhances the functionality of your printer.

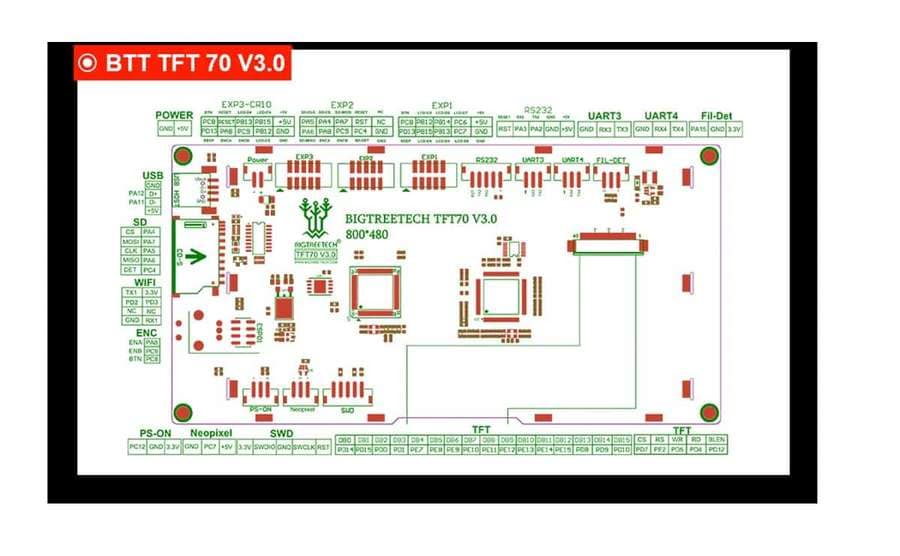

  • When operating in the 12864 screen mode, TFT 70 simply connect the EXP1 and EXP2 ports to the motherboard.
  • bigtreetech display screen important to note that this mode does not support touch functionality.
  • For touch capability, you can switch to the serial port screen mode and connect the TFT or aux-2 on the motherboard via RS232. The TFT70 V3.0 boasts impressive specifications.
  • It has an appearance size of 196*100mm and an installation size of 188*92mm, making it suitable for various printer setups. The MCU, STM32F407VGT6 SSD1963, ensures smooth and efficient performance.
  • The screen display area measures 153.84*85.776mm, offering a clear and vibrant display.
  • With a resolution of 800 (RGB) * 480 (V), you can expect sharp and detailed visuals. The TFT70 V3.0 is equipped with 21 white LED lights for a bright and evenly lit screen.
  • It operates on a DC 5V power input, ensuring compatibility with most printer systems. Additionally, the logic voltage of the SD card supports both 3.3V and 5V, making bigtreetech display screen compatible with motherboards featuring control chips like MEGA2560, providing enhanced compatibility and flexibility.
  • Upgrade your 3D printer with the BIGTREETECH TFT70 V3.0 display screen and enjoy a user-friendly interface and improved functionality.


  • Name: BTT TFT70 V3.0
  • Appearance size: 196*100mm
  • Installation size: 188*92mm
  • MCU TFT display : STM32F407VGT6
  • Screen display area: 153.84*85.776mm
  • Screen resolution: 800(RGB) * 480
  • Number of screen backlights: 21 white LED lights
  • Power input: DC 5V
  • Logic voltage of SD card: 3.3V and 5V (eg: motherboard with MEGA2560 main control chip, higher compatibility)


  • Print mode selection interface: Multi-select printing mode, very convenient .
  • U disk printing
  • TFT display sd printing
  • onboard sd printing

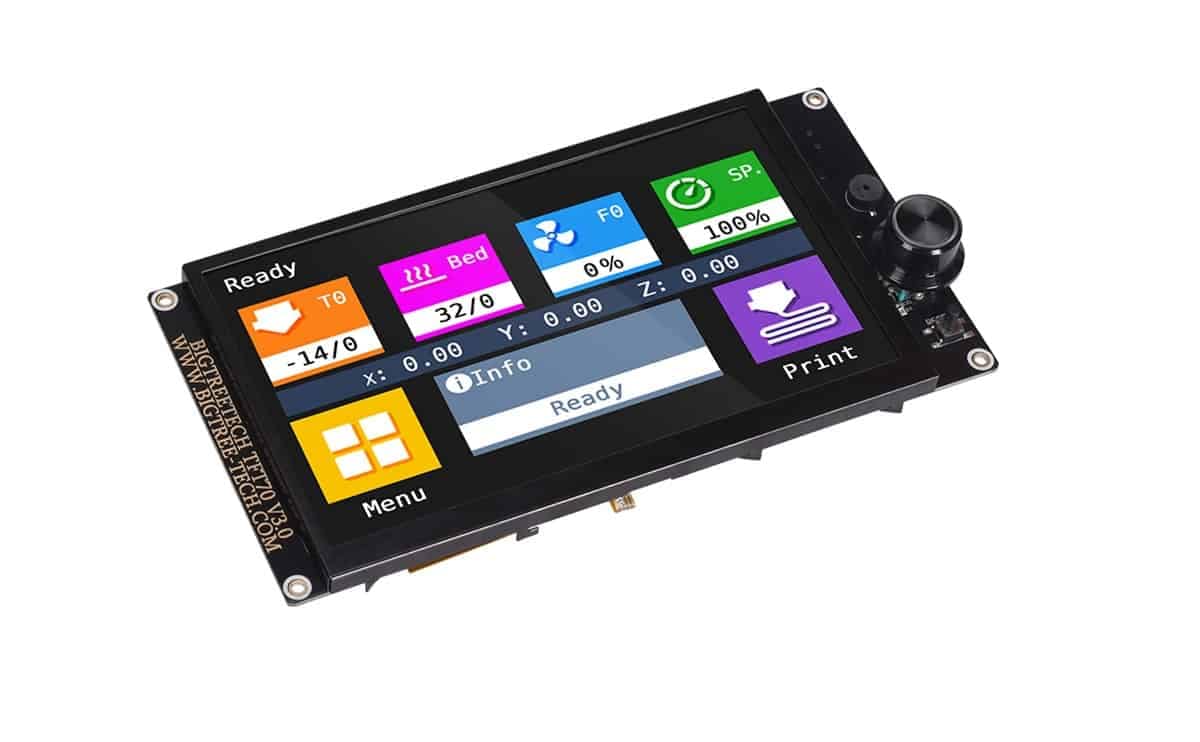

  • Mode preview: Mode preview effect
  • Mode: Interface Dual operating system can be switched with one click
  • Marlin Mode
  • Touch Mode
  • G Code editing interface: G code can be sent on the screen
  • Data detection interface: Real-time monitoring, more detailed data such as temperature, time, Storey height and flow.

Package Include:

  • 1 x BIGTREETECH TFT70 V3.0
Weight500 g
