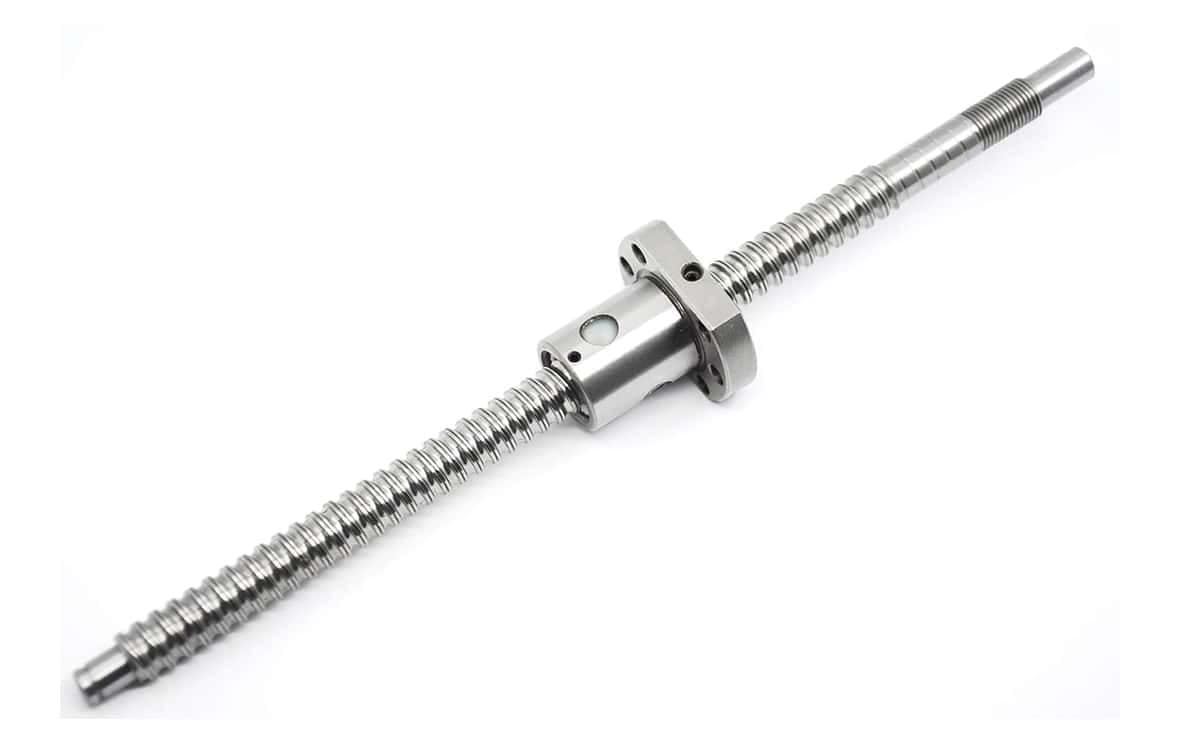

Ball screw SFU1610 Dia 16mm Pitch 10mm Length 1000mm with nut (with end machining)

Ball screw SFU1610 Dia 16mm Pitch 10mm Length 1000mm with nut (with end machining)

Ball Screw SF1610 CNC Parts SFU1610 NUT is designed to meet the demanding requirements of various applications. Made from durable steel, this product is built to withstand wear and tear, ensuring a long-lasting performance.

Accuracy Grade C7:

• The Ball Screw CNC Parts SFU1610 NUT features an accuracy grade of C7, with bearing fits less than 0.03 mm.
• This ensures minimal movement and wiggling of the actuator rod during operation, providing precise and reliable performance.

Power Saving:

• With excellent overall performance, this ball screw bearing is designed to save power.
• Compared to traditional Acme alternatives, it offers higher mechanical efficiency, making it an energy-efficient choice for various applications.

Mute Operation:

• The CNC linear rail kit is engineered to provide a quiet and smooth operation.
• The minimal sliding friction between the nut and screw reduces downtime for maintenance and parts replacement. Additionally, it eliminates the need for frequent lubrication.

Applications:

• Ball screw bearing are widely used in various industries, including automobile power steering, machine tools, robots, precision assembly equipment, and semiconductor manufacturing.
• Their low frictional resistance and high precision make them ideal for these applications.

Important Note: It is important not to remove the nut from the ball screw, as it contains steel balls that may fall out and be difficult to reassemble. Upon receiving the package, please inspect the product and notify us immediately if there are any issues, so that we can provide prompt after-sales service.

Specifications:

1. Product Name:Ball Screw
2. Model No:SFU1610
3. Diameter: 16mm
4. Length: 1000mm

Packages Include:

• 1 piece of 1000mm SFU1610 ball screw with nut (with end machining).
