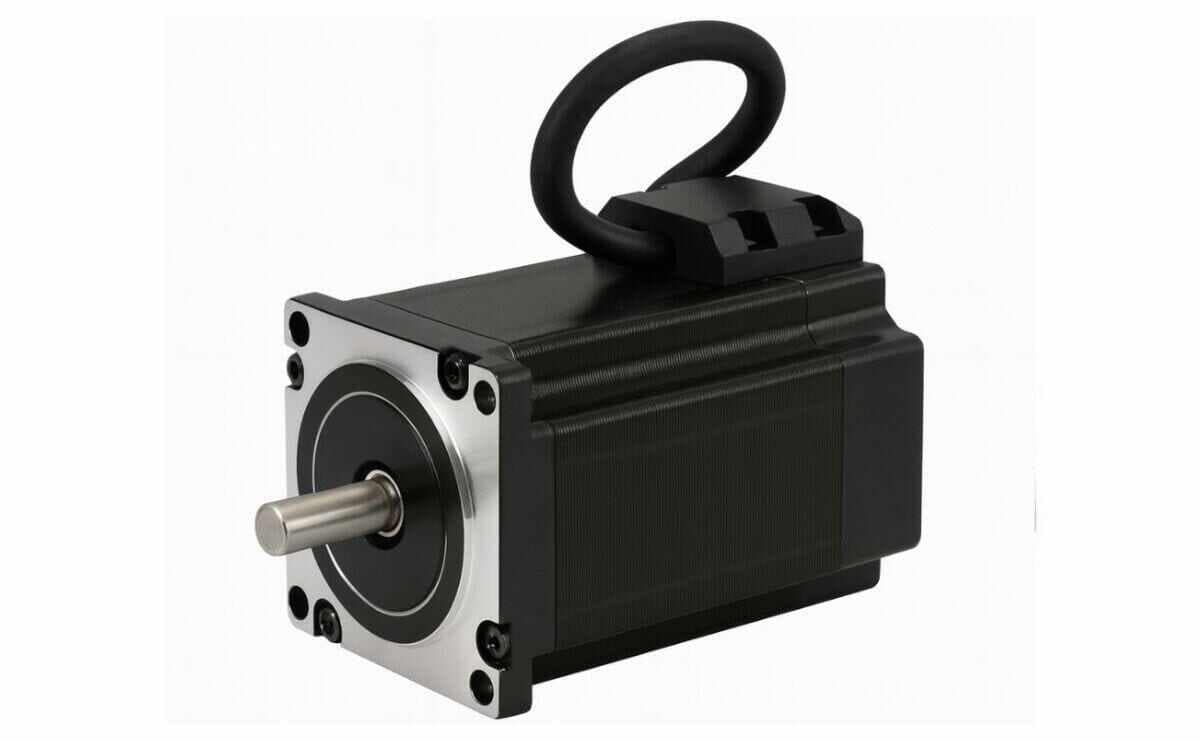

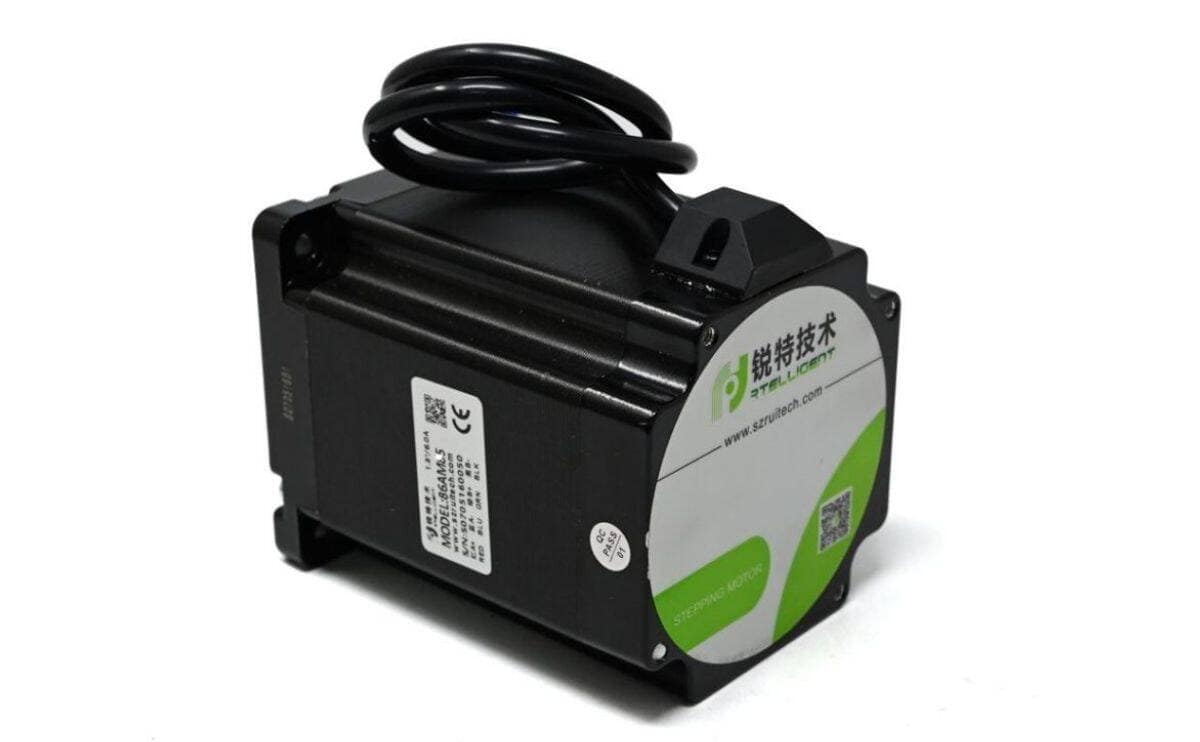

86AM65 high torque closed loop stepper motor

86AM65 high torque closed loop stepper motor

86AM65 high torque closed loop stepper motor

• 86AM65 Stepper Motor is engineered for heavy-duty industrial applications that demand high torque, precision motion, and long-term durability.
• Holding torque of 6.5Nm and a rated current of 6.0A, this motor ensures powerful performance even under load-intensive conditions.
• Built with optimized rotor design, superior winding structure, and high-grade bearings, the 86AM65 delivers smooth rotation, low vibration, and excellent thermal stability.

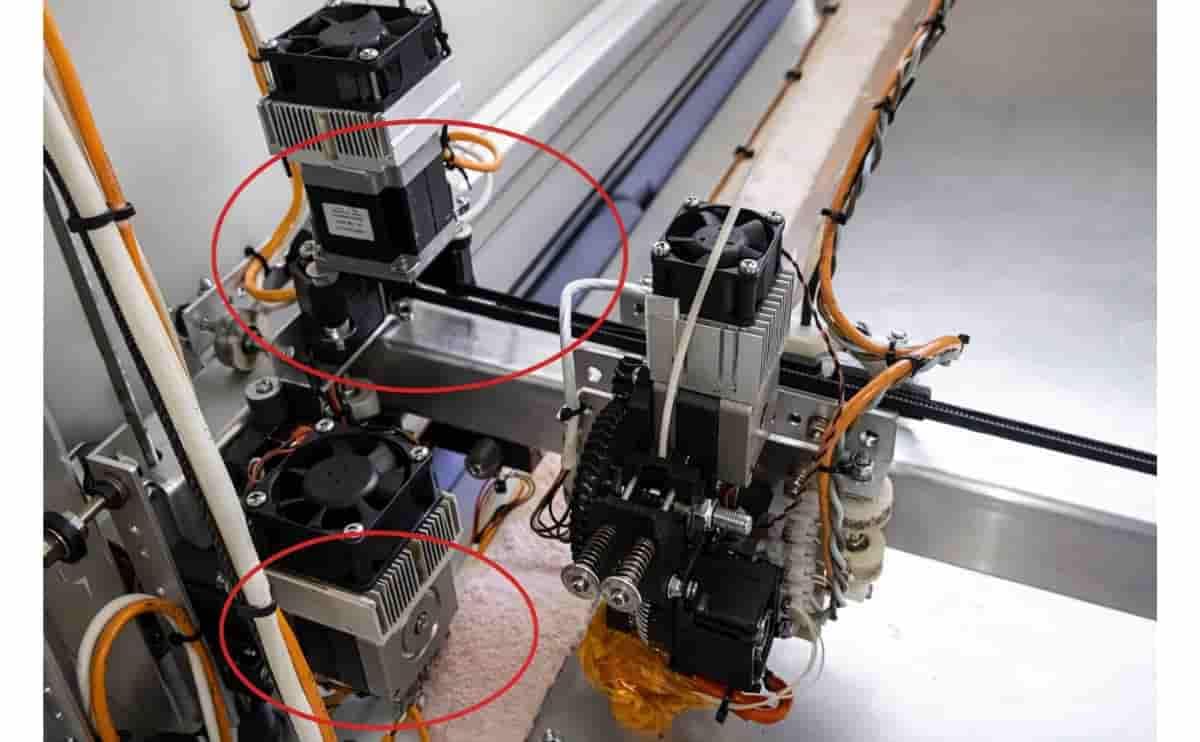

• Whether used in CNC routers, automation lines, textile machinery, packaging systems, robotics, or material handling machines, it provides reliable and consistent motion control.

Specifications

• Model: 86AM65
• Phase Number: 2
• Step Angle: 1.8°
• Holding Torque: 6.5 Nm
• Phase Inductance: 4.1 mH
• Phase Resistance: 0.5 Ω

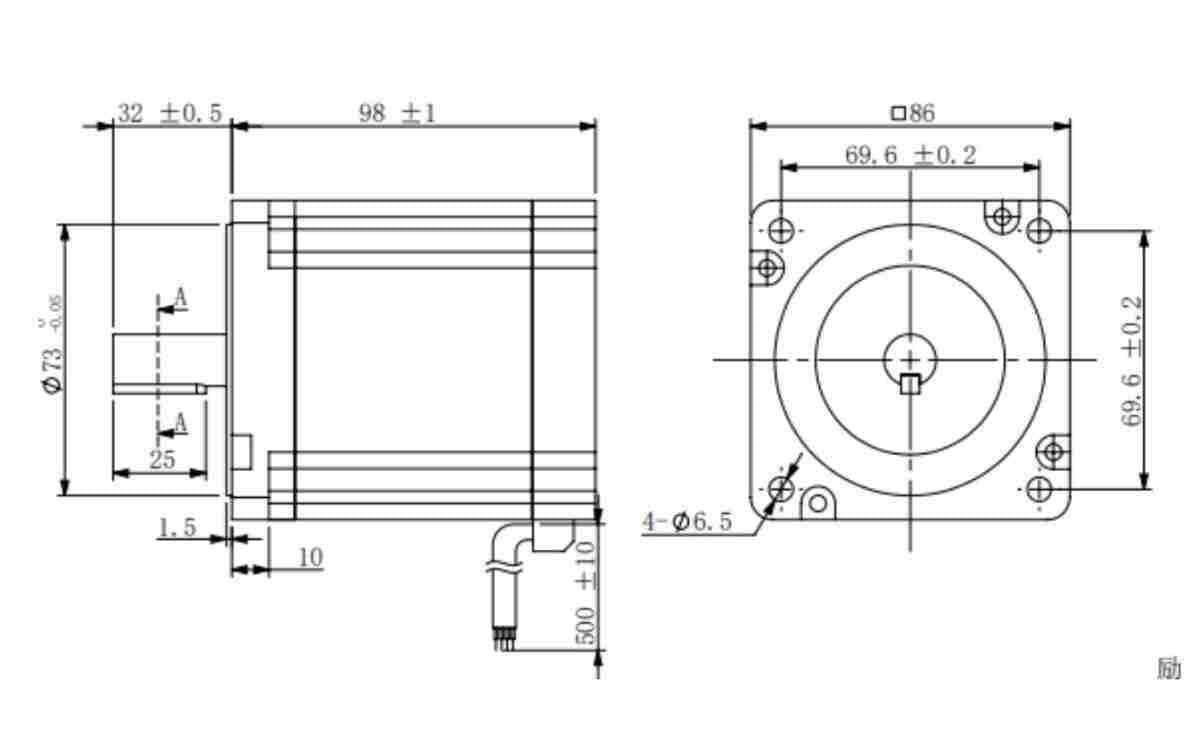

• Body Length (Motor Body L): 98 mm
• Rotor Inertia: 2300 g·cm²
• Shaft Diameter: 12.7 mm
• Shaft Length: 32 mm
• Brake: Not included

Key Features

• High torque output – 6.5Nm
• 2-phase hybrid stepper with precision 1.8° step angle
• Heavy-duty 6.0A rating for industrial applications
• Low vibration, high stability, long service life
• Compatible with NEMA 34 stepper drivers
• Ideal for high-load CNC and automation systems
• Strong rotor inertia for smooth acceleration

Applications

• CNC Routers, Mills & Plasma Machines
• Woodworking & Engraving Machines
• Packaging and Cutting Machines
• Robotics & Automation Lines
• Textile & Embroidery Equipment
• Conveyor & Material Handling Systems
• Industrial Machinery & Motion Platforms

Package Includes

• 1 piece of 86AM65 Stepper Motor (6.5Nm)
