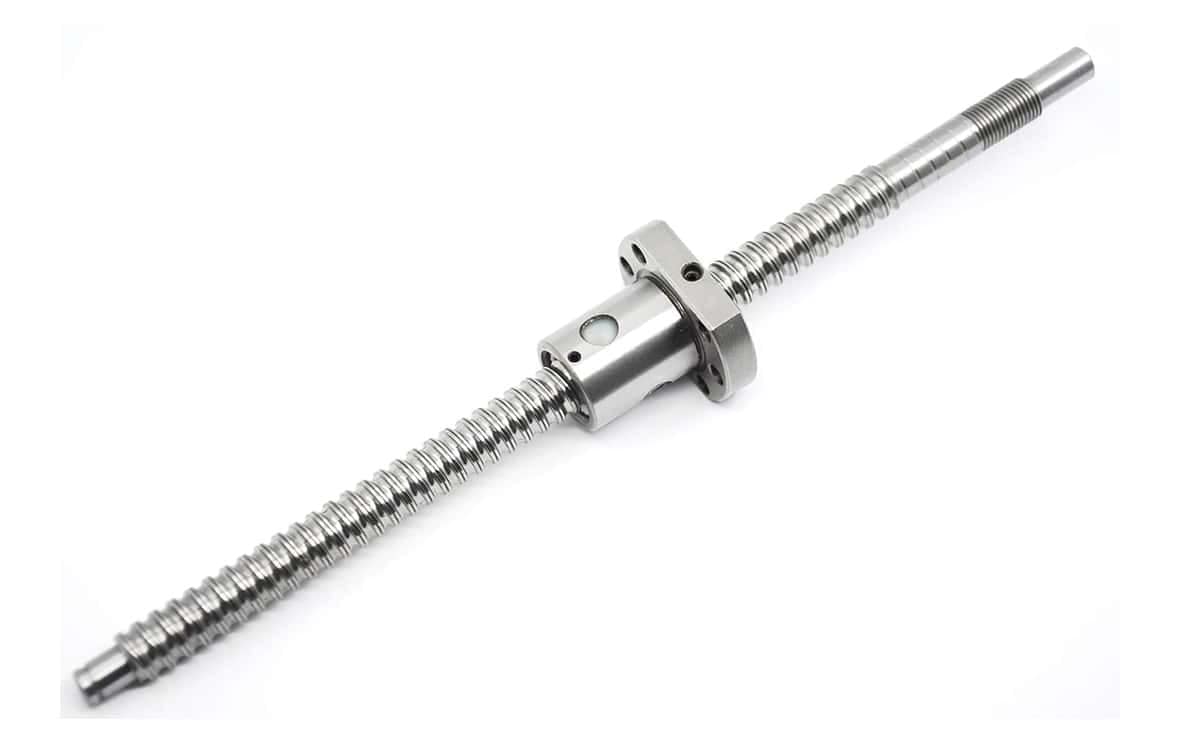

12mm Ball Screw Rod SFU1204 length 500mm with Single Ball Nut (with end machining)

The 12mm ball screw SFU1204 is a high-quality, precision-engineered component designed for various applications in CNC machines, DIY projects, student projects, home projects, and other manufacturing and industrial needs. It is 500mm long Ball screw and comes with a single ball nut.

Specifications

• Diameter: 12mm/0.472″
• Lead/Pitch: 4mm/0.157″
• Overall length: 500mm/19.685″
• Material: GCr15 steel
• Accuracy grade: C7
• Manufacturing process: rolled thread
• Model: SFU1204-NUW
• Also available SFU1204 nut length

Applications of SFU1204 Ball Screw

1. CNC Machines:
   • Ideal for cutting, milling, engraving, and drilling tasks, ensuring smooth and precise linear motion for accurate tool positioning.
2. 3D Printers:
   • Provides precise movement of print beds or extruders, improving the quality and accuracy of 3D prints.
3. Robotics:
   • Used in robotic arms and automation systems for consistent, reliable motion along the axis.
4. Industrial Machinery:
   • Suitable for applications requiring precise control, such as packaging, pick-and-place systems, and assembly lines.
5. Medical Equipment:
   • Commonly used in medical machinery like imaging systems or automated diagnostic devices for precise positioning.
6. Hydraulic and Pneumatic Systems:
   • Offers efficient and smooth motion control in high-performance hydraulic or pneumatic systems.

Key Features of SFU1204 Ball Screw

1. High Precision and Accuracy:
   • Engineered to deliver exceptional precision in linear motion, making it perfect for applications requiring fine-tuned accuracy.
2. Smooth and Quiet Operation:
   • The ballscrew design minimizes friction, ensuring efficient, noise-free motion even at high speeds.
3. Durable Construction:
   • Made from high-strength, corrosion-resistant materials for long-lasting performance in demanding environments.
4. Efficient Load Transmission:
   • Reduces energy loss during motion, ensuring better efficiency and lower operational costs.
5. Compact Design with High Load Capacity:
   • Supports heavy loads without compromising performance, making it ideal for industrial applications.
6. Easy Integration:
   • Standardized dimensions allow seamless integration into existing machinery or systems.
7. Preloaded Nut for Minimal Backlash:
   • Features a ballscrew nut that reduces backlash, improving accuracy and repeatability in operations.

Package Include

• 1 piece of Ball Screw SFU1204 500mm length with ballscrew nut (with end machining).
