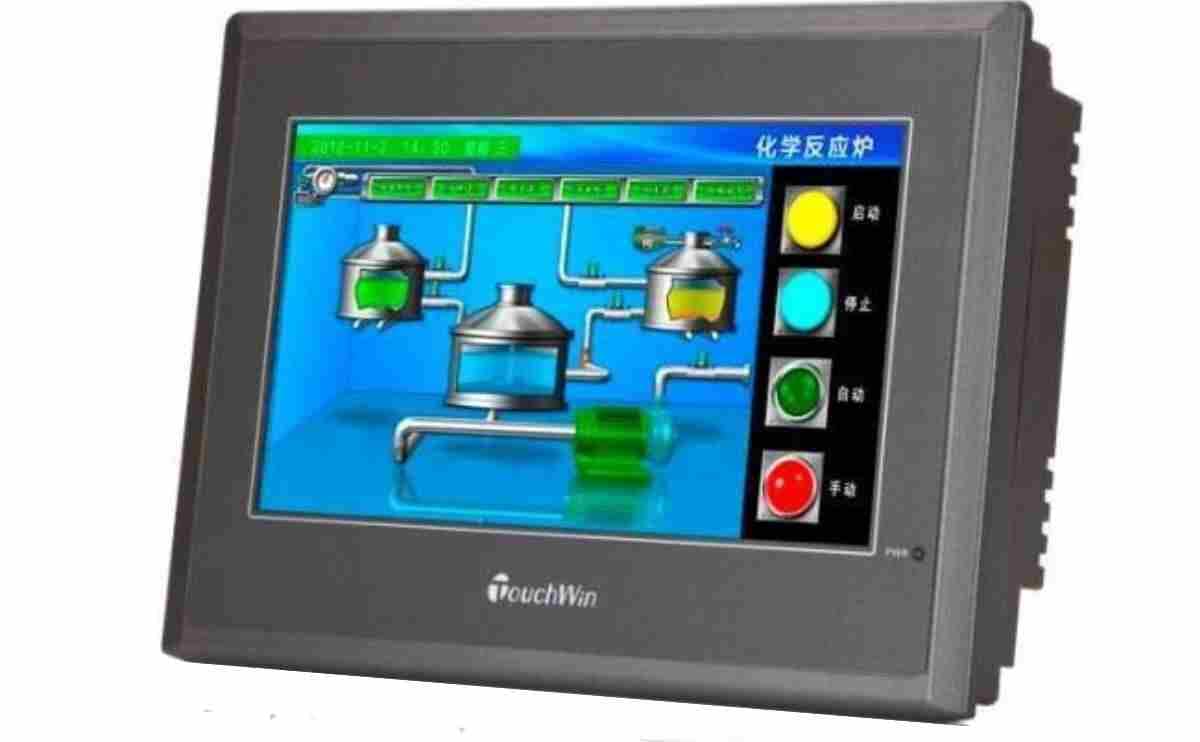

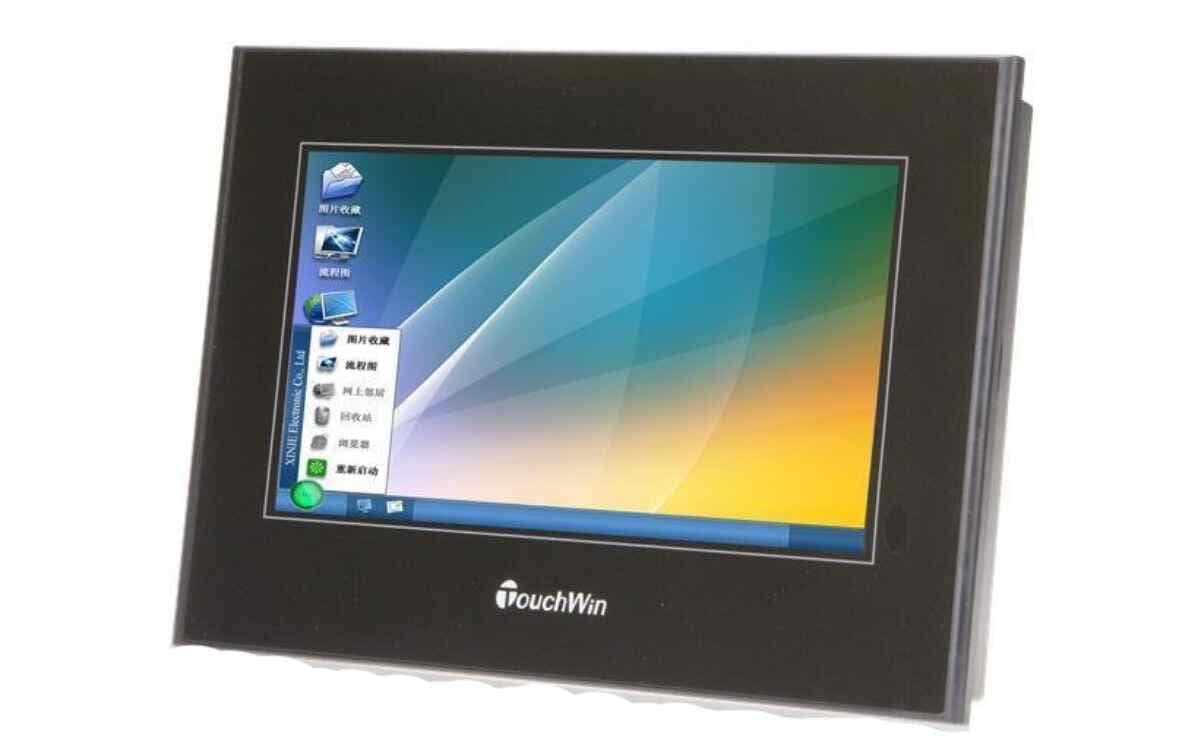

TouchWin HMI TG765S XT 7 Industrial Touch Screen PLC Control Panel Interface

TouchWin HMI TG765S XT 7 Industrial Touch Screen PLC Control Panel Interface

TouchWin HMI TG765S XT 7 Industrial Touch Screen PLC Control Panel Interface

• TouchWin HMI TG765S-XT is a robust 7-inch industrial Human Machine Interface designed for reliable machine control and visualization in automation environments.
• Featuring a bright TFT LCD with 800×480 resolution and 16.77 million true colors, this HMI delivers crisp graphics and responsive touch interaction for monitoring machine processes and operator inputs.
• Equipped with essential communication ports including RS232 and USB-B, the TG765S-XT integrates seamlessly with most PLC brands such as Delta, Mitsubishi, Siemens, Omron and more, providing flexible connectivity for industrial control panels and factory automation systems
• TouchWin HMI TG765S compact panel-mount design, long LED backlight lifespan, and sturdy construction make it suitable for continuous use in industrial settings, enhancing operator efficiency and process visibility.

Specifications

• Screen Size: 7.0 inches
• Display Type: TFT LCD with LED backlight
• Resolution: 800 × 480 pixels
• Colors: 16.77 million true colors
• Brightness: Approx. 200 cd/m²
• LCD Life: > 50,000 hours (continuous 24 h operation at 25 °C)
• Touch Type: 4-wire resistive touch screen
• CPU: ARM9 (estimated typical architecture)
• Memory: 128 MB (program + runtime)
• PLC Port: RS-232 serial communication (supports common PLC protocols)
• Download Port: USB-B (USB 2.0) for program transfer to HMI
• Input Voltage: DC 24 V (range DC 22 V ~ 26 V)
• Current Consumption: ~200 mA

Applications

• PLC-based automation systems
• CNC machine operator panels
• Packaging and processing machinery
• Material handling & conveyor controls
• Factory floor machine monitoring
• Industrial control cabinets

Benefits

• TouchWin HMI TG765S Improves operator-machine interaction
• TouchWin HMI TG765S-XT Clear visualization of machine data
• Simple integration with common PLC brands
• Enhances productivity through real-time feedback
• Affordable alternative to premium industrial HMIs

Key Features

• 7.0-inch TFT LCD with LED backlight
• 800 × 480 high-resolution display
• Displays 16.77 million true colors
• Responsive 4-wire resistive touch panel
• USB-B port for program download
• RS232 communication port for PLC control
• Wide PLC compatibility (Delta, Mitsubishi, Omron, Siemens.

Package Includes

• 1 piece of TouchWin HMI TG765S XT unit
