TMC5160T plus driver 60v Bigtreetech stepper motor driver for 3D printer machine

TMC5160T plus driver 60v Bigtreetech stepper motor driver for 3D printer machine

TMC5160T plus driver 60v Bigtreetech driver stepper motor driver for 3D printer machine.

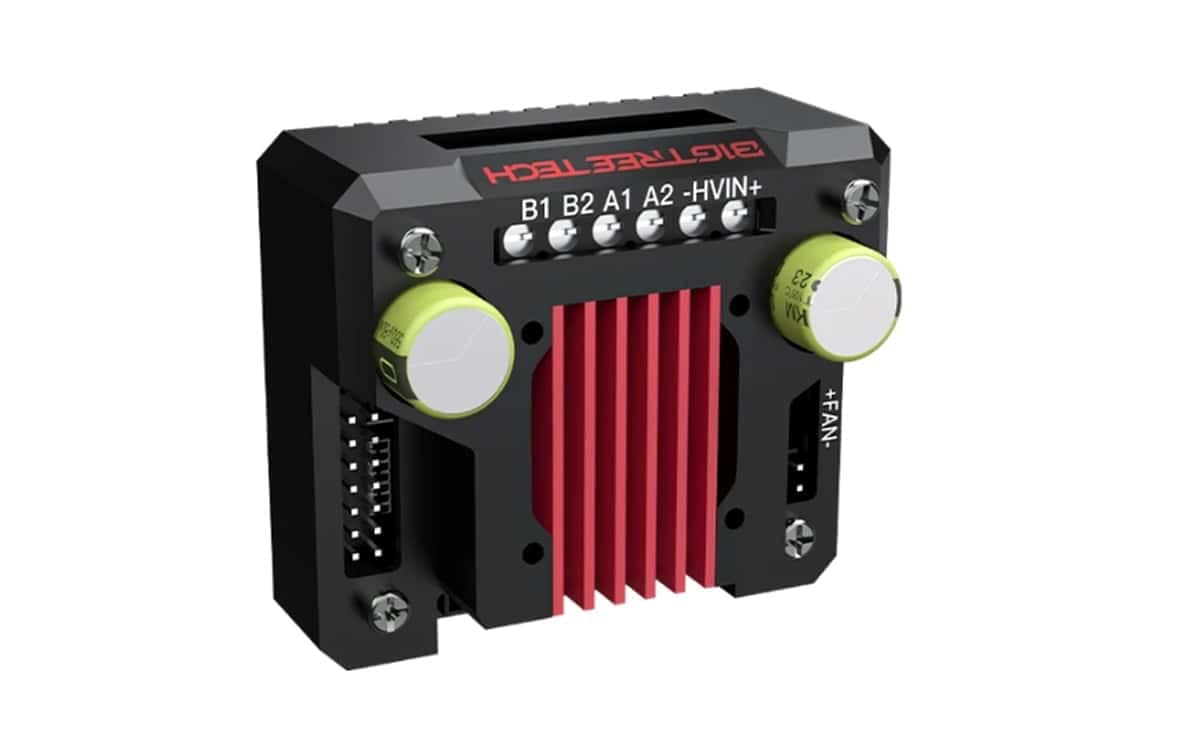

• TMC5160T Plus is a high-power stepper motor driver control module, featuring 8 high-power MOSFETs separately mounted on the board with a maximum voltage of 60V.
• Stepper motor and driver supports a wider range of stepper motors and offers greater adaptability.

Features TMC5160T plus:

•  8 high-power MOSFETs separately mounted on the board with 100V voltage resistance, 93A current resistance, and equivalent resistance as low as 6mΩ, significantly enhancing the drive’s performance;
•  Supports a maximum voltage of 60V, a maximum effective current (IRMS) of 10.6A, and a sine wave peak current of up to 15A;
•  StealthChop™ mode and SpreadCycle™ mode selectable, with standalone mode, UART mode, and SPI mode selectable;
•  Generates significantly less heat compared to other drives with the same chip model, and outperforms others on the market;
•  Can prevent motor jitter and avoid losing steps;
•  Tested to drive 36, 42, 57, 86, etc., stepper motors;
•  ESD protection on the drive power, logic power, etc., to prevent damage due to power fluctuations and static electricity;
•  On-board 24V always-on fan interface facilitates active cooling;
•  Encoder interface reserved for DIY usage;
•  Integrated heat sink design, providing high heat dissipation while enhancing structural integrity and aesthetics;
•  Supplied with adapters and wires for both standard drives and EZ drive, for user convenience;
•  Heat sink pre-designed with fan mounting holes for DIY fan installation.

Specifications:

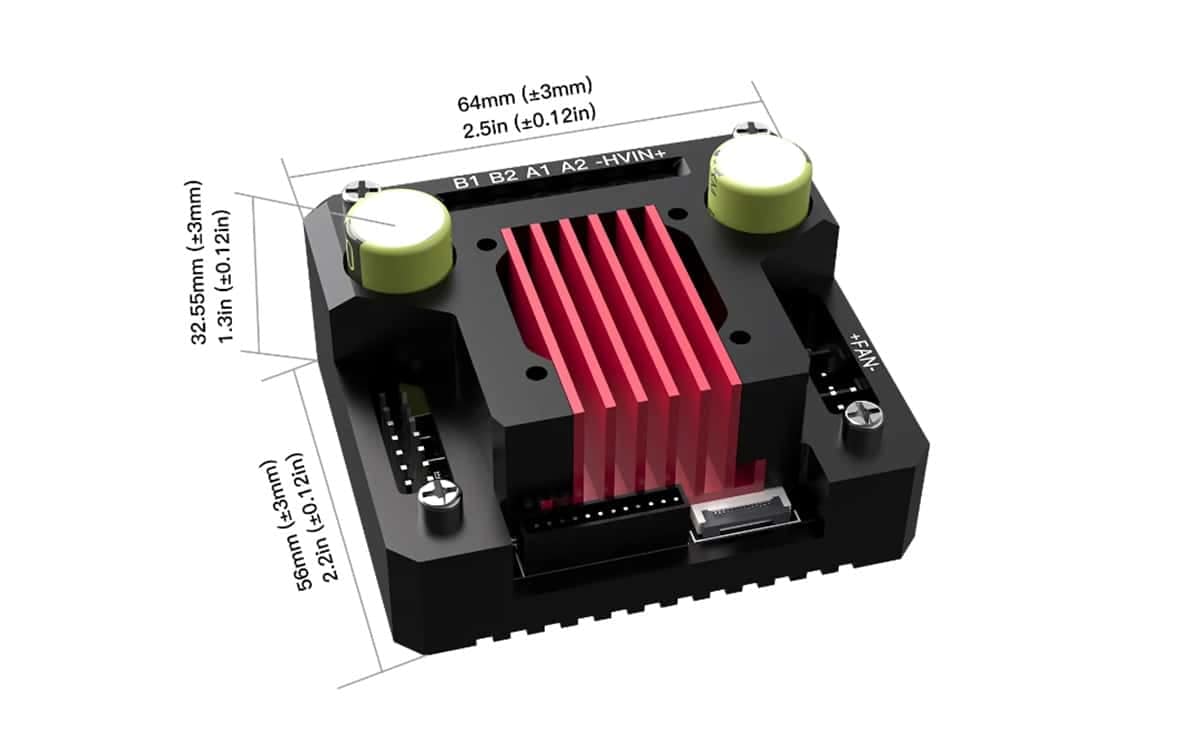

• Dimensions: TMC5160T Plus: 64 x 56 x 32.55mm
• Drive Chip:TMC5160-TA
• Input Voltage (HVIN): 8V-60V
• Maximum Effective Current: 10.6A, Sine Wave Peak Current 15A
• Capacitor: 2 x 560uF
• Maximum Subdivision: 256
• Operating Mode: SPI, SD
• Sampling Resistor: 22mΩ

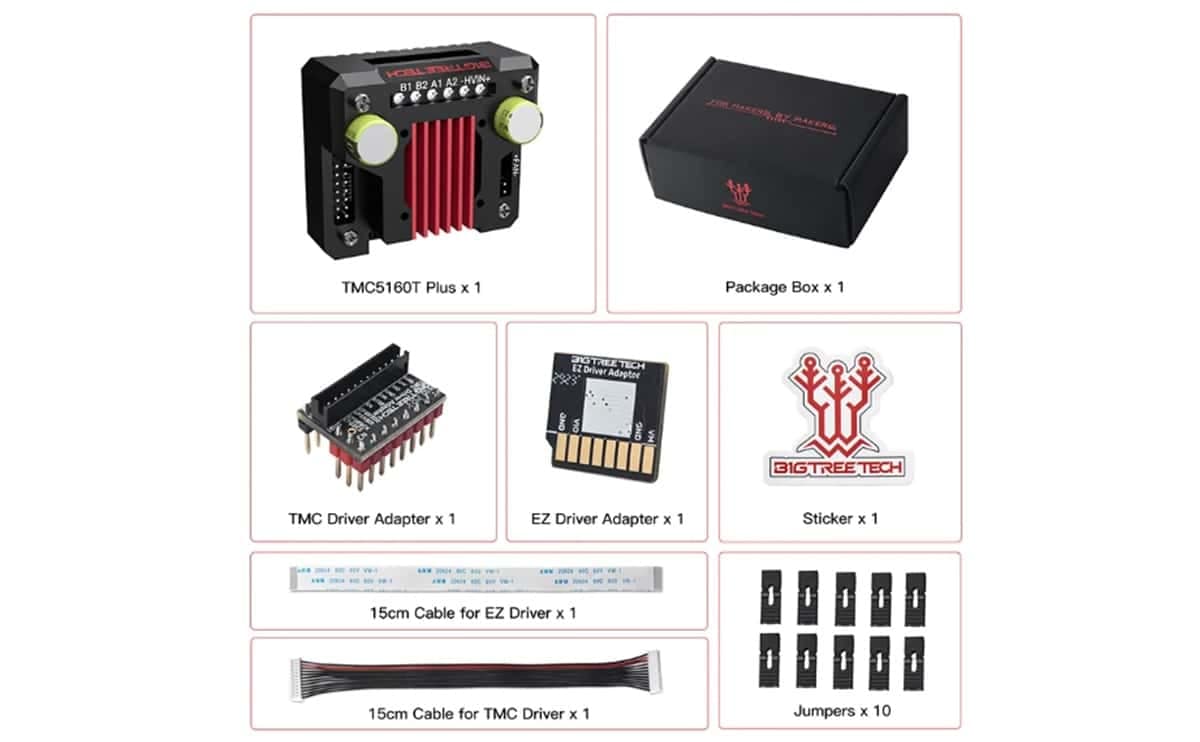

Package Include:

• 1 piece of TMC5160T plus driver TMC driver.
