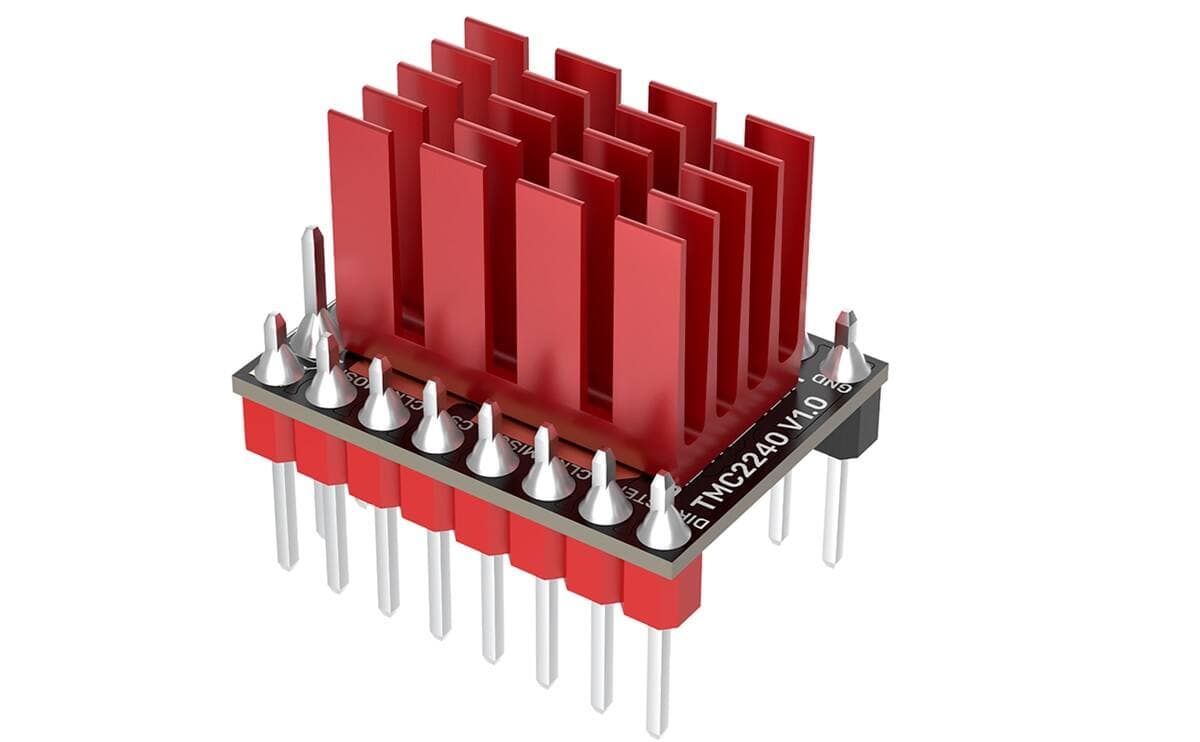

TMC2240 driver V1.0 bigtreetech for stepper motor of 3d printer, commonly abbreviated as BTT TMC2240 V1.0, is a highly regarded stepper motor driver known for its advanced functionalities and efficiency.

• Designed specifically for 3D printing and CNC applications, this driver operates within a voltage range of 12 to 40 volts, making it suitable for various setups.
• Its compact size and performance capabilities have made it a popular choice among enthusiasts and professionals alike.
• One of the standout features of the TMC2240 driver is its adjustable current limit, which enables users to fine-tune the performance of their stepper motors.
• This flexibility allows the driver to accommodate different motor specifications with ease.
• Moreover, the driver supports a variety of microstepping options, ranging from full-step to 1/256 microstepping. Such granularity in control enables smoother operation and heightened precision, which is crucial for achieving high-quality outputs in 3D printing and machining processes.

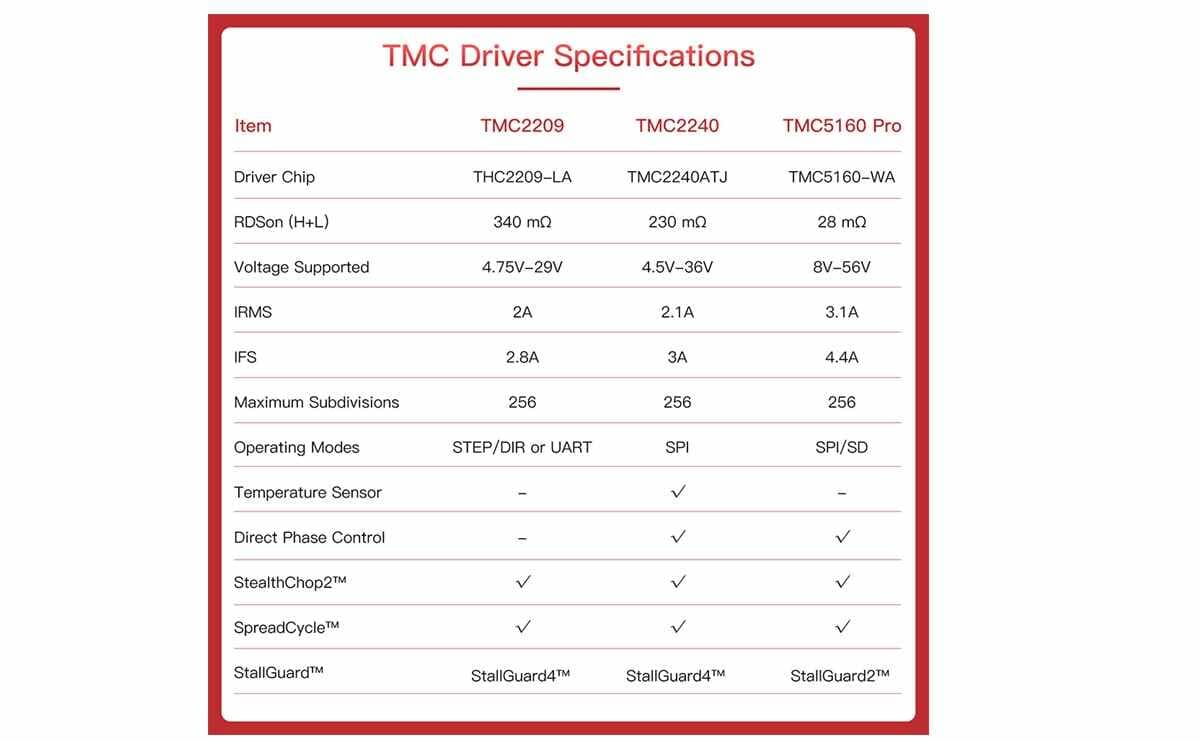

Specifications TMC2240 driver

• One of the standout features of the TMC2240 driver is its maximum current rating, which can reach up to 2.0A per phase.
• This rating is significant because it allows the driver to handle larger or more powerful stepper motors, enabling smoother operation and better torque.
• Users should note that the actual current supplied to the motors can be adjusted according to specific needs, making it flexible for varied applications.
• In terms of motor voltage compatibility, the tmc2240 V1.0 can operate within a range of 12V to 30V.
• This versatility is crucial for users working with different power supplies and helps ensure that the driver can function optimally in diverse setups without compromising performance.

Advantages TMC2240 driver

• BigTreeTech TMC2240 driver is renowned in the 3D printing and CNC machining arenas for its numerous advantages, significantly enhancing the performance of these applications.
• One of the primary benefits of utilizing the TMC 2240 V1.0 is its exceptional microstepping capabilities.
• This feature allows for smoother and more precise movement of stepper motors, resulting in improved accuracy during printing and machining processes.
• With the ability to achieve up to 256 microsteps, users can expect finer details and superior surface finishes, which are crucial in professional-grade projects. In addition to precision, the Bigtreetech tmc2240 driver also excels in noise reduction.
• Another significant advantage of the TMC2240 driver is its energy efficiency.
• The driver is designed to optimize power usage while maintaining the necessary torque for reliable performance.
• This not only reduces electricity consumption but also contributes to less heat generation, which is beneficial for the longevity of both the driver and the motor.
• Coupled with an integrated thermal management system, the tmc2240 V1.0 ensures that the drivers operate within safe temperature ranges, mitigating the risk of thermal runaway.

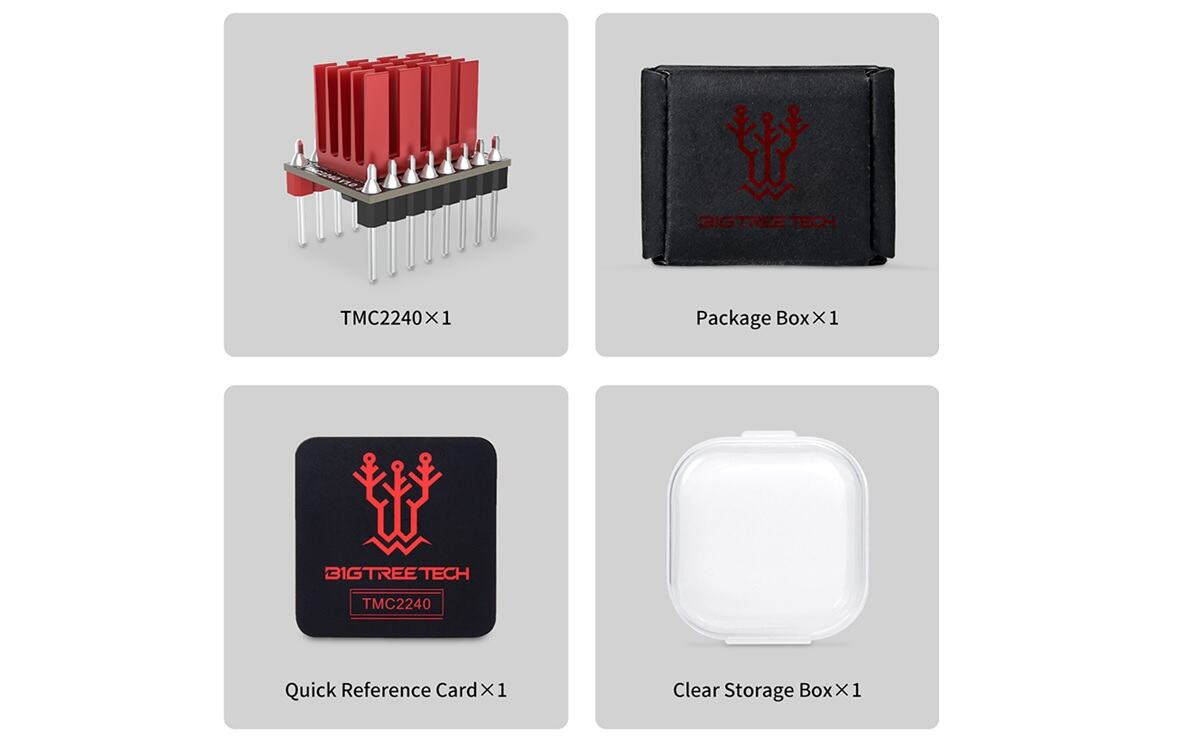

package include

•  1 piece of tmc2240 stepper driver
