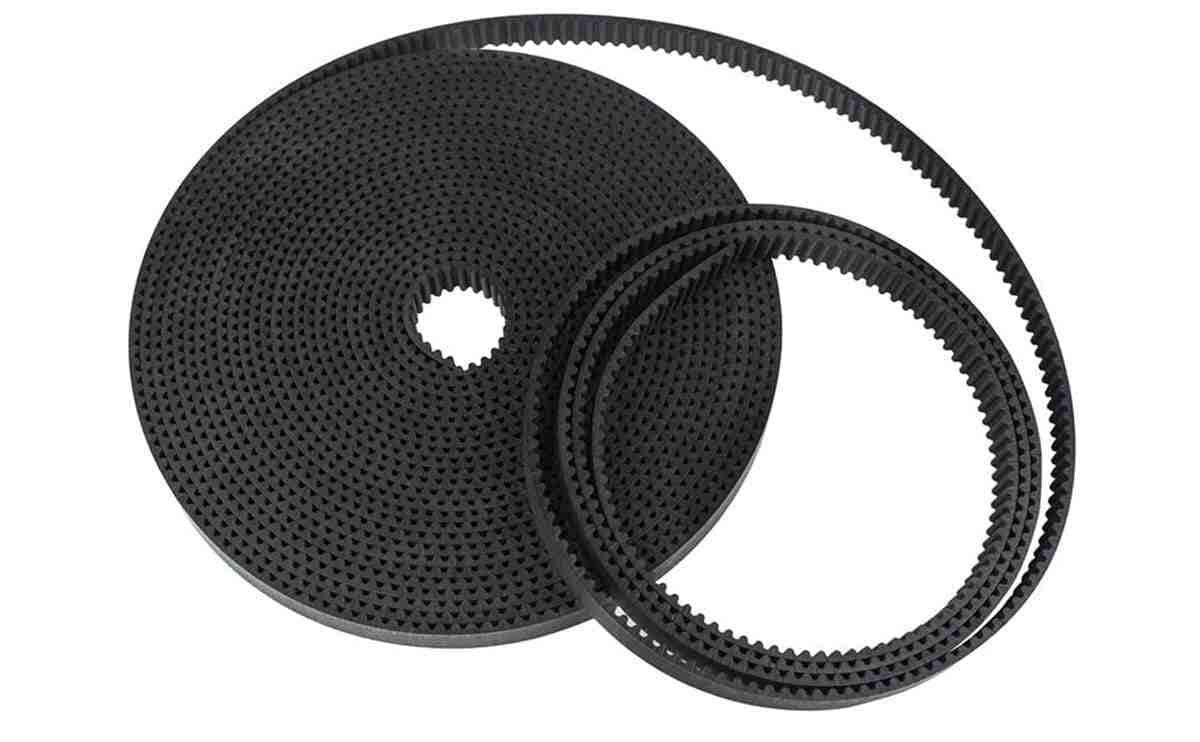

Timing belt 10mm Rubber open loop belt for 3D printer:
The timing belt 10mm is a high-quality, durable belt designed for precision timing applications. With a width of 10mm, this rubber open loop belt offers excellent performance and reliability.
Featuring a toothed design, the timing belt 10mm ensures accurate and smooth power transmission. Pulley belts is commonly used in various industries, including robotics, 3D printing, CNC machines, and automation systems.
The 10mm width of the belt provides a balance between strength and flexibility, making it suitable for a wide range of applications. Whether you need to transfer power or control the movement of mechanical components, the GT2 timing belt is a reliable choice.
The open loop design of the belt allows for easy installation and adjustment. It can be easily cut to the desired length and secured using belt clamps or tensioners. This flexibility makes it ideal for custom projects and applications with unique requirements.
Manufactured from high-quality rubber, the belt offers excellent resistance to wear, chemicals, and temperature variations. It is designed to withstand heavy loads and provide long-lasting performance.
Invest in the timing belt for your precision timing needs. Its 6mm width, rubber construction, and open loop design ensure reliable and efficient power transmission in a variety of applications.
GT2 belt properties:
The Power grip GT2 system is an extension of the HTD system with greater load-carrying capacity. HTD was developed for high torque drive applications.
Circular arc tooth profile and tooth space is small.
It is suitable for straight line driving.
Specifications:
Pitch: 2mm
Material: Neoprene Rubber With Fiberglass Core

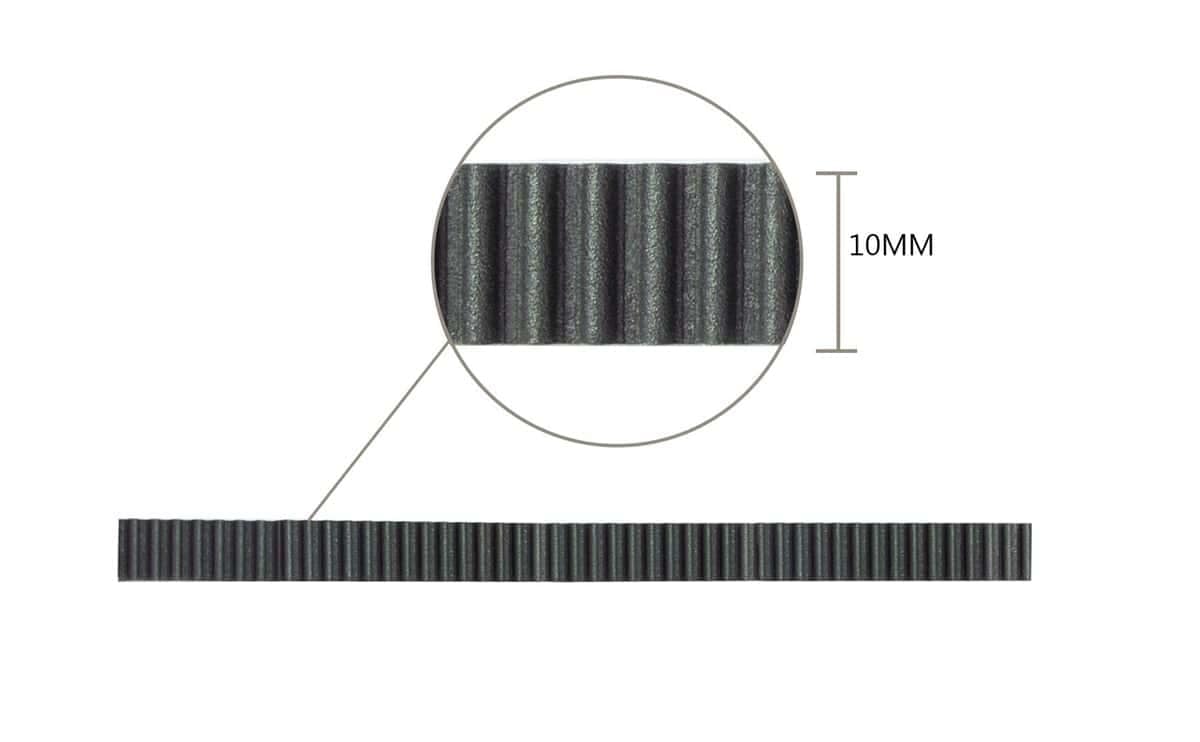

Width: 10mm
Total Length: It will come in continuous Length (example: 1 meter x 5 pieces, will come in 5 meter single roll)
Shape: Open Loop
Core Wire Material: Glass Fiber
Breaking Strength: 85 N Per 1 mm(61 lbf per 1/8 inch)
Belt Width; Working Tension:110 N for 25.4 mm Belt width(24 lbf for 1 inch.)
Temperature Range:-34°C to +85°C(-30°F to + 185°F)
Applications:
3D printer
Automation
Robotics, etc.
Package Include:
Timing belt 10mm rubber (Multiple length added to cart will be given in single roll only)
Example: 1 meter x 5 pieces, will come in 5 meter single roll
