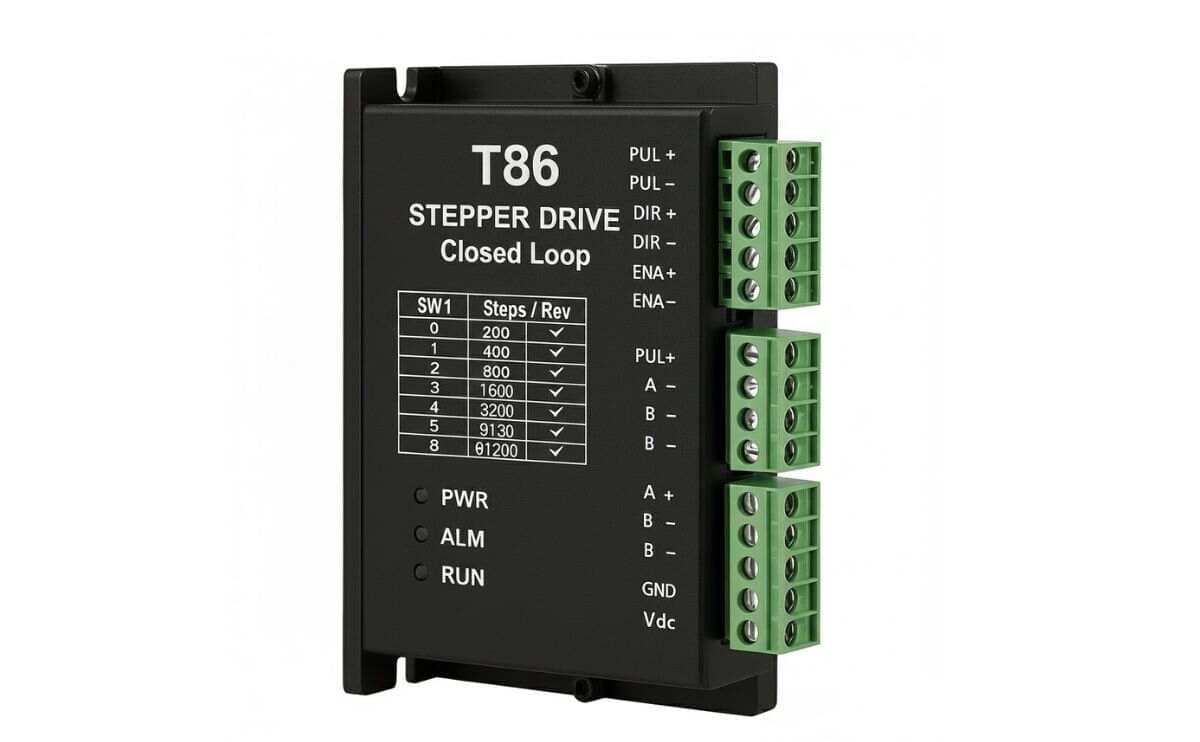

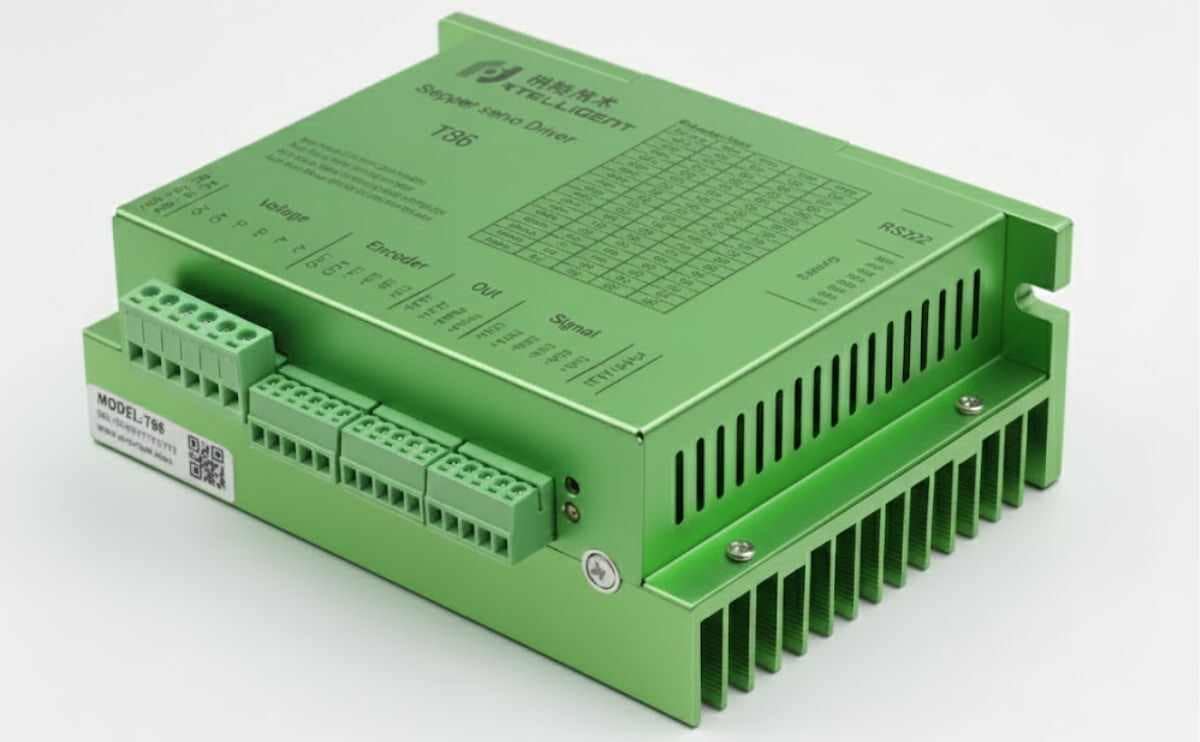

• T86 Stepper Driver is a high-performance closed loop driver designed for NEMA 34 (86 mm) stepper motors.
• Ideal for closed loop driver T86 CNC routers, milling machines, packaging.
• Offers smooth motion, low noise, low heat and automatic position correction to prevent missed steps.
• Wide input voltage range for closed loop motor driver T86, flexible step resolution and multiple protection features for long-term reliability.

Specifications

• Input Voltage: 24 V – 80 V DC (typical operating range)
• Output Current: 3.0 A – 8.0 A (peak), adjustable
• Logic Signal Current: 7–20 mA (typical)
• Input Pulse Frequency: Up to 200 kHz (max.)
• Insulation Resistance: ≥ 500 MΩ between power terminals and housing

Motor Compatibility

• Supported Motor Type: 2-phase hybrid stepper motor
• Frame Size: NEMA 34 (86 × 86 mm)
• Recommended Motor Current: 3 A – 8 A per phase

Environmental Conditions

• Operating Temperature: 0°C to +50°C
• Storage Temperature: –20°C to +85°C
• Relative Humidity: 10% – 90% (non-condensing)
• Cooling Method: Natural air cooling or forced air

Applications

• CNC routers, milling and engraving machines
• Laser cutting and marking machines
• Packaging and labeling machines
• T86 digital stepper driver Automated assembly lines
• Industrial automation, robotics and motion control projects

Package Includes

• 1 piece of T86 Stepper Driver
