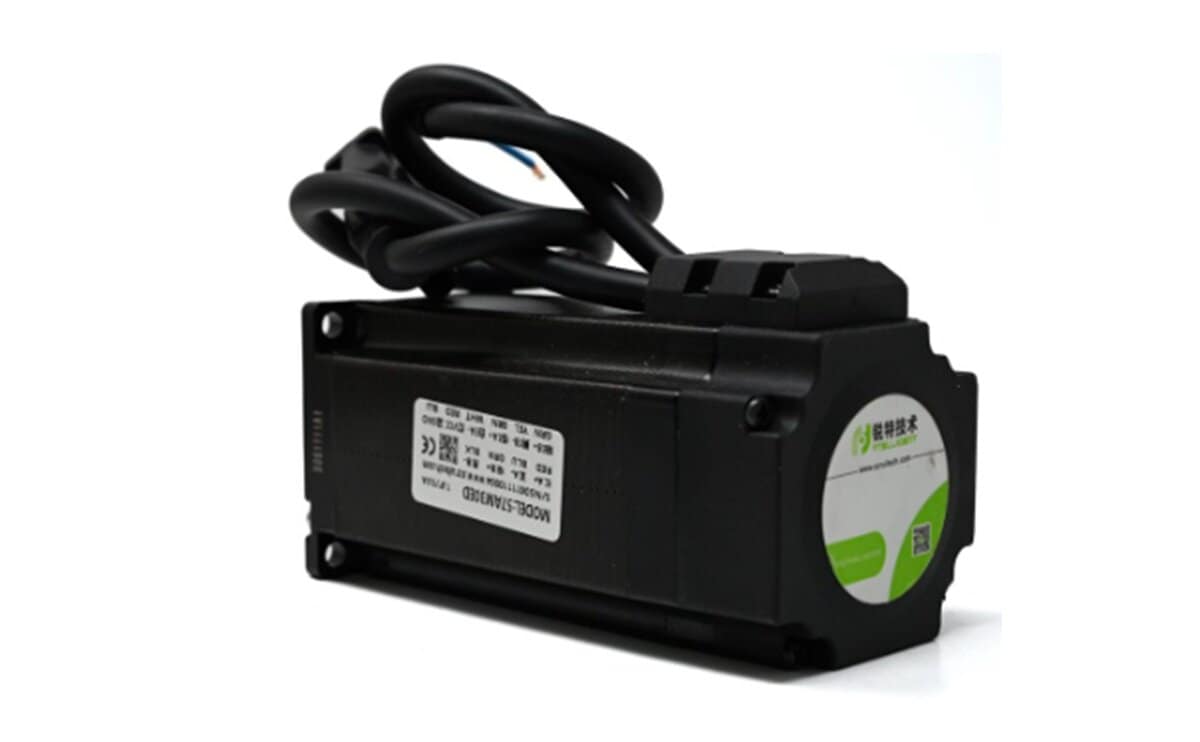

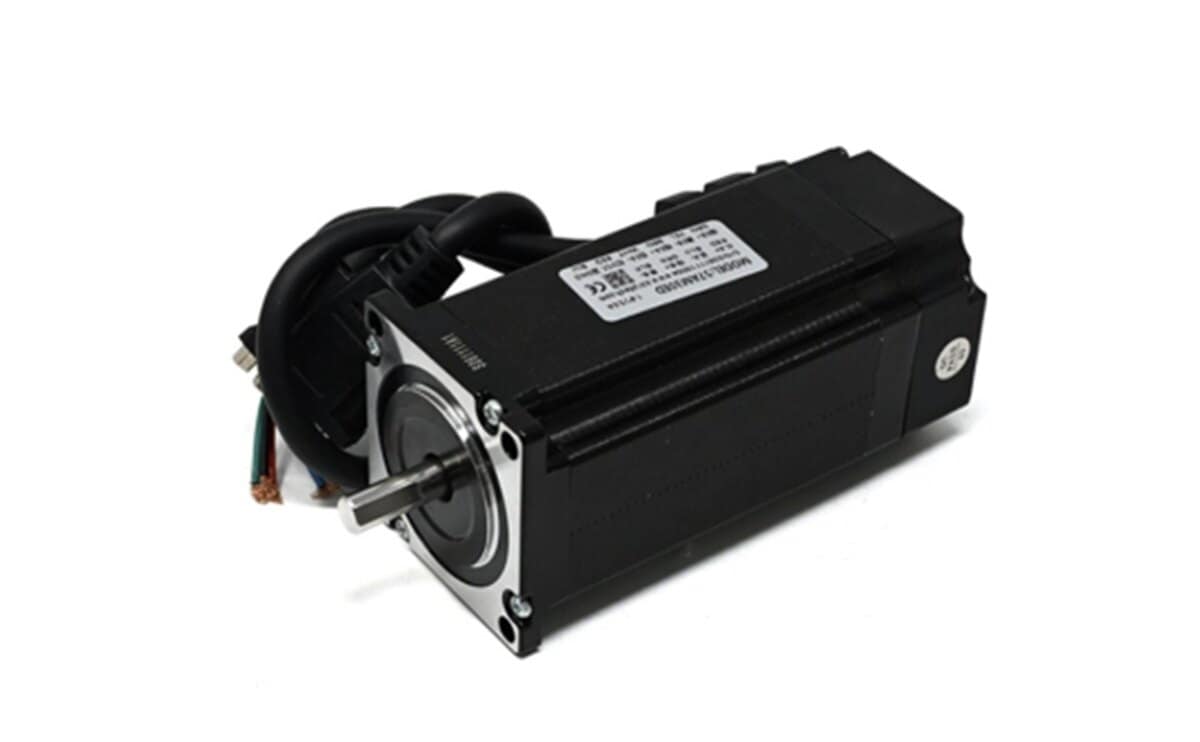

Nema34 Stepper Motor 86AM100ED Closed Loop Stepper Motor

Nema34 Stepper Motor 86AM100ED Closed Loop Stepper Motor

Nema34 Stepper Motor 86AM100ED Closed Loop Stepper Motor is a high-performance, heavy-torque industrial motor designed for demanding CNC and automation environments.

• With advanced closed-loop feedback and a powerful torque output, it delivers high precision, stable motion, zero missed steps, and smooth operation, even under maximum loads.
• Ideal for CNC routers, milling machines, robotics, packaging systems, and industrial motion control, the 86AM100ED is built to deliver accurate positioning, high reliability, and long service life.

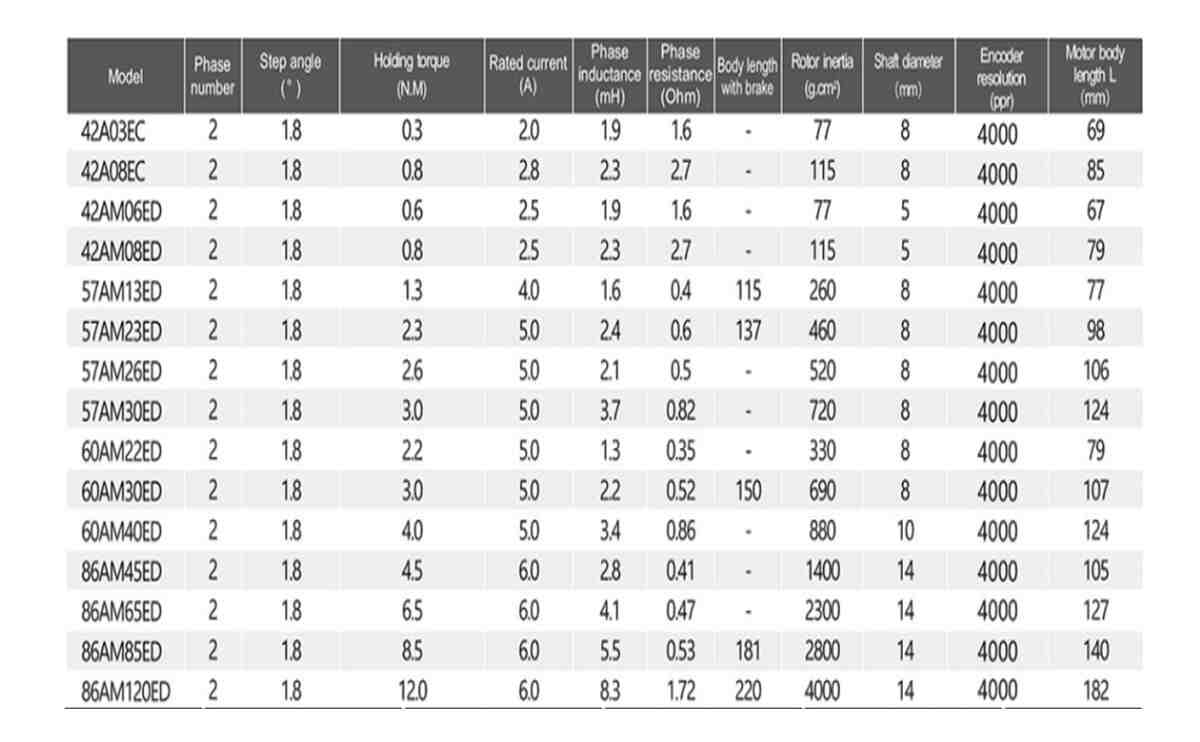

Specifications

• Model: 86AM100ED
• Phase Number: 2 Phase
• Step Angle: 1.8°
• Holding Torque: 12.0 N·m
• Rated Current: 6.0 A
• Phase Inductance: 6.8 mH
• Phase Resistance: 0.65 Ω
• Rotor Inertia: 3500 g·cm²
• Shaft Diameter: 14 mm
• Encoder Resolution: 4000 ppr

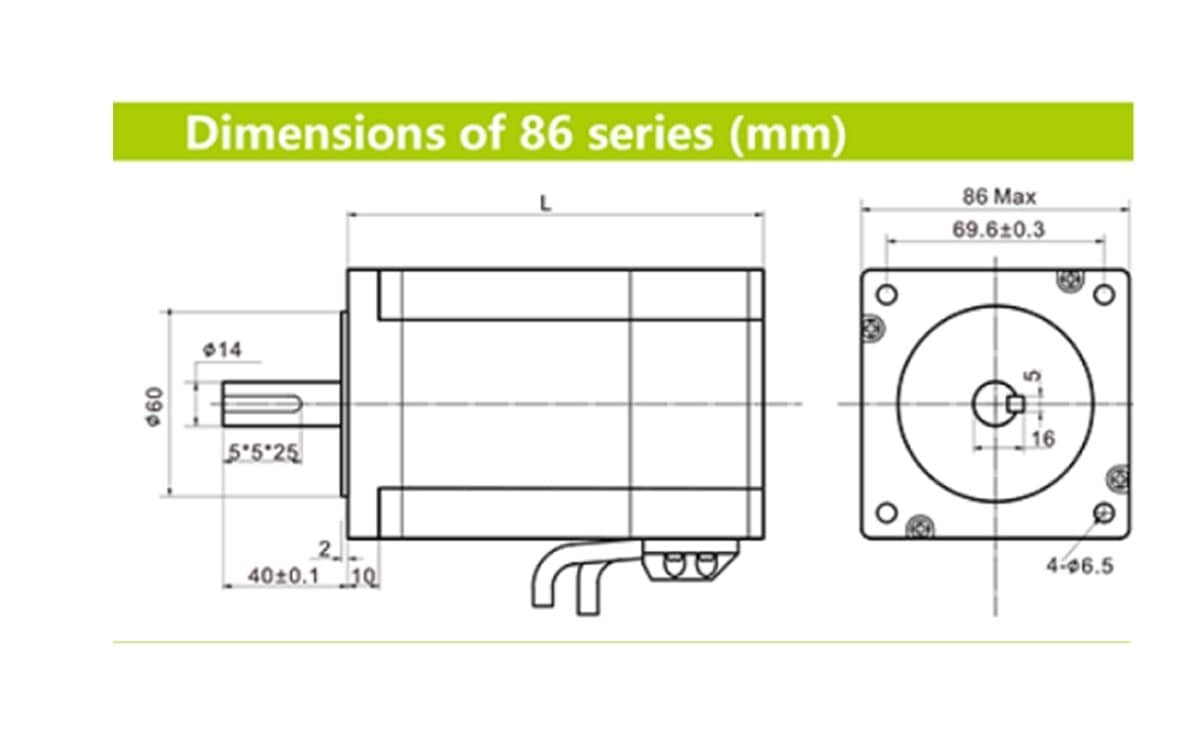

• Motor Body Length (L): 165 mm

Features

• Ultra-high torque 12 N·m for heavy-duty industrial applications
• Closed-loop feedback ensures zero step loss and high accuracy
• Smooth acceleration with improved low-speed torque
• High rotor inertia ensures stable motion with heavy loads
• Industrial-grade construction for long continuous operation
• Low vibration, efficient performance, and excellent thermal stability
• Compatible with high-power drivers (R86 / DM860 / T60 series)

Applications

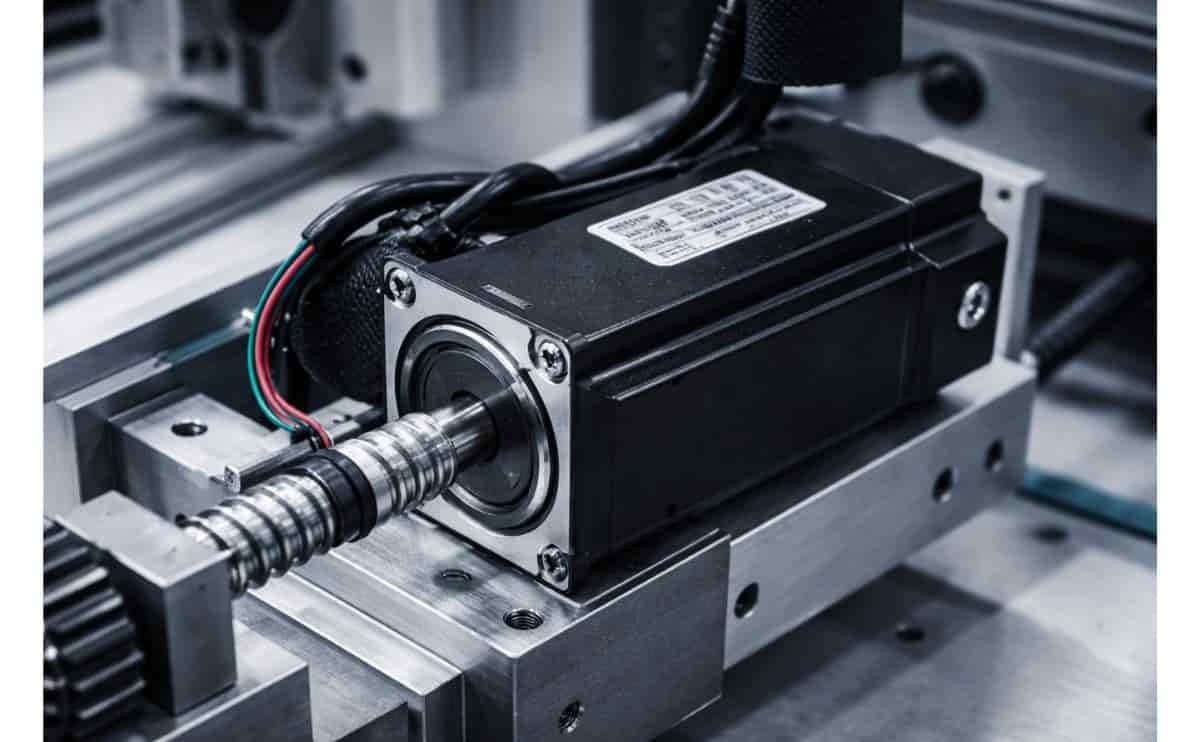

• This Stepper Motor 86AM100ED loads heavy CNC routers, mills & plasma systems
• Industrial automation & robotic arms
• Packaging, printing, and textile machinery
• High-precision motion control machines
• Large mechanical pick-and-place systems
• Custom industrial and automation projects

Usage Instructions

• Use with a compatible closed-loop driver (R86 / DM860 / T60).
• Configure microstepping and set rated current 6.0A.
• Align the shaft correctly to avoid mechanical stress.
• Mount firmly to reduce vibration and maintain precision.

Package Includes

• 1 piece of Stepper Motor 86AM100ED.
