Spring T Nut for 2020 Series Aluminum Profile:

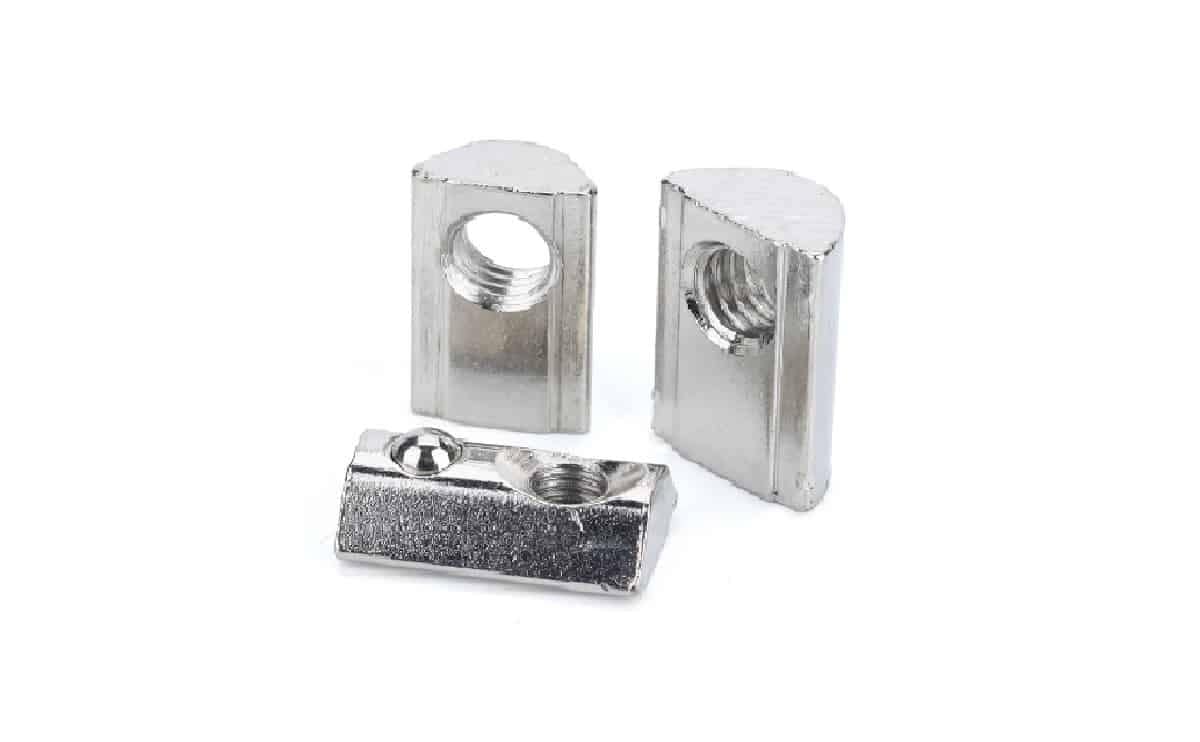

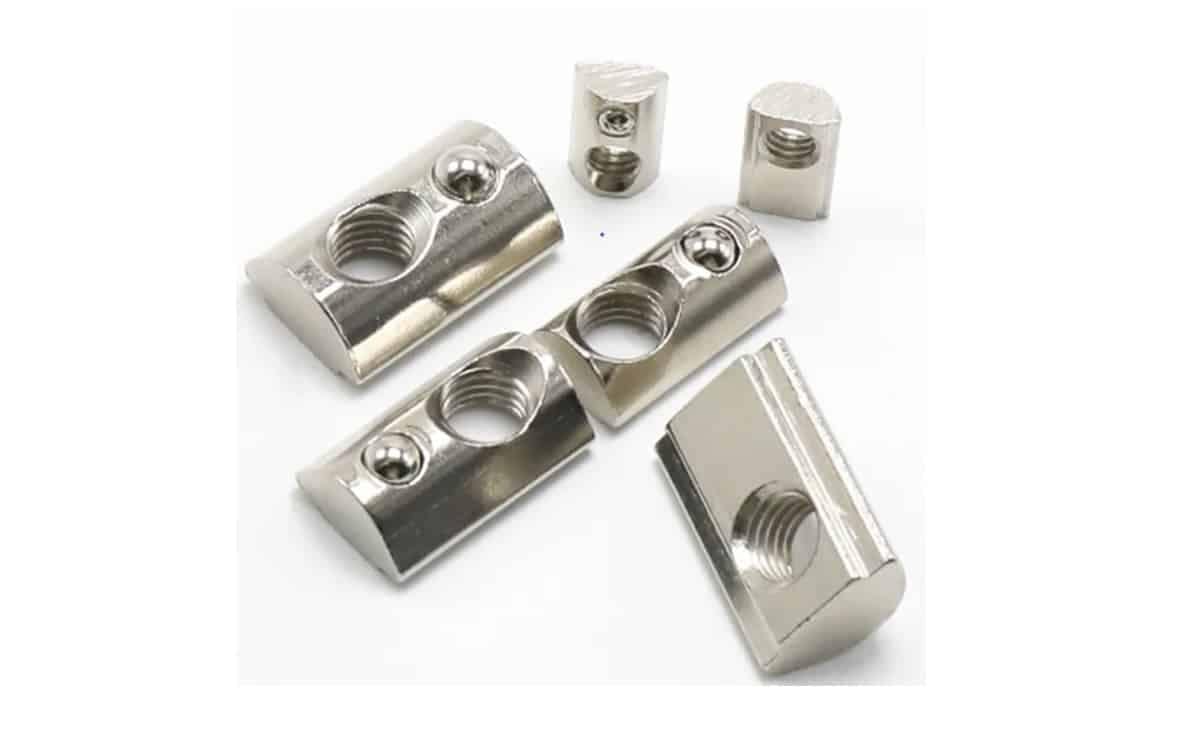

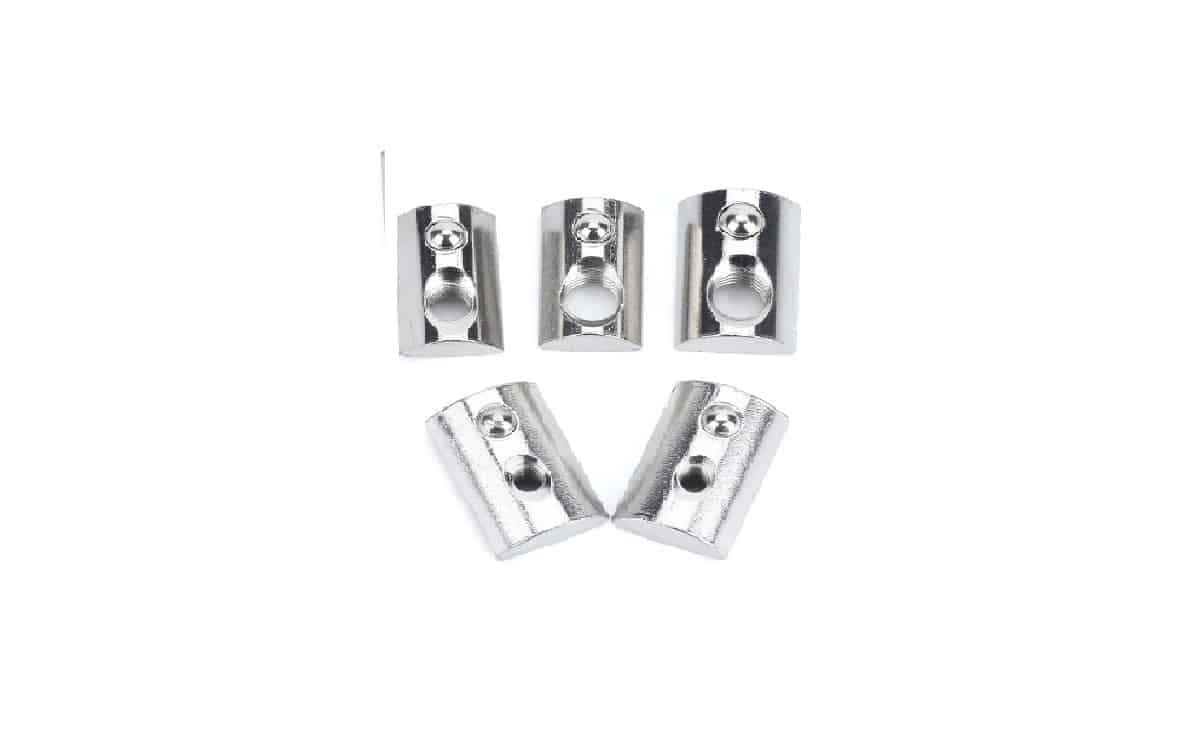

Spring T nut spring nut block for 2020 series m3/m4/m5 aluminium profile for 3d printers

Product Description:

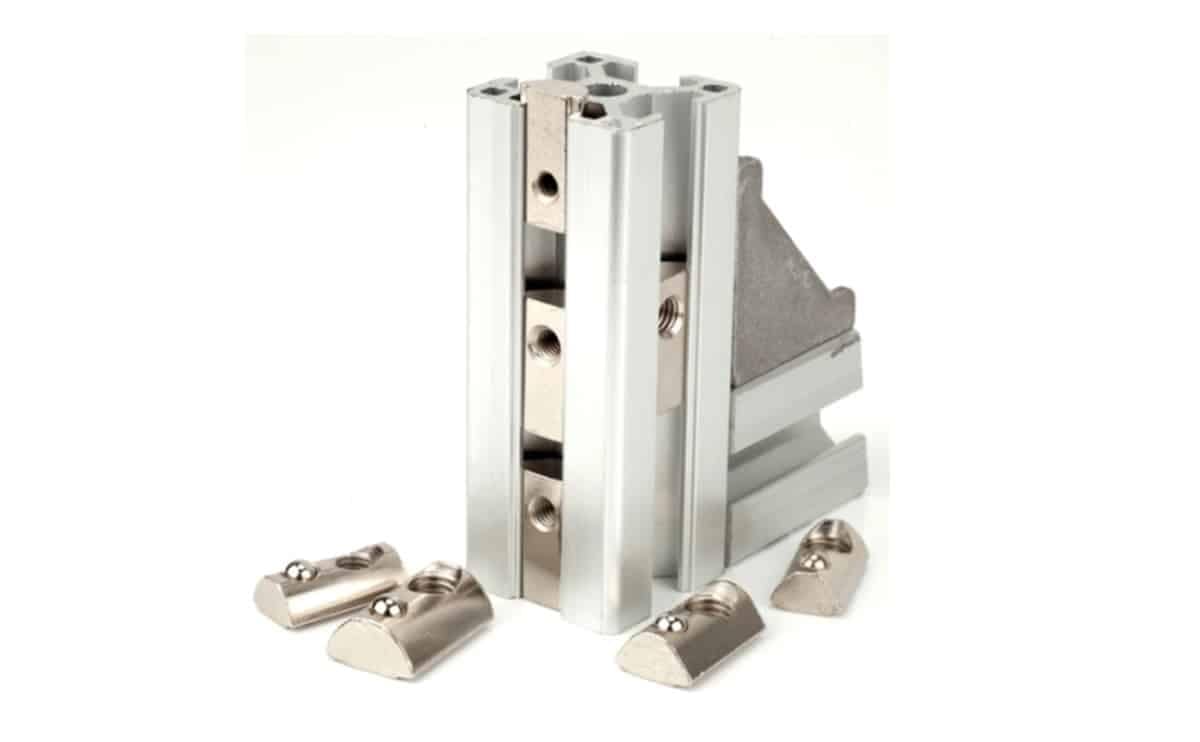

  • The Spring T Nut is a versatile and essential component for 3D printers and various other applications that utilize 2020 series aluminum profiles.
  • This spring nut block is specifically designed to provide a secure and reliable connection within the profile’s T-slot, allowing for easy and flexible assembly.

Specifications:

  • Compatibility: 2020 series aluminum profile
  • Thread Size: M3/M4/M5 (choose the appropriate size based on your requirements)
  • Material: High-quality, durable metal
  • Finish: Zinc-plated for corrosion resistance

Dimensions:

Spring T nut features precise dimensions to ensure a seamless fit within the T-slot of the aluminum profile parts. The exact dimensions for each thread size are as follows:

  • M3 Spring Nut: Length – 10mm, Width – 6mm, Height – 4mm
  • M4 Spring Nut: Length – 10mm, Width – 6mm, Height – 4mm
  • M5 Spring Nut: Length – 10mm, Width – 6mm, Height – 4mm

Tolerance:

Spring T nut is manufactured with high precision to ensure consistent and reliable performance. The tolerance for each dimension is within ±0.1mm, ensuring a snug fit and preventing any unwanted movement or play. You can use also Hammernut, sliding T nut for alumnium profile 2020.

Features:

  • Accurate & Professional; Sliding nut can only be inserted into T-slot from the end profile, it owns the most excellent connection strength and reliability. Very easy to be slide into T-slot of aluminum profile. Back spring ball can be fixed its position which make installation very simple and reliable.
  • Material & Type: These Spring T nut is made of High quality carbon steel, high hardness, surface is nickel-plated for good rust resistance. Type: Sliding nut, suitable for Aluminum Extrusion Profile 2020 series T-Slot 6mm.
  • 2020 Series Aluminum Profile Sliding T-Nuts widely used for building industrial aluminum frame structures, 3D printers, CNC Routers, CNC laser cutters, Robotics Projects, 3D carvers, machine guards, workstations, etc.

Package Include:

  • 1 piece of Spring T Nut.



Weight N/A
HSN code

84779000

Size

M3, M4, M5
