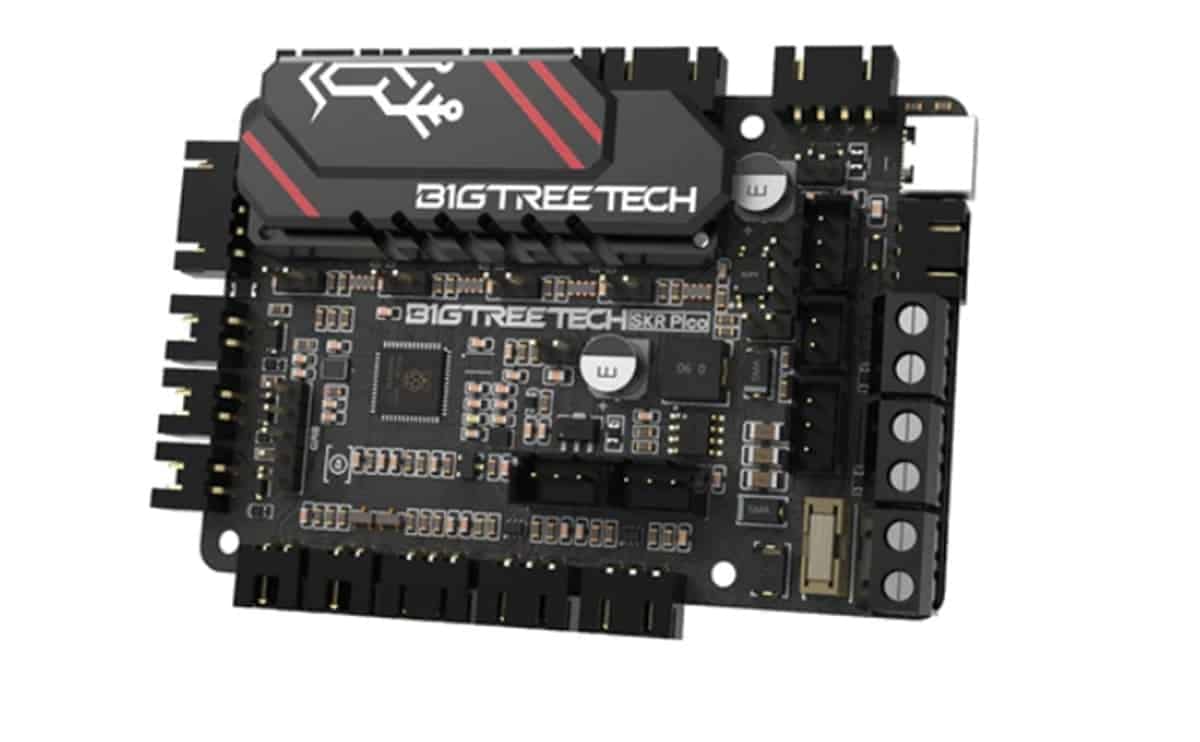

SKR Pico V1.0 Bigtreetech control board for 3D printer

1 review
Availability:

In stock


2,699.00

In stock

SKR Pico V1.0 Bigtreetech control board for 3D printer:

SKR Pico V1.0 Bigtreetech  controller board onboard UART mode of TMC2209 and supports Klipper firmware.

  • The SKR Pico V1.0 Bigtreetech control board is a high-performance controller designed specifically for 3D printers.
  • Equipped with an onboard UART mode of TMC2209 and support for Klipper firmware, It offers advanced features and capabilities for smooth and efficient printing.
  • One of the notable upgrades in the Pico V1.0 is its newly improved heat sink design.
  • The heat dissipation area has been enlarged, resulting in significantly improved heat dissipation performance.
  • This ensures that the board stays cool even during long printing sessions, reducing the risk of overheating and ensuring stable operation.
  • The main control board of the SKR Pico V1.0 is equipped with high-quality chip capacitors (MLCC) from Murata. These capacitors provide reliable and stable performance, ensuring smooth and precise control of the printer.
  • In terms of convenience, the Pico V1.0 features a fuse holder fuse design. This design allows for easy disassembly and replacement of the fuse, simplifying maintenance and troubleshooting.
  • Specifications of the Pico V1.0 include a 4-layer board layer, an ARM Cortex-M0 RP2040 MCU, and a power input of DC 12/24V.
  • The logic voltage is 3.3V, and the motor driver is in UART mode using the onboard TMC2209. The board also includes motor driver interfaces for X, Y, Z1, Z2, and E, as well as temperature sensor interfaces for THO, THB, and 2-way 100K NTC (RTD).
  • With its advanced features, reliable performance, and convenient design, the Pico V1.0 Bigtreetech board is an excellent choice for enhancing the functionality and efficiency of your 3D printer.

Specifications:

  • Board layer: 4 layers.
  • MCU: ARM Cortex-MO+ RP2040.
  • Power input: DC 12/24V.
  • Logic voltage: 3.3V.
  • Motor driver: UART mode of the on-board TMC2209.
  • Motor driver interface: X, Y, Z1, Z2, E.
  • Temperature sensor interface: THO, THB, 2-way 100K NTC (RTD).

Package Include:

  • 1 piece of Bigtreetech skr pico.
Weight 350 g
