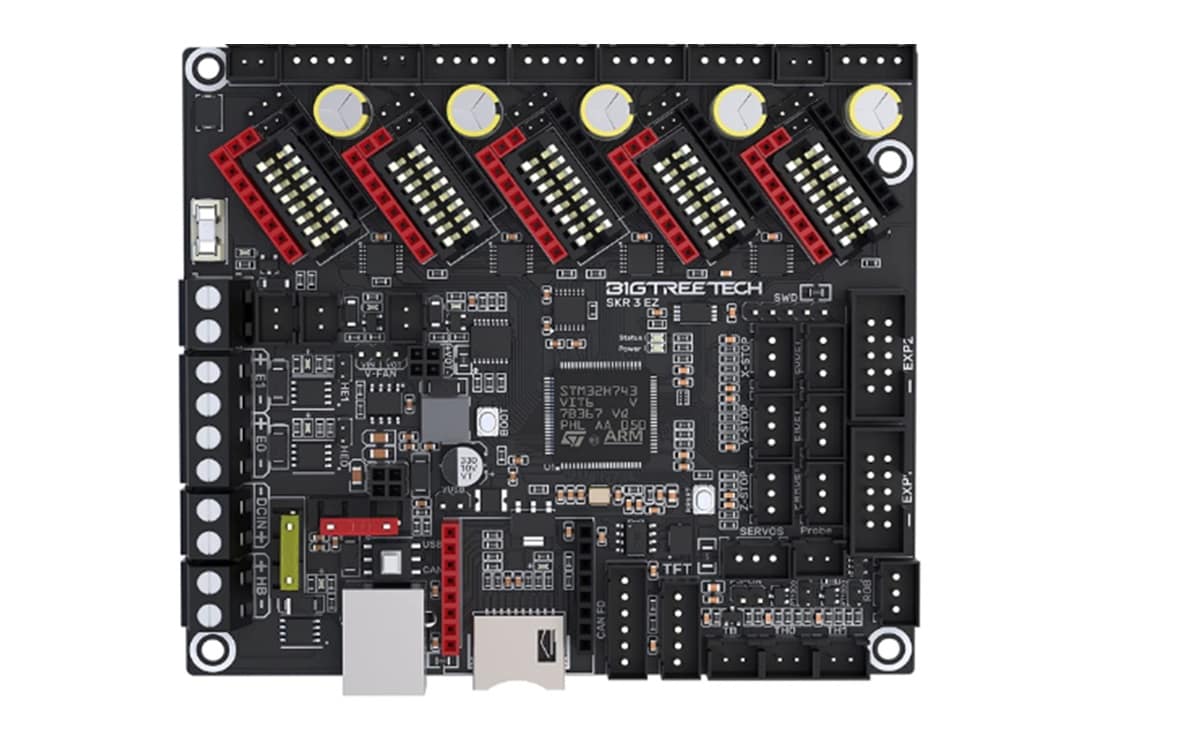

The SKR 3 EZ Bigtreetech Control Board is a versatile and powerful control board designed for 3D printers.

• With its compact size and advanced features, it has become a popular choice among enthusiasts and professionals alike.
• Its small size allows for easy integration into various printer models without sacrificing functionality.
• Specifications: Equipped with a powerful 32-bit ARM Cortex-M4 processor, the SKR 3 EZ control board offers enhanced performance and faster processing speeds.

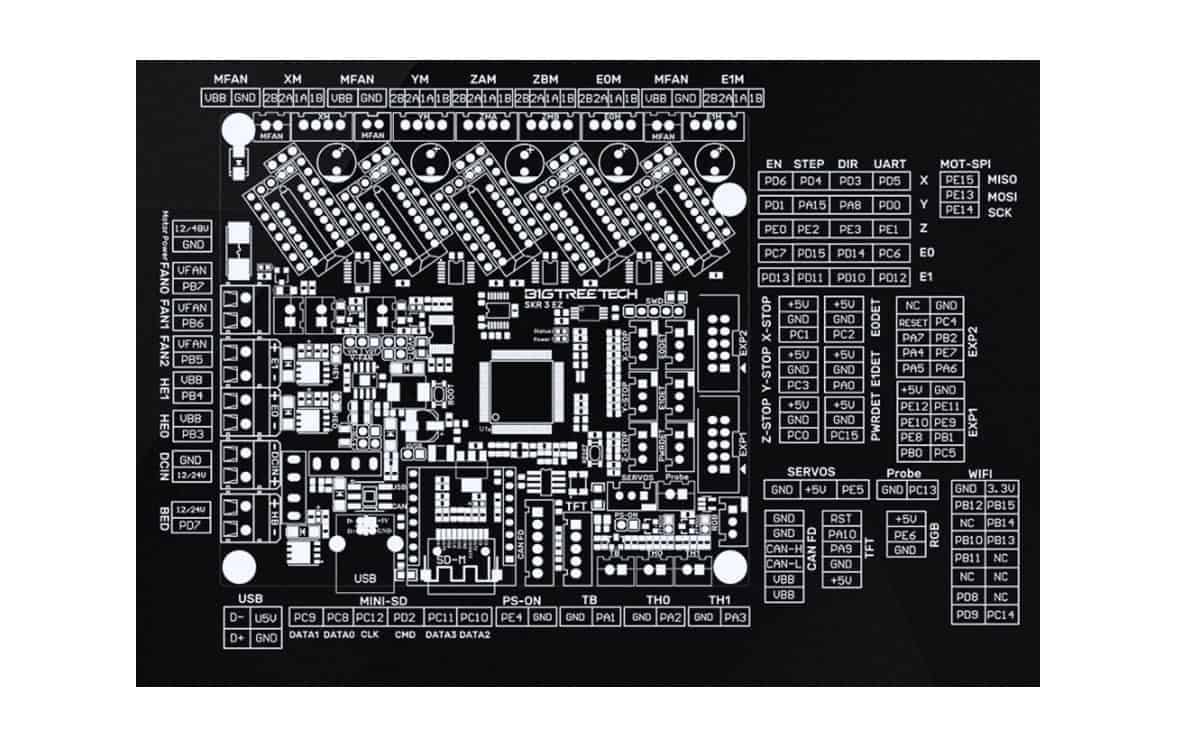

Key Specifications of SKR 3 EZ

• Processor: High-performance 32-bit ARM Cortex-M7 STM32H743VIT6 chip, ensuring smooth operation, faster processing, and improved precision.
• Power Input: Supports DC 12V-24V, providing versatility for a wide range of 3D printer setups.
• Driver Interface:

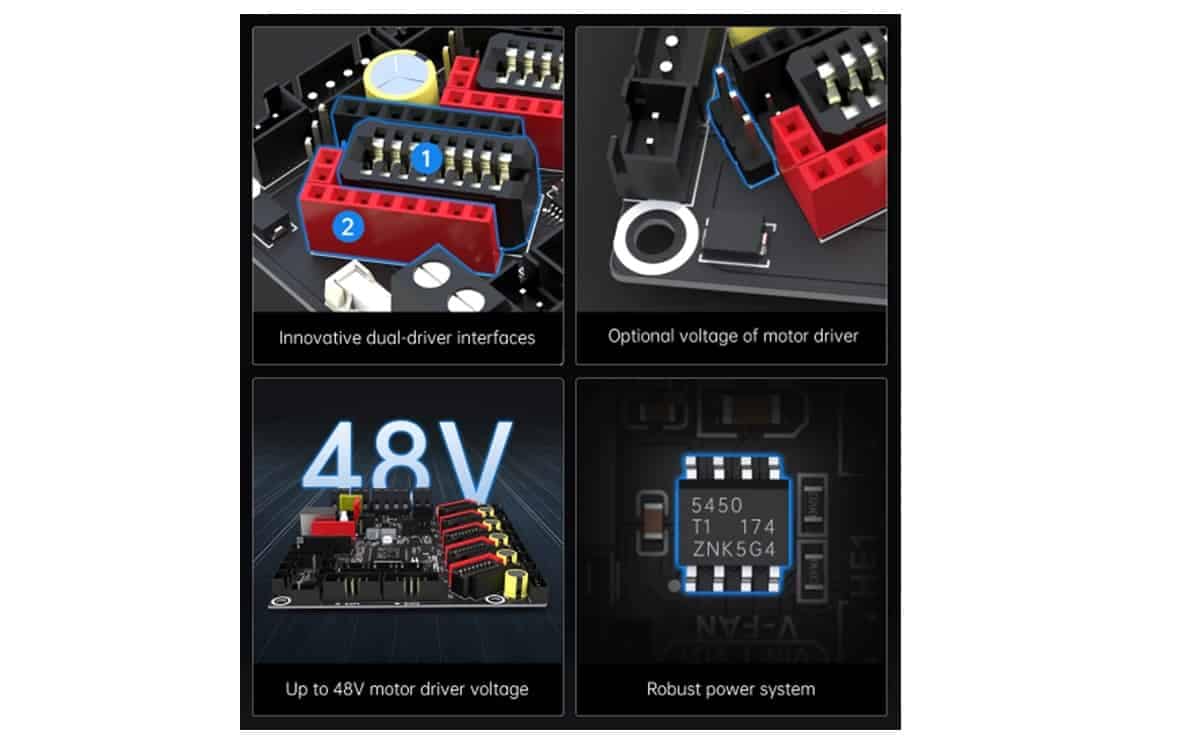

  • Compatible with EZ series drivers, allowing tool-free and quick installation.
  • Supports various stepper drivers like TMC2209, TMC2226, and others for ultra-quiet operation.
• Onboard EEPROM: Comes with 24C32 EEPROM for reliable data storage and retrieval, ensuring efficient performance.
• Multiple Fan Interfaces: Features 3 controllable fan ports, allowing precise thermal management for better cooling efficiency.
• Double Z-Axis Support: Provides a dual Z-axis interface for enhanced stability and precision, ideal for large and complex prints.
• Connectivity Options:
  • Equipped with a USB-C port for easy PC communication and firmware updates.
  • Wi-Fi module compatibility via the ESP-07S socket for remote control and monitoring.
• Advanced Heat Management: Integrated large heatsinks for efficient thermal dissipation, ensuring stable operation during long printing sessions.
• SD Card Slot: Push-pull type SD card slot for firmware updates and print file storage.

Special Features

• EZ Driver Technology:

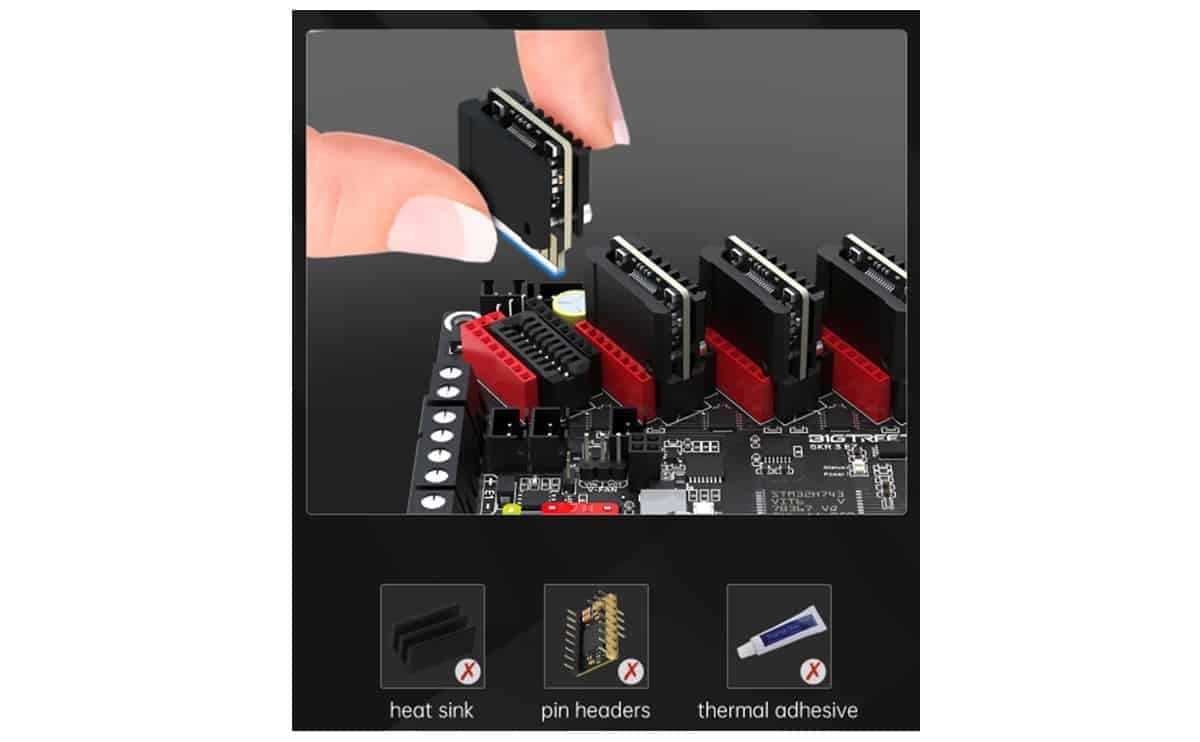

• Simplifies installation with a tool-free driver system, eliminating complex wiring.
• Reduces setup time while ensuring compatibility with various driver configurations.
• Marlin Firmware Ready: Fully compatible with Marlin firmware, allowing easy configuration and customization for enhanced functionality.
• Enhanced Safety Features:
• Includes overcurrent and short circuit protection.
• Anti-reversal protection to prevent damage to the motherboard or drivers during installation.
• Compact Design: The SKR 3 EZ features a compact and streamlined design, making it an excellent choice for upgrading compact or space-constrained 3D printers.
• TMC 2209 driver, modules, servo closed loop motor,bigtreetech motherboard, etc also available with Bigtreetech.

Package Include

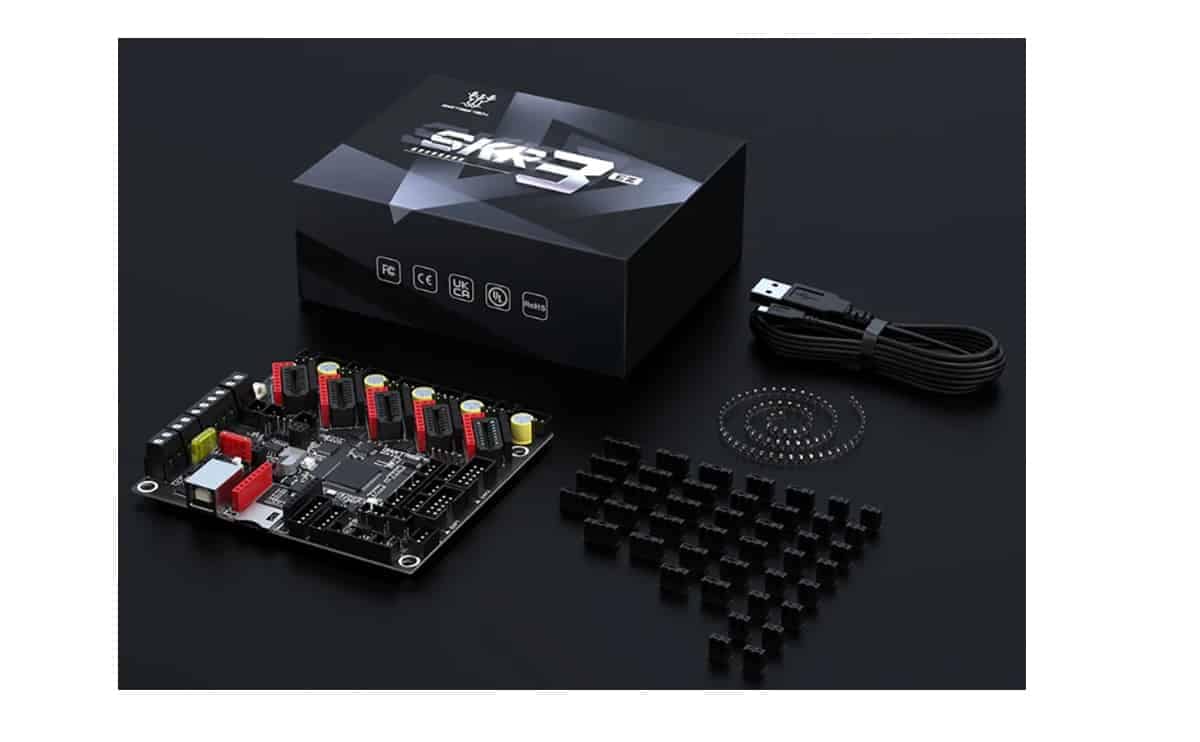

• 1 piece of SKR 3 EZ bigtreetech motherboard.
