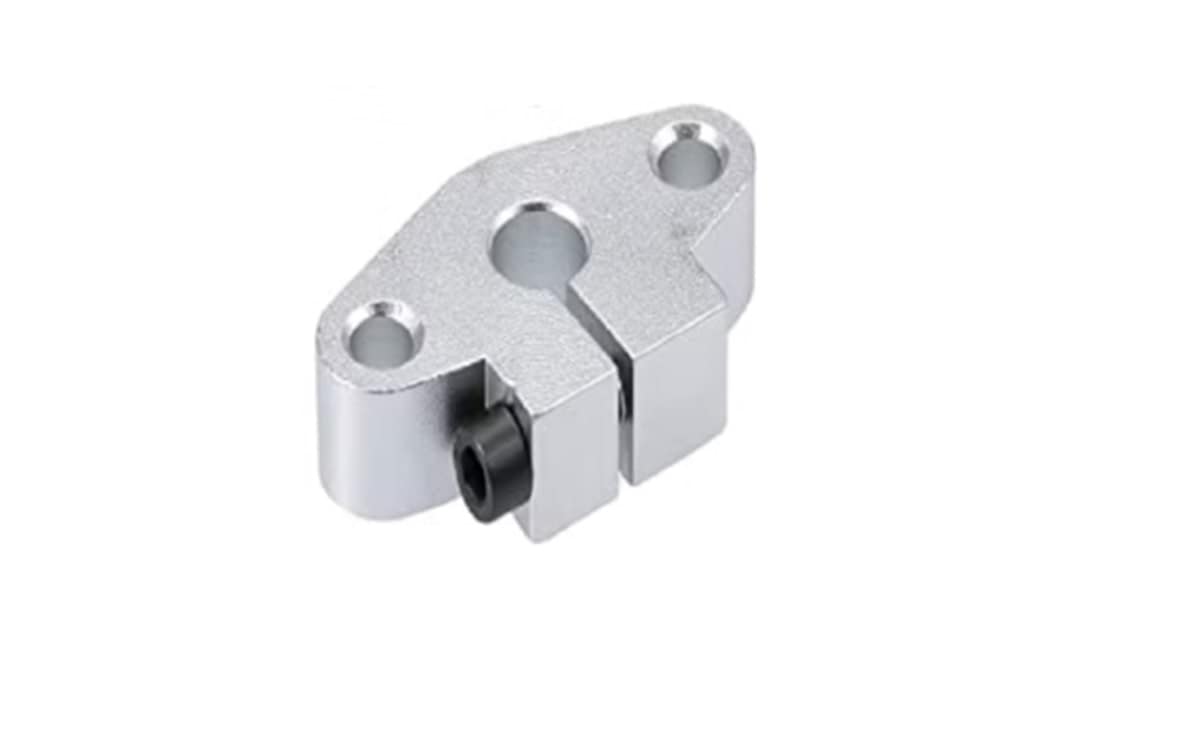

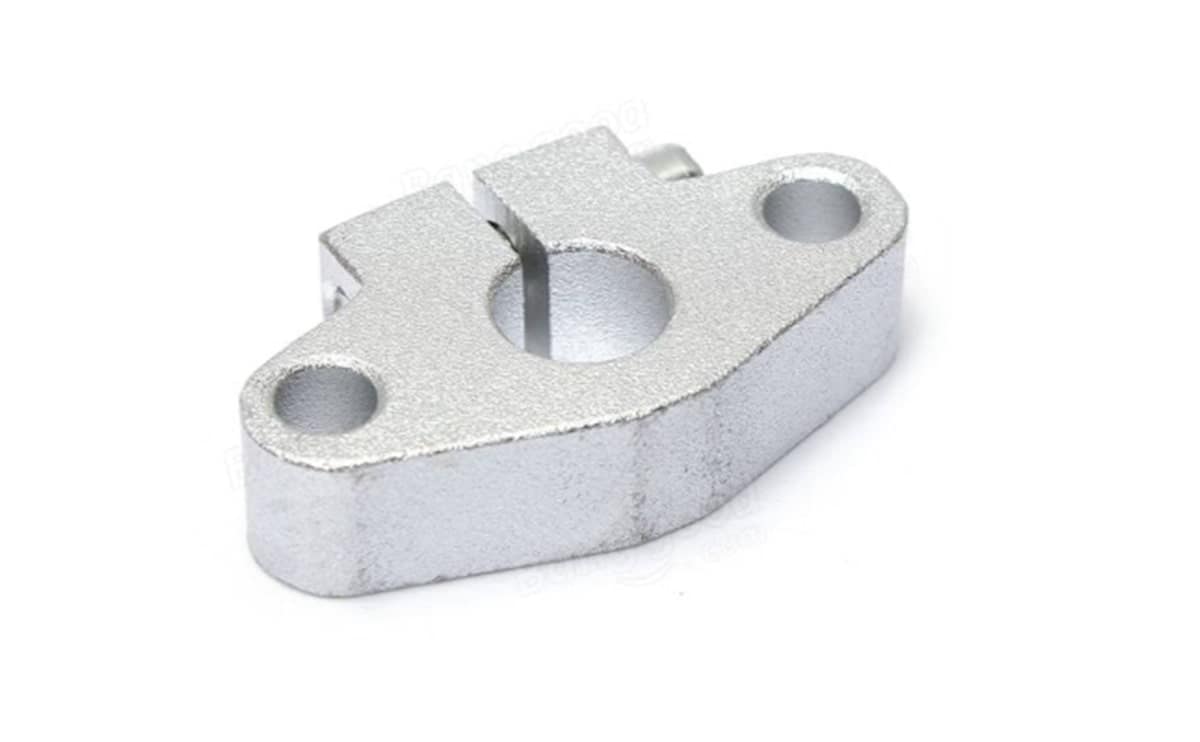

SHF10 Shaft Support Horizontal 10mm Linear Shaft Holder for 3D Printers

SHF10 Shaft Support Horizontal 10mm Linear Shaft Holder for 3D Printers

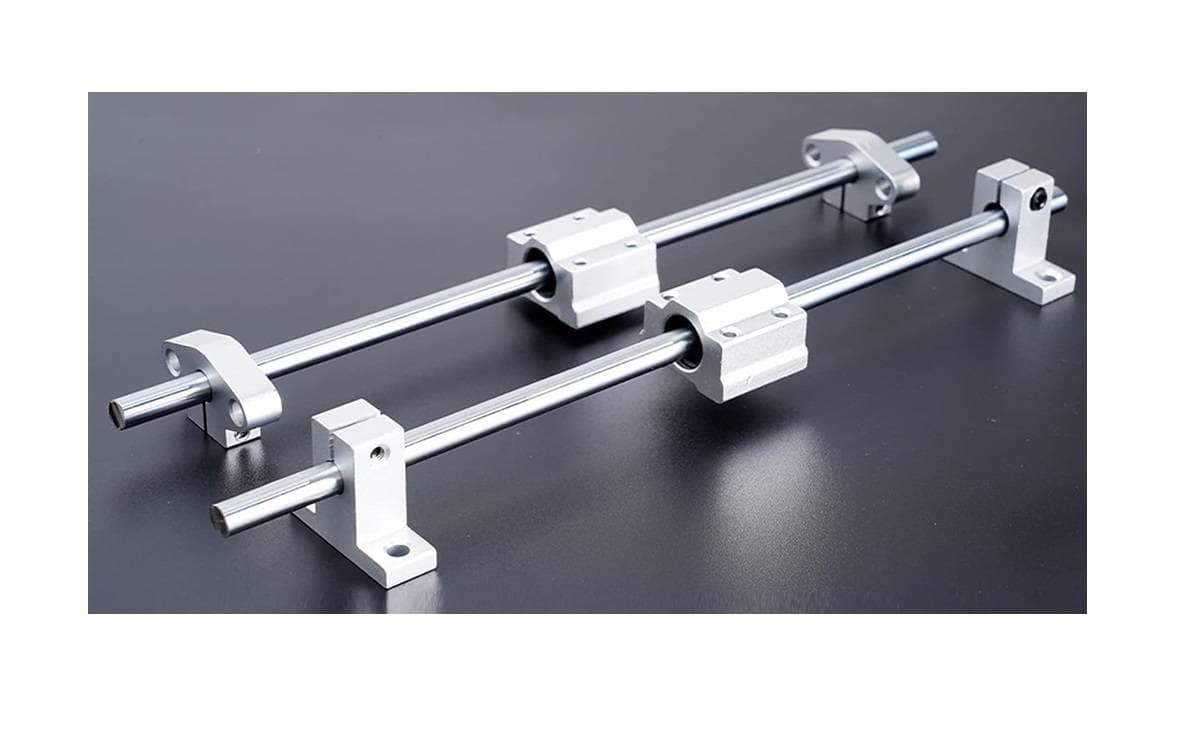

The SHF10 Horizontal Shaft Support is designed specifically for 3D printers to provide stable and precise mounting for 10mm linear shafts.

• This linear motion bearing support improves shaft alignment, reduces vibration, and ensures smooth linear motion for high-quality prints.
• By using the SHF10, the need for non-standard parts is minimized, making it ideal for DIY projects, small-scale production, and scientific equipment. The SHF10 is also compatible with other sizes such as SHF8 and SHF12, offering flexibility for different linear shaft diameters.

Features

• Secure 10mm Shaft Support: Maintains stable and aligned shafts during operation.
• Durable Construction: Made from high-quality aluminum alloy and steel for corrosion resistance and long-lasting reliability.
• Smooth Linear Motion: Reduces friction and vibration for precise movement.
• Easy Installation: Pre-drilled mounting holes for fast and hassle-free setup.
• Wide Compatibility: Suitable for 3D printers, CNC machines, robotics, and DIY linear motion projects.
• High Performance & Long Life: Designed to withstand continuous use in demanding applications.

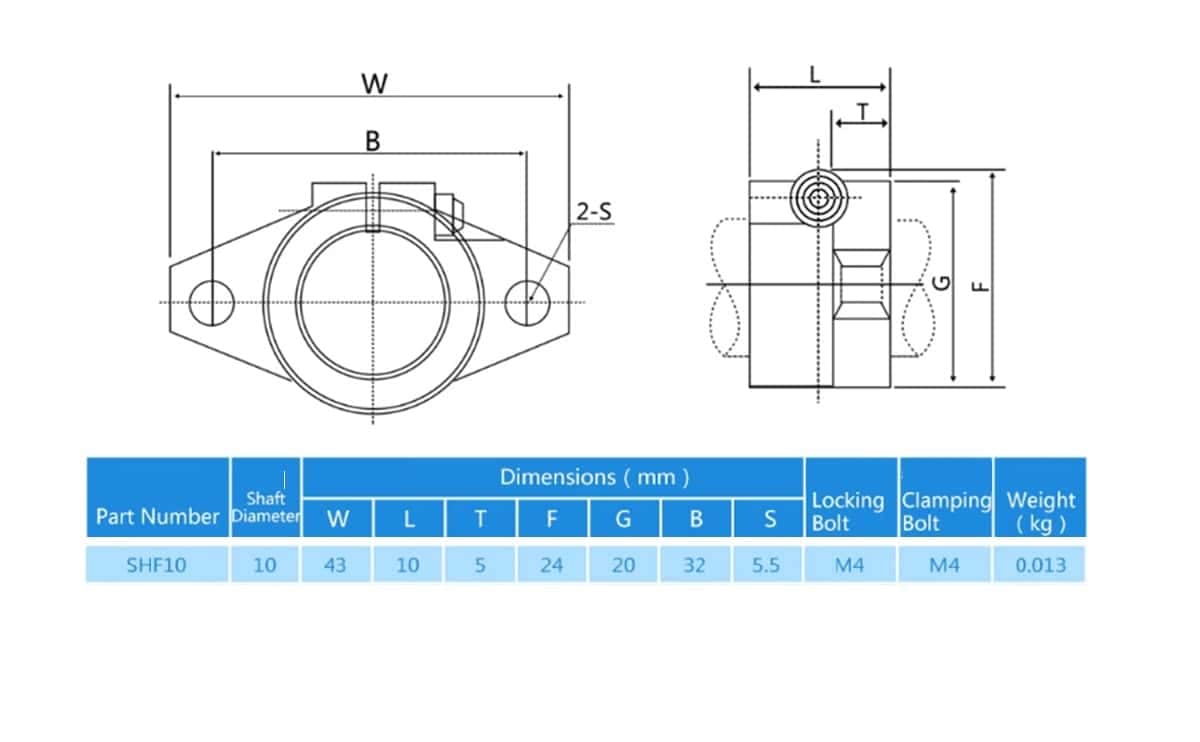

Specifications

• Model: SHF10 Shaft Support
• Material: Steel / Aluminum Alloy
• Shaft Diameter: 10mm
• Total Size: 43 × 24 × 10 mm (L × W × H)
• Hole Diameter: 5.5mm
• Hole Center Spacing: 32mm

Applications

• 3D printer linear shaft support for precise extrusion
• CNC machines for milling, engraving, and cutting
• Robotics and automation for stable linear motion
• DIY linear motion systems and custom builds

Package Includes

• 1 × SHF10 Shaft Support (10mm)
