R86 Stepper Motor Driver High Torque Driver for NEMA 34 CNC and Industrial Motor

R86 Stepper Motor Driver is High Torque Driver for NEMA 34 CNC and Industrial Motor

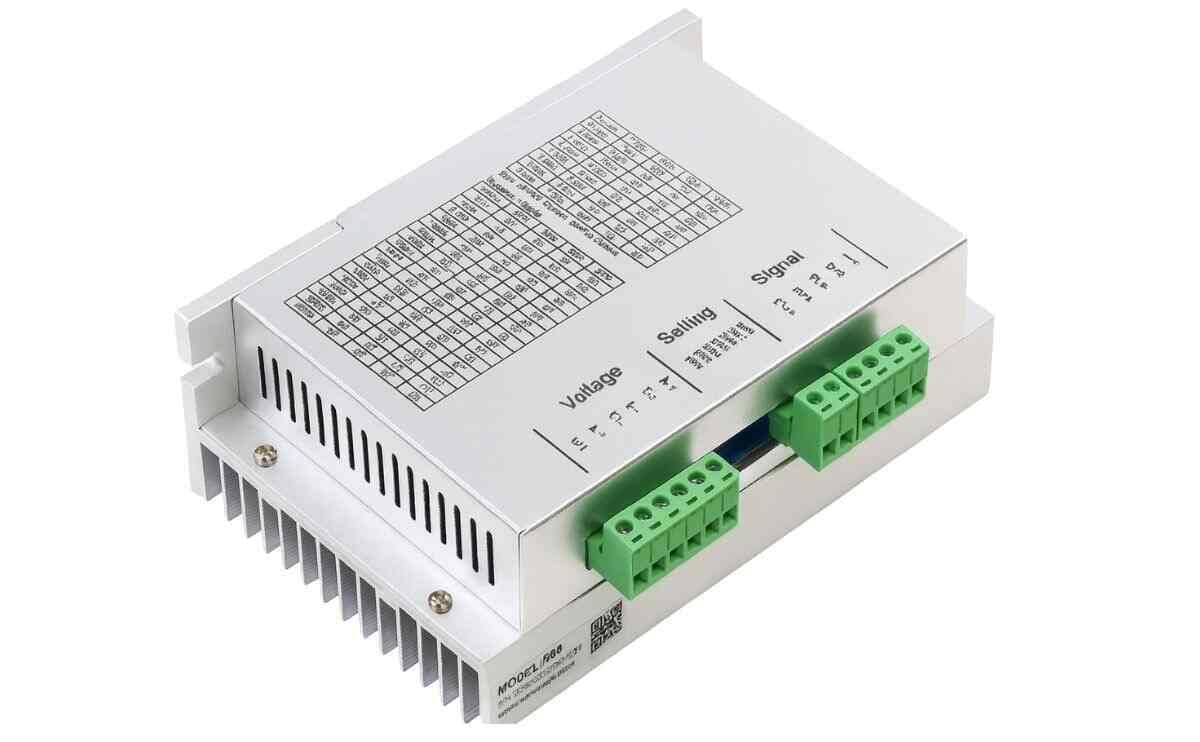

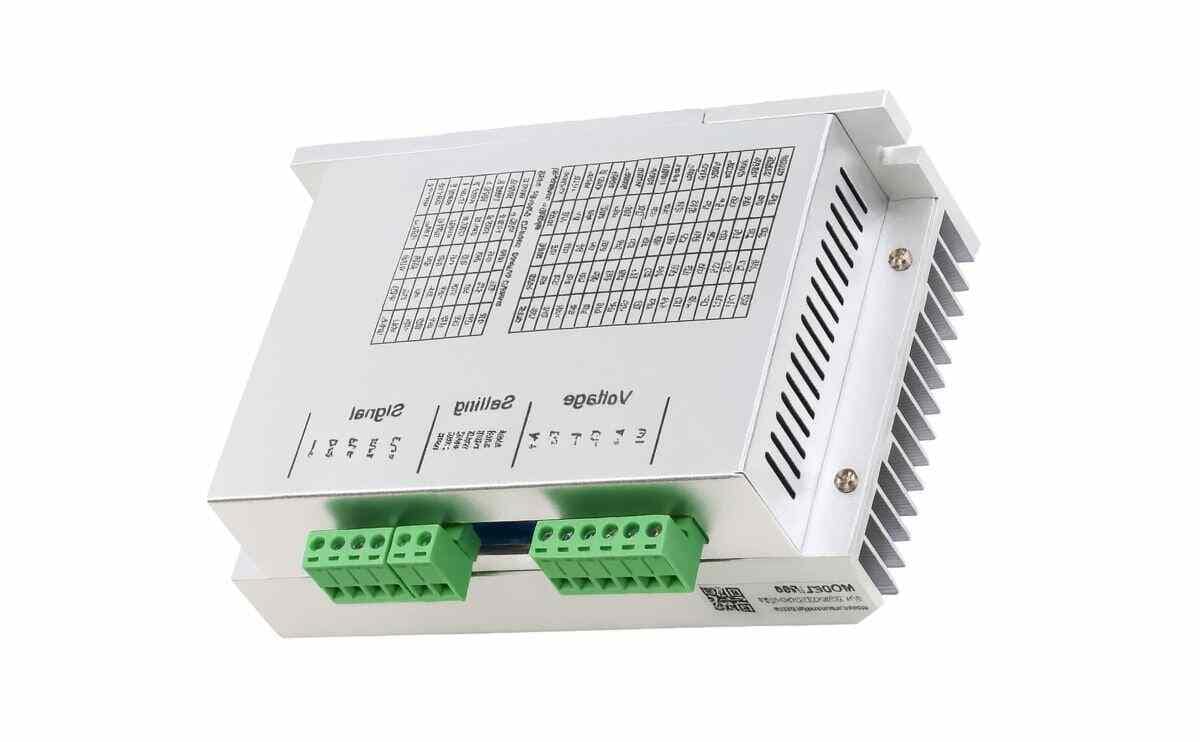

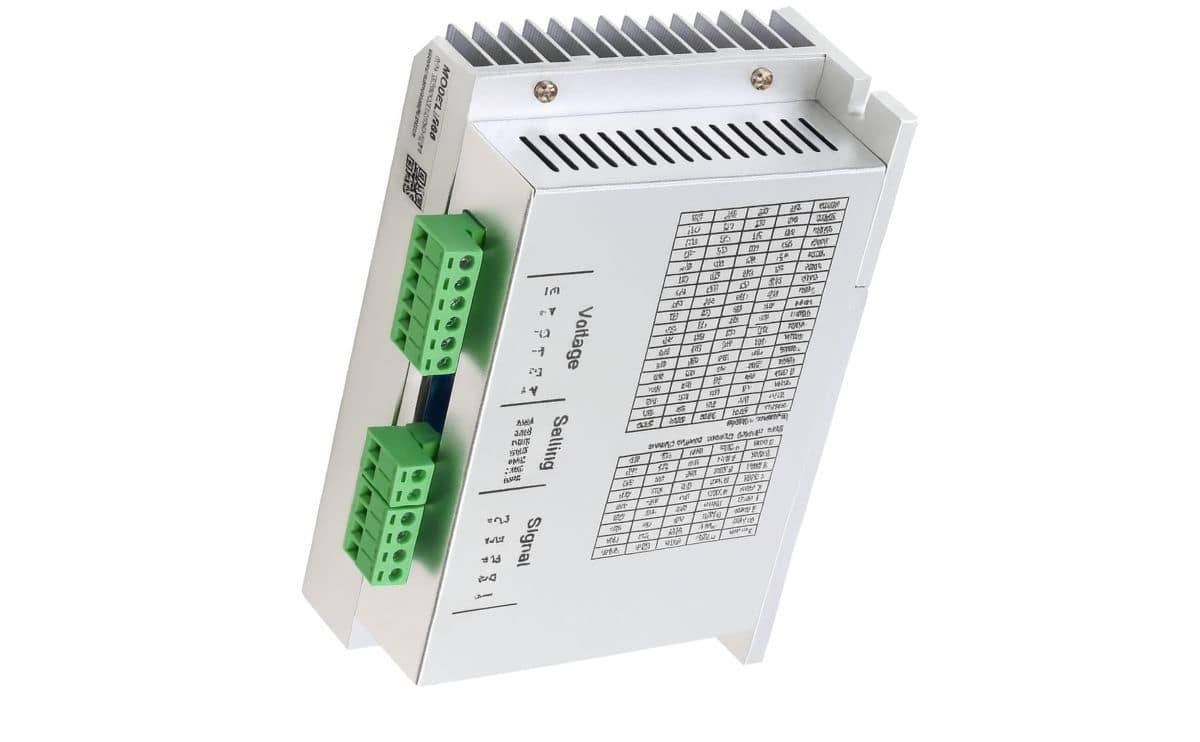

R86 Stepper Driver is a high-torque, industrial-grade driver designed specifically for NEMA 34 (86mm) stepper motors.

• With wide voltage input support, high current output, and precise micro-stepping control R86 motor driver
• R86 driver delivers exceptional power, stability and smooth motion suitable for heavy-load CNC and automation systems.

Specifications

• Input Voltage: 24V–80V DC
• Output Current: 2.0A – 8.6A (adjustable)
• Supported Motors:
  • NEMA 34 (86mm)
• Max Pulse Frequency: 200kHz
• Protection Features:
  • Over-current protection,Over-voltage protectionUnder-voltage lockoutShort-circuit protection
• Cooling: Heat-sink + Natural Air Cooling
• Operating Temperature: -10°C to 60°C

Key Features

• CNC driver R86 Supports high-torque NEMA 34 motors, ideal for heavy industrial applications
• R86 stepper controller Wide 24V–80V input range for stable and strong torque
• High-precision micro-stepping for ultra-smooth motion
• Automatic idle-current reduction for energy savings
• Built-in protection to ensure safe long-term use
• Robust, durable industrial-grade design suitable for 24/7 operation

Applications

• CNC Routers / CNC Milling Machines, CNC Plasma & Laser Cutting Machines
• Industrial Automation Equipment
• Robotics & Heavy Pick-and-Place Systems
• Packaging and Textile Machines
• Conveyor Systems and Lifting Platforms
• Linear Actuators & Gantry Mechanisms

Package Includes

• 1 piece of R86 Stepper Driver
