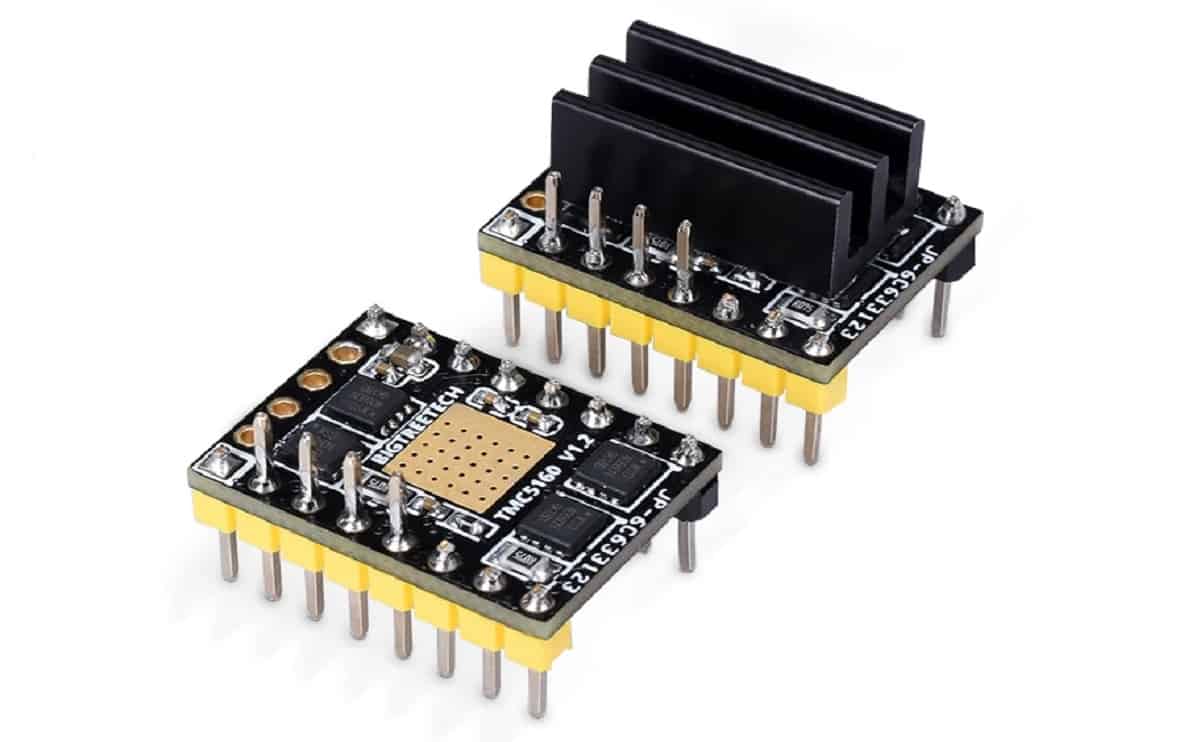

TMC5160T Driver Bigtreetech TMC5160T stepper motor driver for 3D printer machine

TMC5160T Driver Bigtreetech TMC5160T stepper motor driver for 3D printer machine

TMC5160T Driver Bigtreetech TMC5160T stepper motor driver for 3D printer machine

• It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Using external transistors, highly dynamic, high torque drives can be realized.
• The driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque.
• High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions.
• The complete solution reduces learning curve to a minimum while giving best performance in class.

Specifications

• The TMC5160T Driver by Bigtreetech is a high-performance stepper motor driver designed specifically for 3D printer machines. It offers advanced features and reliable performance to ensure smooth and precise motor control.
  • Input Voltage: 4.75V to 46V
  • Motor Phase Current: Up to 2.8A RMS (5A peak)
  • Microstepping: Up to 256 microsteps per full step
  • Interface: SPI, Step/Dir
  • Operating Temperature: -20°C to +75°C

Dimensions

• The TMC driver has compact dimensions, making it suitable for various 3D printer machine designs.
• The board measures approximately 20mm x 25mm, ensuring easy integration into your system without taking up much space.

Applications

• The TMC5160T Driver is ideal for a wide range of applications in the 3D printing industry.
• Stepper motor and driver can be used in both professional and hobbyist-grade 3D printers, CNC machines, robotic systems, and other motion control applications.
• Its high-performance capabilities make it suitable for demanding projects that require precise motor control and smooth operation.

Usage

• The TMC5160T Driver can be easily connected to your 3D printer machine or other compatible systems.
• It supports both SPI and Step/Dir interfaces, providing flexibility in integration.
• The driver’s advanced features, such as stealthChop2 and spreadCycle, ensure quiet operation and reduced motor noise.
• Additionally, the driver offers various protection features, including over-temperature, over-current, and short-circuit protection, ensuring the safety and longevity of your system.

Package Include:

• 1 piece of  TMC5160T V1.0.
