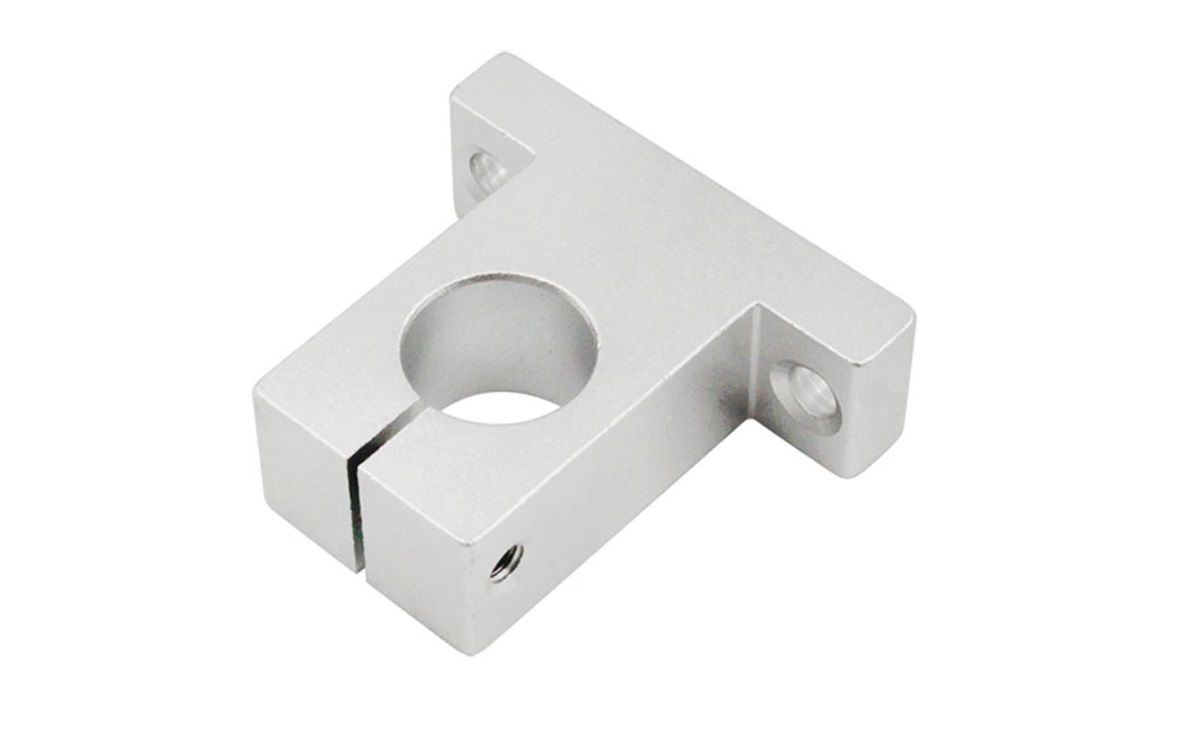

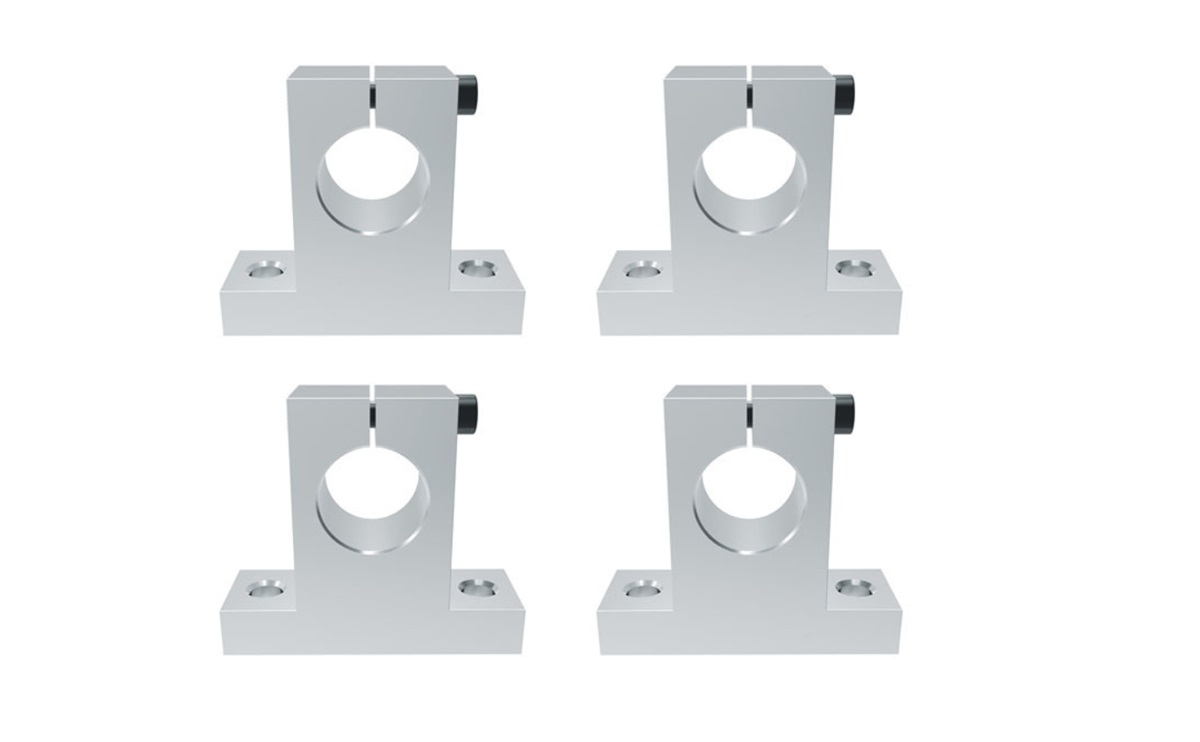

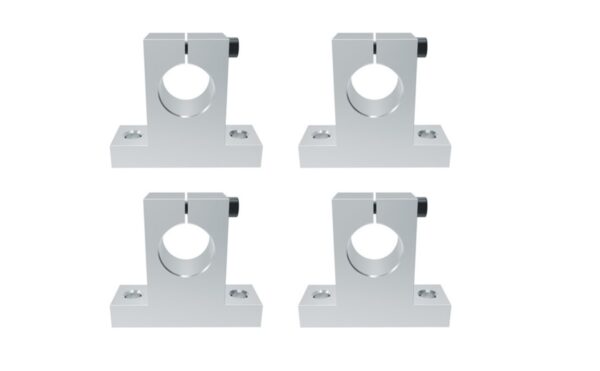

Linear bearing rail SK8/SK10 8MM/10MM linear bearing rail support XYZ Shaft Table CNC Router

Linear bearing rail SK8/SK10 8MM/10MM linear bearing rail support XYZ Shaft Table CNC Router SH8A design End Support is used mainly to support Hard Chrome Plated Rods in CNC Routers, CNC Engraving machines, 3D Printing Machines, Cashew Nut Shelling Machines, Pick and Drop Machines, Robots for Industrial Automation.

• These reliable products are tested on numerous parameters before dispatching in the market. In order to satisfy the requirements of our precious clients, we customize these products.
• These Linear bush end support Linear guide end support Linear shaft end support Hard chrome plated rod end support Chrome plated rod end support Chrome plated rod support Linear shaft support Chrome bar Hard chrome bar.

Features Linear bearing rail :

1. Light and simple design
2. High torque capacity
3. High rigidity
4. High positioning accuracy, high rotating accuracy
5. High efficiency
6. Riding stability

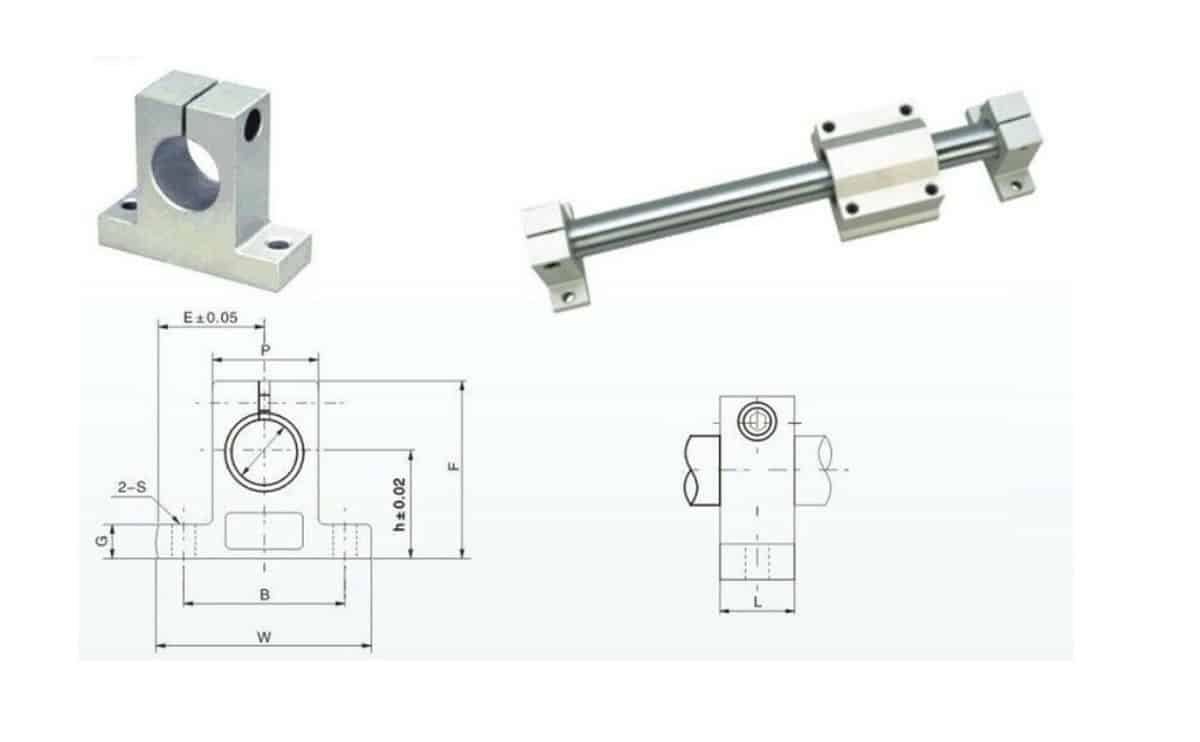

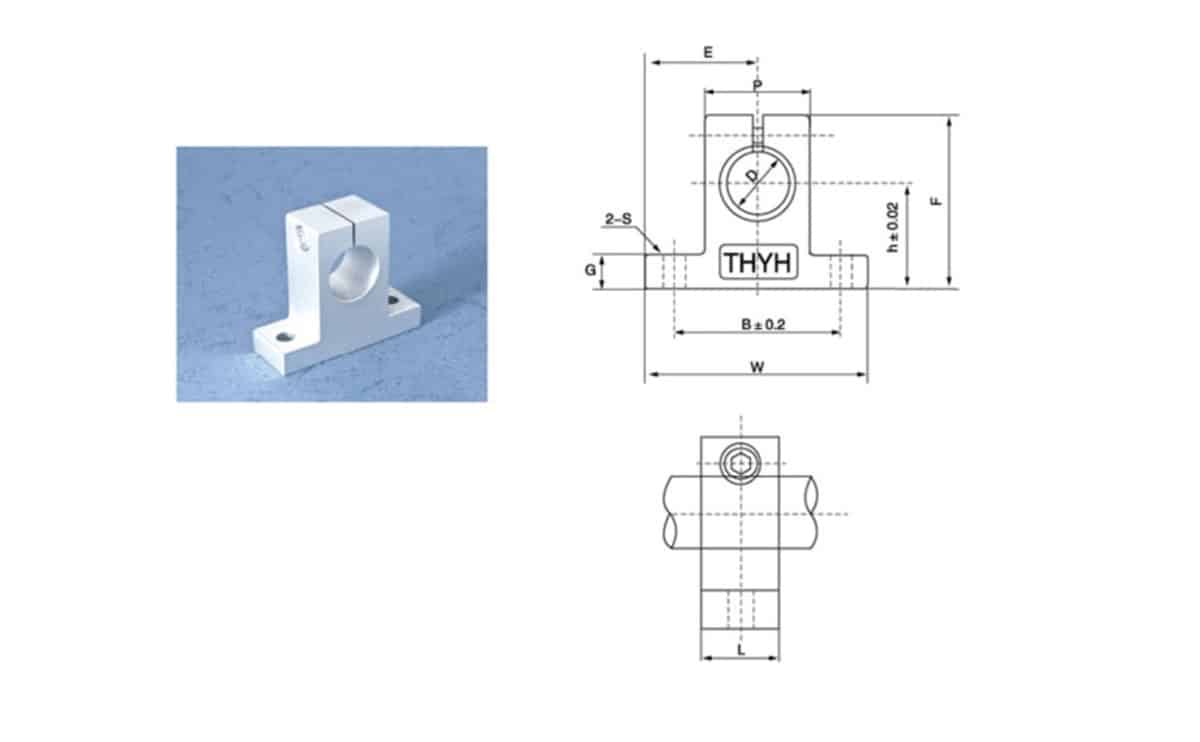

Specifications:

1. Model description: SK8
2. Shaft ID: 8mm
3. Dimensions: 14 x 42 x 32 (LxWxH) mm
4. Mounting Hole Diameter: Approx. 5.5 mm
5. Center Hole Distance: Approx. 32 mm
6. Material: Steel
7. Model description: SK10
8. Shaft ID: 10mm
9. Dimensions: 14 x 42 x 32 (LxWxH) mm
10. Mounting Hole Diameter: Approx. 5.5 mm
11. Center Hole Distance: Approx. 32 mm
12. Material: Steel

Package Includes :

• As per order  linear bearings rail SK8/SK10 rail support
