PI4B adapter bigtreetech V1.0 for CB1 for motherboards used in 3D printer

PI4B adapter bigtreetech V1.0 for CB1.

BIGTREETECH CB1:

• Exceptional performance with its quad-core 64-bit ARM®
• [email protected] processor and 1GB DDR3 RAM,
• Powerful Enough to Run Linux
• Support Debian
• Programmable

Product parameters:

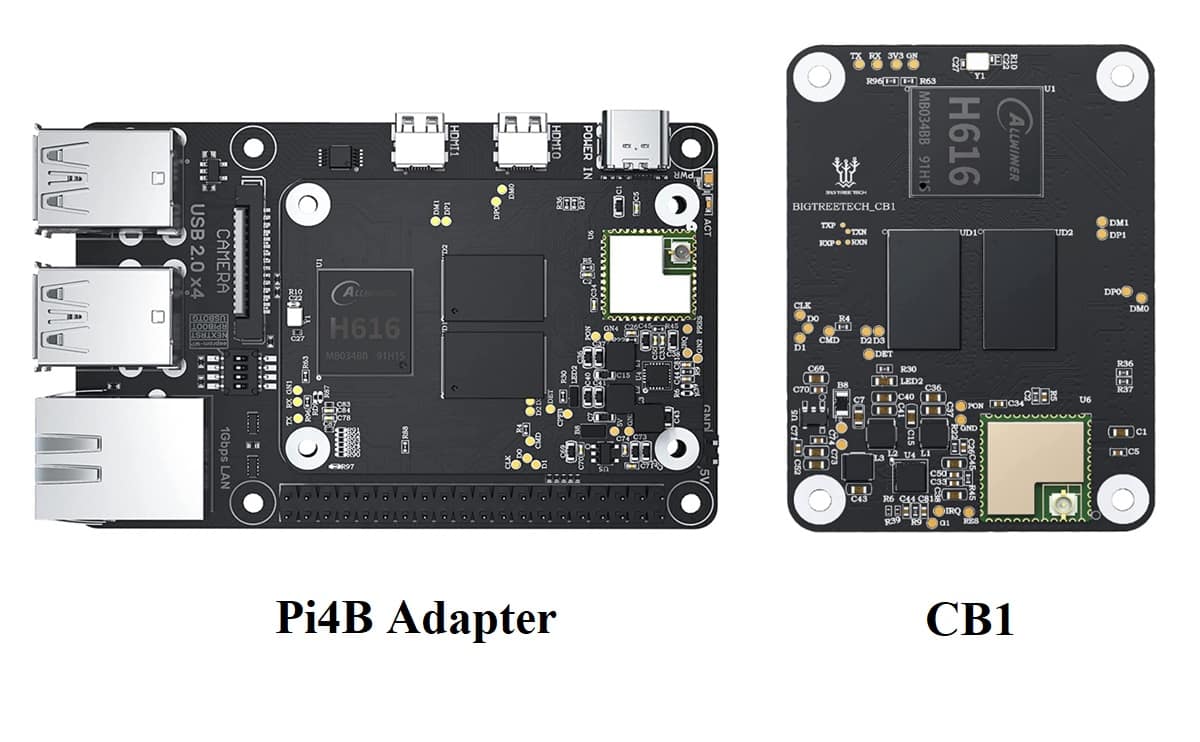

• PI4B Adapter
  • Power Input: Type-C 5±0.25V
  • Support: BIGTREETECH CB Series, all versions of Raspberry Pi CM4
  • Interface: Micro HDMIX2, USB 2.0×4, RJ45, DSI CSI, Micro SD, etc

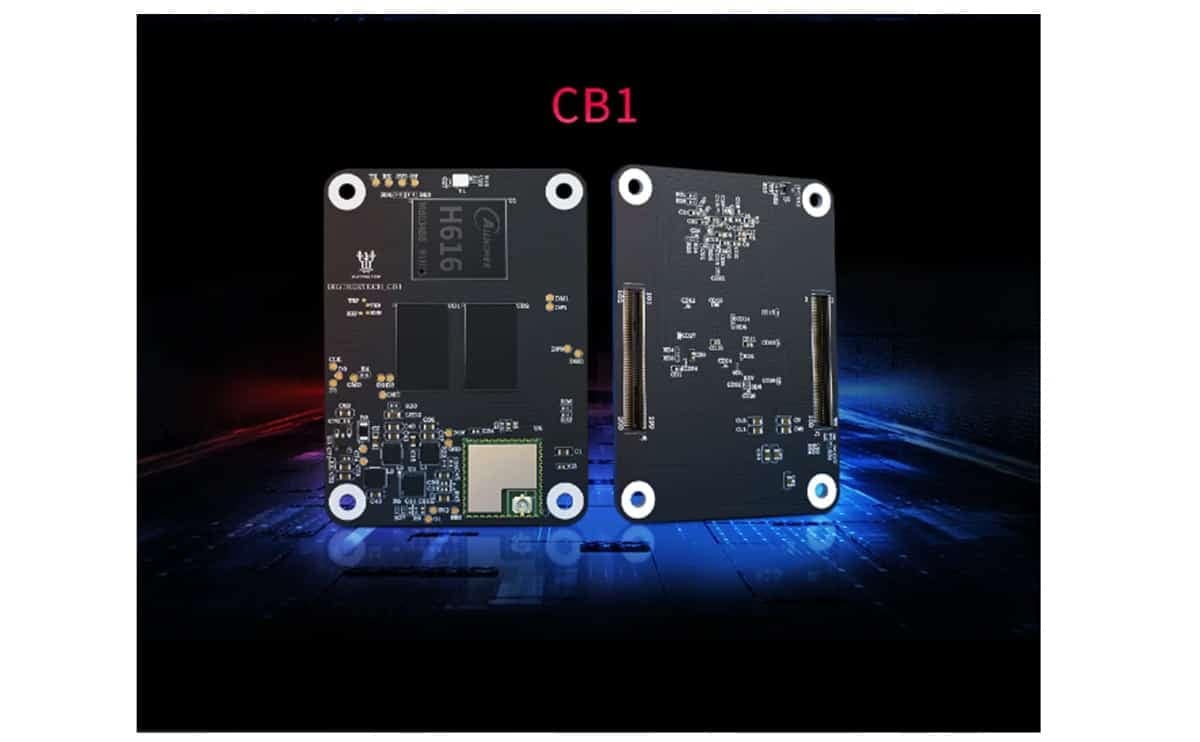

• CB1
  • CPU: Allwinner H616, Quad-core Cortex-A53 @1.5GHz
  • GPU: Mali G31 MP2, support OpenGL3.2
  • RAM: 1GB DDR3L SDRAM
  • Display: Support HDMI2.0A output, 4K display
  • USB: 2.0
  • Network Support:100M Ethernet + 100M WiFi

Main Features PI4B Adapter:

• Standard Raspberry Pi CM4 Socket Fit for all versions of CM4
• Full Connectivity Onboard 1000M Ethernet port, CSI camera port, dual Micro HDMI, etc.
• Type-C Power Supply Port Easy to write system, stable power supply
• 40-pin GPIO Connect with external input/output peripheral devices
• STL File of PI4B+CB1 Case Users can download and print on their own

Features of CB1:

• ARM Cortex-A53 1GB DDR3 64-bit 1.5GHz High speed and high stability.
• Heatsink for CB1 (On sale) Efficient heat dissipation to ensure stable operation of CBl.
• HDMI 4K UHD Output High-performance details and clarity.
• Support 100M Ethernet + 100M WiFi For network connectivity
• The Highly Cost-Effective Way to Run Your Klipper
• PI4B Adapters working with the CB1
• The combination of the PI4B adapters, CB1, and BIGTREETECH motherboard can run Linux, thus offering a highly cost-effective way to run your Klipper.
