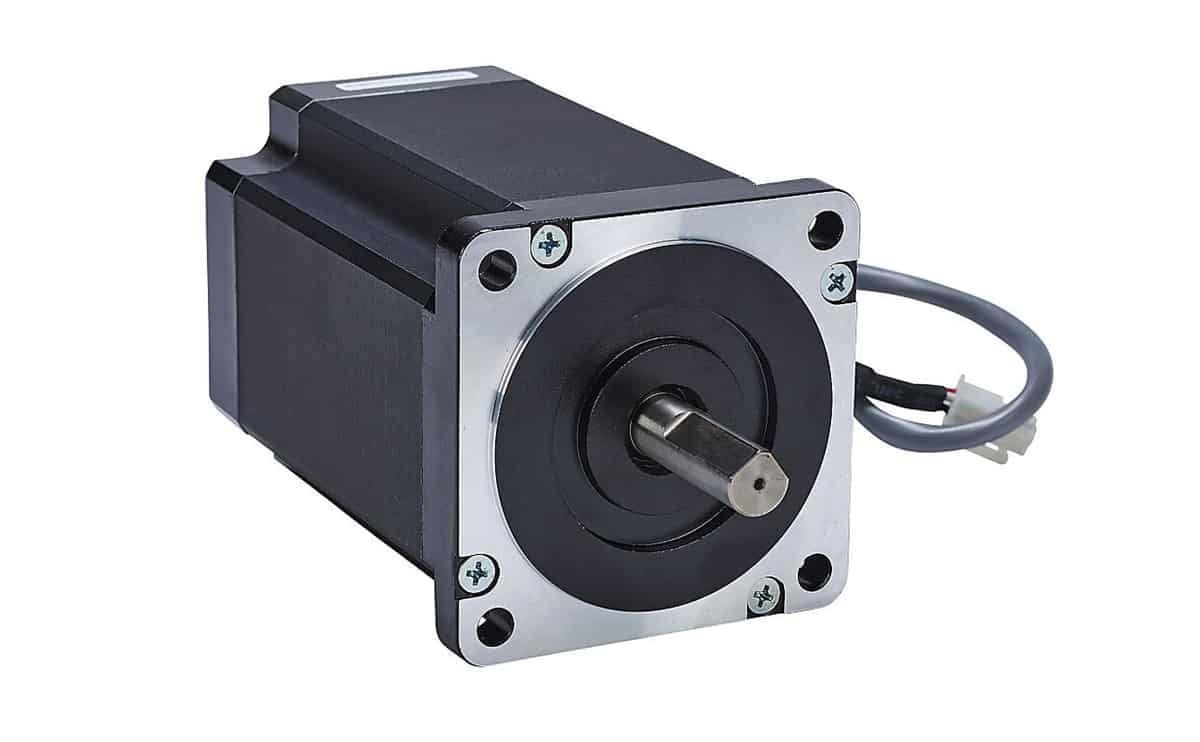

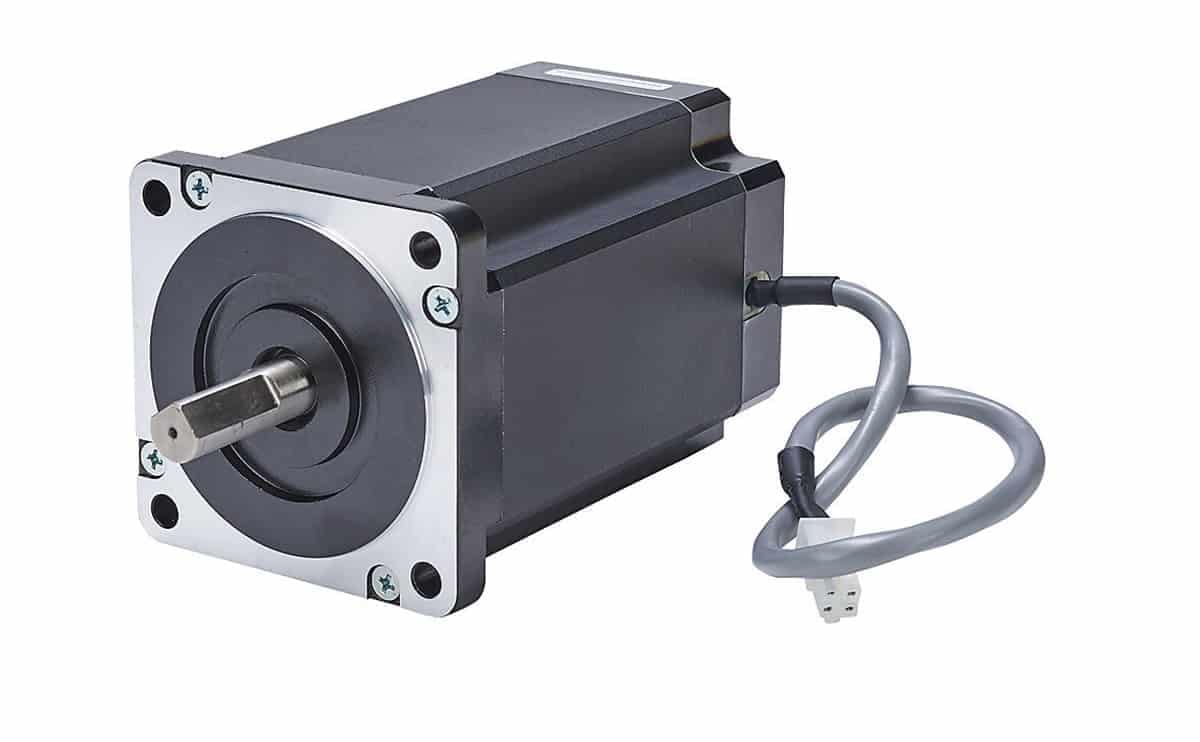

Nema34 Stepper motor 120Kgcm for 3D printer and CNC machines

Nema34 Stepper motor 120Kgcm for 3D printer and CNC machines

NEMA34 120 kg-cm Stepper Motor is your perfect choice.

• So the most attractive thing about NEMA stepper motor is 120 kg-cm torque they provide. This Motor provides excellent response to starting, stopping and reversing pulses from the stepper motor driver.
• It will give you 120 kg-cm of torque at 6A of current per phase. You can use them where you need high torque at high speed.
• Stepper motor divides a full rotation into a number of equal steps.
• Thus, the motors position can be commanded to move and hold at one of these steps, as long as the motor is carefully sized to the application with respect to torque and speed.
• This NEMA 34 Stepper Motor is a powerhouse when it comes to larger machines that require high torques. These are specially designed to withstand high torque requirements of large CNC machines.
• The NEMA34 120 kg-cm Stepper Motor is a brushless dc motor that operates in Open Loop Control system. This type of shaft is useful in providing stability in high power operation.

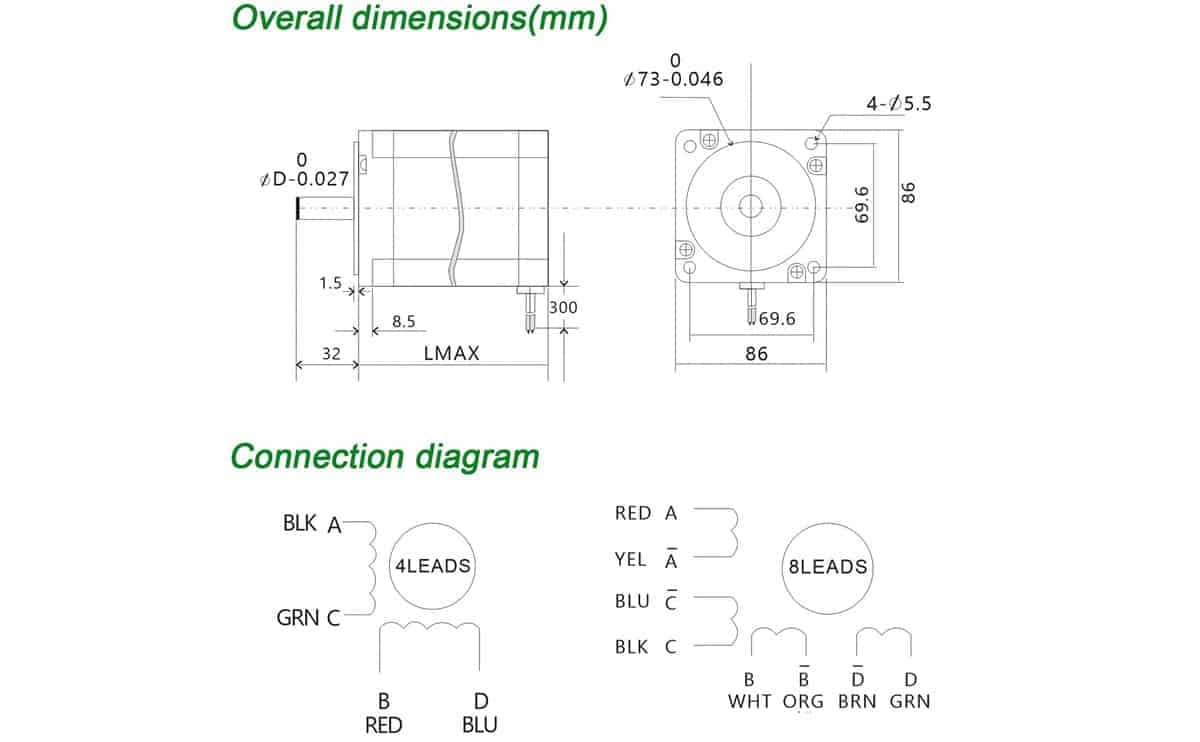

NEMA 34 1.8°STEPPING MOTOR

Specifications:

• Rated Voltage (V): 9 v
• Current/ phase (A): 5 Amp
• Holding Torque(kg-cm): 12 N.m
• Step Angle: 1.8 degree
• Detent Torque: 0.32 N.m
• Phase Resistance: 1.1ohm+/-10%
• Phase Inductance: 7.5mH+/-20%
• Rotor Inertia : 3600g.cm^2
• Motor Weight : 5kg
• Insulation Resistance : 100 ohm/min
• Insulation class : Class B

Applications

• Stepper motor driver is ideal for a wide range of applications, including:
  • 3D Printers: The Nema34 Stepper Motor provides the necessary torque and accuracy for precise 3D printing, ensuring smooth and consistent movement of the print head.
  • CNC Machines: Whether you’re working with wood, metal, or other materials, this motor delivers the power and control required for precise cutting, milling, and engraving.
  • Robotics: From robotic arms to automated systems, the Nema34 Stepper Motor offers reliable and precise motion control, making it suitable for various robotic applications.

Usage

• The Nema34 Stepper Motor  and nema34 stepper motor driver is easy to use and integrate into your system. It is compatible with most stepper motor drivers and controllers, allowing for seamless operation.
• Its high torque and accuracy ensure smooth and precise movement, enhancing the overall performance of your 3D printer or CNC machine.
• Whether you’re a hobbyist or a professional, the Nema34 Stepper Motor 120Kgcm is a reliable choice for your motion control needs. \
• Its robust construction, precise movement, and compatibility with various applications make it a versatile motor for 3D printers, CNC machines, and robotics.

Package Include:

• 1 piece of nema34 stepper motor.
