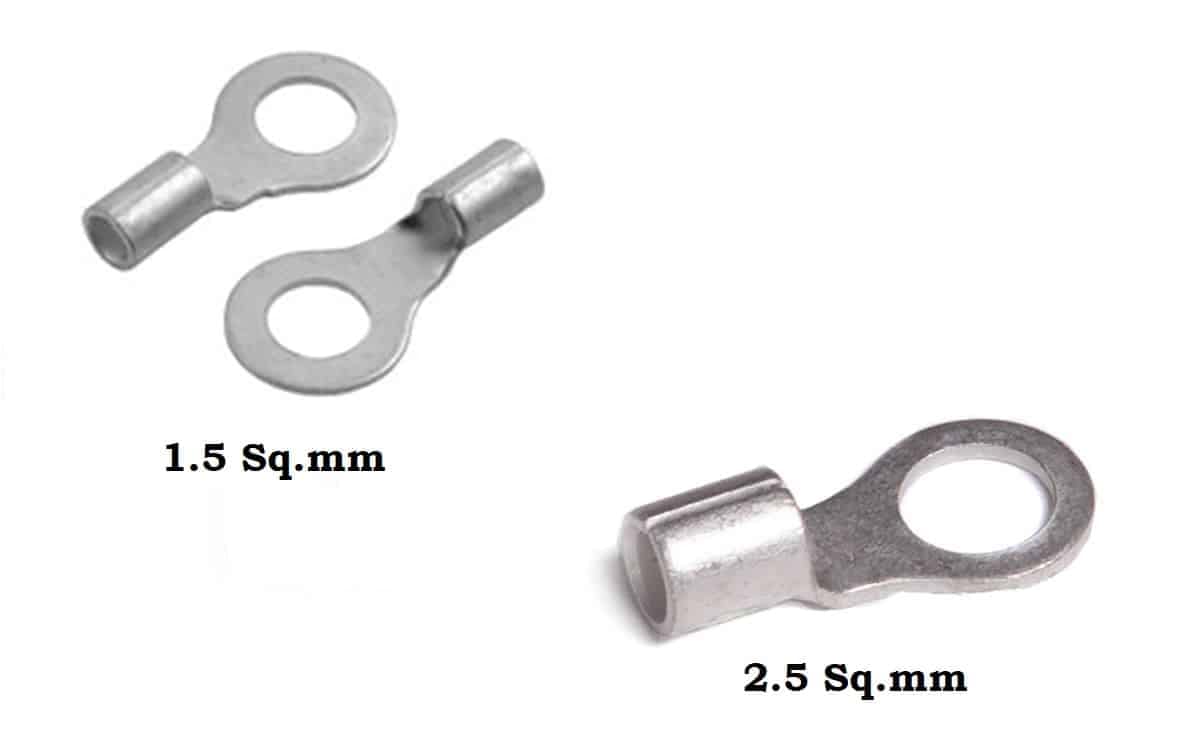

Non Insulator Ring Terminal Connector 1.5sqmm and 2.5sqmm

Non Insulator Ring Terminal Connector 1.5sqmm and 2.5sqmm

When it comes to electrical connections, it is crucial to have reliable and secure terminals.The non insulator ring terminal connector is a high-quality solution for your electrical needs.Designed for use with wires of 1.5sqmm and 2.5sqmm, this connector ensures a strong and durable connection.

Features

• The non insulator ring terminal connector  Wire & Connectors offers several features that make it an excellent choice for various applications:
  • Durable Construction: Made from high-quality materials, this connector is built to last. It can withstand the rigors of daily use and provide a long-lasting connection.
  • Secure Connection: The ring terminal design ensures a secure and reliable connection. It prevents accidental disconnections and ensures uninterrupted electrical flow.
  • Easy Installation: The connector is designed for easy installation. It features a simple, yet effective, design that allows for quick and hassle-free connections.
  • Wide Compatibility: Non Insulator Ring Terminal is compatible with wires of 1.5sqmm and 2.5sqmm, making it suitable for a wide range of applications.
  • Corrosion Resistance: The connector is resistant to corrosion, ensuring a stable connection even in harsh environments.

Applications

1. Automotive: It can be used in automotive wiring systems to provide secure connections for various electrical components.
2. Electrical Panels: The connector is ideal for use in electrical panels and control cabinets, ensuring reliable connections for power distribution.
3. Industrial Equipment: It can be used in industrial equipment, such as machinery and motors, to establish secure electrical connections.
4. Marine Applications: The connector’s corrosion resistance makes it suitable for marine applications, where exposure to moisture and saltwater is common.
5. Renewable Energy: It is also suitable for use in renewable energy systems, such as solar panels and wind turbines, ensuring efficient and reliable power transmission.

Installation Instructions

• Follow these steps to install the non insulator ring terminal connector:
  1. Strip the insulation from the end of the wire, exposing the bare conductor.
  2. Insert the bare conductor into the terminal barrel of the connector.
  3. Using a crimping tool, crimp the terminal barrel to secure the wire in place. Ensure a proper and tight crimp for a reliable connection.
  4. Once the wire is securely crimped, insert the ring terminal onto the desired terminal stud or screw.
  5. Tighten the terminal stud or screw to secure the ring terminal in place.
  6. Ensure that the connection is tight and secure, and perform a visual inspection to verify proper installation.
• It is important to follow proper installation procedures to ensure a safe and reliable electrical connection.

Package Include:

• 1 pcs of non insulator ring terminal 1.5sqmm or 2.5sqmm.
