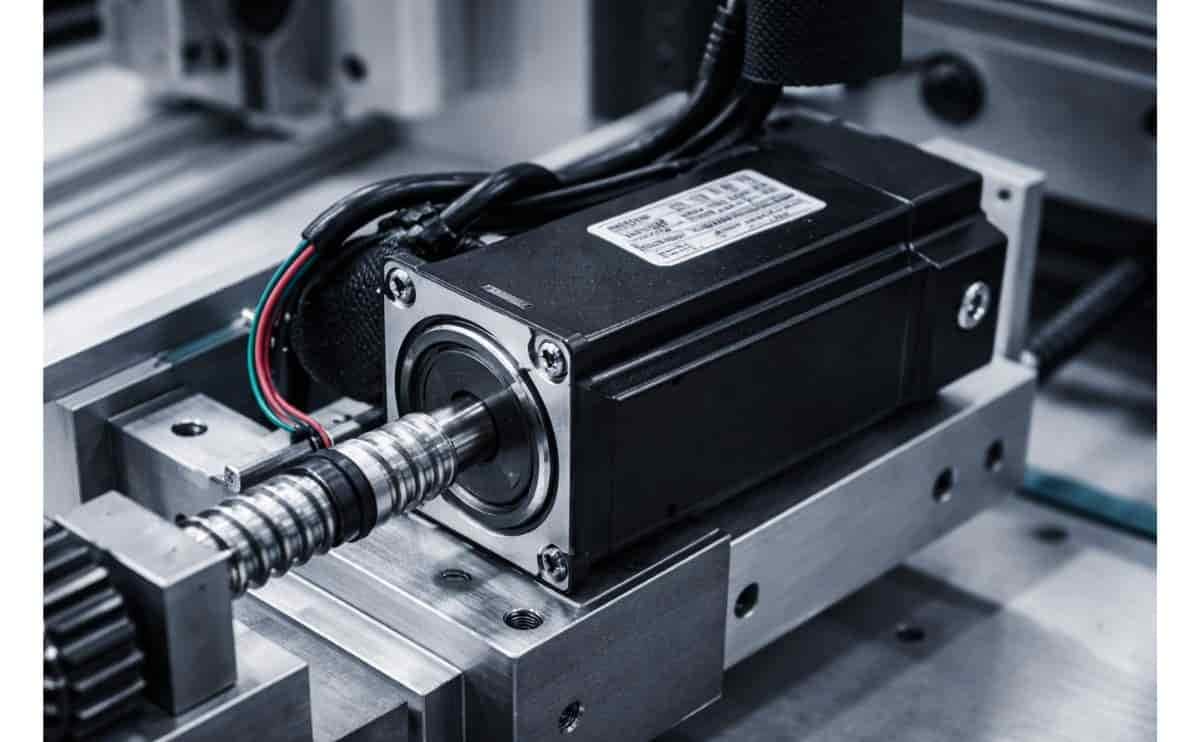

Nema23 stepper motor 57AM30ED closed loop stepper motor

Nema23 stepper motor 57AM30ED closed loop stepper motor

The Nema23 57AM30ED closed loop stepper motor offers a superior solution for applications requiring accurate and repeatable motion control.

• Nema23 stepper motor 57AM30ED motor combines the power of a Nema23 stepper with the accuracy of a closed-loop feedback system, ensuring your projects operate with unparalleled efficiency and performance.
• Say goodbye to missed steps and hello to smooth, controlled movement.

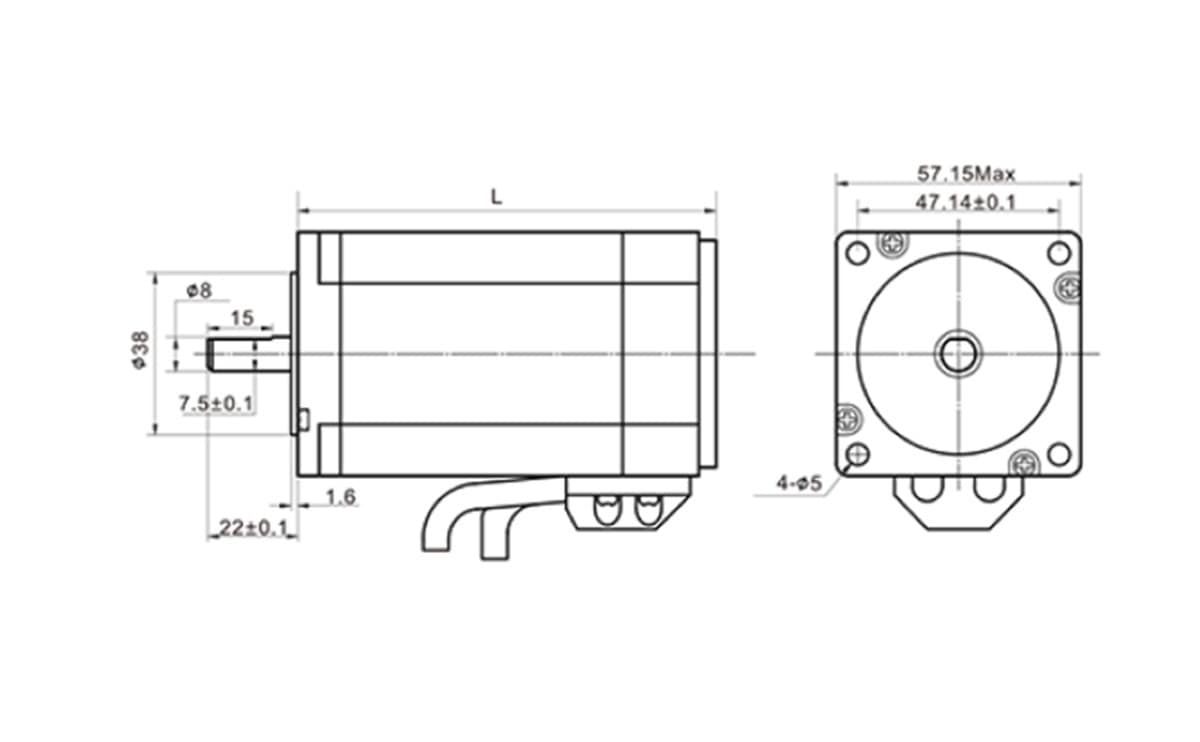

Specifications Nema23 stepper motor 57AM30ED

• Frame Size: NEMA 23 (57 × 57 mm)
• Model: 60AM30ED
• Phase Number: 2-phase
• Step Angle: 1.8°
• Holding Torque: 3.0 N·m
• Rated Current: 5.0A
• Phase Inductance: 2.2 mH
• Phase Resistance: 0.52 Ω
• Body Length (with Brake): 150 mm
• Rotor Inertia: 690 g·cm²
• Shaft Diameter: 8 mm
• Encoder Resolution: 4000 ppr
• Motor Body Length (L): 107 mm
• Control System: Closed-loop
• Motor Type: Hybrid Stepper Motor
• Best For: CNC, Robotics, Automation
• Driver Compatibility: T60 / R42 / R86 / DM542 / DM556 closed-loop drivers

Features

• Nema23 stepper motor 57AM30ED stepper motor have high torque 3.0 N·m for heavy-load applications
• Precise 1.8° stepping for smooth motion control
• Closed-loop feedback ensures zero missed steps
• Stable performance at high speeds
• Low vibration & silent operation
• Increased efficiency compared to open-loop motors
• Seamless installation with most CNC drivers
• Long-lasting industrial-grade construction
• Nema23 stepper motor 57AM30ED motor is built with precision-engineered components, ensuring high torque at low speeds and smooth rotation, making it reliable for even the most demanding environments.
• Whether you’re working with CNC machines, robotics, or automated systems, the Nema 23 Stepper Motor 57AM30ED combines performance and reliability for all your needs.

Applications

• CNC Routers, CNC Mills, CNC Lathes
• Robotics arms & automation systems
• Industrial motion control
• 3D printer upgrades
• Pick-and-place machinery
• Laser engraving machines
• Packaging automation
• DIY CNC projects and mechatronics

Usage Instructions

• Connect to a compatible closed-loop driver (T60 / DM556 / R42 etc.).
• Configure microstep and current settings as per load requirements.
• Align couplings properly to avoid shaft stress.
• 57AM30ED stepper motor Mount motor firmly to reduce vibration.

Package Includes

• 1 piece of 57AM30ED closed loop stepper motor
